Description
Description
INCLUDES:
• (1) Voltage Adapter
• (3) Screws M3 X 12 mm
• (2) Couplers F/F 4 mm
• (2) Alligator Clips (blue)
• (1) Wire Clip Set
FEATURES:
• Test lead length: 8.2'
• Test lead gauge: 1 mm² (AWG 18)
• Operating: -25 °C to +50 °C (-13 °F to +122 °F)
• Storage: -25 °C to +60 °C (-13 °F to +140 °F)
• Operating Humidity: IEC60721-3-3: 3K6: -25 °C to +30 °C (-13 °F to +86 °F): ≤100 %; 40 °C (104 °F): 55 %; 50 °C (122 °F): 35 %
• Operating: 2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
• Storage: 12 000 m
• Overvoltage: IEC 61010-1: Overvoltage Category IV 500 V, Pollution Degree 2
• Measurement: IEC 61010-031: CAT IV 600 V / CAT III 1000 V
• Dimensions: 6" x 1.5" x 12"

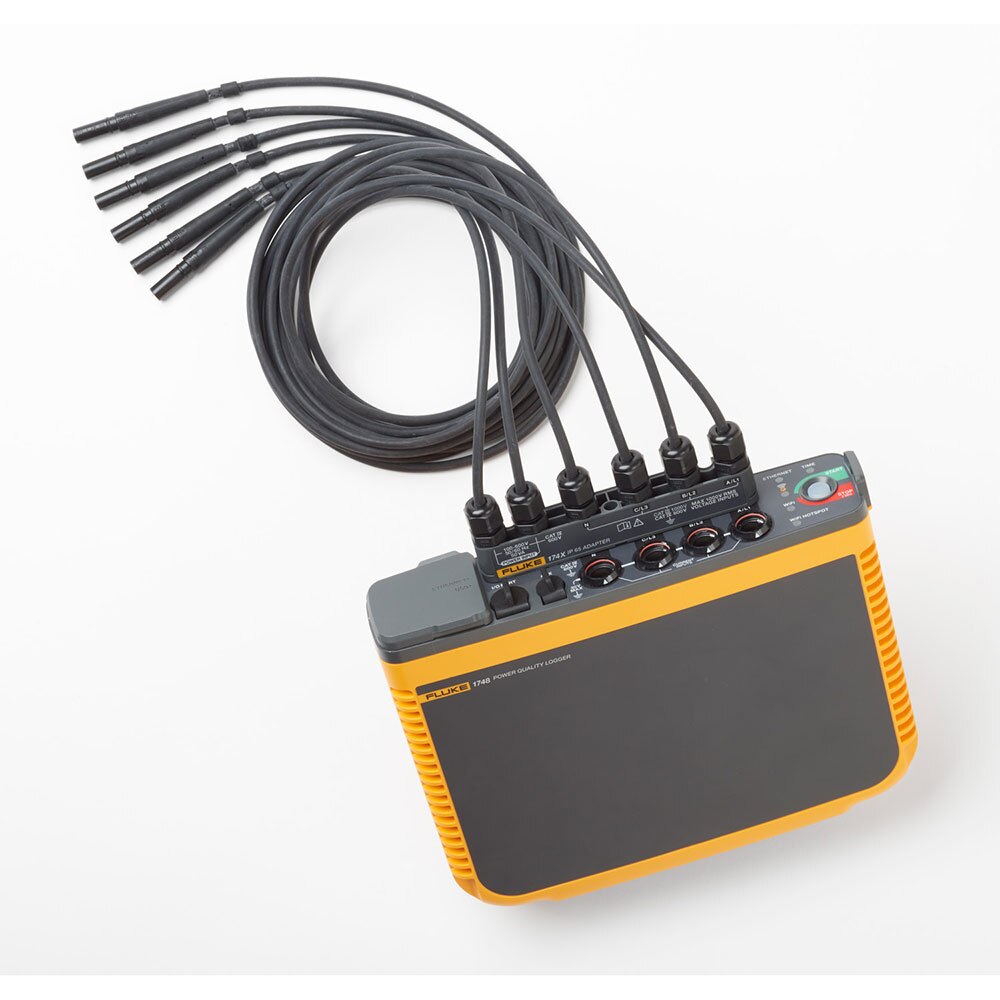

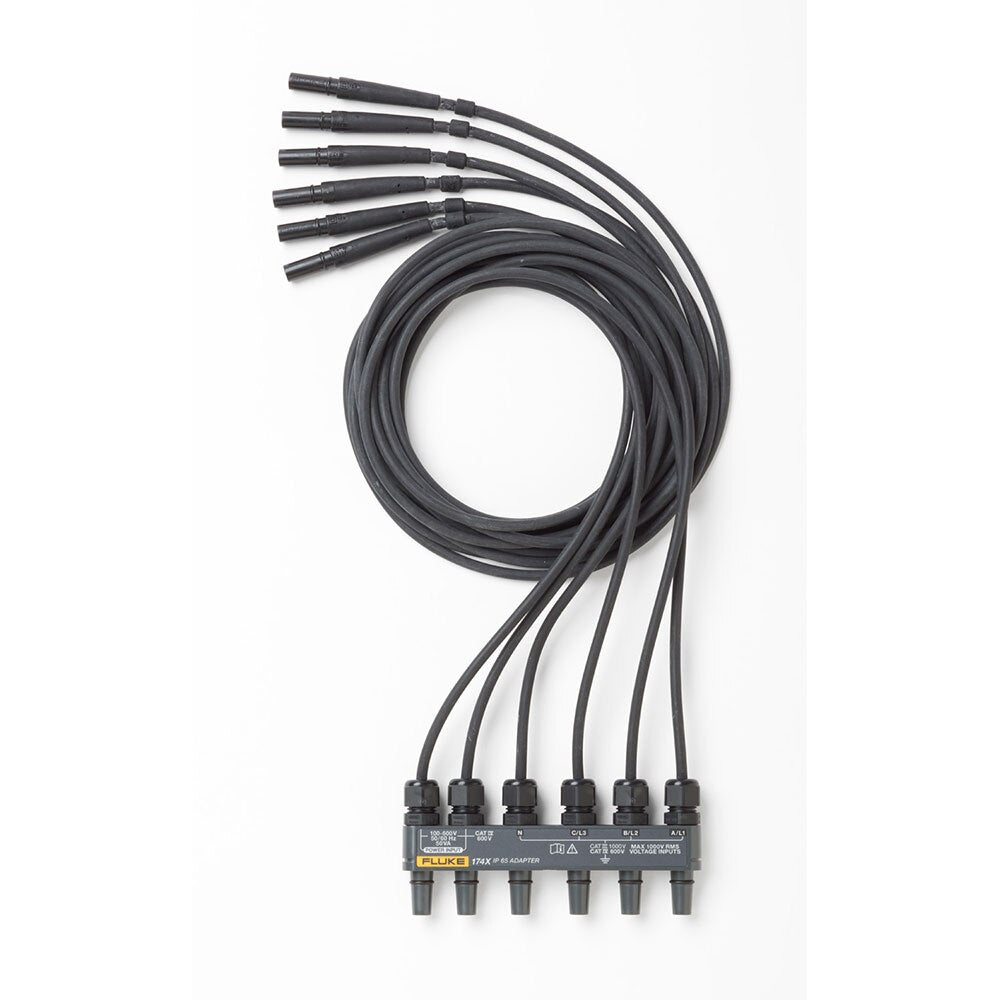

The IP65 Voltage Adapter (the Product or Adapter) enables safe and reliable operation of the 174x Logger family in harsh environments. The adapter seals and protects the terminals of the voltage measurement inputs and power supply from water and dust.
• (1) Voltage Adapter
• (3) Screws M3 X 12 mm
• (2) Couplers F/F 4 mm
• (2) Alligator Clips (blue)
• (1) Wire Clip Set
FEATURES:
• Test lead length: 8.2'
• Test lead gauge: 1 mm² (AWG 18)
• Operating: -25 °C to +50 °C (-13 °F to +122 °F)
• Storage: -25 °C to +60 °C (-13 °F to +140 °F)
• Operating Humidity: IEC60721-3-3: 3K6: -25 °C to +30 °C (-13 °F to +86 °F): ≤100 %; 40 °C (104 °F): 55 %; 50 °C (122 °F): 35 %
• Operating: 2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
• Storage: 12 000 m
• Overvoltage: IEC 61010-1: Overvoltage Category IV 500 V, Pollution Degree 2
• Measurement: IEC 61010-031: CAT IV 600 V / CAT III 1000 V
• Dimensions: 6" x 1.5" x 12"
The IP65 Voltage Adapter (the Product or Adapter) enables safe and reliable operation of the 174x Logger family in harsh environments. The adapter seals and protects the terminals of the voltage measurement inputs and power supply from water and dust.
Toolup Part # :
431256
