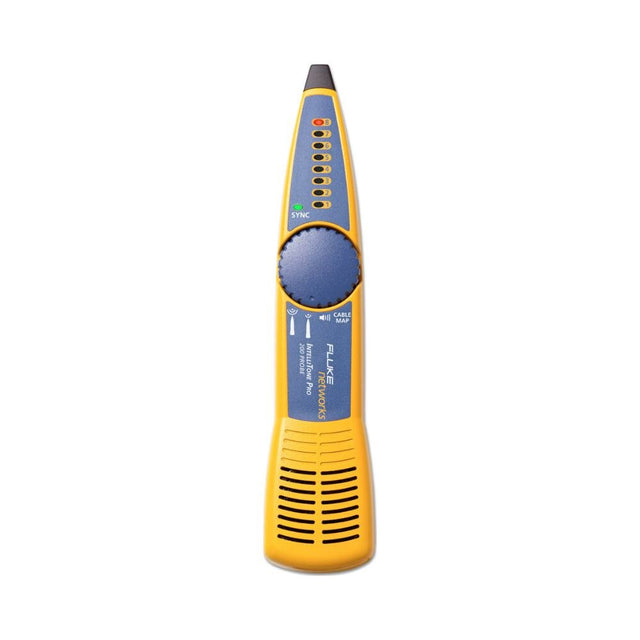

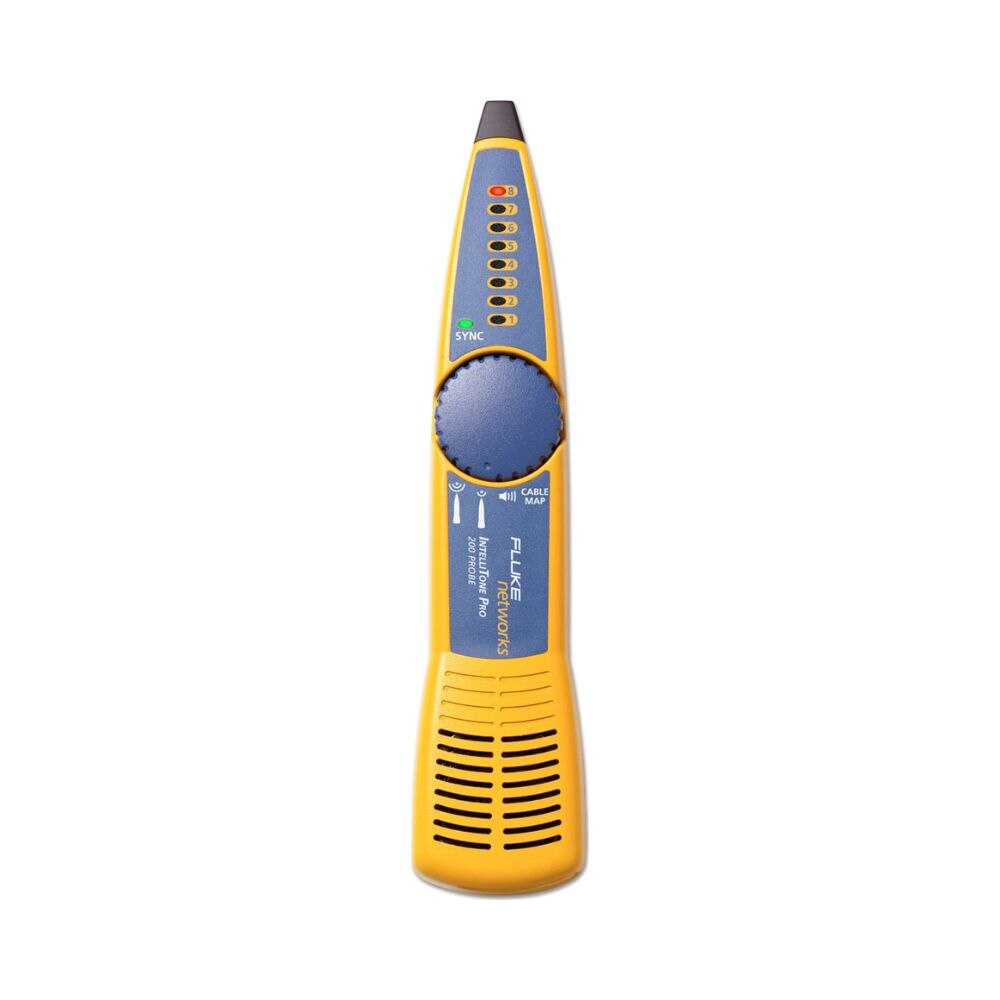

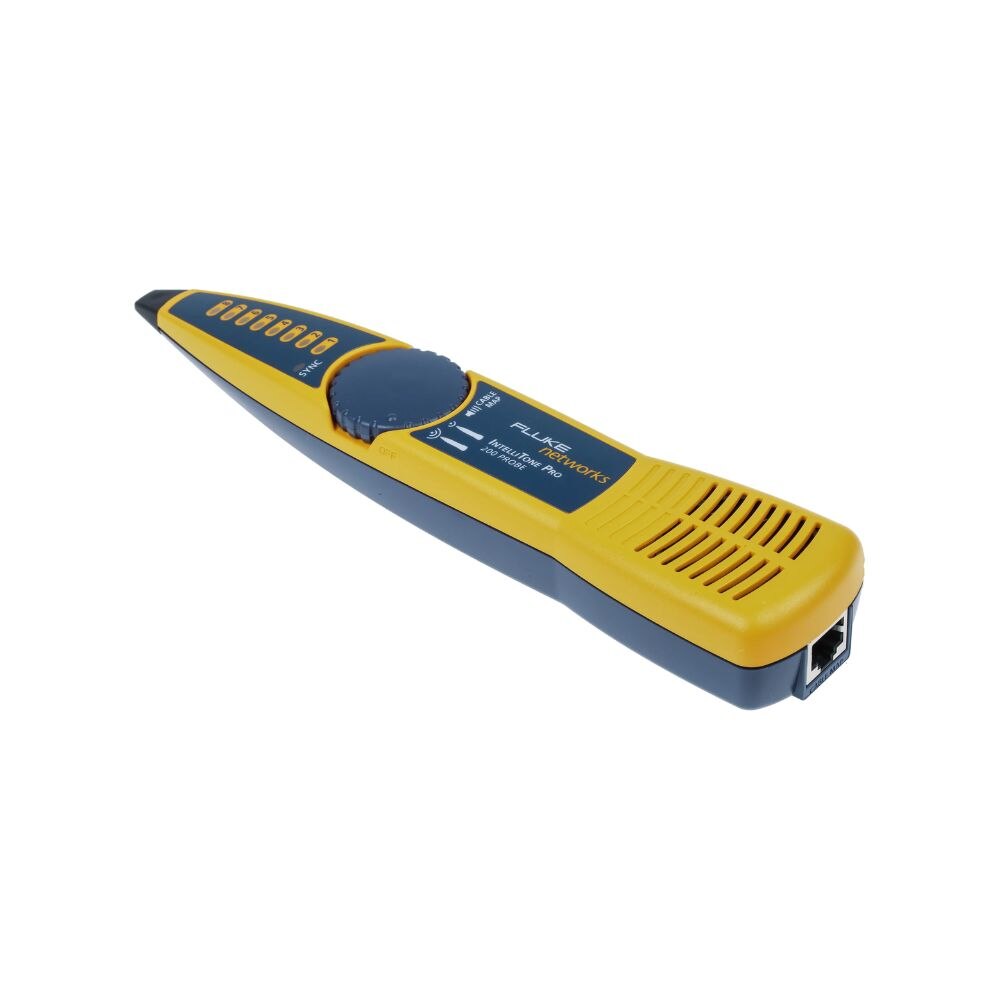

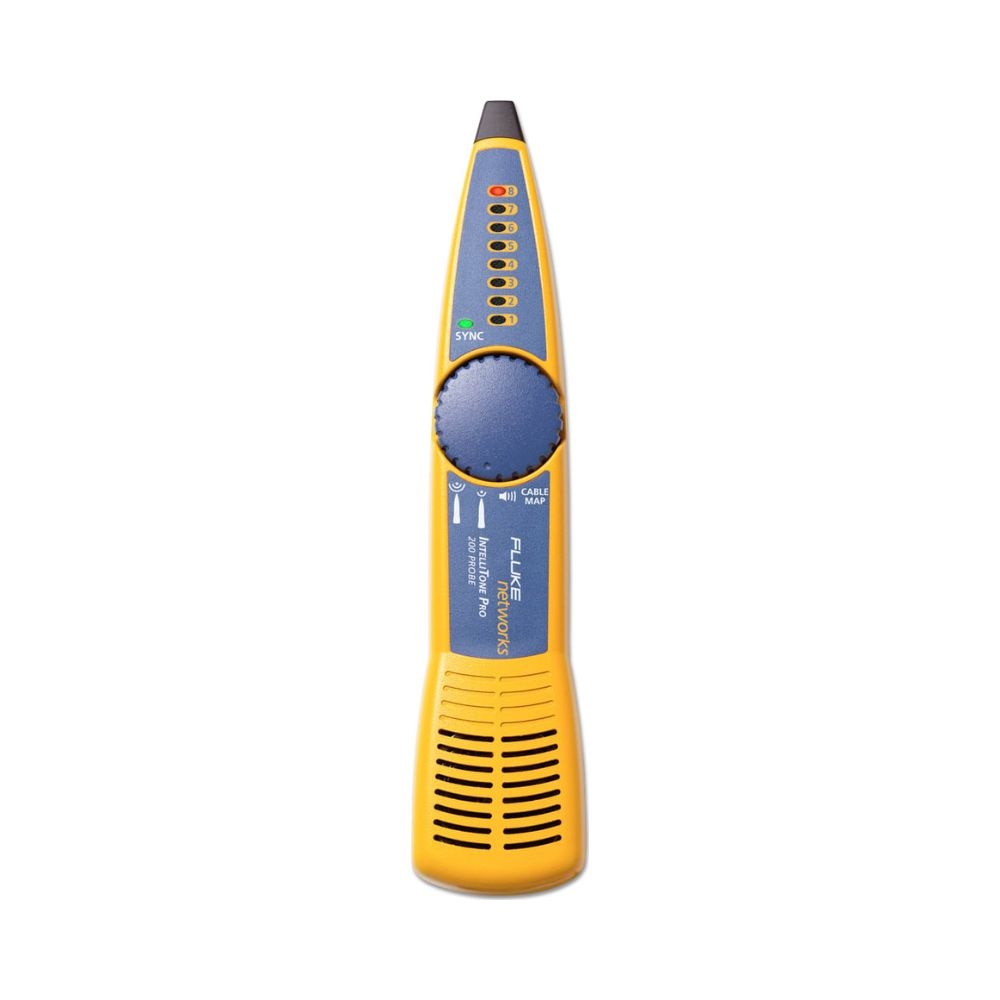

Fluke MT-8200-63A IntelliTone Pro 200 Probe

INCLUDES:
• (1) IntelliTone 200 Probe
• (2) RJ11 and RJ 45 Patch Cables
• (1) Lanyard
• (1) 9 Volt Battery
• (1) Owners CD
• (1) Quick Start Guide

FEATURES:
• Supports digital signaling on CAT5e/6/6a data cabling and analog toning on voice-grade, coax, security/alarm, and speaker cabling
• Probes to identify individual pairs and miswires, and checks 10-/100-/1000-Mbps connectivity with NIC/hub indication
• Can be used with all types of copper cabling
• Identifies and diagnoses POTS with Line 1 and Line 2 service and polarity
• Eliminates confusion over cable location
• Locates cables on active networks
• Isolates a cable within a bundle, even with cable bleed
• Verifies installations with end-to-end continuity tests
• Detects opens, shorts, and reversed pairs
• Digital signal processing rejects noise and false signals
• Works safely on active networks
• Provides visual and audible signal strength identification.

SPECIFICATIONS:
• Operating Temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Storage Temperature: -4 °F to +140°F (-20 °C to °C)
• Operating Relative Humidity (% RH without condensation): 95 % (50 °F to 95 °F; 10 °C to 35 °C), 75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C)
• Vibration: Random, 2 g, 5 Hz-500 Hz
• Shock: 1 m Drop Test
• Safety: EN 61010-1, Category: None
• Altitude: 3000 m
• EMC: EN 61326-1, FCC Part 15 B
• Battery Type and Life: 9V Alkaline (NEDA 1604A or IEC 6LR61); 20 hours Typical
• Applications: Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200.
• Display: (8) LED Indicators, Sync LED Indicator
• Audio: IntelliTone: Microprocessor Controlled Audio Files, Analog: Detected Toner Signal
• Control: Thumbwheel Switch, Volume Control Wheel
• Tone Detection: Detects IntelliTone Digital Signal for Locate, Isolate, and Cable Map, Detects Analog SmartTone Signal (500-1200Hz) and Other Analog Toners
• Toner Interface: Main Mod8 Port for Cable Map on all 4 Pairs of UTP / STP Cabling
• Auto Power Down: Turns Off Automatically After 1 hour of Inactivity

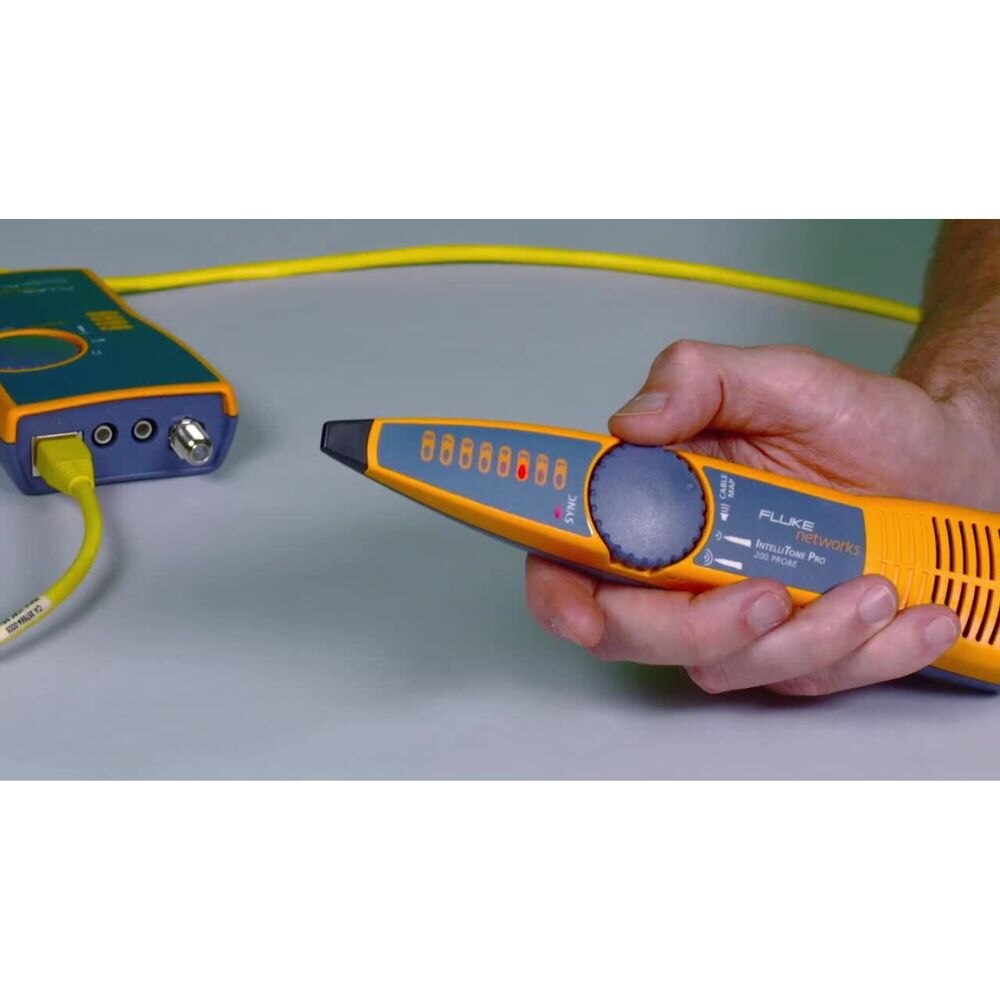

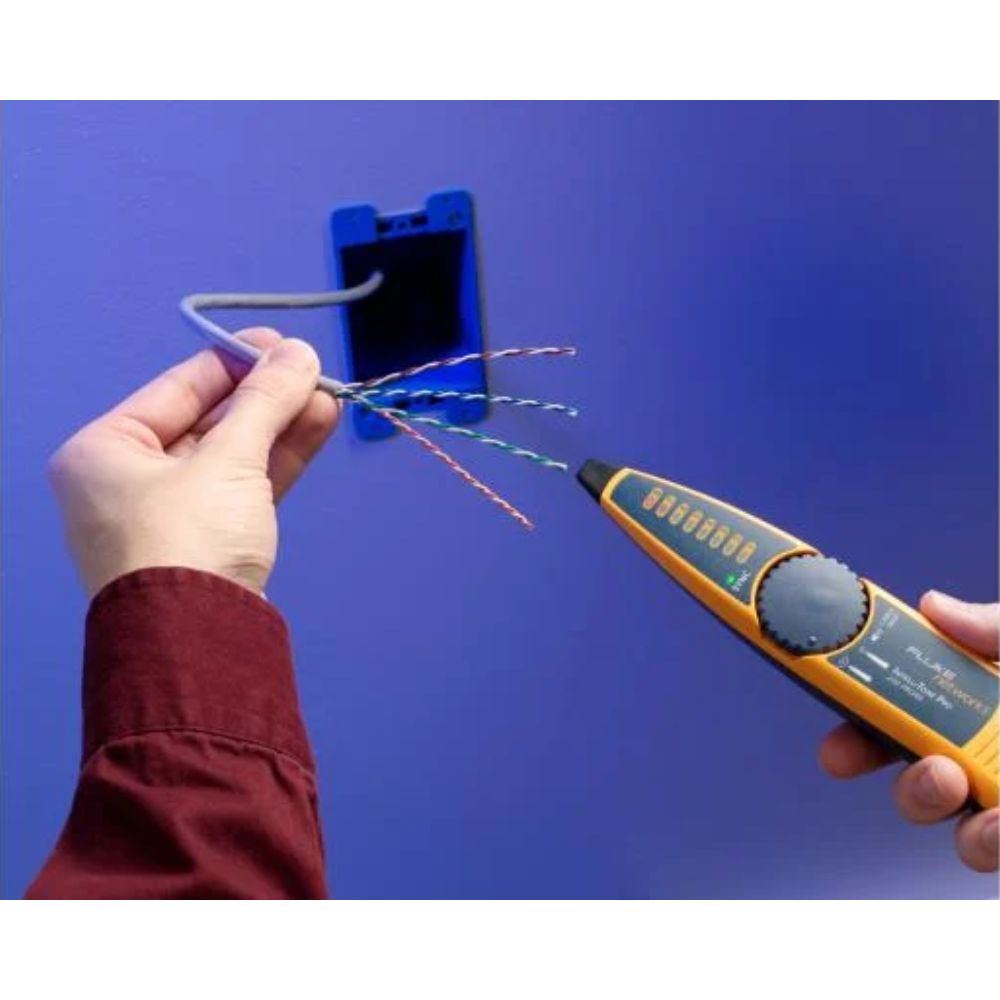

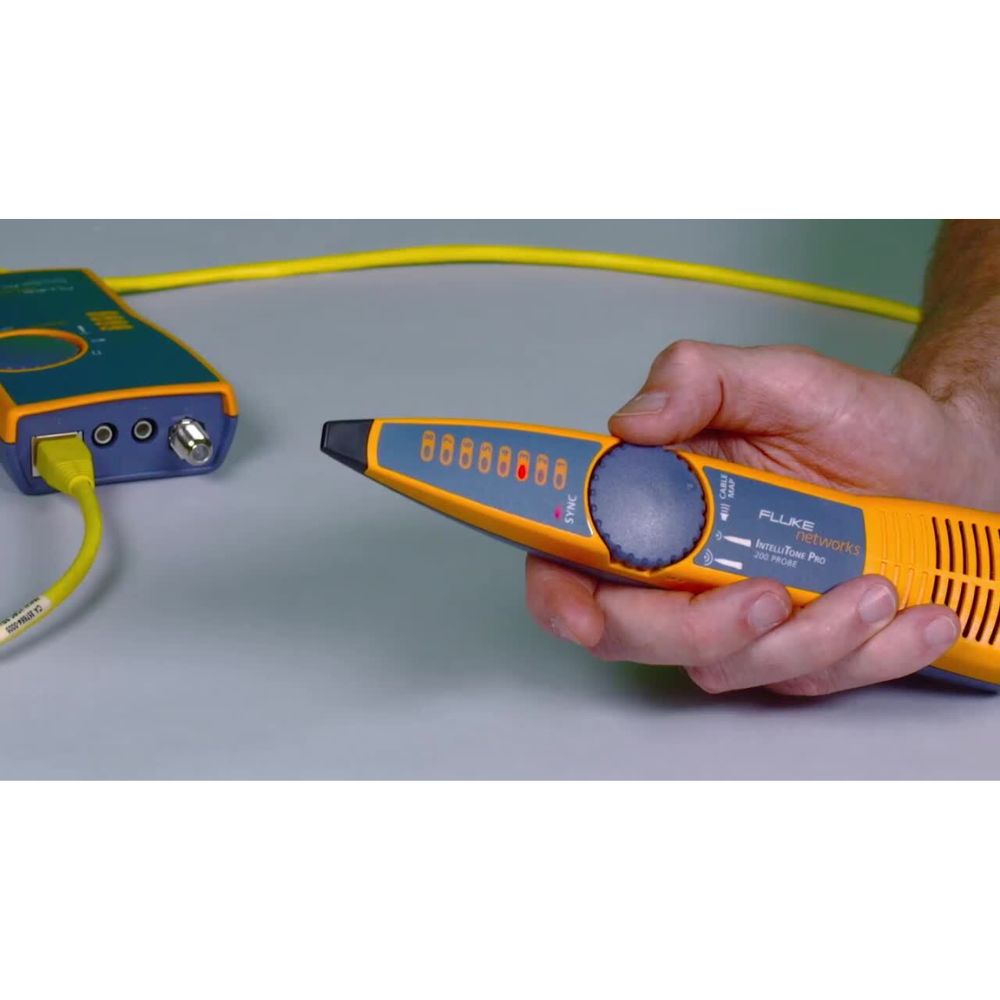

Fluke Networks MT-8200-63A Intellitone 200 Probe. Fluke Networks MT-8200-63A IntelliTone Pro 200 Probe detects IntelliTone digital signals, rejecting noise and false signals, to locate and trace data cabling on active networks. It detects 500 to 1,200 Hz analog signals to isolate individual wire pairs and trace voice, audio, and video cabling on inactive networks. The probe detects signals at cable racks, in patch panels, and even behind walls, and identifies detected signals audibly and with eight LEDs that light successively as the signal strength increases for prompt isolation of a single cable within a bundle. A sync LED shows battery strength at power-up and confirms reception of IntelliTone signals. The probe turns off automatically after one hour of inactivity. Tone probes are used by network technicians to troubleshoot and maintain wires and cable in telephone and data networks.
