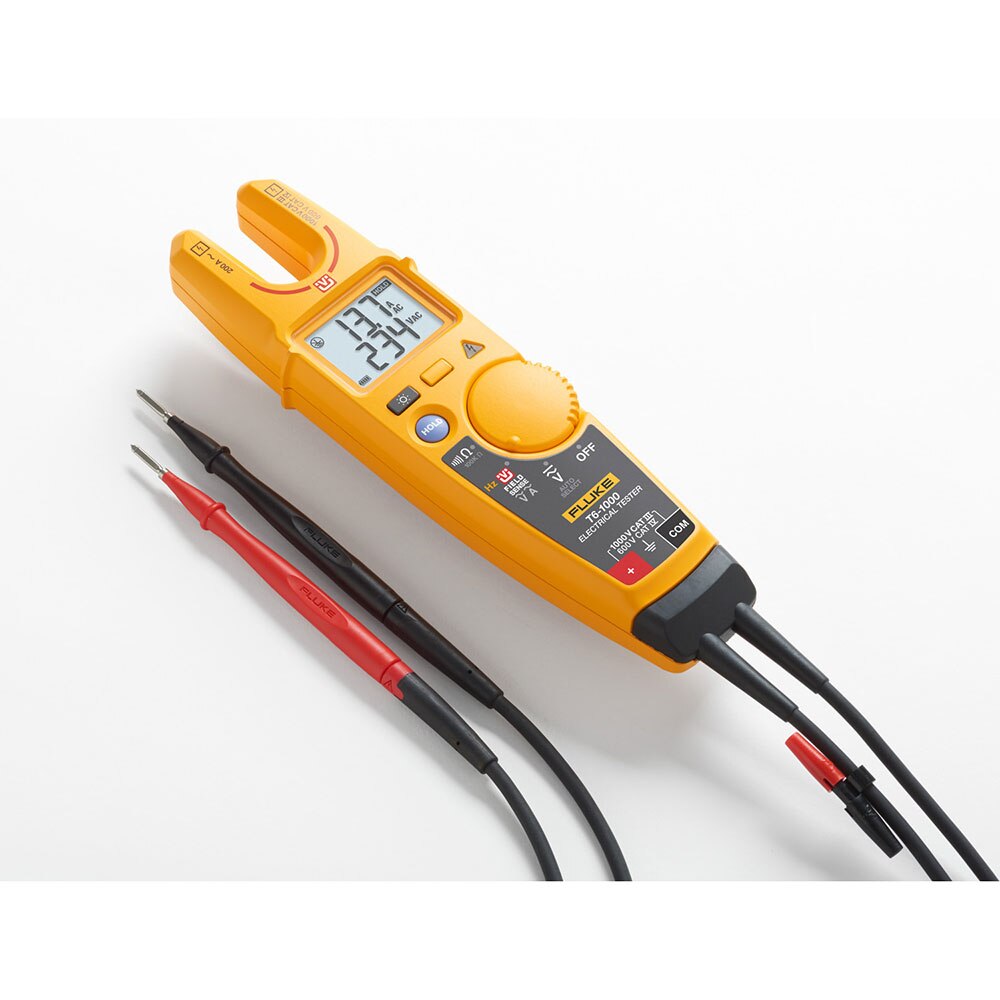

Fluke T6-1000/PRV240FS Electrical Tester w FieldSense Technology
Description
Description
Fluke 4910393 Description
The kit includes the T6-1000 Electrical Tester with FieldSense technology and the PRV240FS Proving unit. Measure voltage the same way you would measure current, without test lead contact to live voltage. Much more than just a voltage detector, giving you reliable voltage and current measurement, without test leads, and without contacting a bare, metal conductor. The proving kit provides a safe method to verify that your electrical test tool is operating properly before you conduct any live tests. T6 Electrical Testers let you test where it used to be impossible by measuring voltage and current through the open jaw. You can measure voltage (not just detect voltage) without making metallic contact with a live conductor.

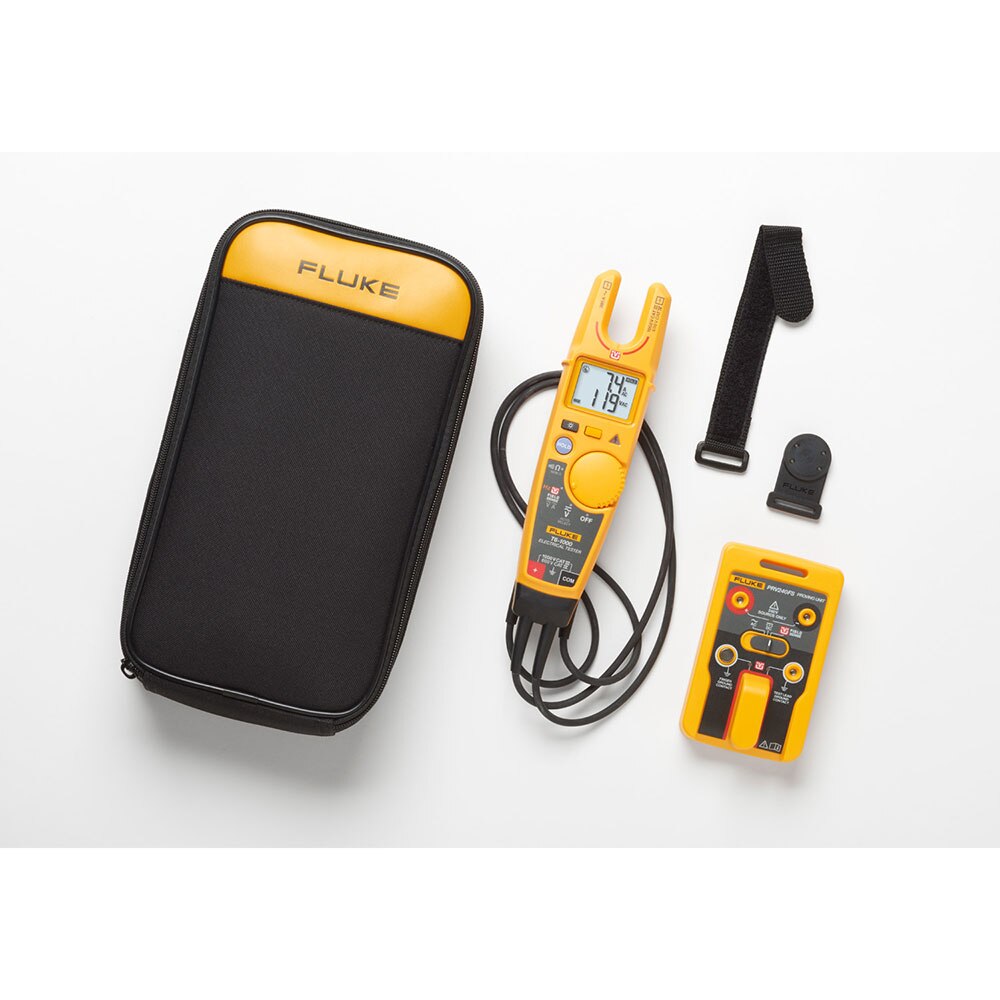

Fluke 4910393 Includes
- (1) Fluke T6-1000 Electrical Teste
- (1) Attached Test Leads, with Removable 4mm Removable Probe Caps
- (1) User's Manual / Quick Reference Guide
- (1) Fluke PRV240FS Proving Unit
- (1) TPAK Hanging Strap
- (1) Four AA Batteries
- (1) Instruction Sheet
Fluke 4910393 Features
- Measure voltage and current simultaneously
- Measure in tight spaces by not needing to use test leads
- Save time by taking measurements without needing to remove covers and wire nuts

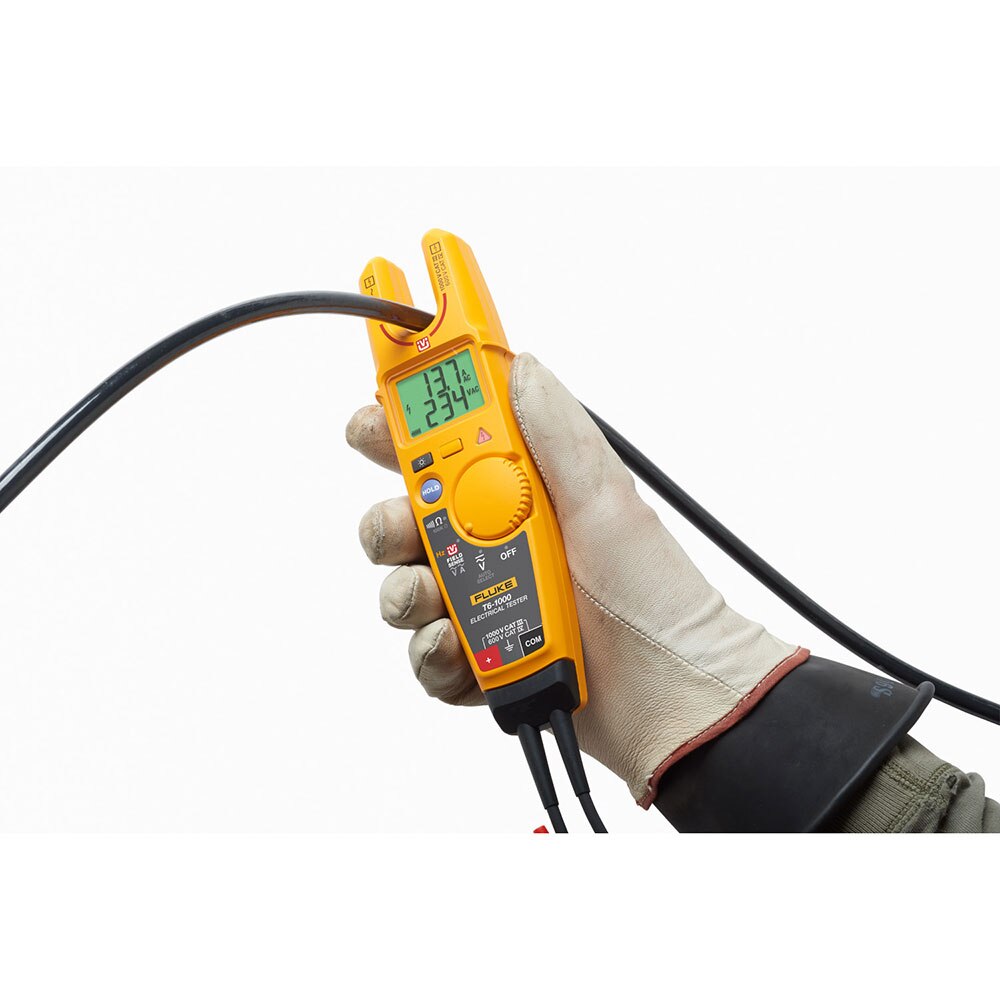

- Make measurements with one hand, reducing risk
- Easy to read display with backlight
- Detachable Slim Reach probe tips are customized for national electrical standards
- Test leads accept Fluke accessory test clips
- TPAK Compatible
Fluke 4910393 Specifications
| FieldSense AC Voltage Range | 1000V |
| FieldSense AC Voltage Resolution | 1V |
| FieldSense AC Voltage Accuracy | ±(3 % + 3 counts) [2] [3] 45 Hz - 66 Hz |
| FildSense AC Current Range | 200A |
| FildSense AC Current Resolution | 0.1A |
| FildSense AC Current Accuracy | ±(3 % + 3 counts) 45 Hz - 66 Hz |
| FieldSense Frequency (Hz) Range | 45 Hz-66Hz |
| FieldSense Frequency (Hz) Accuracy | ±(1 % + 2 counts) [3] |
| Volts AC Range | 1000V |
| Volts DC Range | 1000V |
| Calibration | 1-year calibration cycle |
| Fork Opening | 17.8 mm |
| Operating Temperature | -10 to +50 °C (14 to 122 °F) |
| Altitude Operating | 2,000 m (6,562 feet) |
| Battery Type and Life | 2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense |
