Freud  |  SKU: 99-500  |  Barcode: 008925030294

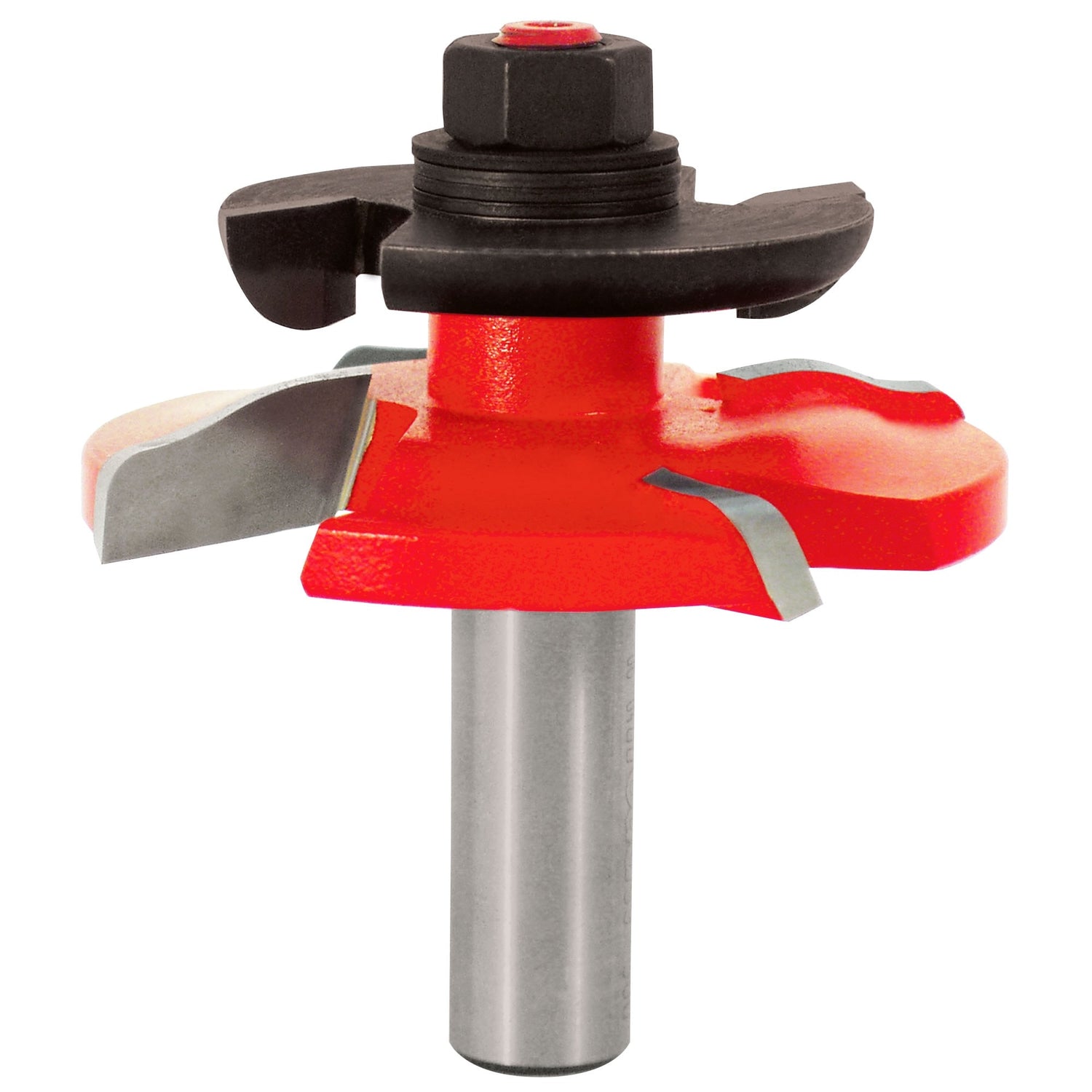

Freud 99-500 2-19/32" (Dia.) Raised Panel Bit w/Backcutters (Quadra-Cut)

$101.47 $167.45

Description

Freud 99-500 Description

Exclusive Quadra-Cut™ design combines a backcutter with the smooth cuts of Freud's Quadra-Cut Raised Panel Bits

Freud 99-500 Features

  • Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
  • Included 54-562 radius backcutter gives double-sided appearance and can be replaced with optional 54-560 square backcutter for a more contemporary look.
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on table-mounted portable routers.

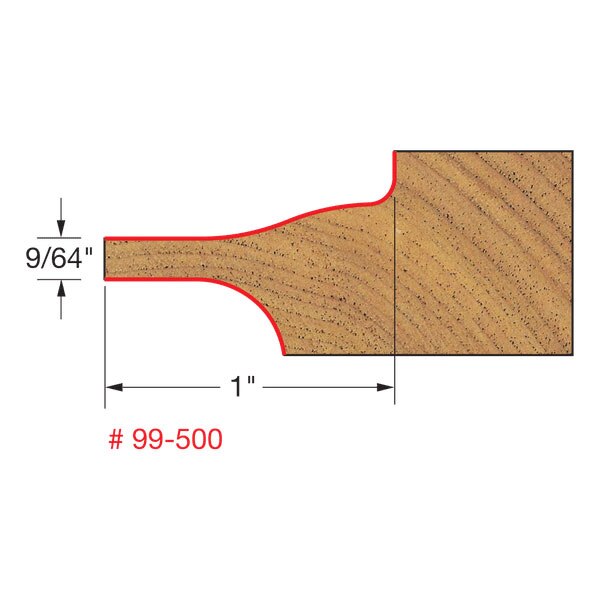

Freud 99-500 Specifications

Overall Diameter 2-19/32"
Carbide Height 7/8"
Large Radius 3/4"
Small Radius (R2) 7/64"
Shank Diameter 1/2"
Overall Length 2-51/64"
