Freud | SKU:
99-569

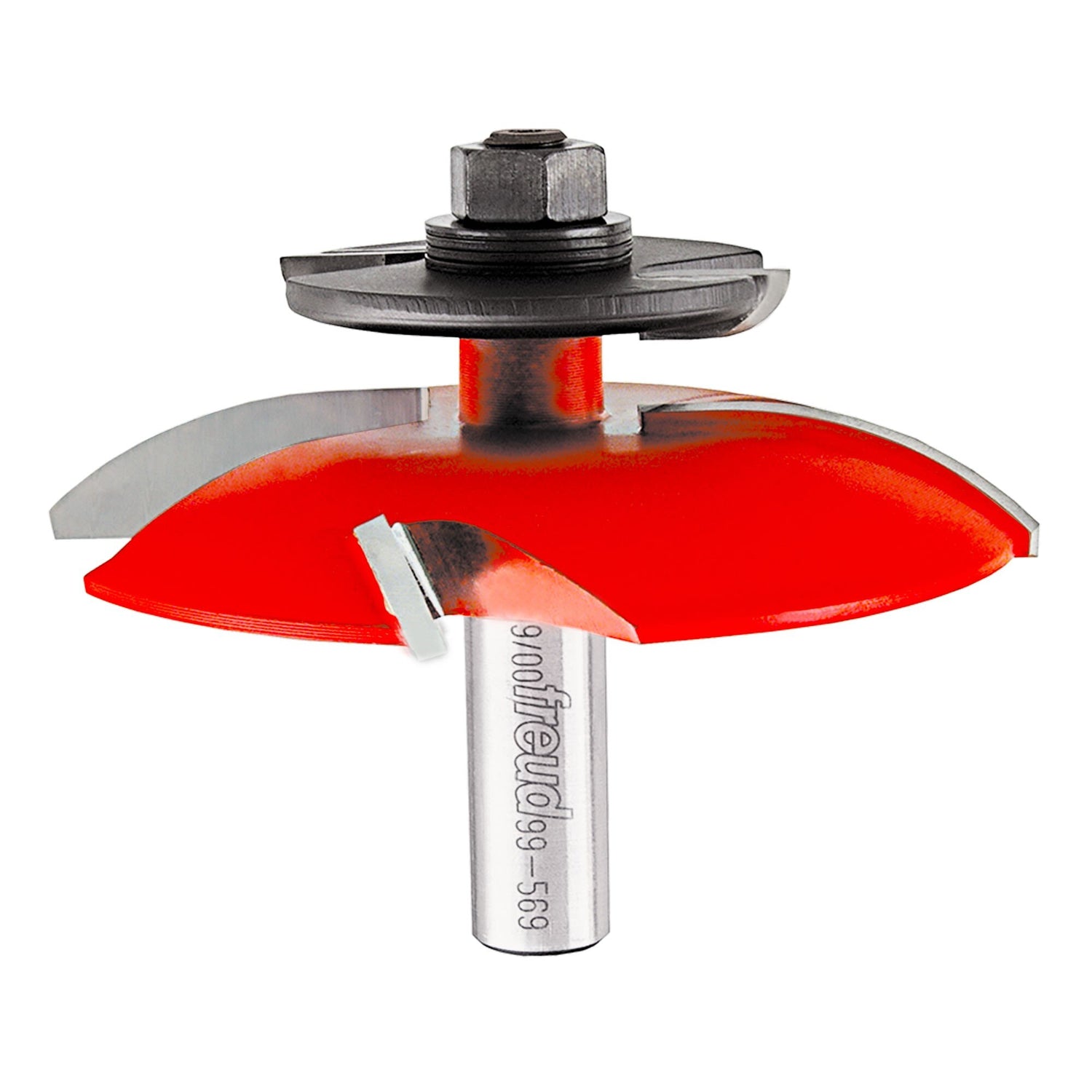

Freud 99-569 3-1/2" (Dia.) Raised Panel Bit w/Backcutters (Quadra-Cut)
$107.69
$177.70
Unit price
/
Unavailable
Description
Description
Freud 99-569 Description
Exclusive Quadra-Cut™ design combines a backcutter with the smooth cuts of Freud's Quadra-Cut Raised Panel Bits
Freud 99-569 Features

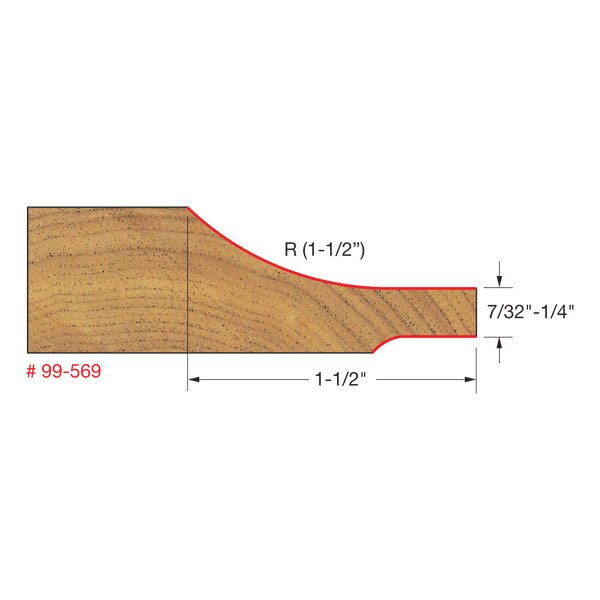

- Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
- Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
- Included 54-562 radius backcutter gives double-sided appearance and can be replaced with optional 54-560 square backcutter for a more contemporary look.
- Cuts all composition materials, plywoods, hardwoods, and softwoods.
- Use on table-mounted portable routers.
Freud 99-569 Specifications
| Overall Diameter | 3-1/2" |
| Carbide Height | 1" |
| Minor Height (m) | 5/32" |
| Large Radius | 1-1/2" |
| Small Radius (R2) | 3/16" |
| Shank Diameter | 1/2" |
| Overall Length | 3" |
