Freud  |  SKU: 99-571  |  Barcode: 008925036852

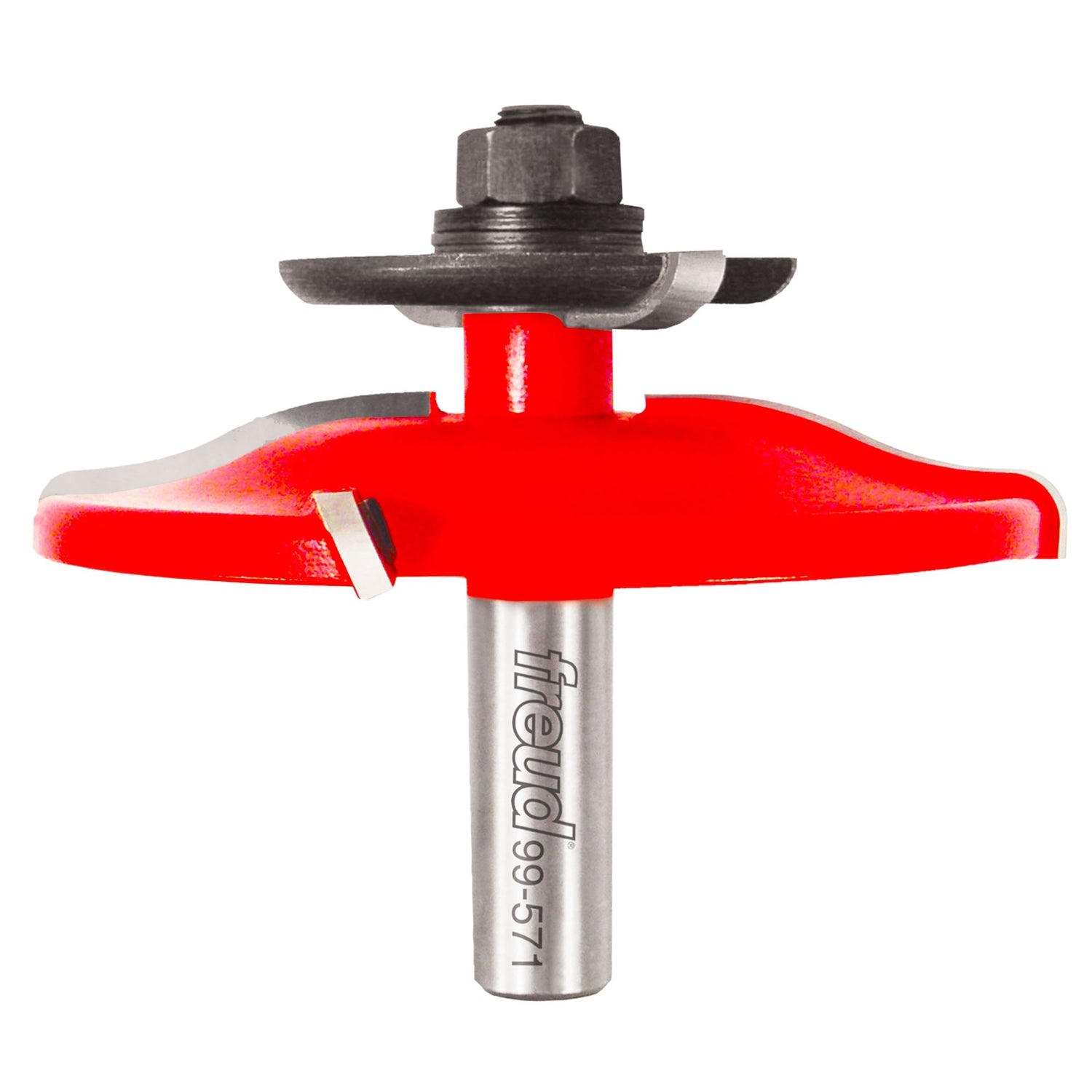

Freud 99-571 3-1/2" (Dia.) Raised Panel Bit w/Backcutters (Quadra-Cut)

$107.69 $177.70

Description

Freud 99-571 Description

Exclusive Quadra-Cut™ design combines a backcutter with the smooth cuts of Freud's Quadra-Cut Raised Panel Bits

Freud 99-571 Features

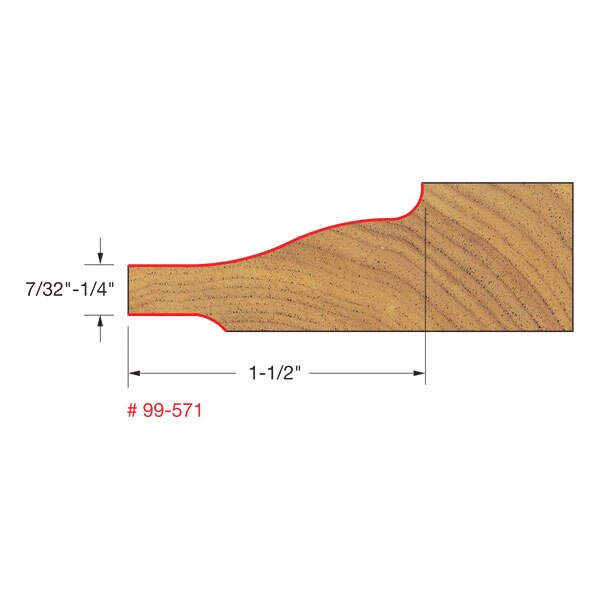

  • Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
  • Included 54-562 radius backcutter gives double-sided appearance and can be replaced with optional 54-560 square backcutter for a more contemporary look.
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on table-mounted portable routers.

Freud 99-571 Specifications

Overall Diameter 3-1/2"
Carbide Height 1"
Large Radius 1-3/16"
Small Radius (R2) 5/32"
Shank Diameter 1/2"
Overall Length 3"
