Gardner Bender | SKU:
BV208DA

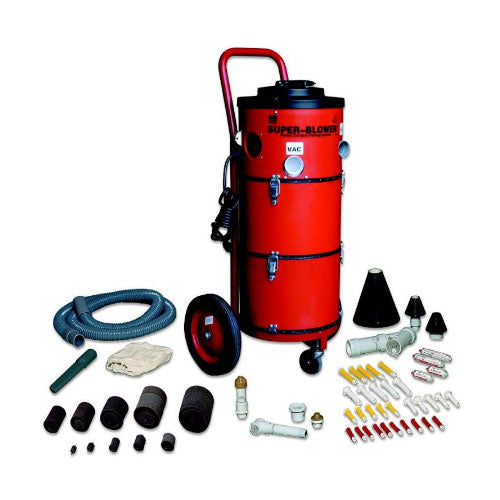

Gardner Bender BV208DA Super-Ultra Blo-Vac System
Free Shipping
$4,801.45
$6,011.22
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) Cart w/10" Diameter Wheels
• (1) Seal-Off For 1-1/4 to 2-1/2" Conduit
• (5) 200 ft., 3/4" Conduit Line Pkgs
• (5) 200 ft., 1" Conduit Line Pkgs
• (2) 400 ft., 1-1/4" Or Larger Conduit Line Pkgs
• (2) 800 ft., 1-1/4" Or Larger Conduit Line Pkgs
• (10) 150 ft., 1/2" Conduit Line Pkgs
• (5) 450 ft., 3/4" Conduit Line Pkgs
• (5) 450 ft., 1", Vacuum Filter Bag
• (1) 8 ft. 1-1/2" Hose
• (1) Hose Adapter
• (1) Seal-Off Body
• (1) Short and Long Seal-Offs For 1/2 to 1-1/4"
• (1) Large Seal-Off Body
• (1) Seal-Offs For 1-1/4 to 2-1/2" and 2-1/2 to 6" Conduit
• (1) Crevice Tool
• (1) Foam Line Carriers For 1/2 to 4" Conduit
FEATURES:
• Product NOT usable for conduit runs that have set-screw fittings that have not been sealed
• Complete Package Includes Dial-A-Line™ Seal-Offs, the Inflatables® Line Carriers, Foam Line Carriers, Power Saver™ and Tag-Along™ Line Packages
• All Accessories Store Neatly in Self-Contained Tool Storage Compartment
• Compartments Can Be Unlatched and Separated - Recovery Compartment Capacity Expandable to 9 Gallons by Using Bottom Tool Storage Compartment
• Three-Stage Blower/Vacuum Motor Delivers up to 25% more Power for Longer Runs and Faster Operation
• High-Impact, Lightweight Polypropylene Construction Will Not Rust or Dent
• Blows or Vacuums Most Debris and Water from Conduit Runs
• Specifications: Max. 5 Psi; 95 cfm; 2-1/4 Hp; 134" Vacuum
• 10" Diameter Metal Hubbed Wheels Allow Mobility
• 115 VAC, 13 A, 14-1/4" X 16-1/2" X 39-3/4"
SPECIFICATIONS:
• Blowing Method: Electric Blower
• Item Category: Wire Pulling
• Each in Package Height (in): 20.5
• Each in Package Width (in): 20.5
• Each in Package Length/Depth (in): 42
• Each in Package Weight (oz): 923.25
This rugged blower/vacuum system handles 1/2" to 6" conduit. Blo-Vac systems are designed to provide a convenient means of installing pull line in a "sealed" conduit. "Sealed" conduit for this purpose is considered EMT conduit with compression type couplings, rigid conduit with threaded joints, or PVC conduit with adhesive bonded joints. Conduit with set screw type couplings does not effectively seal joints and substantial air or vacuum loss occurs making it difficult to maintain pressure or vacuum to place a line in the conduit.
• (1) Cart w/10" Diameter Wheels
• (1) Seal-Off For 1-1/4 to 2-1/2" Conduit
• (5) 200 ft., 3/4" Conduit Line Pkgs
• (5) 200 ft., 1" Conduit Line Pkgs
• (2) 400 ft., 1-1/4" Or Larger Conduit Line Pkgs
• (2) 800 ft., 1-1/4" Or Larger Conduit Line Pkgs
• (10) 150 ft., 1/2" Conduit Line Pkgs
• (5) 450 ft., 3/4" Conduit Line Pkgs
• (5) 450 ft., 1", Vacuum Filter Bag
• (1) 8 ft. 1-1/2" Hose
• (1) Hose Adapter
• (1) Seal-Off Body
• (1) Short and Long Seal-Offs For 1/2 to 1-1/4"
• (1) Large Seal-Off Body
• (1) Seal-Offs For 1-1/4 to 2-1/2" and 2-1/2 to 6" Conduit
• (1) Crevice Tool
• (1) Foam Line Carriers For 1/2 to 4" Conduit
FEATURES:
• Product NOT usable for conduit runs that have set-screw fittings that have not been sealed
• Complete Package Includes Dial-A-Line™ Seal-Offs, the Inflatables® Line Carriers, Foam Line Carriers, Power Saver™ and Tag-Along™ Line Packages
• All Accessories Store Neatly in Self-Contained Tool Storage Compartment
• Compartments Can Be Unlatched and Separated - Recovery Compartment Capacity Expandable to 9 Gallons by Using Bottom Tool Storage Compartment
• Three-Stage Blower/Vacuum Motor Delivers up to 25% more Power for Longer Runs and Faster Operation
• High-Impact, Lightweight Polypropylene Construction Will Not Rust or Dent
• Blows or Vacuums Most Debris and Water from Conduit Runs
• Specifications: Max. 5 Psi; 95 cfm; 2-1/4 Hp; 134" Vacuum
• 10" Diameter Metal Hubbed Wheels Allow Mobility
• 115 VAC, 13 A, 14-1/4" X 16-1/2" X 39-3/4"
SPECIFICATIONS:
• Blowing Method: Electric Blower
• Item Category: Wire Pulling
• Each in Package Height (in): 20.5
• Each in Package Width (in): 20.5
• Each in Package Length/Depth (in): 42
• Each in Package Weight (oz): 923.25
This rugged blower/vacuum system handles 1/2" to 6" conduit. Blo-Vac systems are designed to provide a convenient means of installing pull line in a "sealed" conduit. "Sealed" conduit for this purpose is considered EMT conduit with compression type couplings, rigid conduit with threaded joints, or PVC conduit with adhesive bonded joints. Conduit with set screw type couplings does not effectively seal joints and substantial air or vacuum loss occurs making it difficult to maintain pressure or vacuum to place a line in the conduit.
