Gardner Bender | SKU:
KD500B

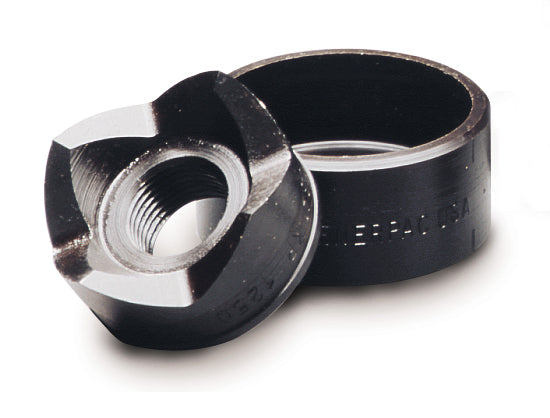

Gardner Bender KD500B Knockout Die, 0.50" (22mm)
$11.51
$13.96
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) Knockout Die
FEATURES:
• When used with GB 4-point punches the slug falls free from the die without the need for tapping or prying
• For 10-gauge mild steel and 12-gauge stainless steel
• Punches hole designed for 1/2 Inch pipe or conduit
• Actual hole diameter 0.873 inches
SPECIFICATIONS:
• For 10-gauge mild steel and 12-gauge stainless steel
• Punches hole designed for 1/2 Inch pipe or conduit
• Actual hole diameter 0.873 inches
Gardner Bender dies are interchangeable, in any combination, with most brands of knockouts. Constructed from black oxide coated, hardened and tempered chrome-moly steel. Use this 1/2 Inch Die in combination with GB 4-point slug-outs to punch clean, round holes through 10-gauge mild steel, 12-gauge stainless steel or other soft metals up to .135 inches in thickness. Additional sizes available to specifically permit fast and easy installation of electrical conduit and pipe of nominal sizes 1/2" through 4", in all commonly available increments.
• (1) Knockout Die
FEATURES:
• When used with GB 4-point punches the slug falls free from the die without the need for tapping or prying
• For 10-gauge mild steel and 12-gauge stainless steel
• Punches hole designed for 1/2 Inch pipe or conduit
• Actual hole diameter 0.873 inches
SPECIFICATIONS:
• For 10-gauge mild steel and 12-gauge stainless steel
• Punches hole designed for 1/2 Inch pipe or conduit
• Actual hole diameter 0.873 inches
Gardner Bender dies are interchangeable, in any combination, with most brands of knockouts. Constructed from black oxide coated, hardened and tempered chrome-moly steel. Use this 1/2 Inch Die in combination with GB 4-point slug-outs to punch clean, round holes through 10-gauge mild steel, 12-gauge stainless steel or other soft metals up to .135 inches in thickness. Additional sizes available to specifically permit fast and easy installation of electrical conduit and pipe of nominal sizes 1/2" through 4", in all commonly available increments.
