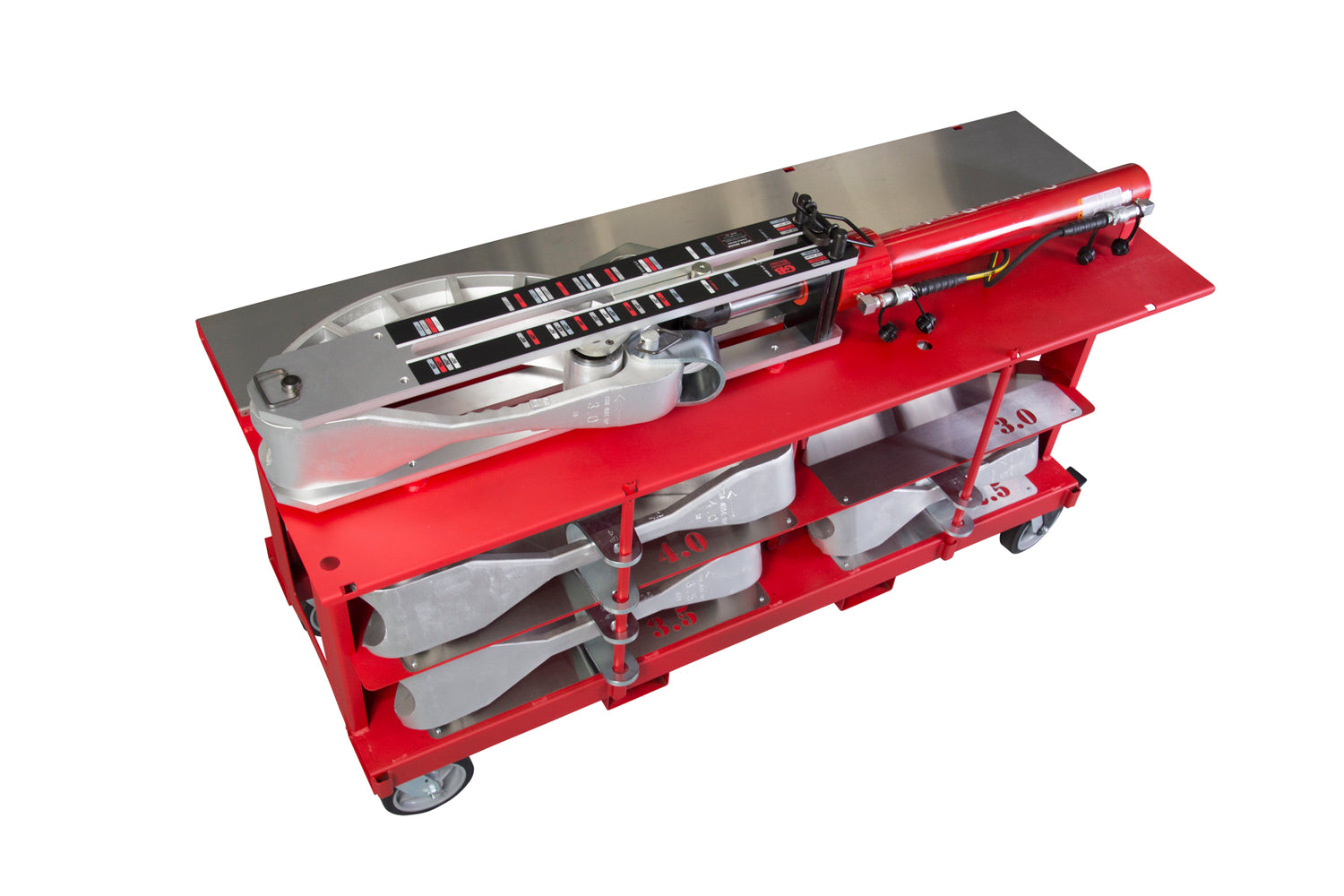

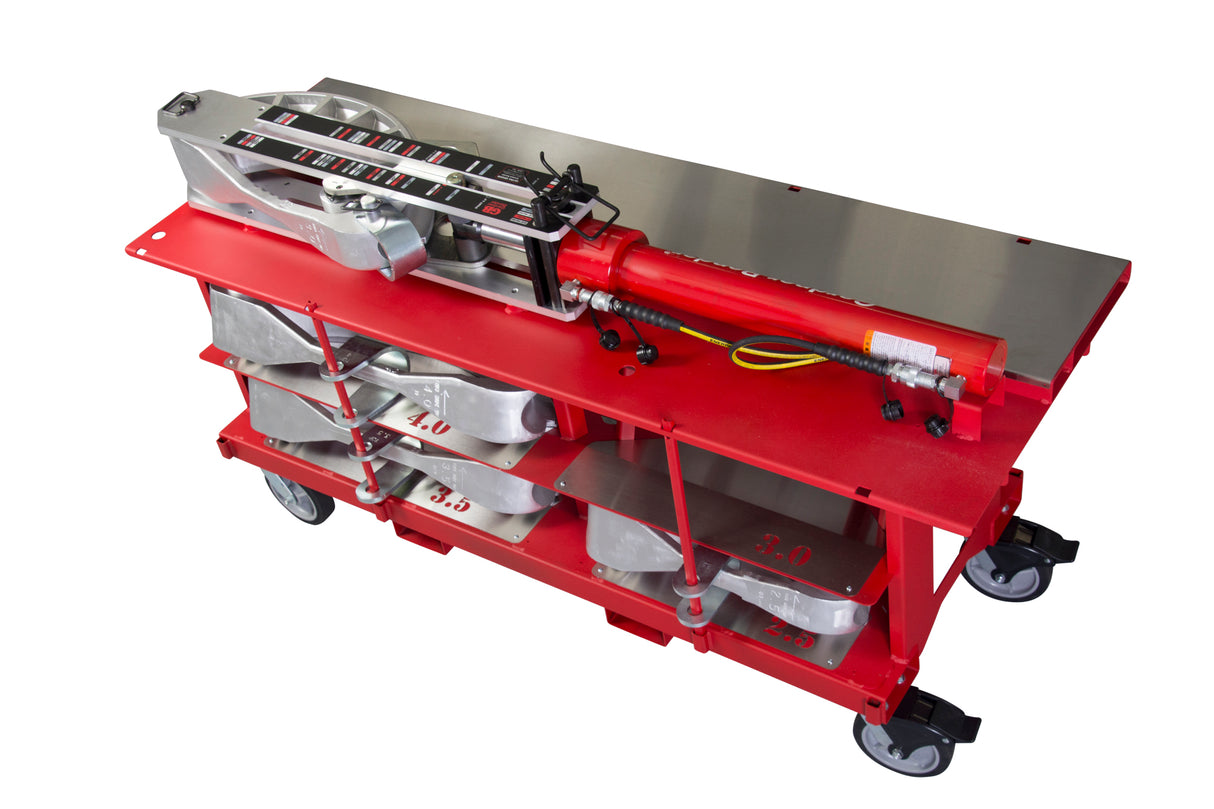

Gardner Bender MB400DLP Long Stroke Ultra Eegor Hydraulic Bender, Table, Electric Pump, Shoe Group

INCLUDES:
• (1) MB400 Bend-Mate Table

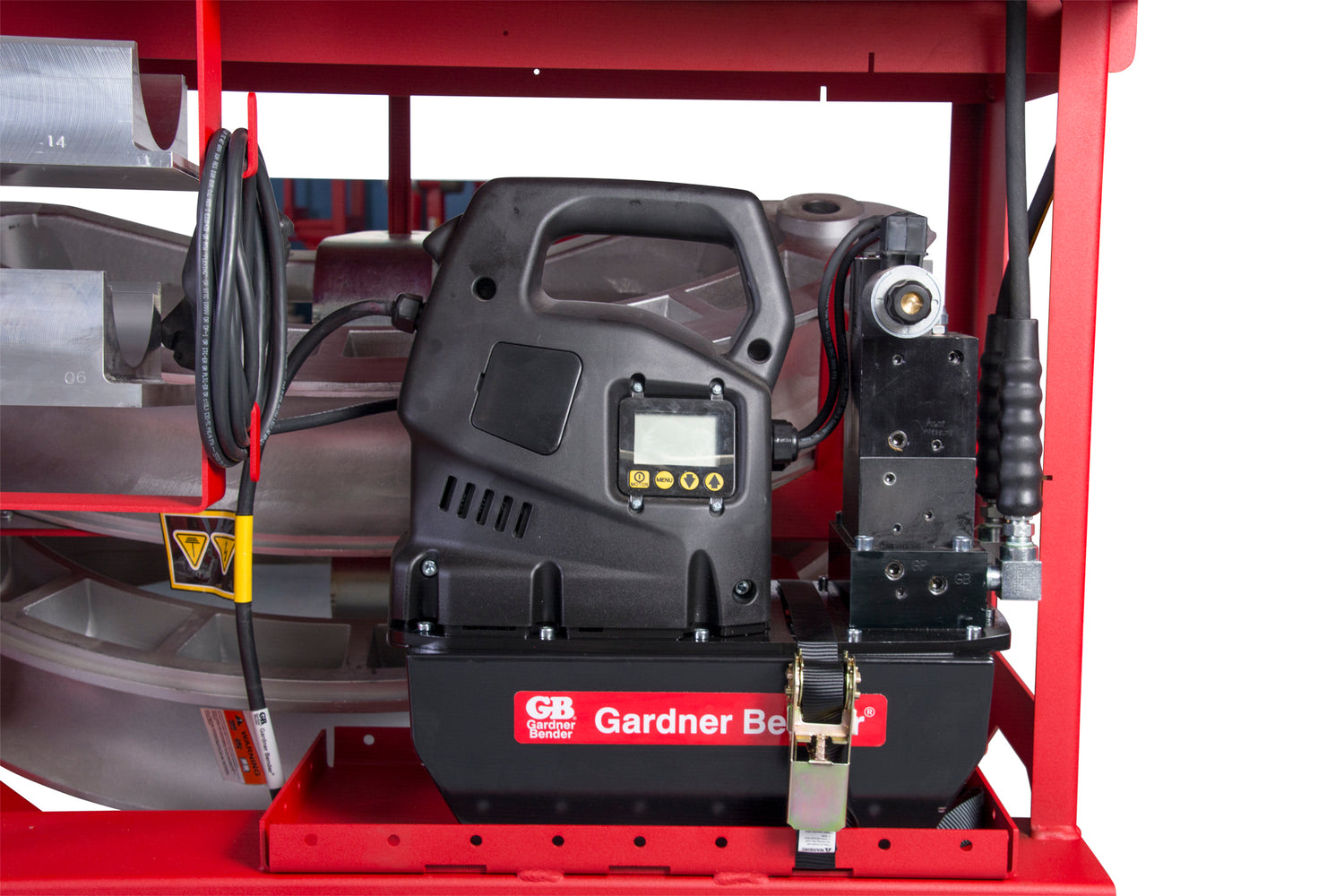

• (1) P408S Electric Pump
• (1) Each Bending Shoe sizes: 2.5 in, 3 in, 4 in
• (1) Each Follow bar size; 2.5 in, 3 in, 4 in
• (1) Each U-strap sizes: 2.5 in, 3 in, 4 in
• (1) U-strap Pin
• (1) Bend Shoe Pin

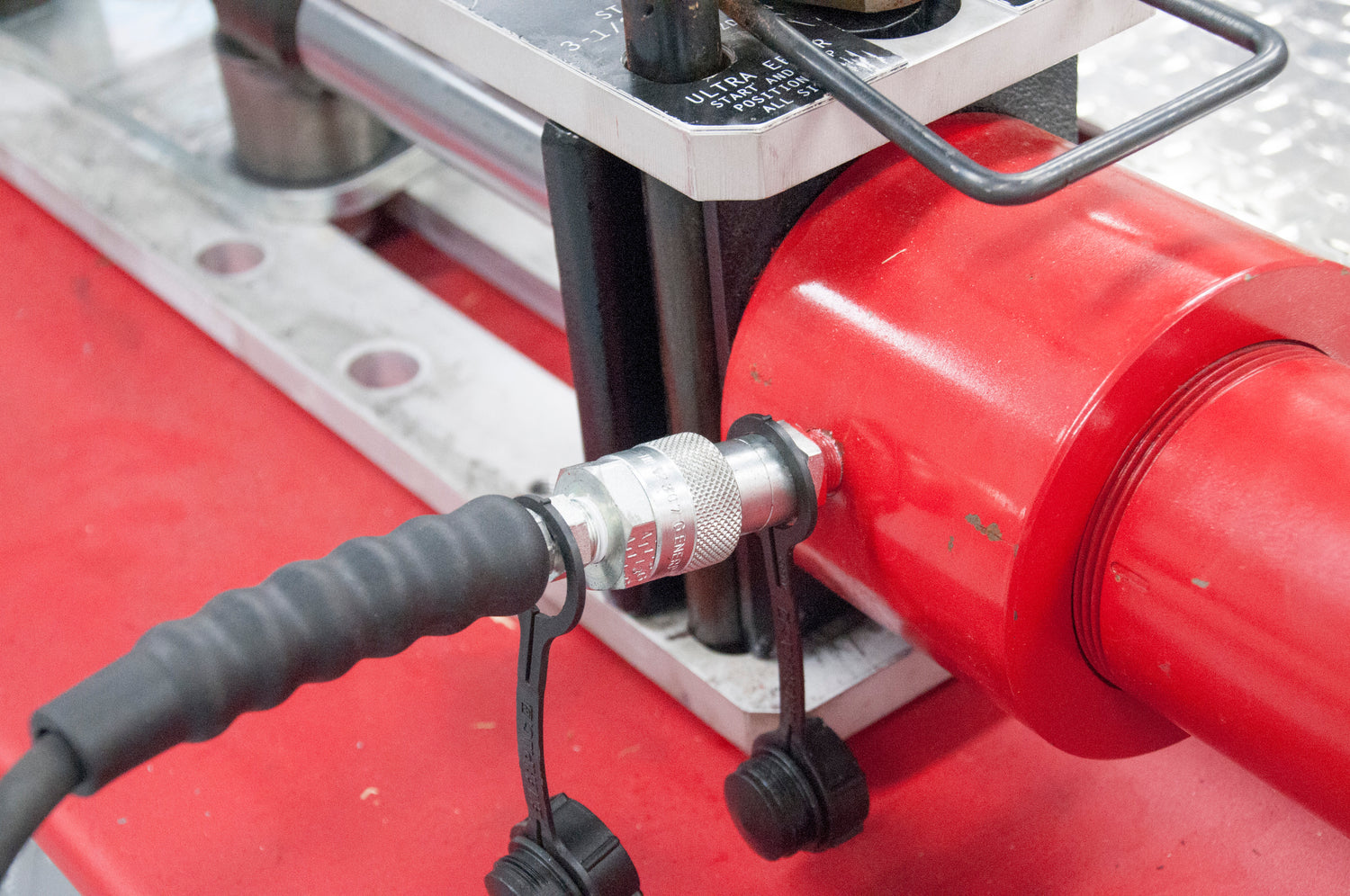

• (1) 30-Ton Double-Acting Hyd. Cyl

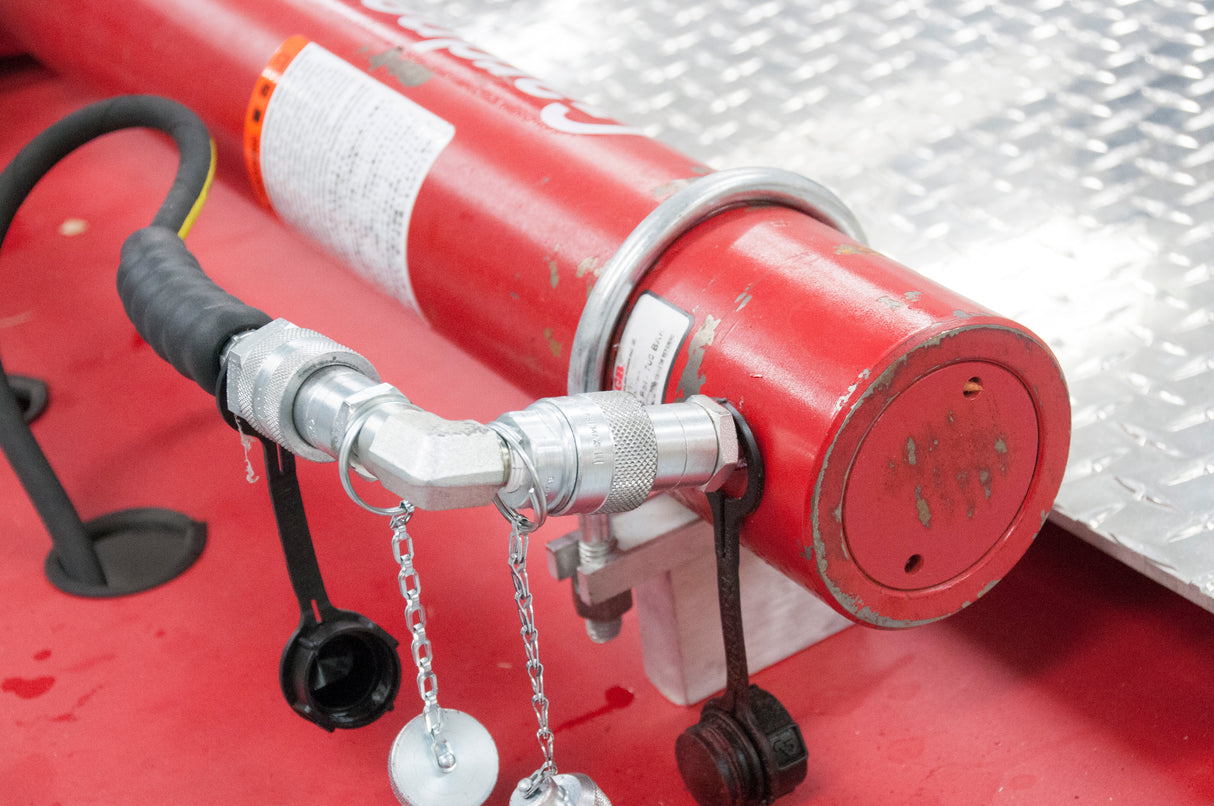

• (2) 10' Hoses w/High-Flow Coupler
• (1) Double Anchor Frame Pin

FEATURES:
• Integrated components - No Job Box!
• Bends 2.5 inch to 4 inch Rigid, Rigid aluminum, EMT and IMC conduit
• 30 ton 28 inch stroke cylinder is capable of making 90 degree bends in one pass
• Hydraulic power ensures the smoothest bends without deformations to the conduit
• Double -acting cylinder offers rapid retraction regardless of hose lengths and system losses
• Conduit is automatically stripped free from the shoe during the return cycle virtually eliminating extra labor or damaged conduit
• Z-Class pump runs cooler, uses less electricity, and is easier to service than conventional pumps
• Z-Class Pump engineered to reduce the number of moving parts, improve flow dynamics and decrease friction to ensure it stays on the job longer

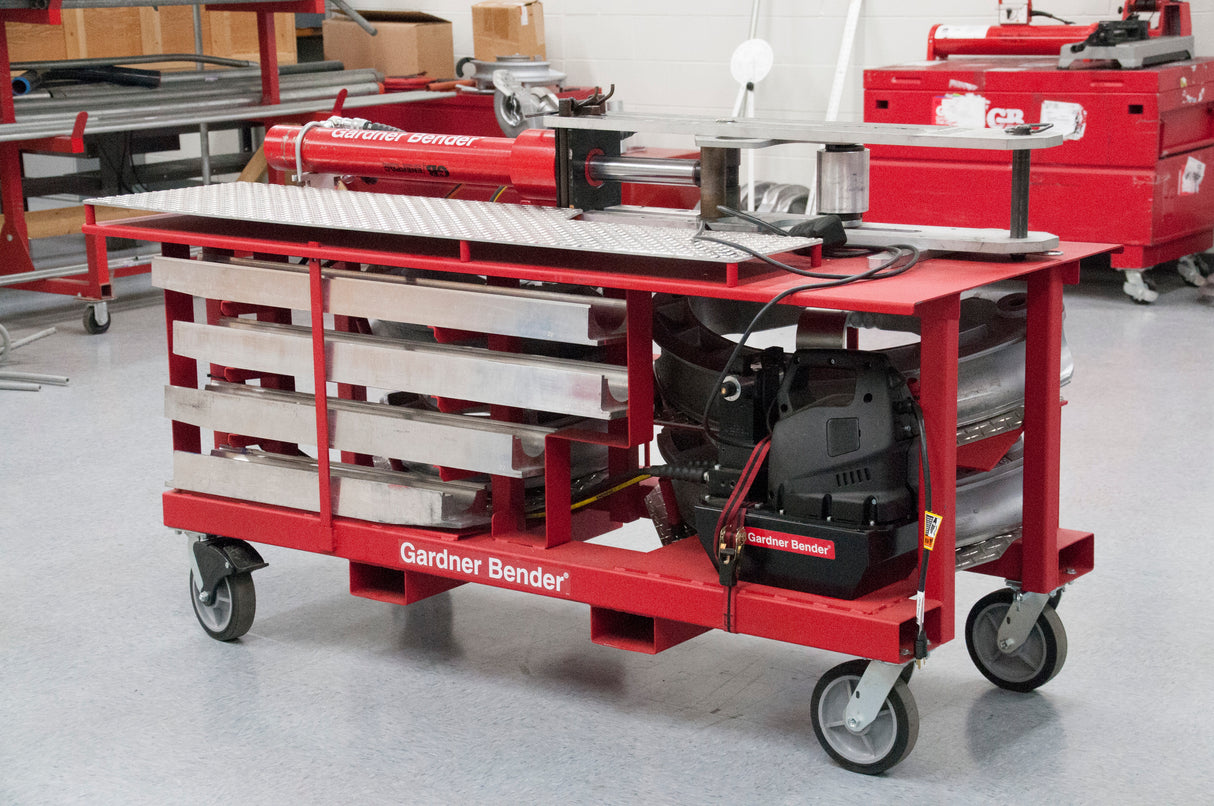

• Onboard storage for all bending shoes, follow bars, pins and hydraulic pump

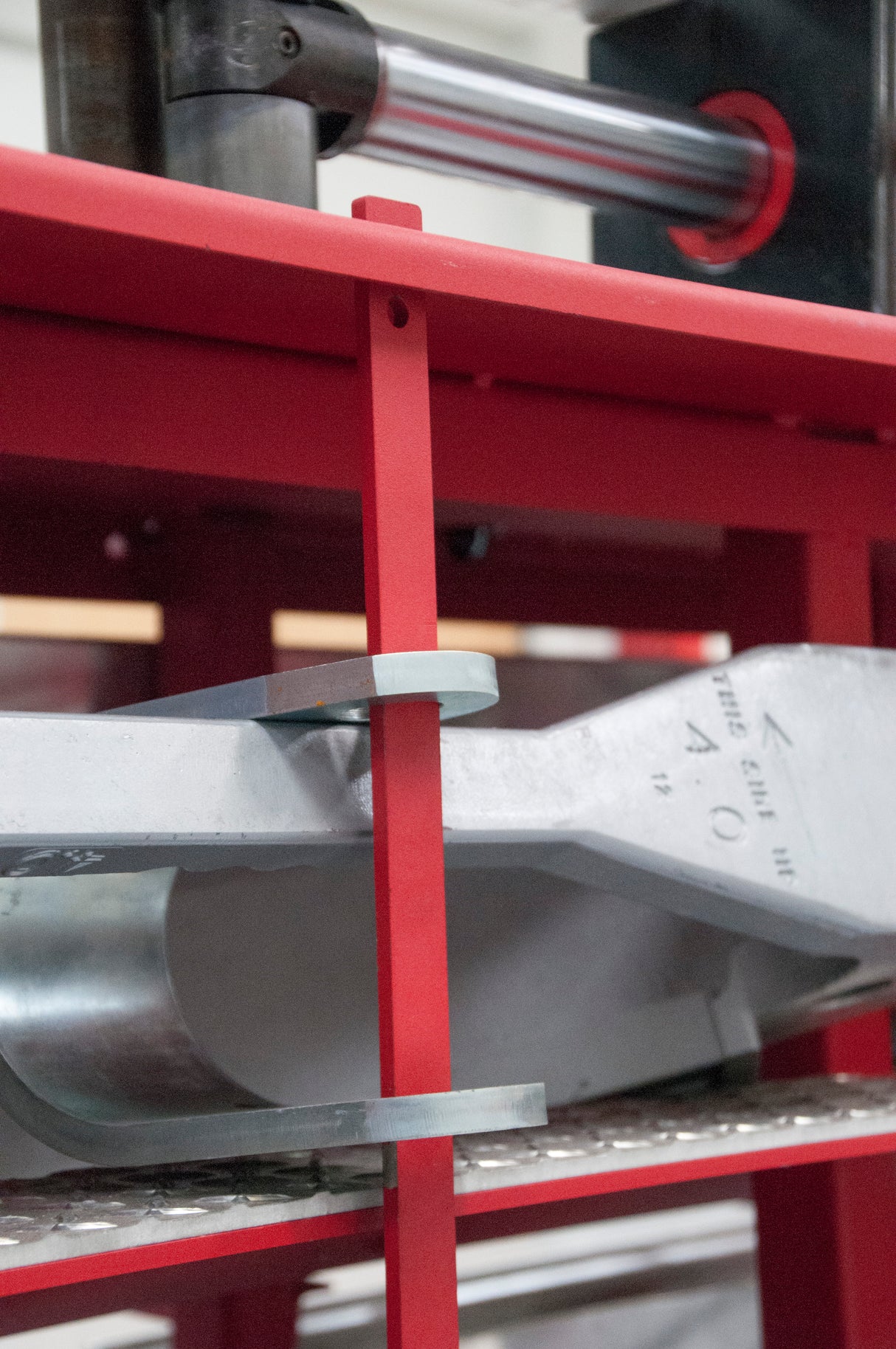

• Security bars protect shoes follow bars, pump and bender for overnight storage on the job site

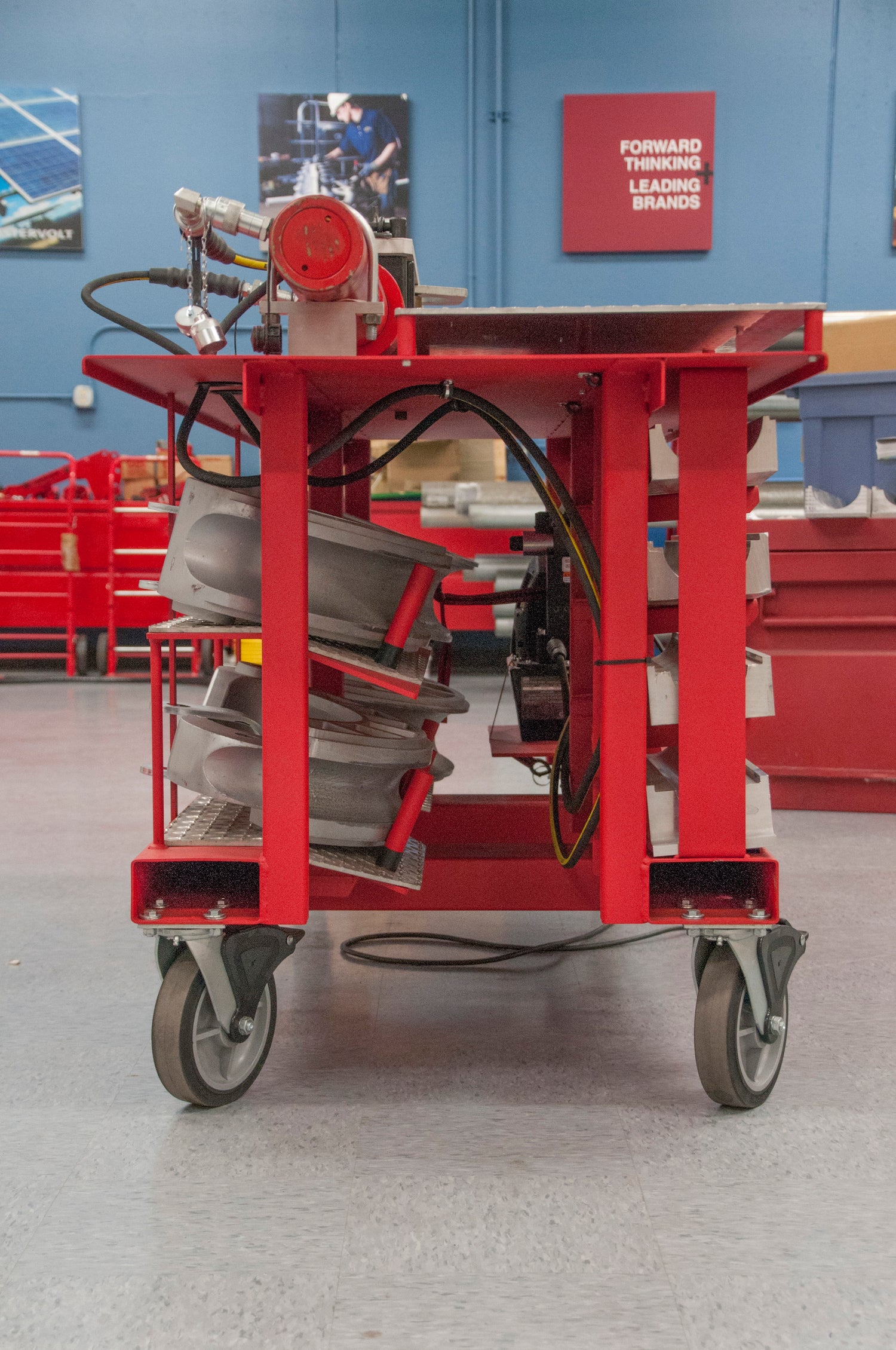

• Protected hose routing
• Ample work/bending area
• Convenient Cylinder support
• Single person set-up
• Fits through 32 in doorway (28 in wide table)

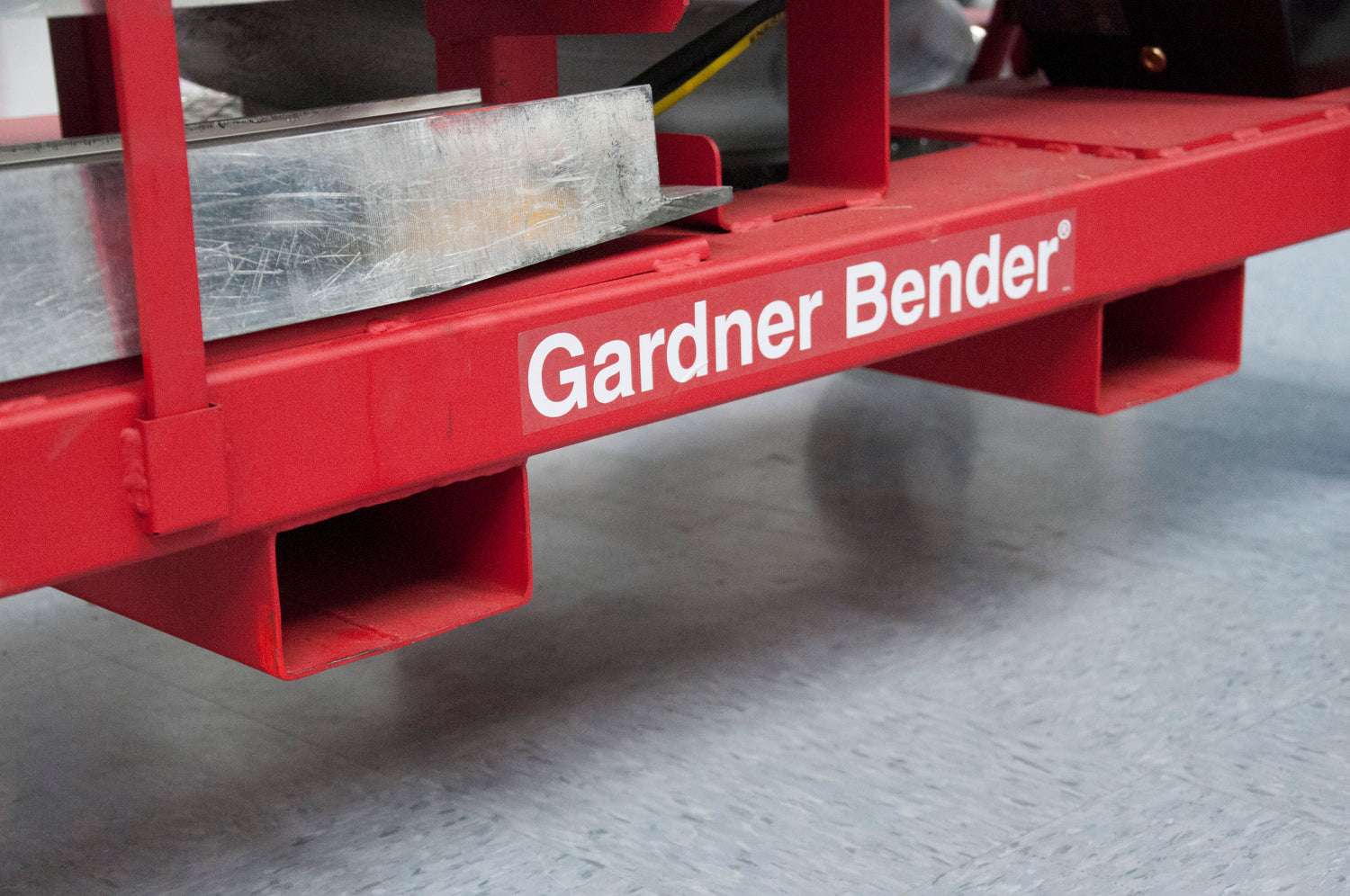

• Forklift pockets on all four sides
• Powered & Hydraulic Equipment

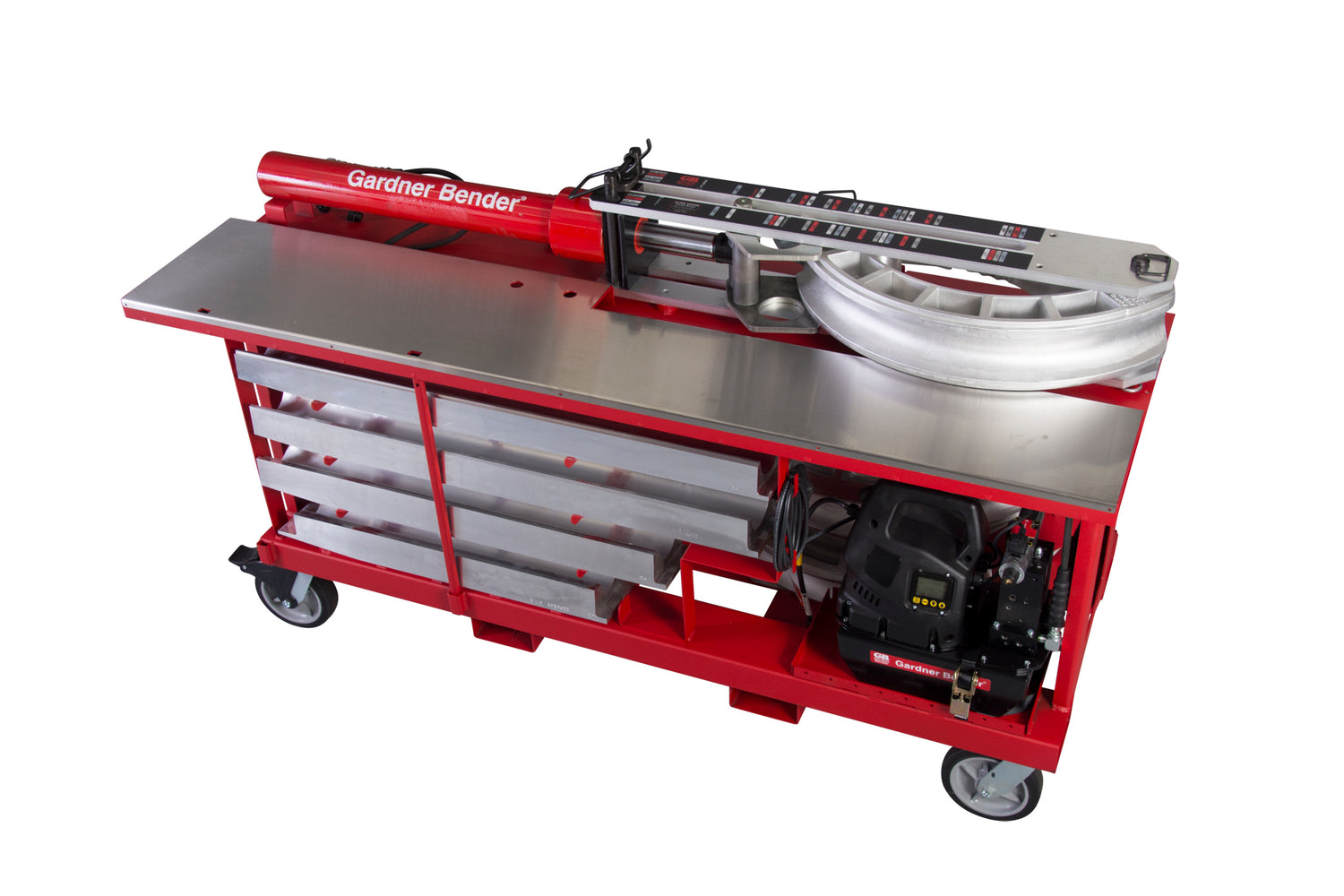

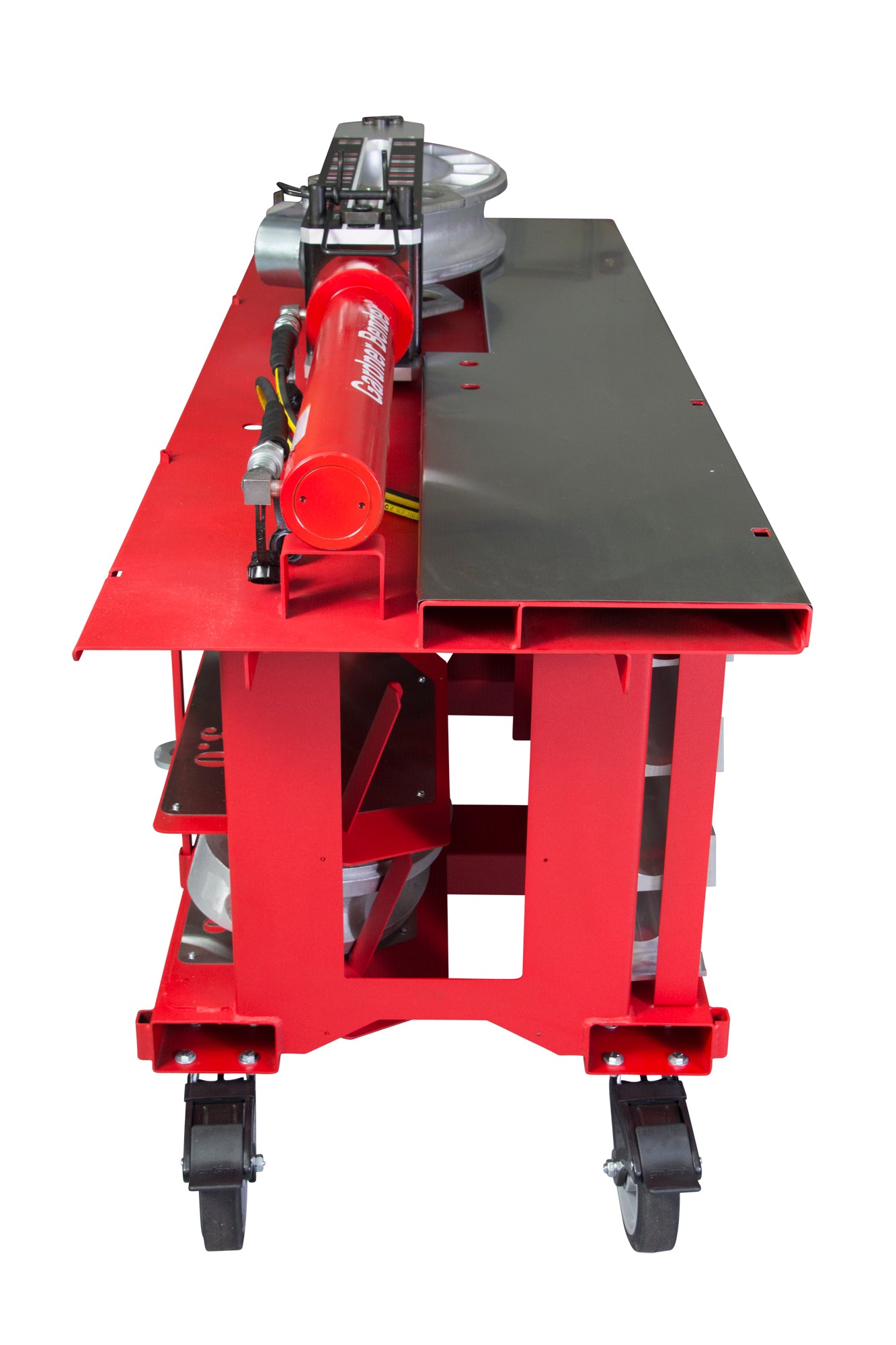

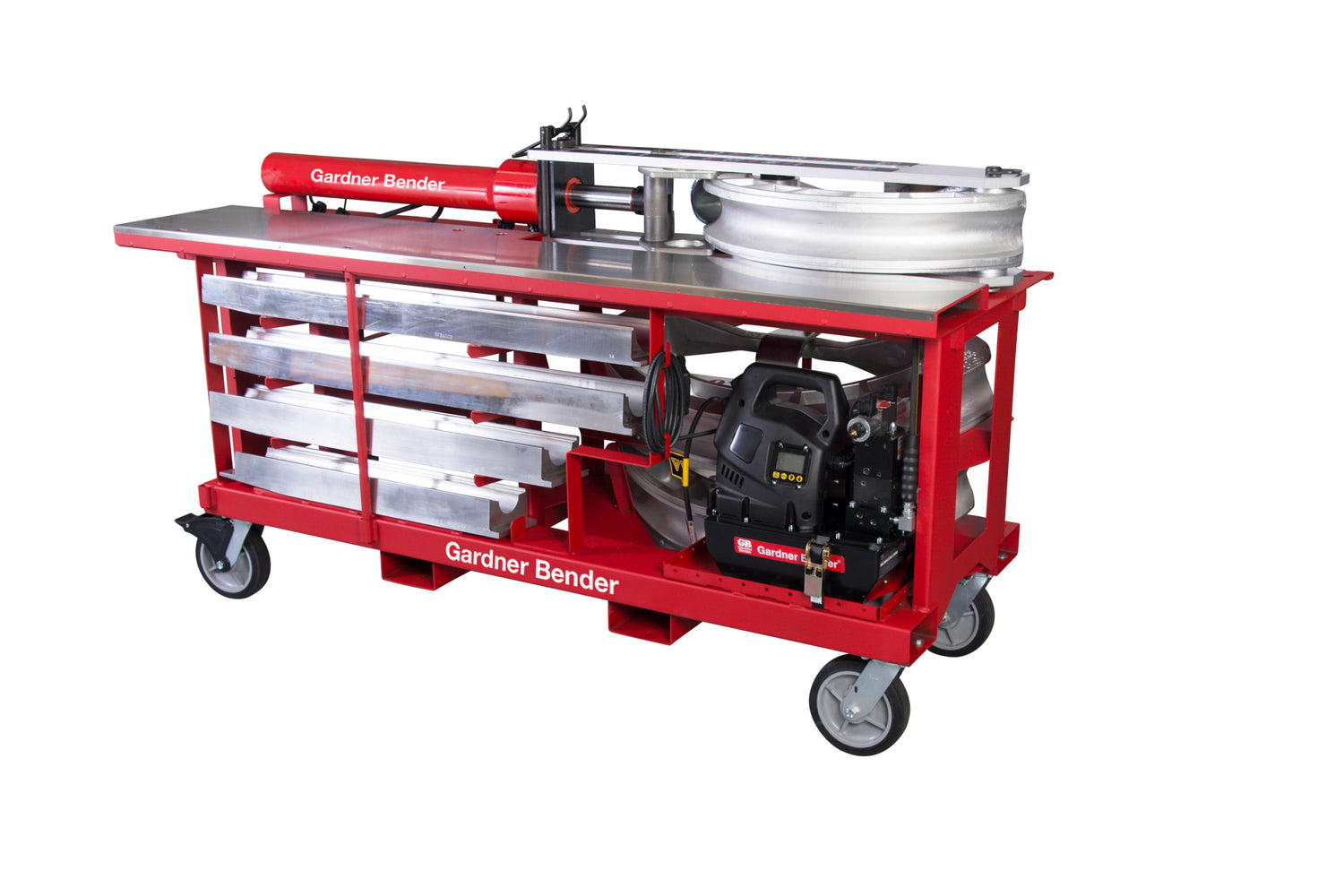

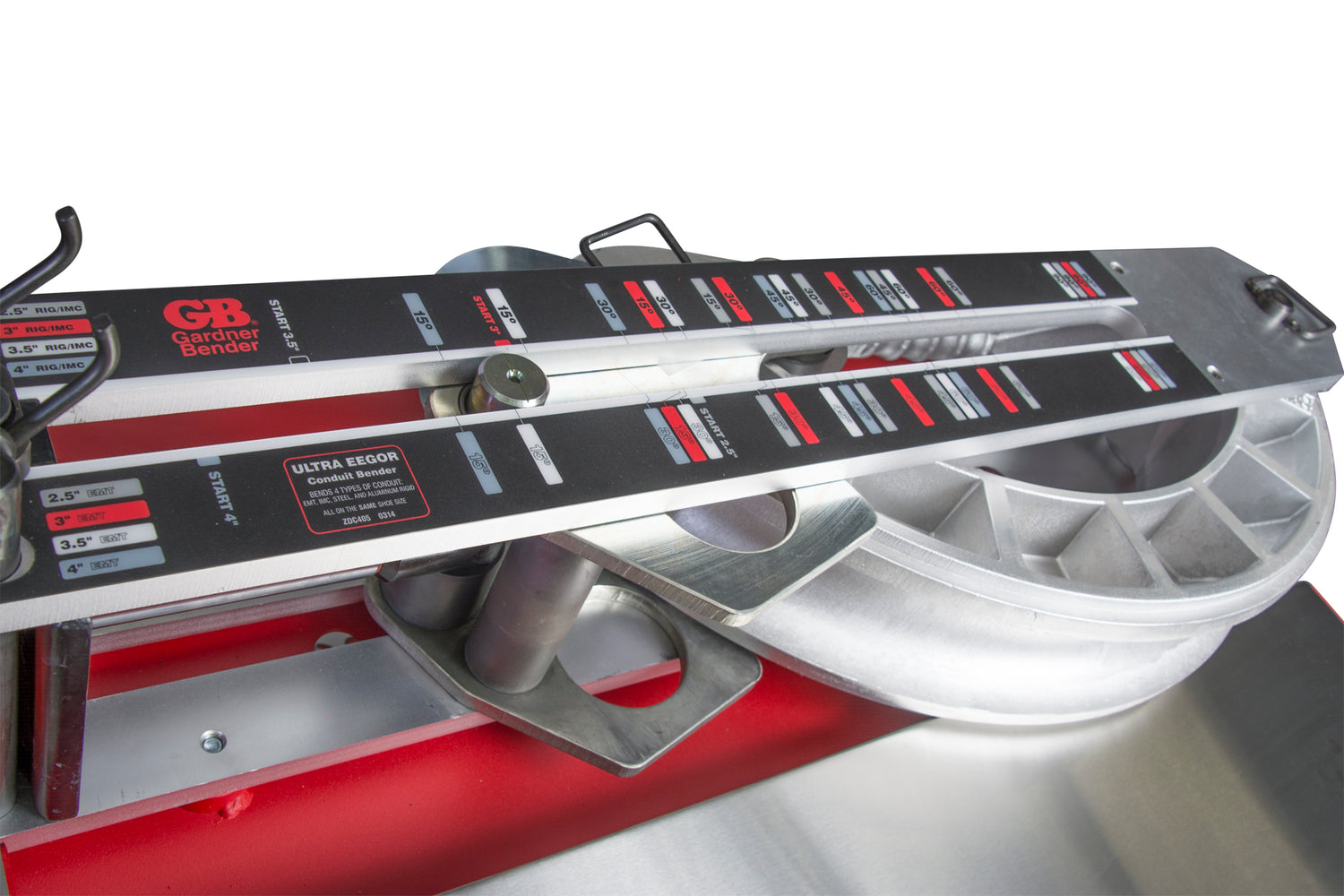

The Mobile Bend-Mate system empowers one person to setup, operate and finish a job faster than ever. All bending shoes, follow bars and pump are integrated into a unique design - even the hydraulic hoses are pre-installed and routed - to optimize setup and teardown time on the job site. The Long Stroke Ultra Eegor Hydraulic Bender bends 2.5 inch to 4 inch Rigid, Rigid aluminum, EMT and IMC conduit and the 30 ton 28 inch stroke cylinder is capable of making 90 degree bends in one pass. Redesigned bend labels offer easy readability and reference. Hydraulic power ensures the smoothest bends without deformations to the conduit and the double-acting cylinder offers rapid retraction, regardless of hose lengths and system losses. Improved shoes and follow bars reduce conduit kinking during bending. Constant radii follow bars eliminate the need for special calculations and conduit is automatically stripped free from the shoe during the return cycle virtually eliminating extra labor or damaged conduit. Package includes a GB Z-Class P408S Double-Acting Electric Pump. Z-Class pumps run cooler, use less electricity, and are easier to service than conventional pumps. Engineered to reduce the number of moving parts, improve flow dynamics and decrease friction this pump stays on the job longer and requires less energy to operate. Features a 1.7HP Motor, Back-Lit LCD display and Pendant Control. Finally, the Mobile Bend-Mate Table makes it easy to move the unit from one location to the next with four heavy duty swivel casters that pivot in any direction and lock securely. The entire system fits just about anywhere sliding through doorways as narrow as 32 inches. Built-in forklift pockets on all four sides provide immediate access for lifting and loading. At the end of the work day, the Mobile Bend-Mate Table's lockable bars quickly secure shoes, follow bars, pump and bender for overnight storage on-site. MB400LP System Includes: Table, P408S Electric Pump, Bending Shoe sizes: 2.5 in, 3 in, 4 in, Follow bar size; 2.5 in, 3 in, 4 in, U-strap sizes: 2.5 in, 3 in, 4 in , U-strap Pin, Bend Shoe Pin, 30-Ton Double-Acting Hyd. Cyl, 2 - 10' Hoses w/High-Flow Coupler, and Double Anchor Frame Pin.
