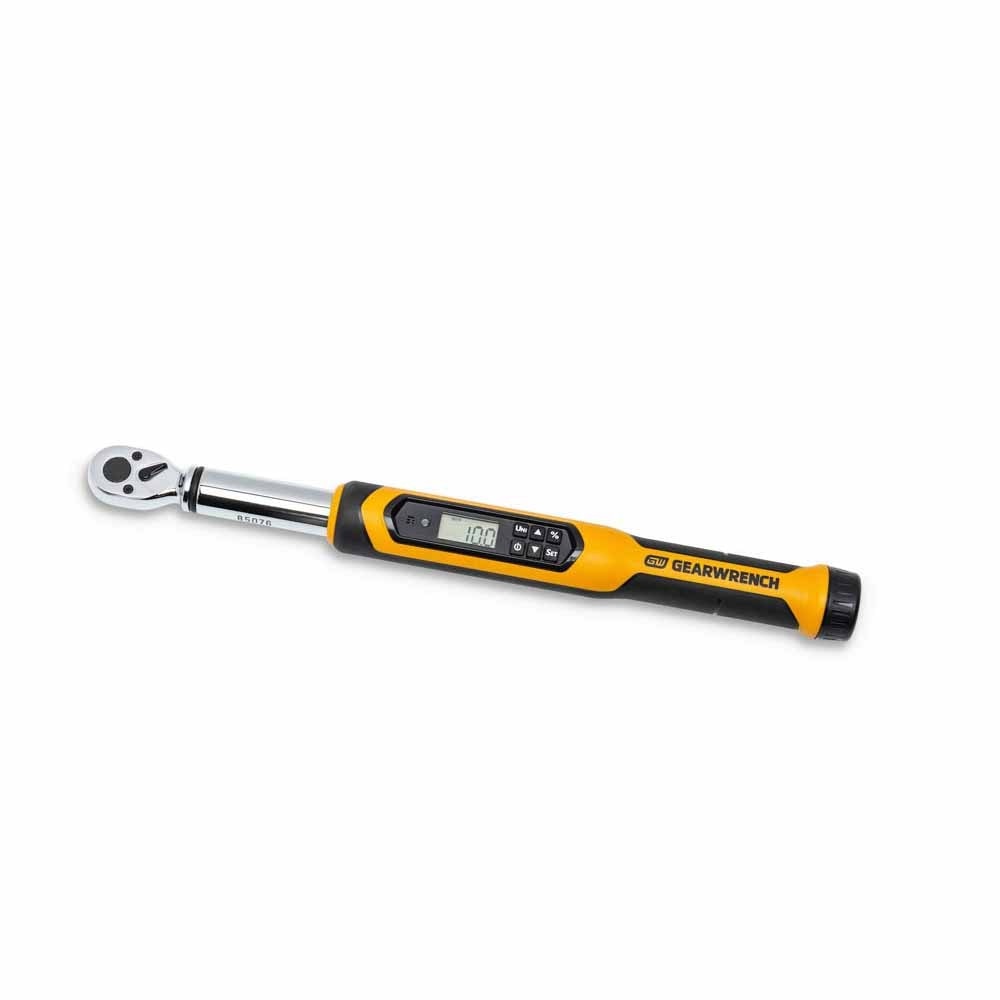

GearWrench 85076 3/8" Drive Electronic Torque Wrench 10-135 Nm
Description
Description
GearWrench 85076 Description
The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.
GearWrench 85076 Includes
- (1) 3/8" Drive Electronic Torque Wrench 10-100 ft/lbs
GearWrench 85076 Features
- +/-2% CW and +/-3% CCW Torque Accuracy between 20% and 100% of wrench scale

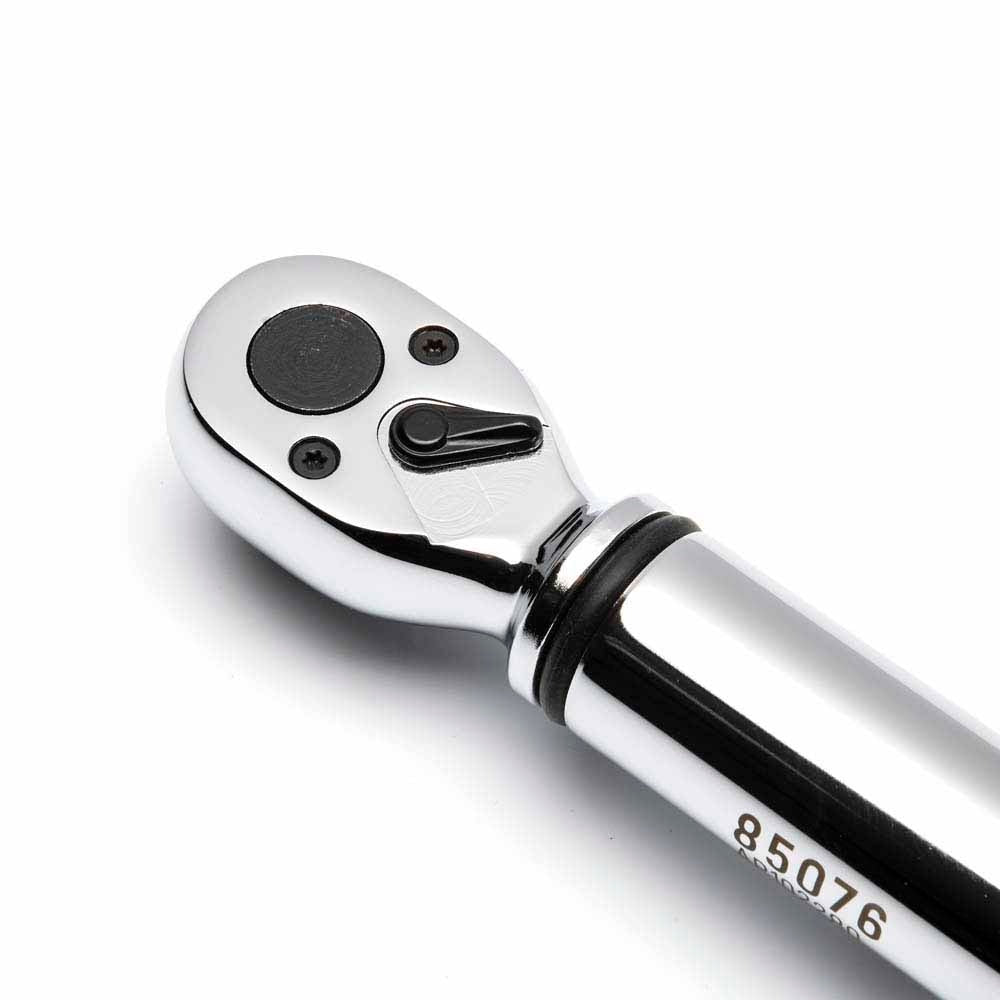

- 72-tooth ratchet provides 5° swing arc allows you to turn fasteners in tight spaces

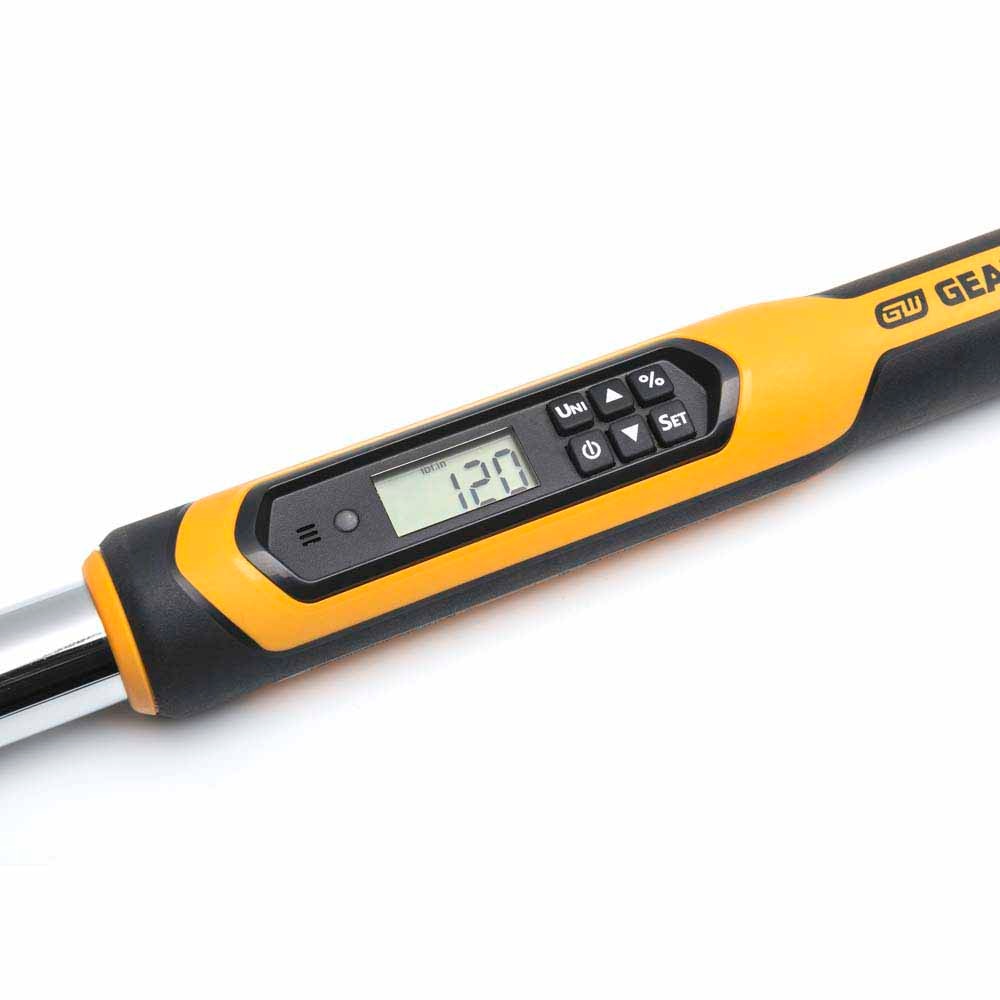

- “Target Torque Alert” gives a warning as you approach the target torque; vibrating handle, buzzer, and solid LED light indicate when target is reached
- 5 torque measurement units [ft-lbs, in-lbs, Nm, kg-m, kg-cm]
- Handle and housing are oil and solvent resistant, protecting the tool from harmful agents and keeping your hands in place
- Requires 3 AAA batteries (not included)
- Meets or exceeds ASME B107.28M standards and specifications
- 1 year limited warranty; calibration accuracy warrantied for 90 days
GearWrench 85076 Specifications
| Prop 65 | WARNING |
| Batteries Included | No |
| ASME Specification | B107.28MB107.300 |
| Rechargeable | No |
| Minimum Torque (Primary Scale) | 10 ft/lb |
| Tether Ready | No |
| Maximum Torque (Primary Scale) | 100 ft/lb |
| Battery Type | AAA |
| Minimum Torque (Alt Scale) | 13.5 |
| Maximum Torque (Alt Scale) | 135 |
| Torque Accuracy (20-100% of Full Range) | +/-2% Clockwise |
| Certified | No |
| Head Thickness Less Tang | 0.75 in |
| Primary Scale Increments | 0.1 ft/lb |
| Alt Scale Increments | 0.1 |
| Head Thickness | 1.25 |
| Type | Electronic |
| Flexible | No |

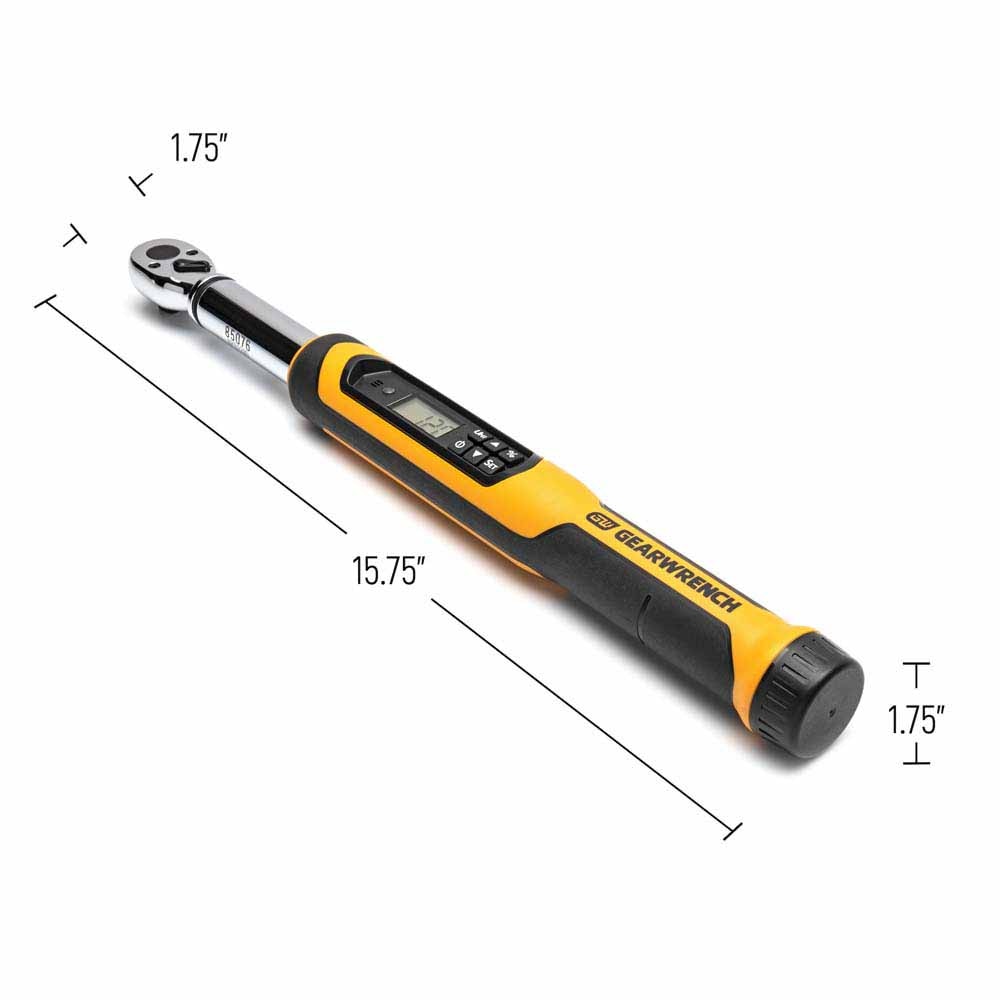

| Overall Length | 15.75 |
| Head Width | 1.25 |
| Packaging | Boxed |
| Weight (Catalog) | 1.98 |
| Warranty | 90 Days Caibration/1 Year on Parts |
| Drive Tang Size | 3/8 in |
| Head Length | 2.4 |
| Tooth Count | 72 |
| Finish | Full Polish Chrome |
| Overall Height | 1.75 |
| UPC | 099575850769 |

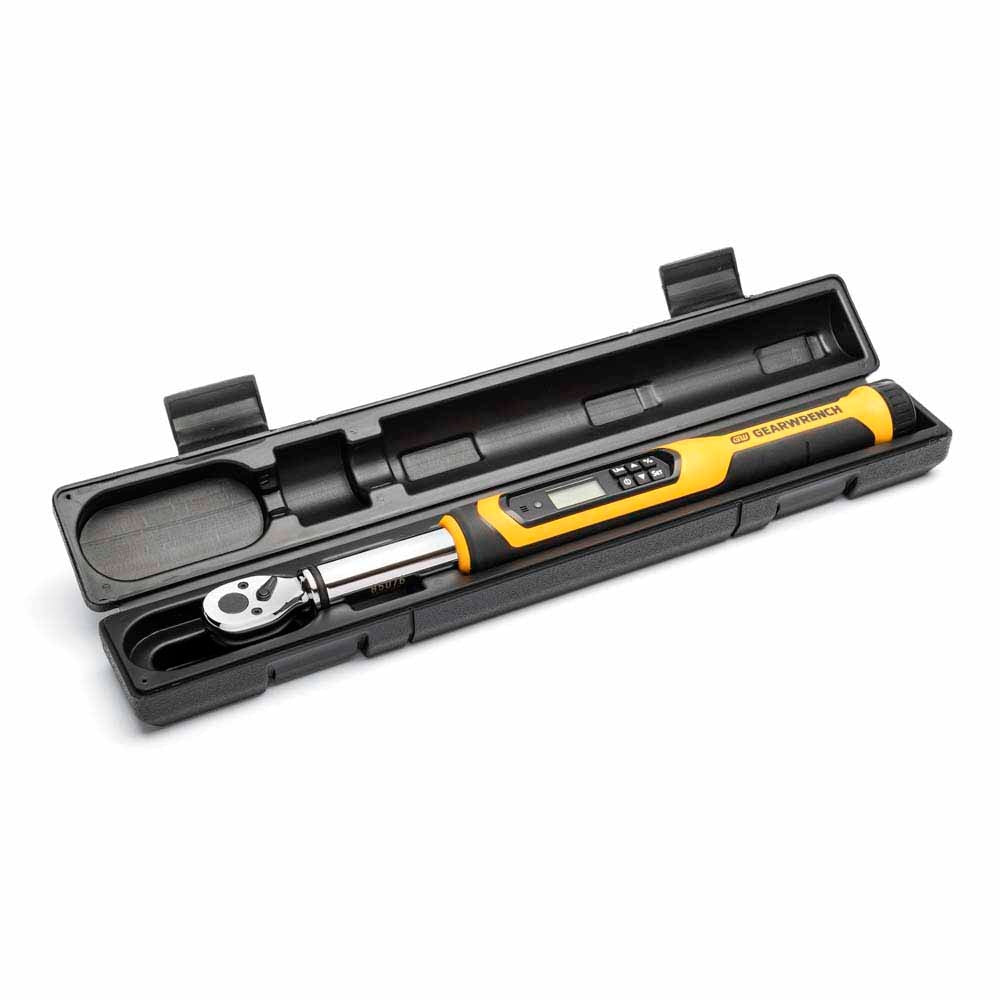

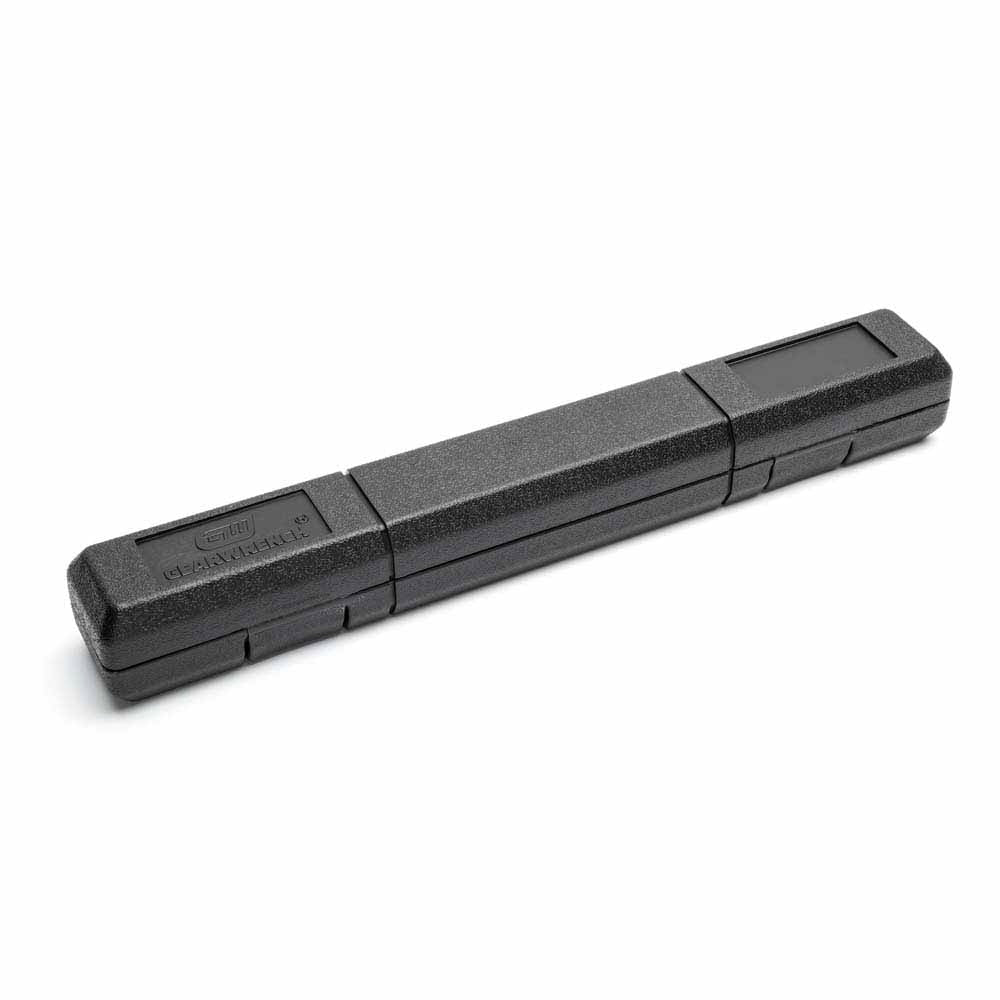

| Included Storage | Blow Mold Case |
| Overall Width | 1.75 |
| Drive Type | Square |
| Material | Alloy Steel |
