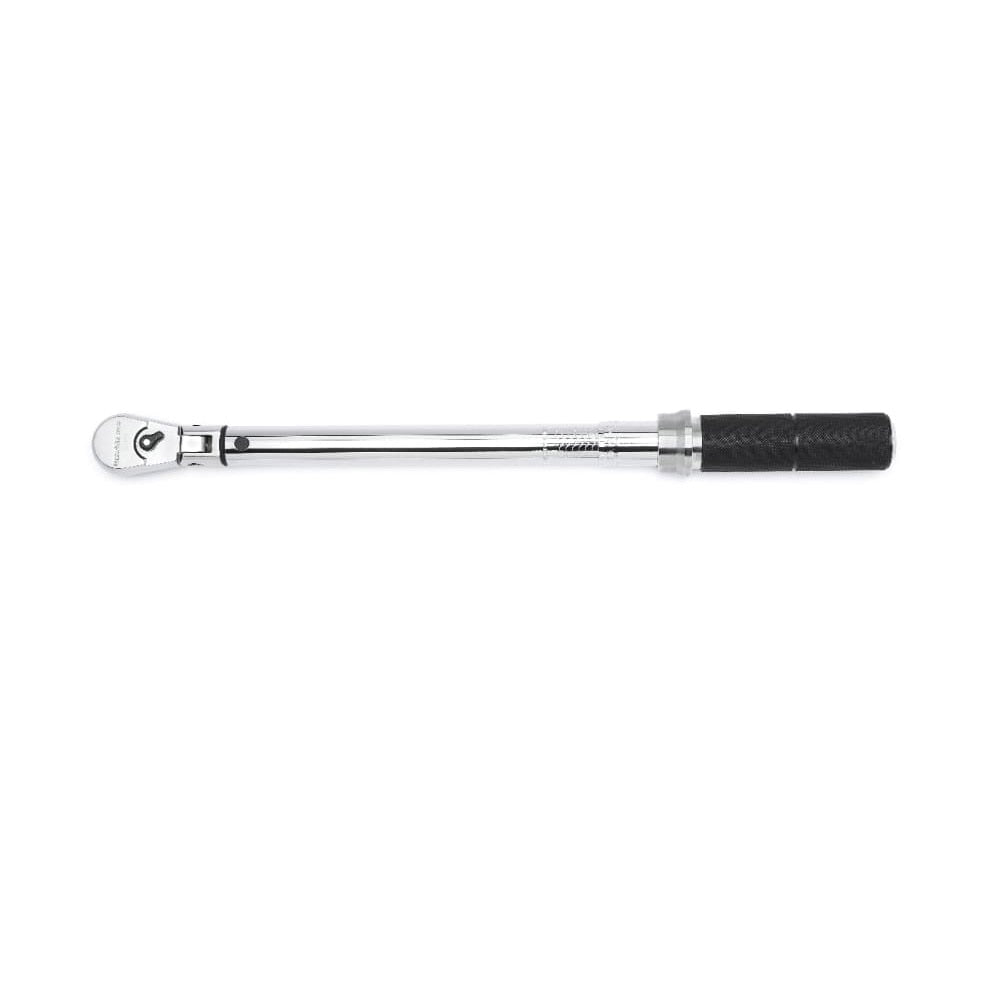

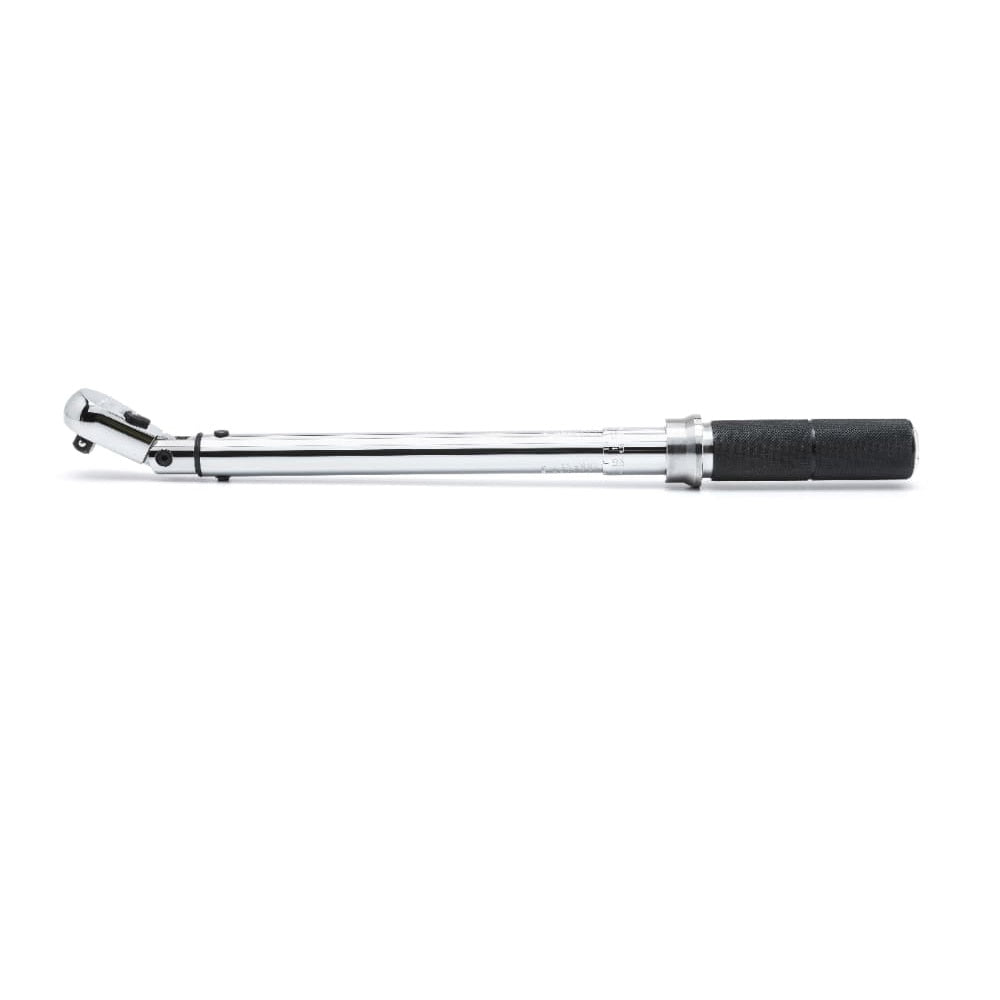

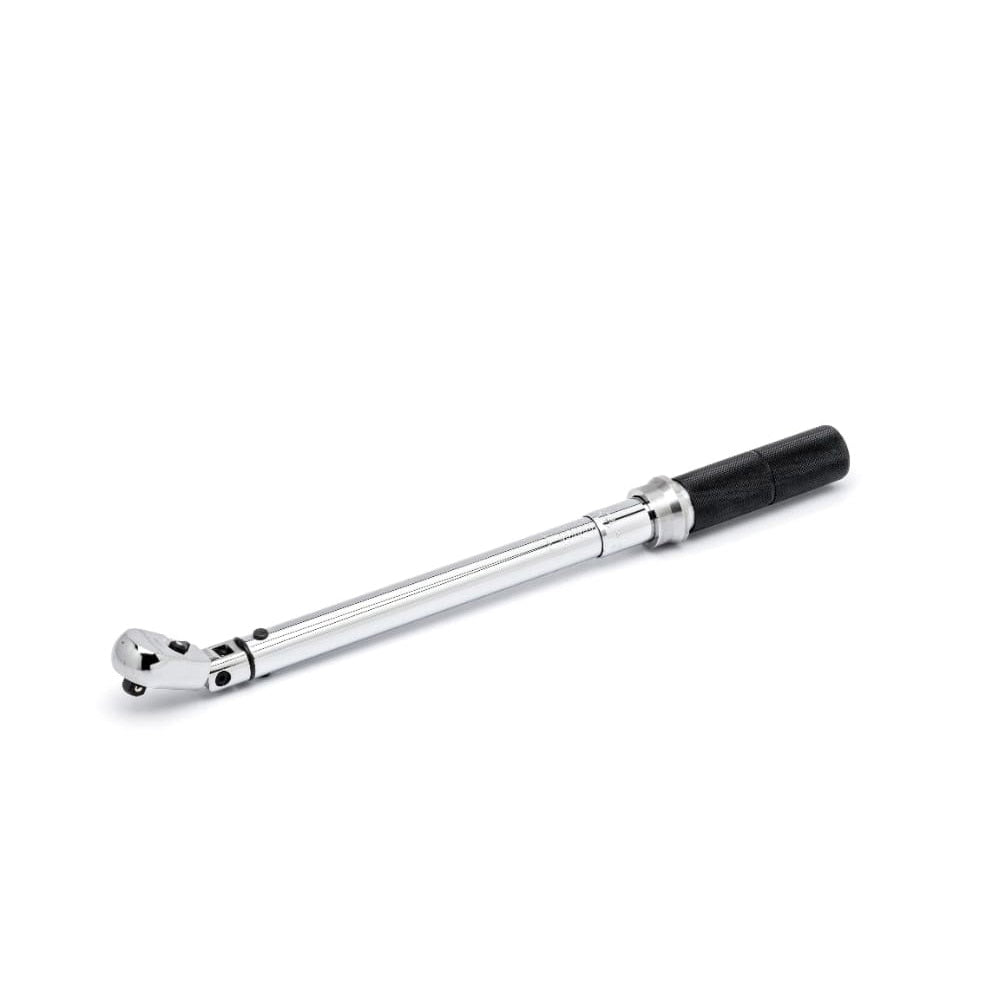

GearWrench 85086M 3/8" Drive Flex Head Micrometer Torque Wrench 5-75 ft/lbs.
Description
Description
GearWrench 85086M Description
The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.
GearWrench 85086M Features
- Thin profile, sealed teardrop head design offers greater access and more durability for highly effective application
- Torque accuracy of +/- 3% CW between 20% and 100% of wrench capability
- Ratcheting head flexes up to 30° for improved access in narrow work spaces
- Pull adjustment collar feature allows you to make quick and easy torque setting changes
- Scale markings are highly visible and easy to read
- Midpoint on handle clearly marked for accuracy
- Knurled anodized aluminum handle lets you grip the wrench comfortably, helping to reduce hand fatigue
- Meets or exceeds ISO 6789 and ASME B107.300-2010 standards and specifications
- 1 Year limited warranty; calibration accuracy warrantied for 90 days
GearWrench 85086M Specifications
| Alt Scale Increments | 0.68 Nm |
| ASME Specification | B107.300 |
| Case Color | Black |
| Drive Tang Size | 3/8 in |
| Drive Type | Square |
| Finish | Full Polish Chrome |
| Head Length | 2.65 in |
| Head Thickness | 0.72 in |
| Head Thickness Less Tang | 0.3 in |
| Head Width | 1.4 in |
| Included Storage | Blow Mold Case |
| Material | Alloy Steel |
| Max Torque (Alt Scale) | 105.1 Nm |
| Max Torque (Primary Scale) | 75 ft/lb |
| Min Torque (Alt Scale) | 10.17 Nm |
| Min Torque (Primary Scale) | 5 ft/lb |
| Primary Scale Increments | 0.5 ft/lb |
| Tether Ready | No |
| Tooth Count | 30 |
| Torque Accuracy (20-100% of Full Range) | +/-3% Clockwise |
