GearWrench 893823 23 Pc. 3/8" Drive Pass-Thru 6 Point Standard SAE/Metric Mechanics Tool Set
Description
Description
GearWrench 893823 Description

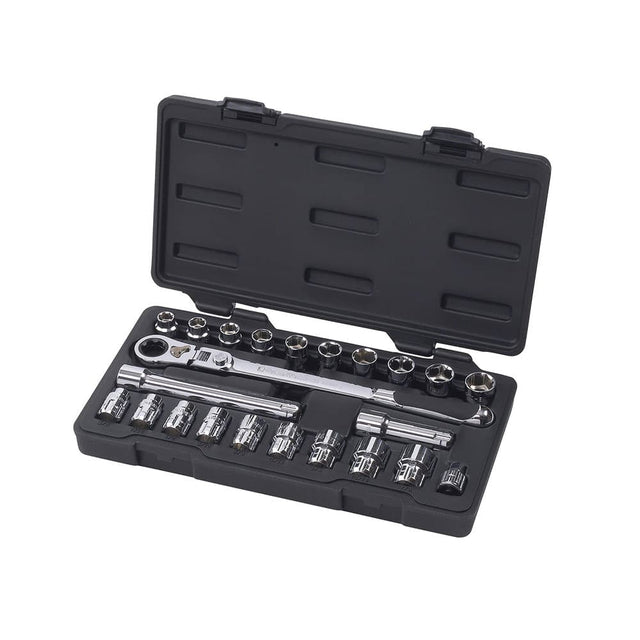

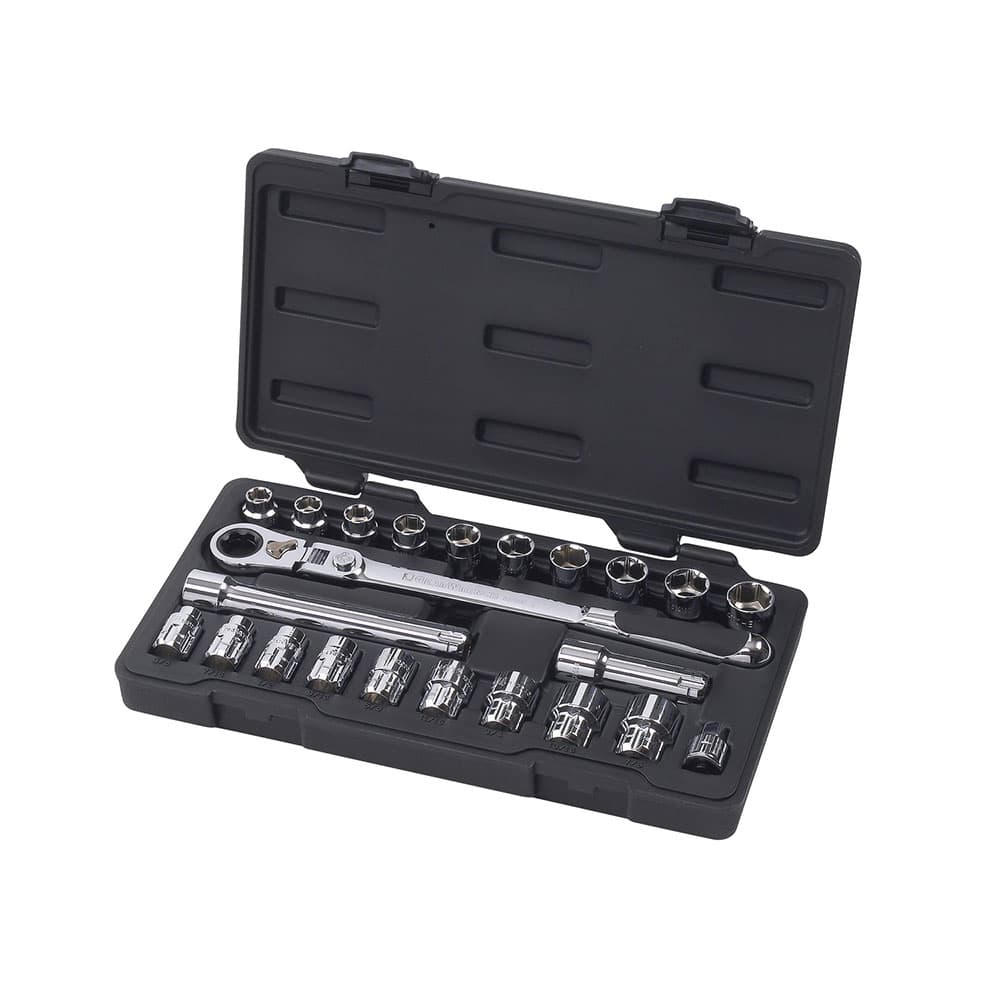

The GEARWRENCH 2593 Vortex pass-thru ratchet, socket, and extension system loosens and drives nuts on bolts of any length. The system replaces standard deep sockets which are limited to bolts the length of the socket. The Vortex pass-thru sockets integrate into the GEARWRENCH handle, reducing overall height and increasing torque strength. The GEARWRENCH adapter allows for the use of standard sockets and drive tools. The 893823 is a 23 piece SAE/metric 6 point set featuring 9 SAE and 10 metric sockets, 2 extensions, a quick release adapter, and a XL locking flex head GEARWRENCH ratchet. Set is in a blow molded case for storage and tool retention.
GearWrench 893823 Includes
- Ratchet
- 2 Extensions
- Adapter
- 9 Standard SAE Pass-Thru Sockets
- 10 Standard Metric Pass-Thru Sockets
GearWrench 893823 Features
- Up to 50% thinner head profile than conventional ratchet systems
- 11 Locking head positions
- 5 Degree ratcheting arc
- Up to 40% stronger than traditional ratchets by eliminating drive tang
- Dual material comfort grip handle
- Pass-Thru ratchet and socket system eliminates the need for deep sockets
- Includes blow mold case for storage and organization
- Meets or exceeds ASME specifications
GearWrench 893823 Specifications
| ASME Specification | Meets or Exceeds |
| Drive Tang Size | 3/8 in |
| Drive Type | 6 Point |
| Finish | Full Polish Chrome |
| Handle Length | 12 in |
| Head Thickness | 0.453 in |
| Length Format | Standard |
| Material | Alloy Steel |
| Quick Release | No |
| Ratchet Angle | 5 ° |
| Ratchet Handle Type | Locking Flex |
| Ratchet Head Style | Pass-Thru |
| SAE/Metric/Torx | SAE/Metric |
| Set Components | Ratchet 2 Extensions Adapter 9 Standard SAE Pass-Thru Sockets 10 Standard Metric Pass-Thru Sockets |
| Size | 3/8 in 7/16 in 1/2 in 9/16 in 5/8 in 11/16 in 3/4 in 13/16 in 7/8 in;10mm 11mm 12mm 13mm 14mm 15mm 16mm 17mm 18mm 19mm |
| Tooth Count | 72 |
