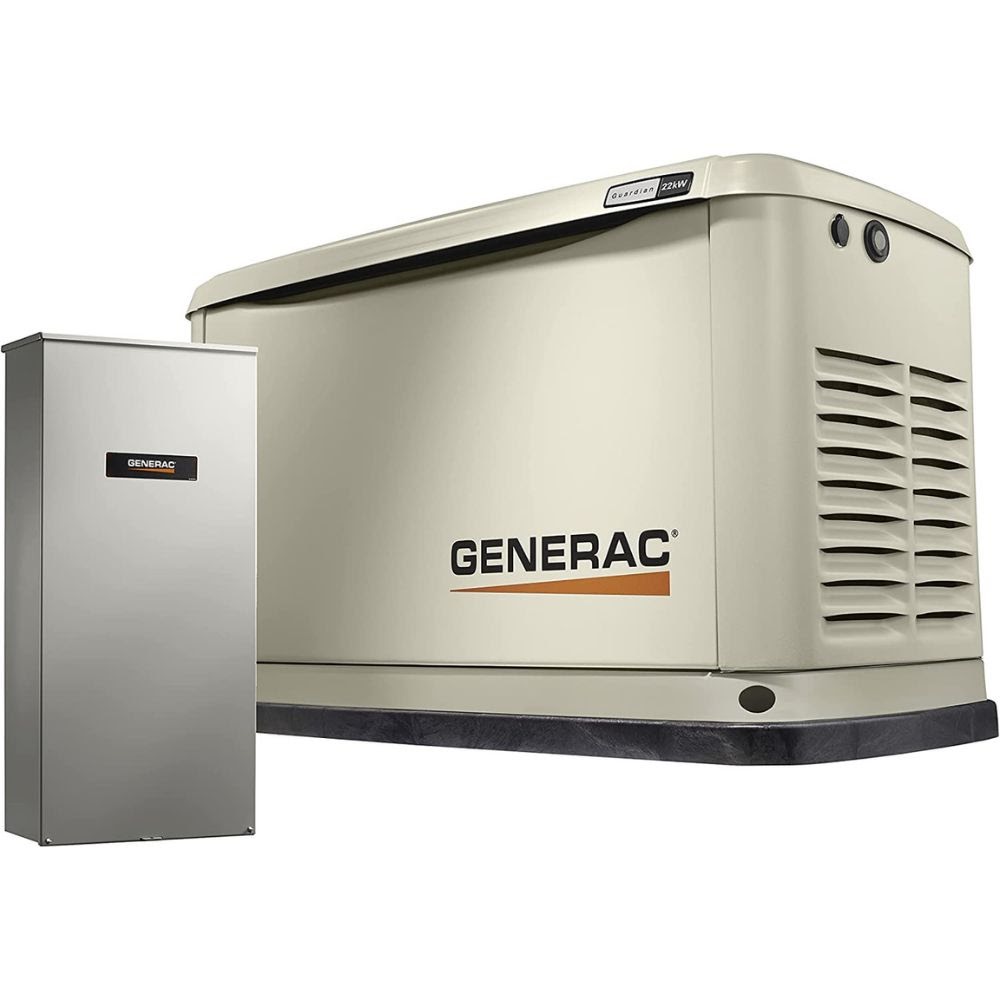

Generac 7043 22kW Air Cooled Guardian Series Home Standby Generator with 200-Amp Transfer Switch
Description
Description
Generac 7043 Description
The Generac 7043 22/19.5kW Air-Cooled Standby Generator is another option from the Generac Guardian® Series of home standby generators. It has all of the power and reliability you need for your house during a power outage. It is also the biggest generator available. It provides the lowest-cost-per-kilowatt MSRP of all residential standby units. The 7043 is an excellent generator for total backup electricity. The Generac 7043 has the strong, stable, and reliable Generac G-Force™ Engine. This engine is pressure-lubricated and able to handle strenuous usage over the long-term. It requires less regular care than other models. The 7043’s power is run through a 200-Amp, NEMA 3R Automatic Transfer Switch. This switch is outdoor-rated and enclosed in aluminum. It provides your house with both power and circuit protection. The generator itself can supply your house with a total of 22000 LP watts and 19500 NG watts.
Generac 7043 Includes
- (1) Generator
- (1) Transfer Switch
Generac 7043 Features
- The Generac 7043 is run by the Generac G-Force™ Engine. This engine is strong and stable, capable of handling strenuous use, is pressure-lubricated, and requires less regular maintenance than most engines.
- The True Power™ Technology in this model means reducing harmonic distortion to less than 5%. This equals cleaner quality of power for sensitive devices and appliances.
- The 200-Amp, NEMA 3R, outdoor-rated Automatic Transfer Switch has an aluminum enclosure, and provides automatic power and protection to your entire home from this standby generator.
- Maximum 22000 LP Watts and 19500 NG Watts.
- It operates at a reasonable 67 Decibels, offering a quiet power solution.
- The 7043 is Wi-Fi capable.
- The Quiet-Test™ Self-Test Mode runs the generator at a lower RPM while it performs a five or twelve-minute test. It is also a more fuel-efficient model.
- Standby generators must be durable, and the Aluminum Enclosure and RhinoCoat powder-coated finish resist corrosion, and help this model survive the elements, including 150 mph winds.
- The Generac 7043 comes with a 5-Year Limited Warranty.
- Generac takes pride in customer service, and offers 24/7, year-round customer support.
- Generac generators and their engines are constructed in the USA.
Generac 7043 Specifications
| Rated Watts: | 22kW LP/19.5 NG |
| Rated Amps: | 91.6 LP/81.3 NG |
| Voltage: | 120/240V Single Phase |
| A/C Ton Rating: | 5 Ton |
| Enclosure: | Aluminum |
| UL Listed: | Yes |
| Decibel Rating: | 67 dbA @ 23 ft at Normal Operating Load |
| Type: | Standby Generator |
| Series Name: | Guardian Series |
| Transfer Switch Model: | RXSW200A3 |
| Starting System: | Automatic Start |
| Low Oil Alert: | Yes |
| Hour Meter: | Yes |
| Battery Requirement: | Group 26R, 12V, 540 CCA Min, Not Included |
| Mounting Pad: | Composite Base Attached |
| Engine Brand: | Generac G-Force 1000 Series |
| Engine Size: | 999 cc |
| Engine RPM: | 3600 |
| Cast Iron Sleeve: | Yes |
| Cooling System: | Air Cooled |
| Alternator Type: | Brushed |
| Frequency: | 60 Hz |
| Auto Voltage Regulation: | Yes |
| Fuel Type: | Natural Gas (NG) / Propane (LP) |
| Fuel Gauge: | No |
| NG Power Capacity: | 19.5kW |
| LP Power Capacity: | 22kW |
| NG Consumption @ Full Load: | 327 cu.ft/hr |
| NG Consumption @ Half Load: | 228 cu.ft/hr |
| LP Consumption @ Full Load: | 3.90 gal/hr |
| LP Consumption @ Half Load: | 2.53 gal/hr |
| Transfer Switch Amps: | 200 Amps |
| Transfer Switch Circuits: | Whole House Service |
| Ats Poles: | 2 Pole |
| Transfer Switch Weight: | 39 lbs |
