Generac 7225 14kW Air Cooled Guardian Series Home Standby Generator with 200-Amp Transfer Switch
Description
Description
Generac 7225 Description

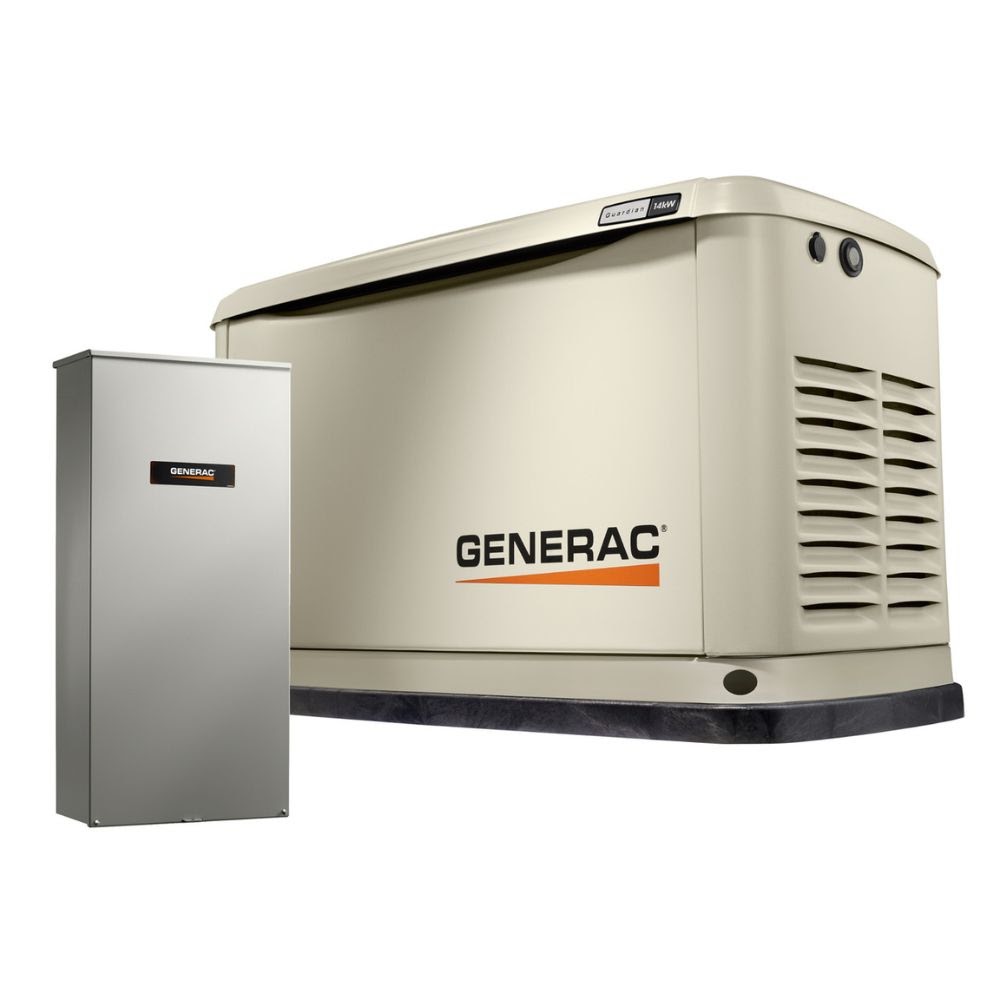

The 14kW Generac Whole House Generator with 200-Amp Automatic Transfer Switch comes equipped with Wi-Fi Mobile Link remote monitoring and automatically restores backup power to your home during an outage. The number 1 selling brand in America, seven out of ten homeowners choose Generac Guardian over all other home standby generator brands. The 200-Amp Service Rated Automatic Transfer Switch selects utility power during normal operation and generator power during an outage. It connects to the main circuit breaker panel to distribute generator power to your entire home. Power management controls multiple air conditioners and other high current loads like electric water heaters, ranges, and dryers. A weatherproof NEMA 3R enclosure installs indoors or outdoors.
Generac 7225 Includes
- (1) Generator
- (1) Transfer Switch
Generac 7225 Features
- Generac 7225 runs on a Generac G-Force 800 Series 816cc twin-cylinder engine. The hydraulic engine is designed for rough use and operates at 3600-RPM max. The single-phase generator produces 14000 watts on natural gas and LP.
- The storage capacity of the oil tank is 2.2 quarts (2.1 liters). The full pressure oil lubrication system ensures optimal performance for long hours. It extends oil change intervals from 100 hours to 200 hours.
- The 60Hz air-cooled gas engine operates at various speeds using the G-Flex variable speed technology. The engine can adjust its speed when you add or remove loads.
- 200 Amp, 120/240 Volts Automatic Transfer Switch has a NEMA/UL 3R rated enclosure. It can manage several heavy loads efficiently. The smart switch can be mounted both indoors and outdoors.
- FREE Mobile Link allows you to monitor the status of the generator on a phone, tablet, or computer from around the world using WiFi. It connects your account to an authorized service dealer for fast, friendly, and convenient assistance.
- TRUE POWER™ TECHNOLOGY ensures superior harmonics and sine waves. This model is perfect for use with sensitive electronics that have microchips. Generac 7225 powers the latest HVACs, refrigerators, laptops, cell phones, and tablets safely.
- Use the kitchen gas line for an unlimited supply of natural gas and run it for hours at no end till grid power is restored. This model is perfect for storm-prone areas.
- It is easy to install with the base pad that requires minimal ground preparation. Guardian 7225 can be installed 18” from the structure. Maintenance is easy with the removable front and side access panels.
- The model is cETL, ETL, cUL2200, UL2200 certified.
- This home standby generator comes with a 5-year limited consumer warranty.
- Does NOT include the fascia kit. The correct fascia kit to order is part number 7027
Generac 7225 Specifications
Rated Watts: | 14kW LP Propane / 14kW Natural Gas |
Rated Amps: | 58.3 Amps |
Voltage: | 120/240 Volts Single Phase |
A/C Ton Rating: | 5-Ton |
Enclosure: | Aluminum |
UL Listed: | UL-2200 |
Decibel Rating: | 65 dBA Normal Load / 55 dBA Quiet Test |
Type: | Standby Generator |
Series Name: | Guardian Series |
Transfer Switch Model: | RXSW200A3 |
Starting System: | Automatic |
Low Oil Alert: | Low Oil Shutdown |
Mainline Breaker: | 60 Amps |
Battery Requirement: | 12-Volt Group 26R 540 CCA or Group 35R 650 CCA |
Mounting Pad: | Composite Base Attached |
Engine Brand: | Generac G-Force 800 Series |
Engine Size: | 816cc |
Engine RPM: | 3600 |
Cast Iron Sleeve: | Spiny-Lok Cast Iron Cylinder Walls |
Cooling System: | Air Cooled |
Alternator Type: | Revolving Field |
Frequency: | 60 Hz |
Auto Voltage Regulation: | Yes |
Fuel Type: | Propane (LP) / Natural Gas (NG) |
Fuel Gauge: | No |
NG Power Capacity: | 14kW |
LP Power Capacity: | 14kW |
NG Consumption @ Full Load: | 256 cu.ft/hr |
NG Consumption @ Half Load: | 195 cu.ft/hr |
LP Consumption @ Full Load: | 3.0 gal/hr |
LP Consumption @ Half Load: | 1.7 gal/hr |
Transfer Switch Amps: | 200 Amps |
Transfer Switch Circuits: | Whole House Service |
Ats Poles: | 2 Pole |
Transfer Switch Weight: | 39 lbs |
