Greenlee | SKU:
50303589

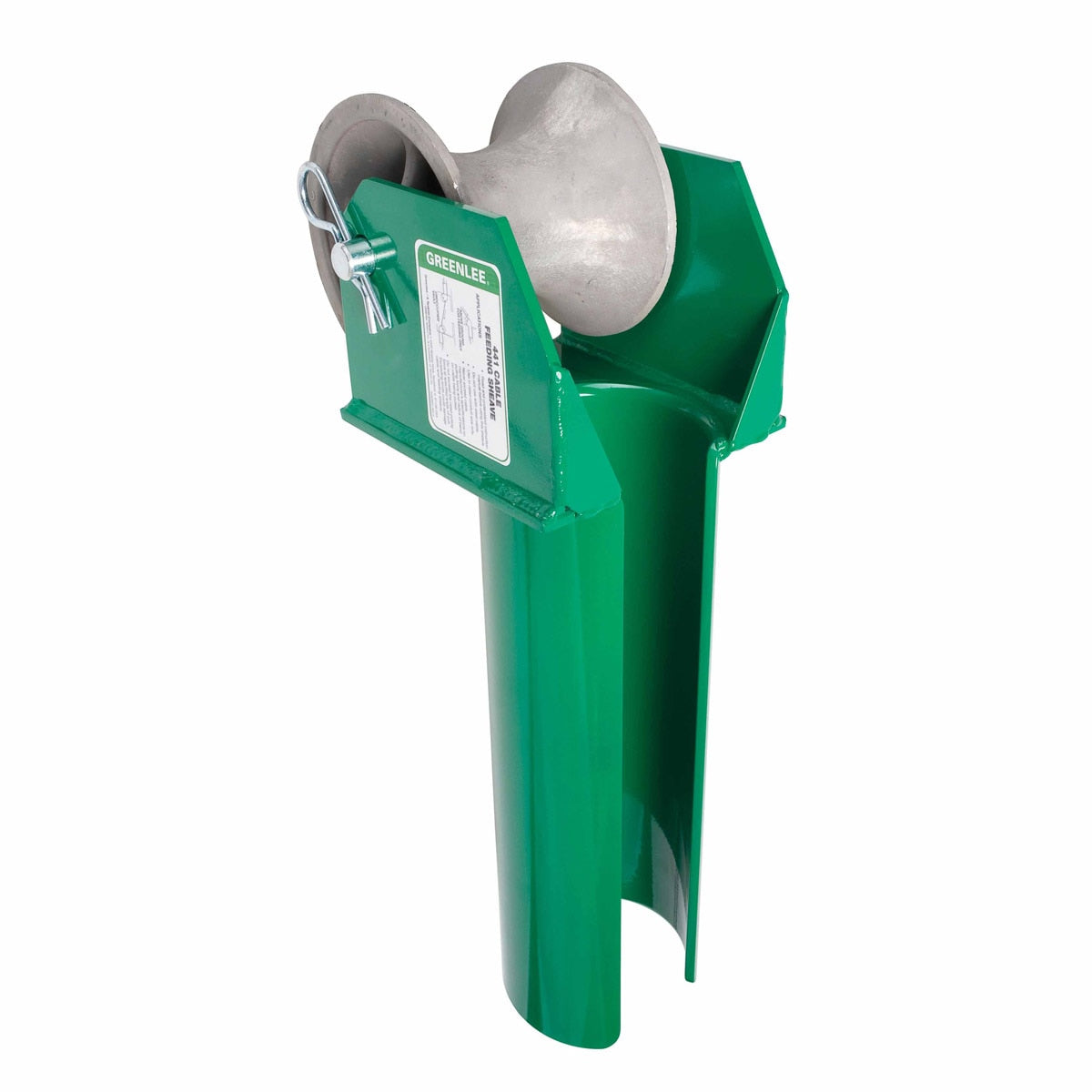

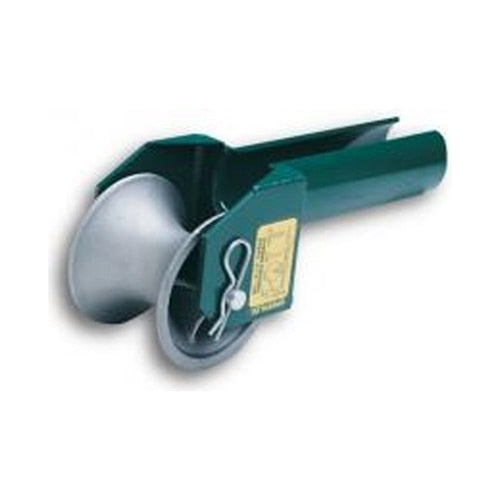

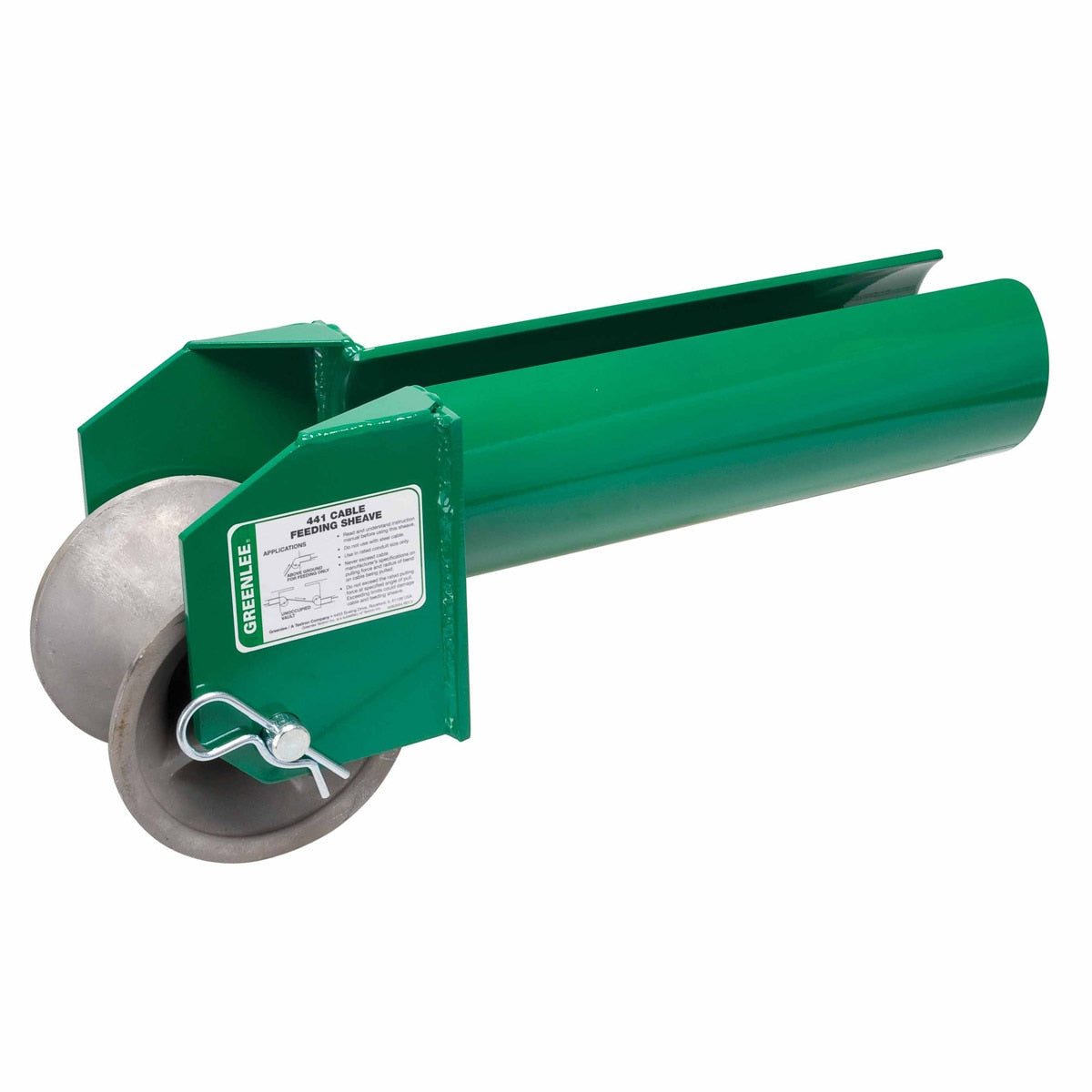

Greenlee 441-2-1/2 Feeding Sheave for 2-1/2" Conduit
Free Shipping
$405.42
$510.40
Unit price
/
Unavailable
Description
Description
Greenlee 441-2-1/2 Features
- Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave.
- 5" (127 mm) wide aluminum alloy sheave with self-lubricating bearings.
- Split tube for easy removal after cable is installed.
Greenlee 441-2-1/2 Specifications
| Weight: | 11 lbs. (5 kg) |
| Capacity (Angle of Pull) @ 15 °: | 1900 lbs. (8.4 kN) |
| Capacity (Angle of Pull) @ 30°: | 1000 lbs. (4.4 kN) |
| Capacity (Angle of Pull) @ 45°: | 700 lbs. (3.1 kN) |
| Capacity (Angle of Pull) @ 60°: | 550 lbs. (2.4 kN) |
| Capacity (Angle of Pull) @ 75°: | 500 lbs. (2.2 kN) |
| Capacity (Angle of Pull) @ 90°: | 500 lbs. (2.2 kN) |
