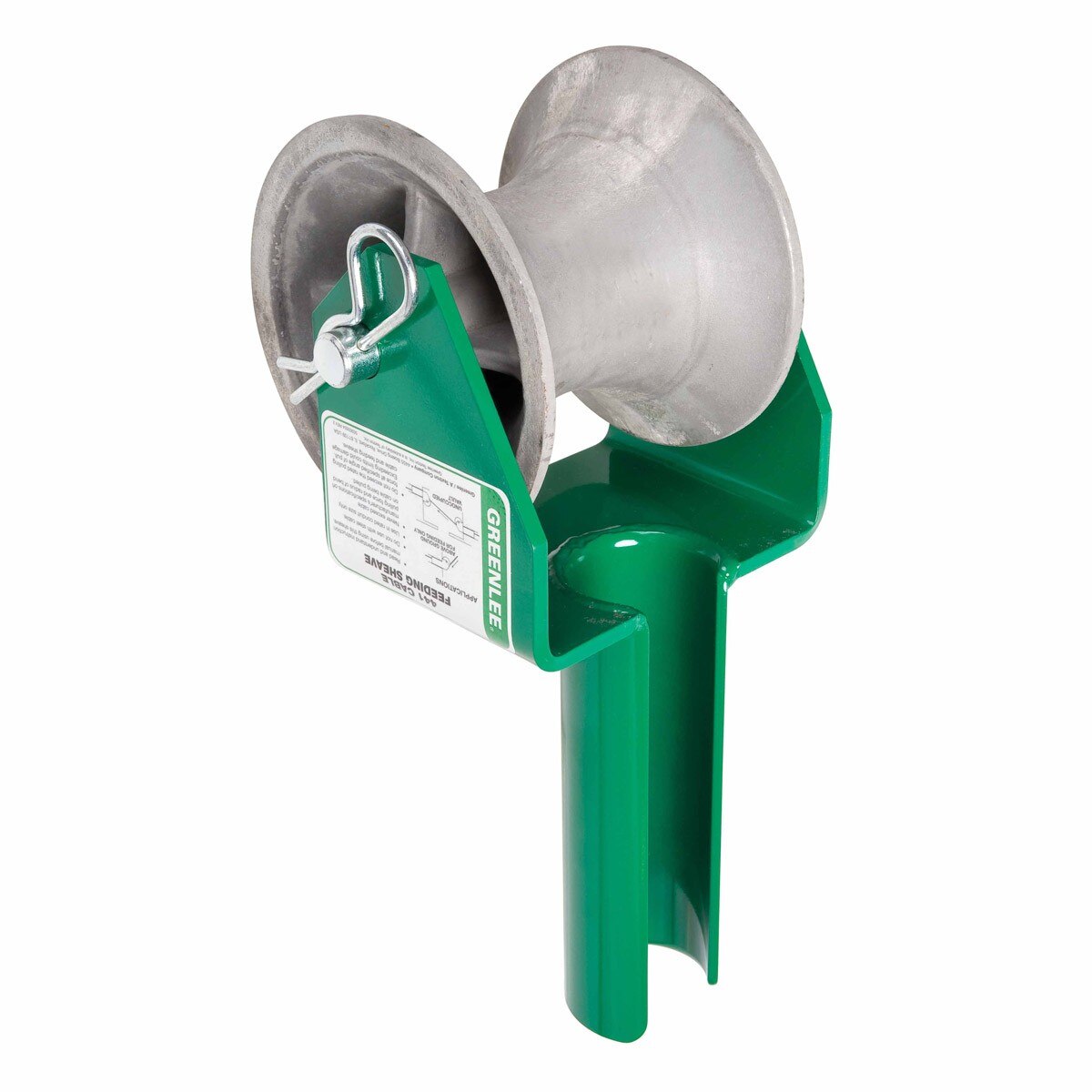

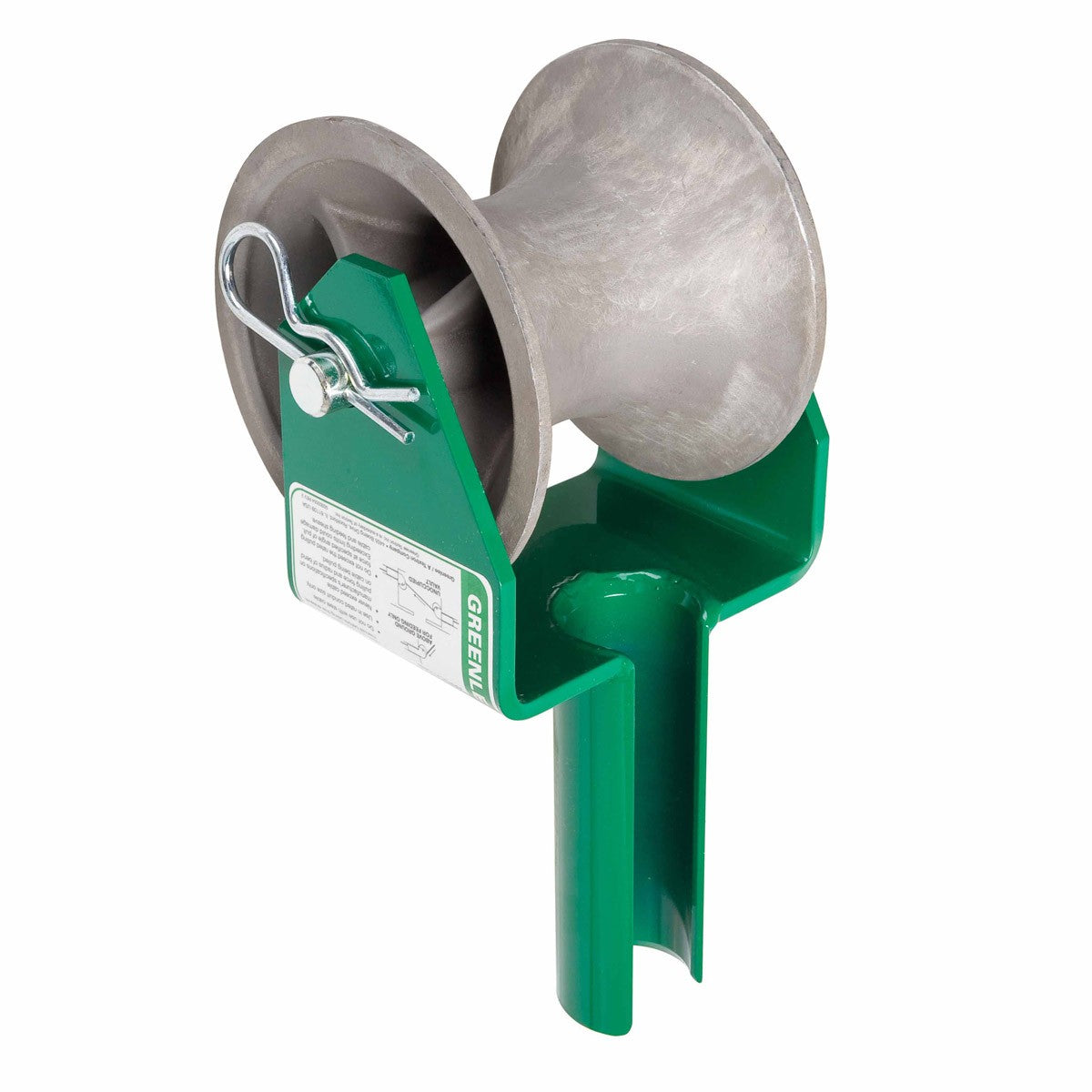

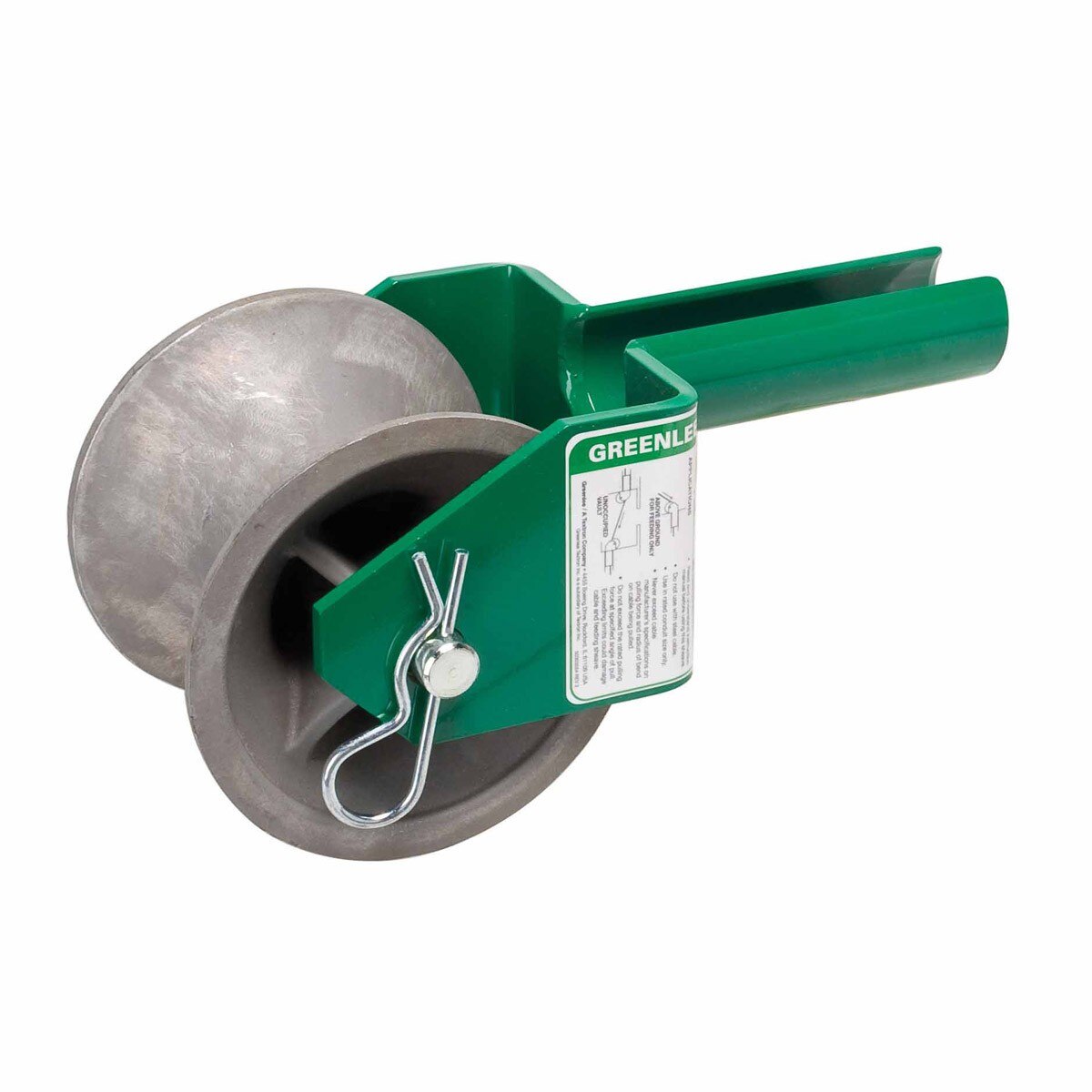

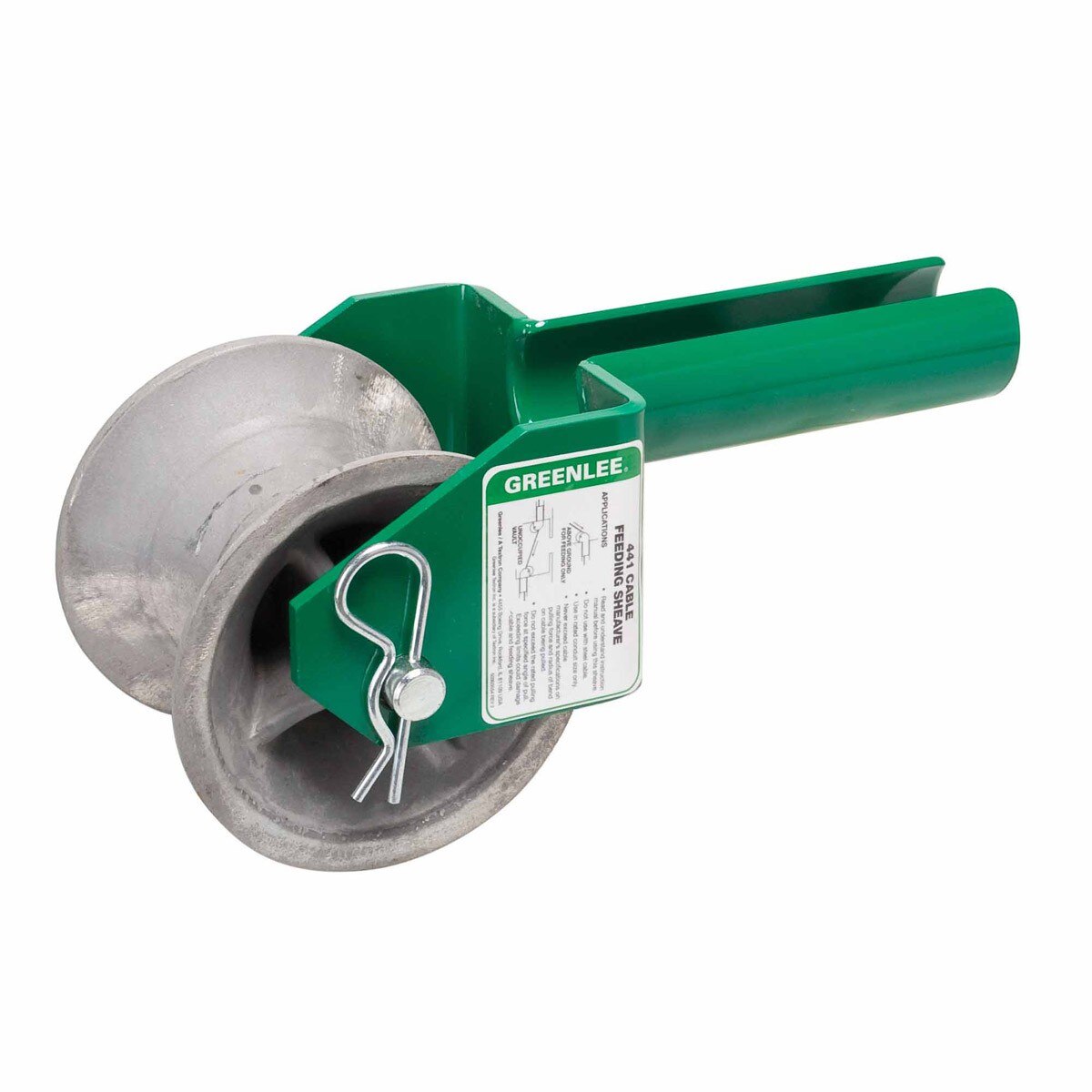

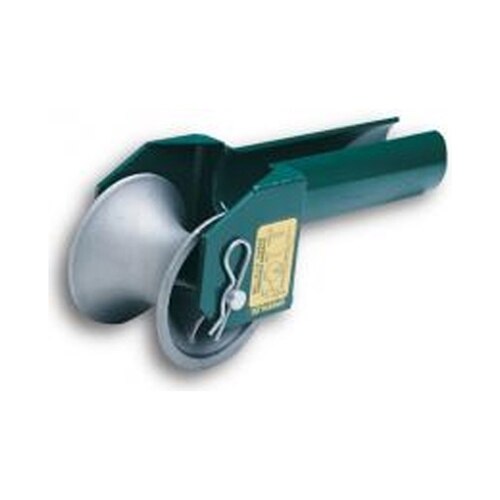

Greenlee 441-2 Feeding Sheave for 2" Conduit
Free Shipping
$333.80
$449.50
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Greenlee 441-2 Features
- Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave.
- 5" (127 mm) wide aluminum alloy sheave with self-lubricating bearings.
- Split tube for easy removal after cable is installed.
Greenlee 441-2 Specifications
| Weight: | 9 lbs. (4.5 kg) |
| Capacity (Angle of Pull) 15 °: | 1750 lbs. (7.7 kN) |
| Capacity (Angle of Pull) 30°: | 900 lbs. (4.0 kN) |
| Capacity (Angle of Pull) 45°: | 650 lbs. (2.8 kN) |
| Capacity (Angle of Pull) 60°: | 500 lbs. (2.2 kN) |
| Capacity (Angle of Pull) 75°: | 450 lbs. (2.0 kN) |
| Capacity (Angle of Pull) 90°: | 450 lbs. (2.0 kN) |
