Greenlee | SKU:
50301888

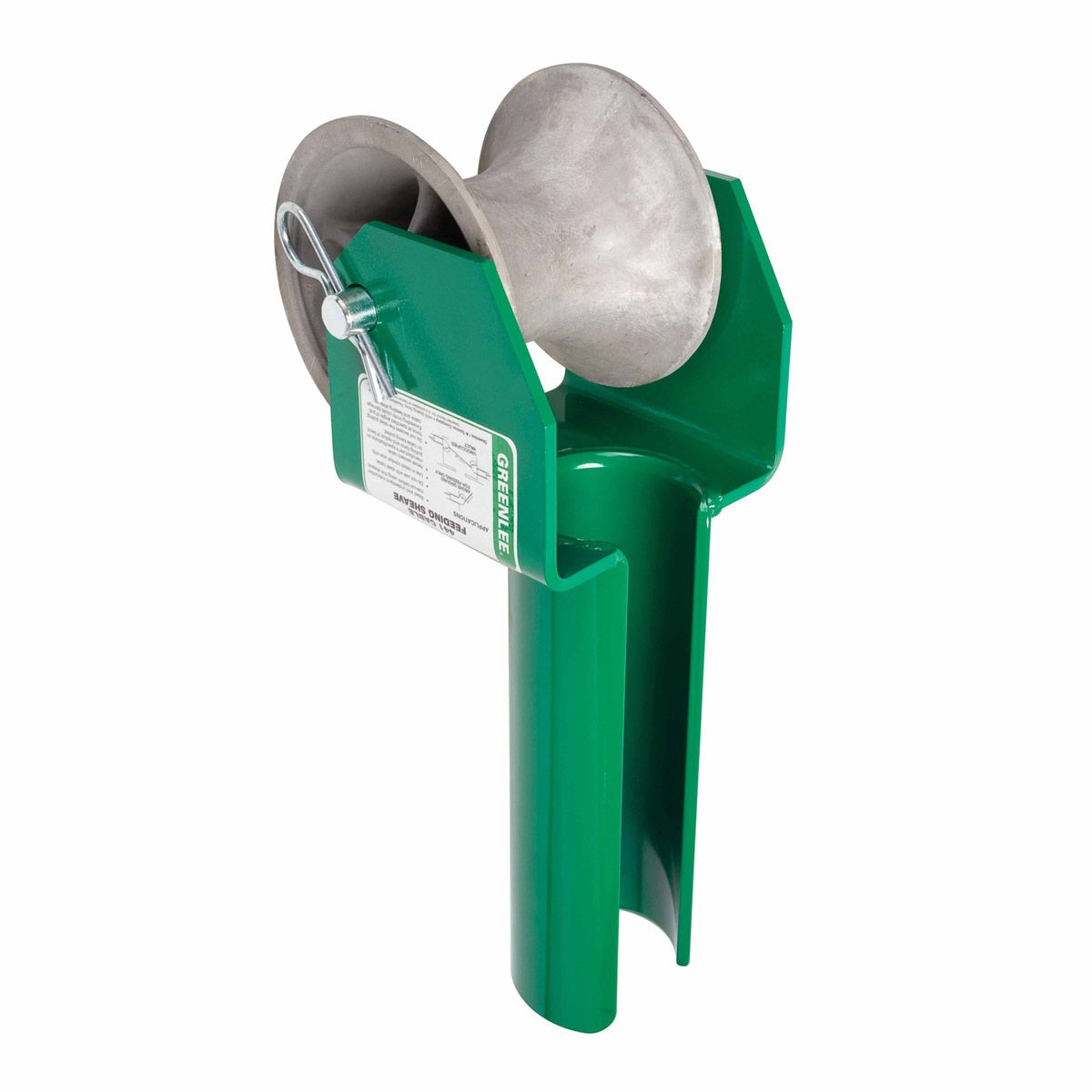

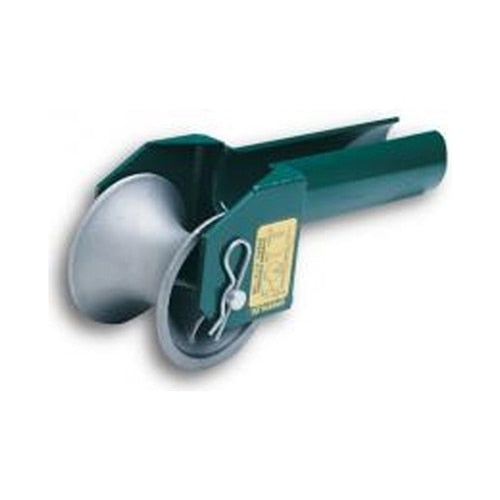

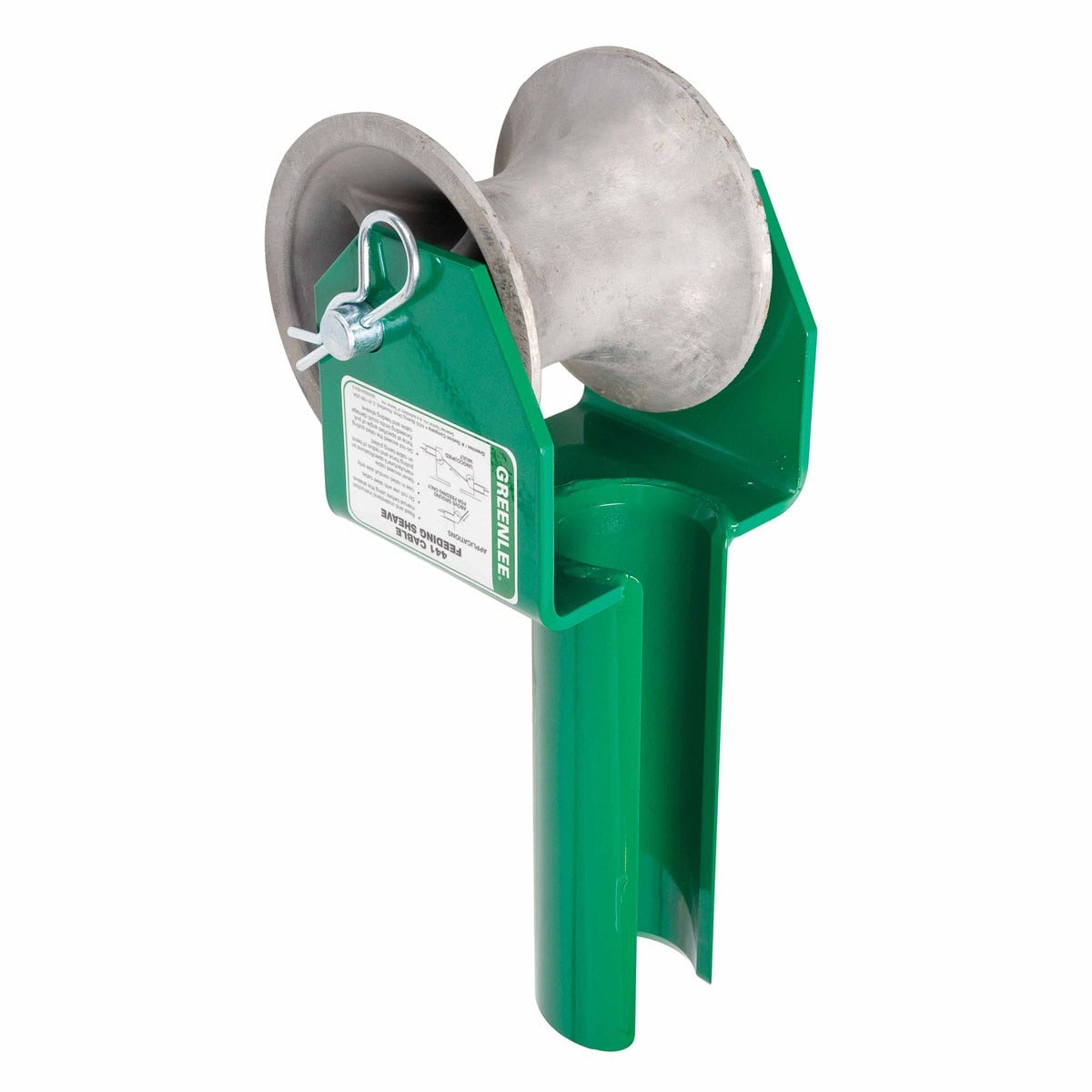

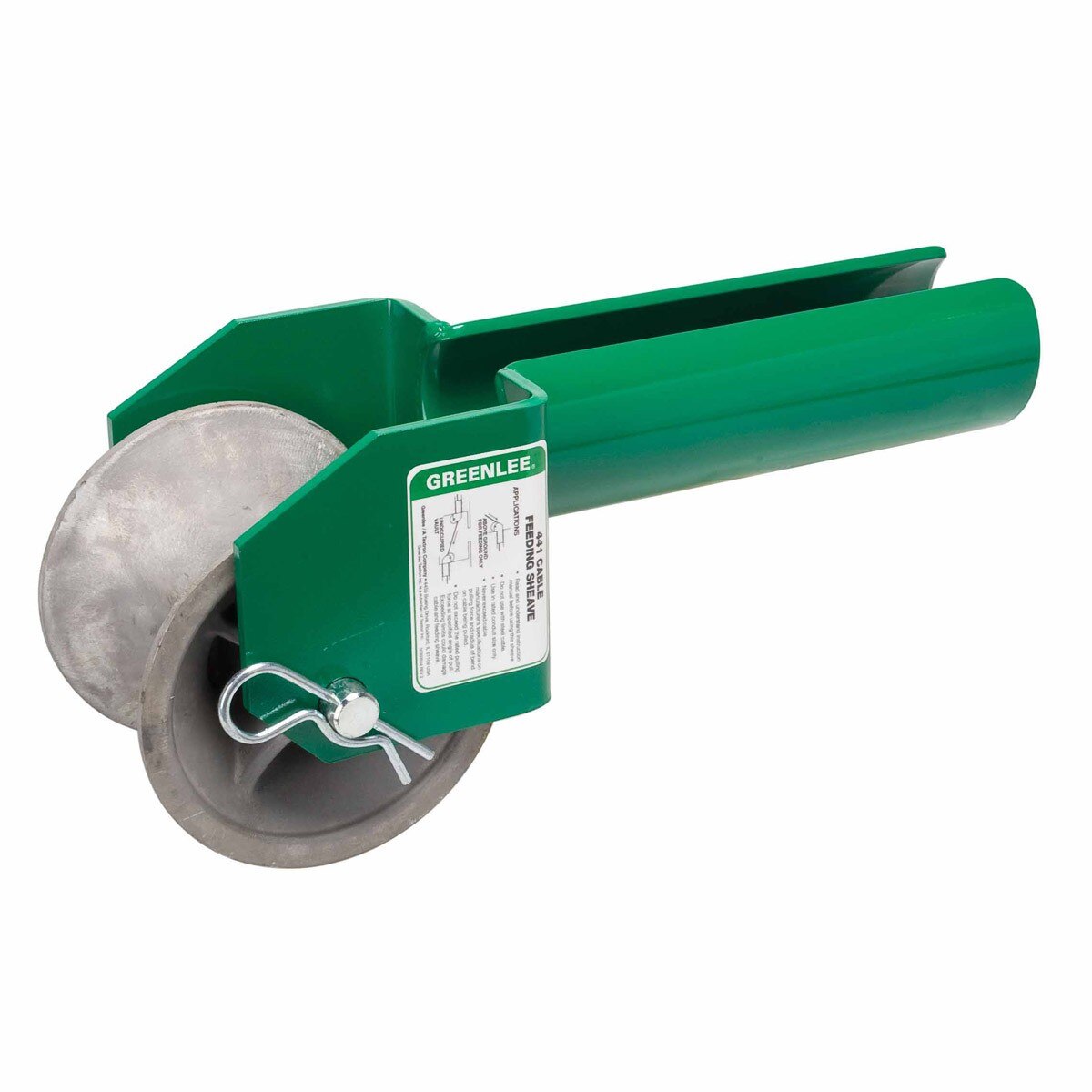

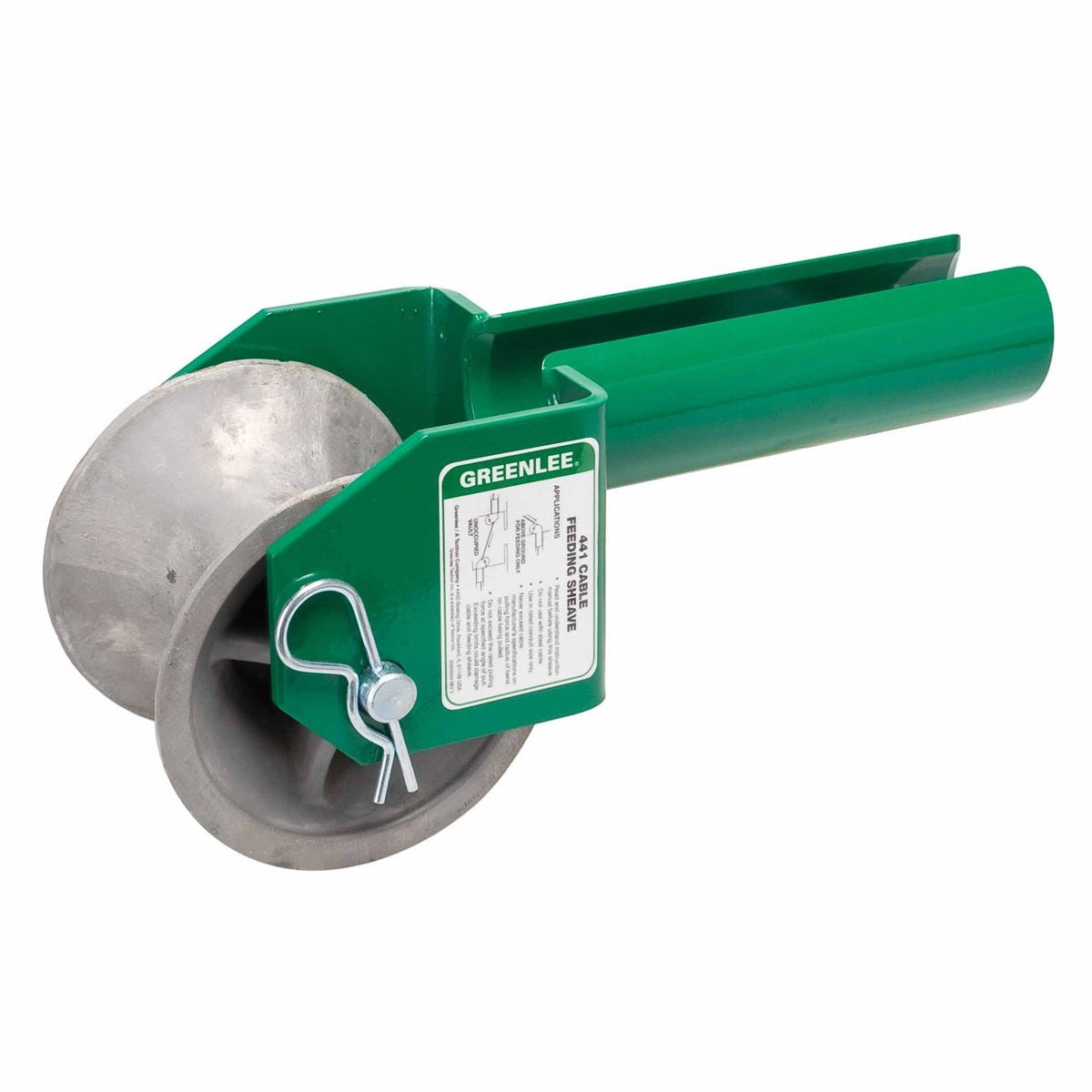

Greenlee 441-3 Feeding Sheave for 3" Conduit
Free Shipping
$464.28
$579.05
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Greenlee 441-3 Features
- Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave.
- 5" (127 mm) wide aluminum alloy sheave with self-lubricating bearings.
- Split tube for easy removal after cable is installed.
Greenlee 441-3 Specifications
| Weight: | 14 lbs. (6.4 kg) |
| Capacity (Angle Pull) 15 °: | 6050 lbs. (26.9 kN) |
| Capacity (Angle Pull) 30°: | 3150 lbs. (14.0 kN) |
| Capacity (Angle Pull) 45°: | 2200 lbs. (9.7 kN) |
| Capacity (Angle Pull) 60°: | 1800 lbs. (8.0 kN) |
| Capacity (Angle Pull) 75°: | 1600 lbs. (7.1 kN) |
| Capacity (Angle Pull) 90°: | 1550 lbs. (6.8 kN) |
