Greenlee | SKU:
52024984

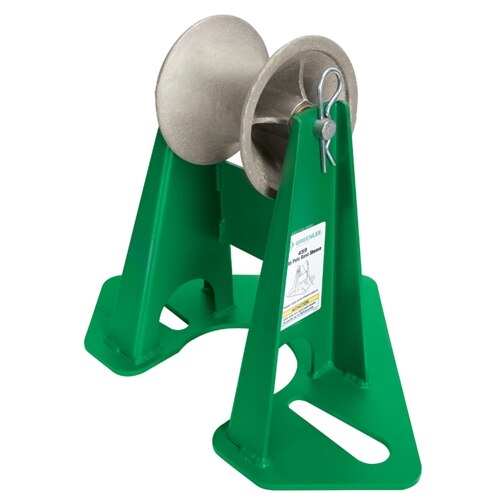

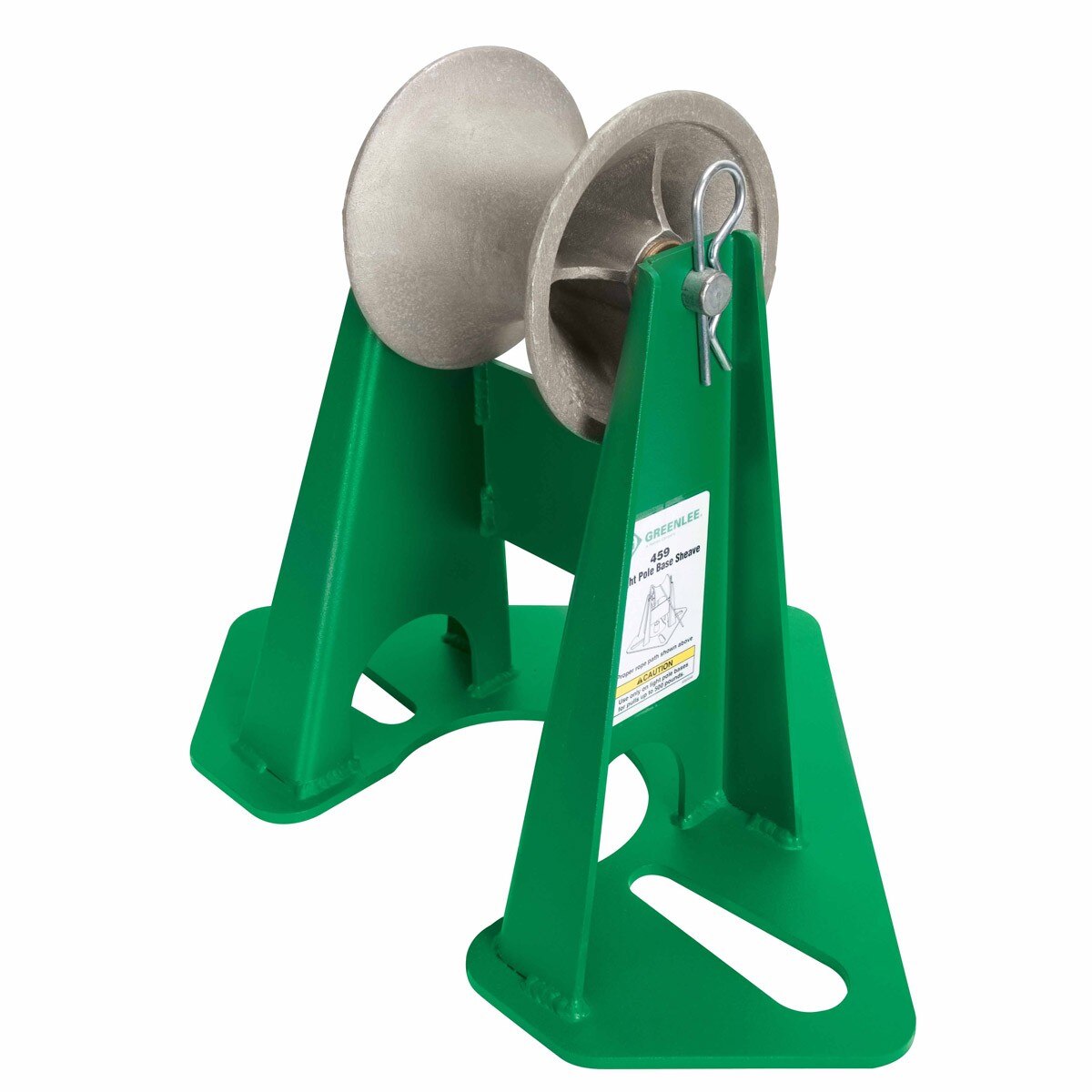

Greenlee 459 Light Base Sheave
Free Shipping
$479.12
Unit price
/
Unavailable
Description
Description
Greenlee 459 Features

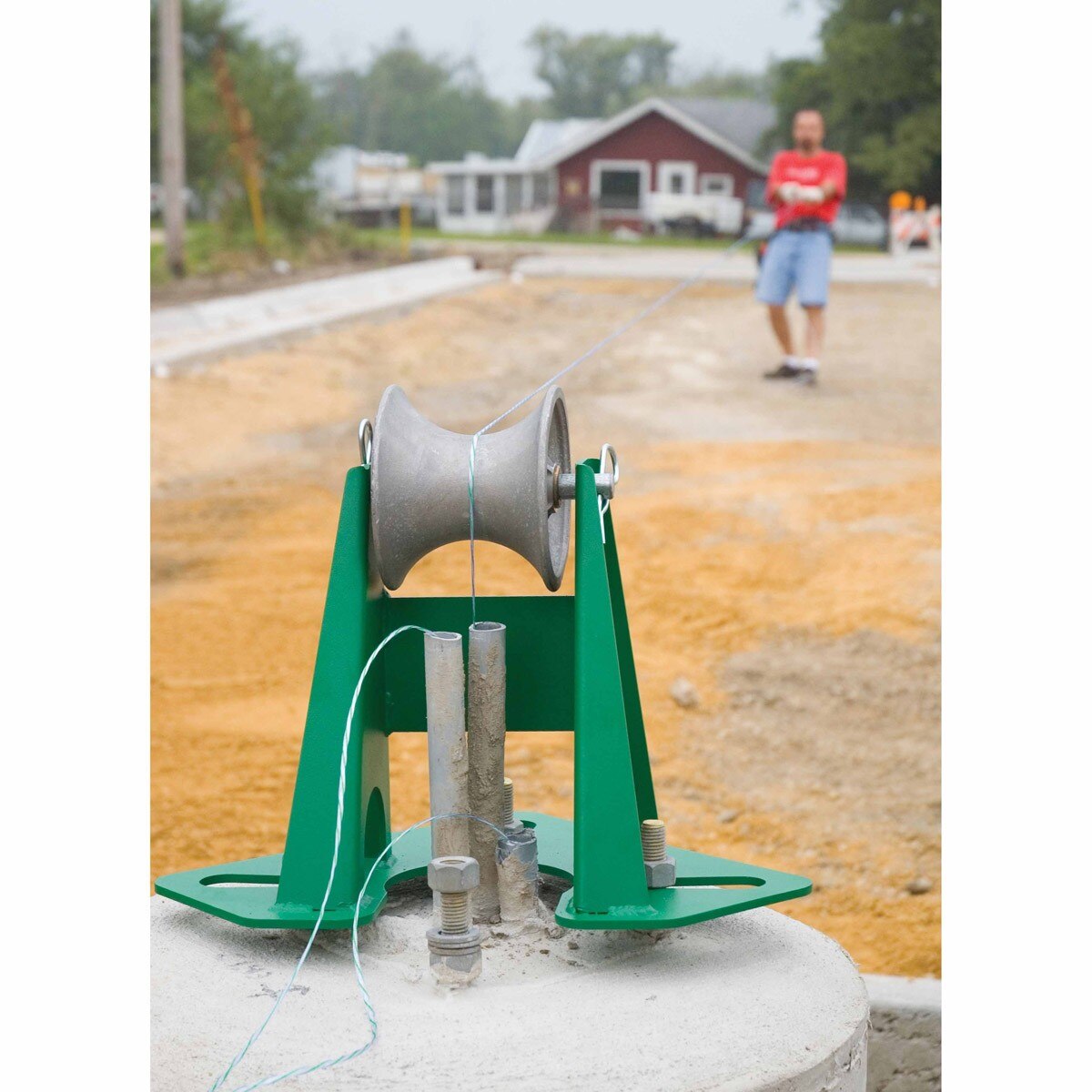

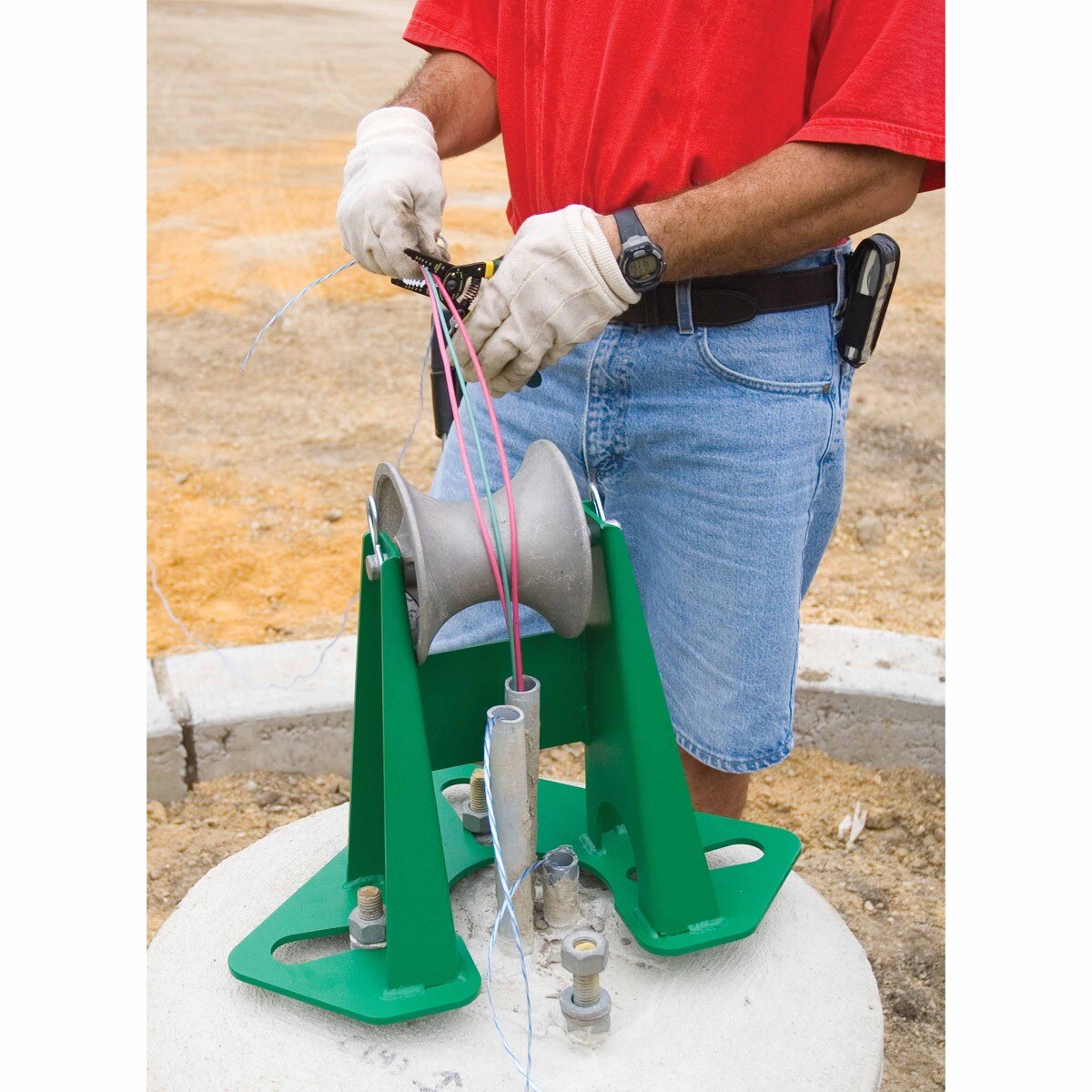

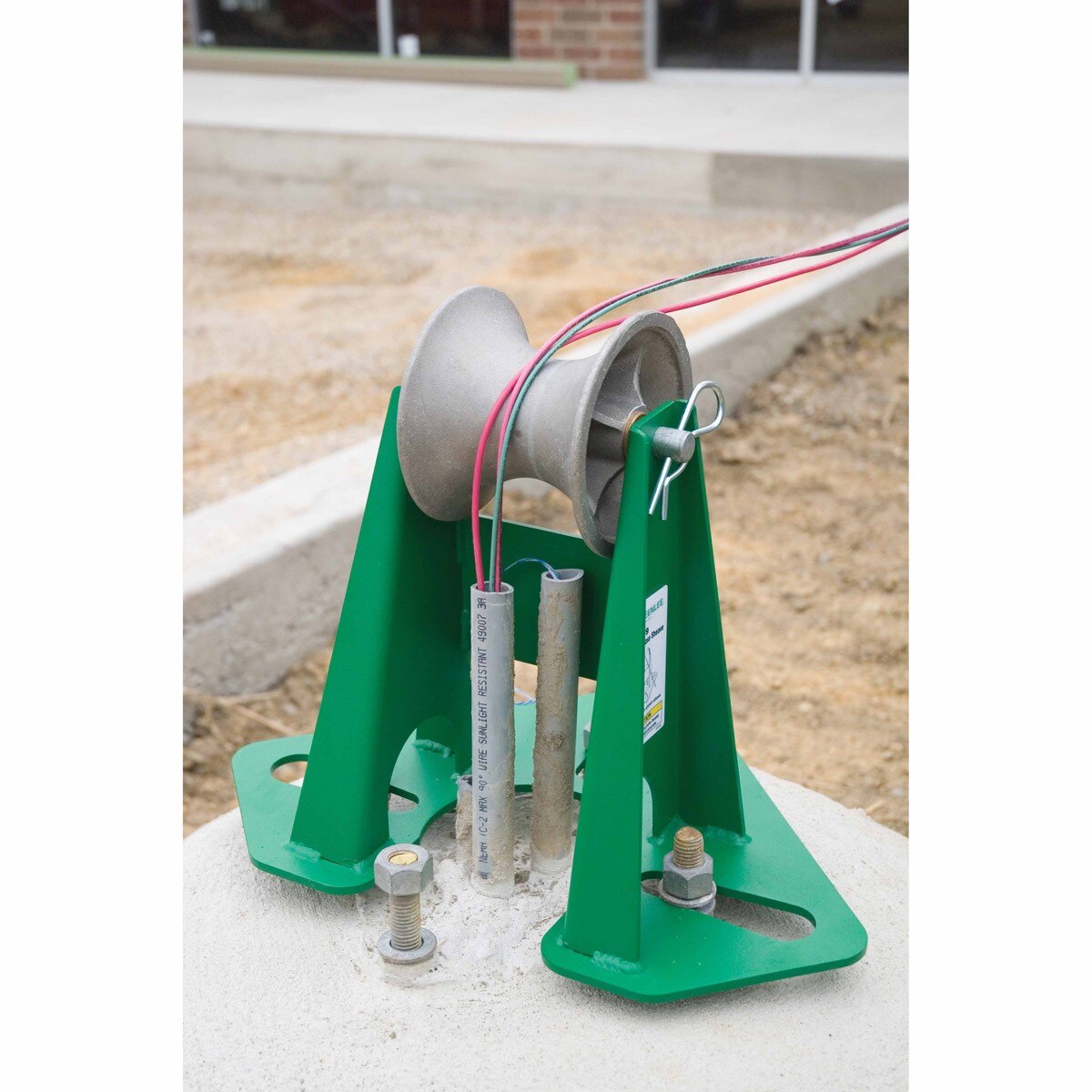

- Makes Pulling Wires for Parking Area Lights Easier
- Mounts directly to existing square light pole bolt patterns.
- Slotted mounting holes fit a wide range of bolt circle sizes
- Tall enough to position sheave above most conduits.
- Rugged welded steel base structure.
Greenlee 459 Specifications
| Overall Height: | 14-1/2" (368 mm) |
| Weight: | 18 lb. (8.2 kg) |
| Bolt Circle Capability: | 7.8" (198 mm) to 14.8" (376 mm) diameter |
| Maximum Mounting Bolt Diameter: | 1" (25 mm) diameter at 7.8" (198 mm) bolt circle |
| Bolt circle: | 1-1/2" (38 mm) at 14.8" (376 mm) |
