Greenlee  |  SKU: 52081119  |  Barcode: 783310071549

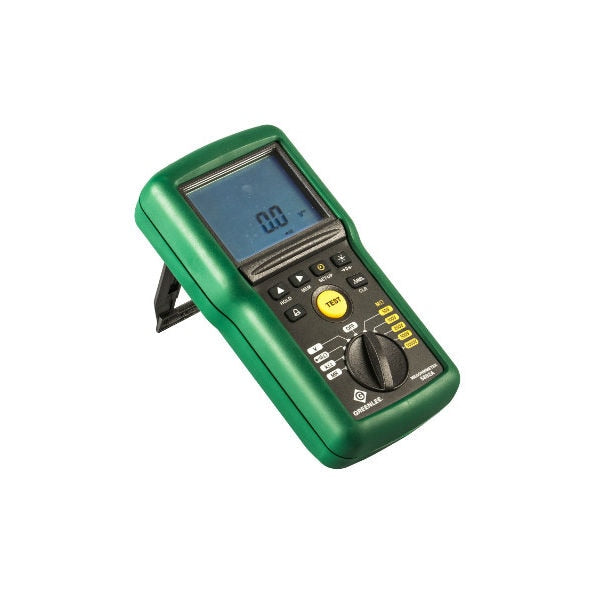

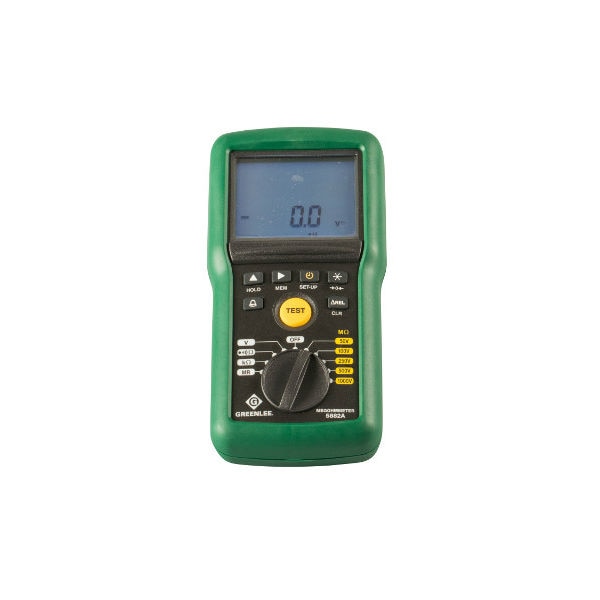

Greenlee 5882A 1kV Megohmmeter/Insulation Tester

Free Shipping
$902.69 $1,142.40

 More payment options

Description

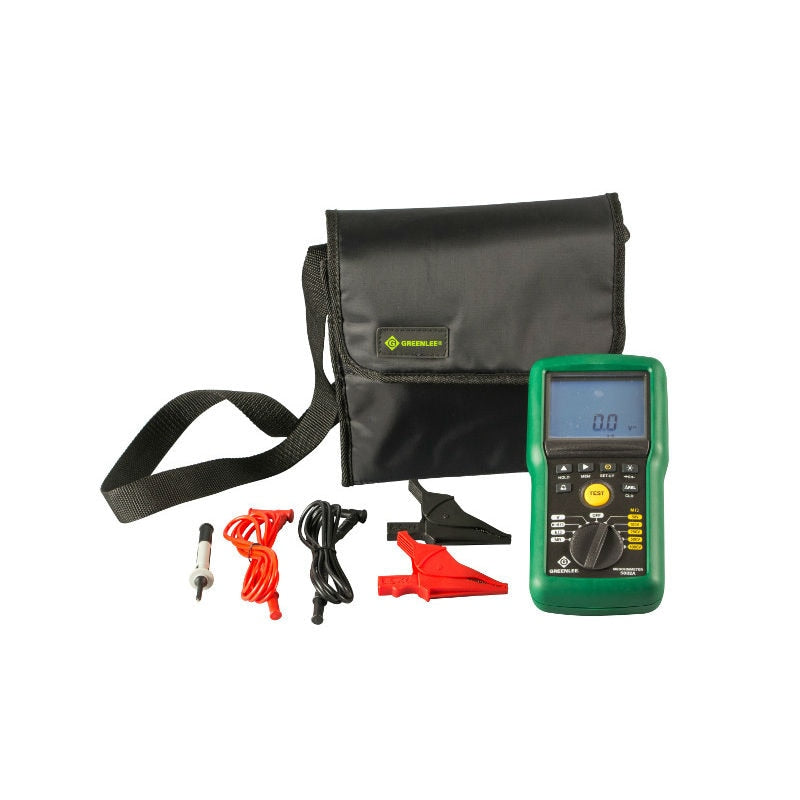

Greenlee 5882A Includes

  • (1) Megohmmeter 1kV
  • (2) Red & Black Leads
  • (2) Red & Black Test Alligator Clips
  • (1) Black Test Probe

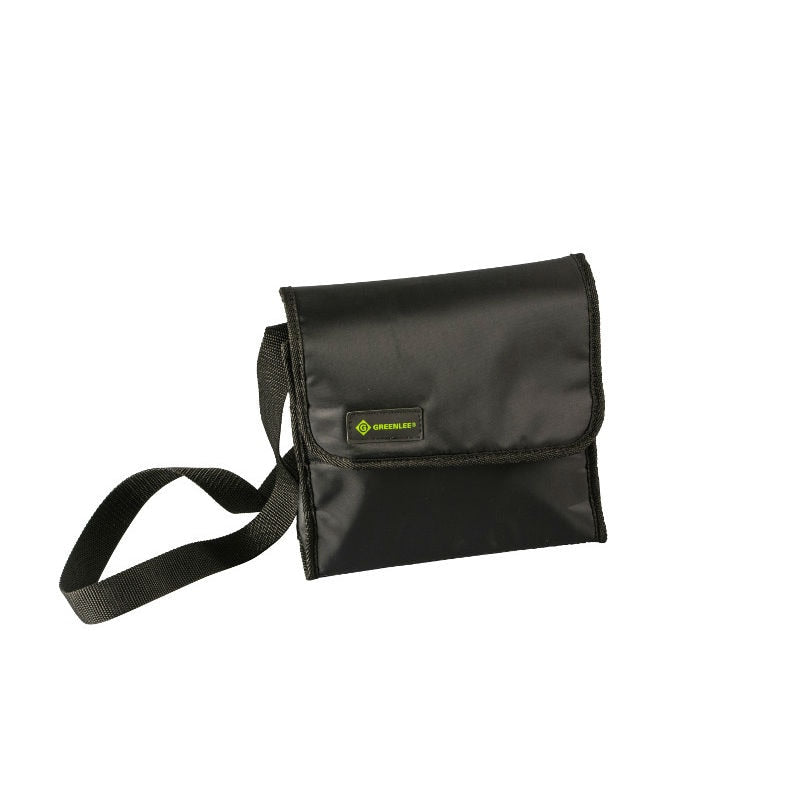

  • (1) Carrying Case with Shoulder Strap
  • (1) Manual
  • (6) Batteries

Greenlee 5882A Features

  • Calculations (automatic)
  • Potential Index and Dielectric Absorption Ratios
  • Tests Continuity, Resistance and Frequency Measurements
  • Programmable Alarms
  • Insulation Test, Resistance, Continuity
  • Hazardous Voltage Alert (Icon) if voltage is >70 volts 5.) On Board Timer, +1/- 1 sec.
  • Delta Reading "ΔREL"
  • Data hold with 300 Entry Memory
  • Standby Mode (automatic),saves battery power
  • Hand Held, Compact Light Weight Form
  • Intuitive Layout with Rotary Function Selector and Large Test Button
  • Molded in Magnetic Mount for convenient hands-free measurements
  • Molded in Magnetic Mount for convenient hands-free measurements
  • Limited Life Time Warranty

Greenlee 5882A Specifications

Applications: Insulation Testing and Cable and Rotary Equipment
Automatic Discharge: Yes [on completion of insulation test]
Continuity Range: <100Ω
Display: LCD: Large/ Bright, easy to read. Analog Bar Graph and Digital.
Measurement Category: 1kV
Range: 10kΩ to 200GΩ
Replacement Parts: 5882A Test Lead Kit, 1kV Megohmmeter. 5882A Carrying Case, 1kV Megohmmeter.
Type: Hand Held
WEIGHT: 1.07 lbs
PRE-SET TEST VOLTAGES: 50V, 100V, 250V, 500V, 1kV
RESISTANCE MEASUREMENT: 0 to 4MΩ
FREQUENCY MEASUREMENT: 15.3 to 800Hz
VOLTAGE MEASUREMENT: .3 to 700V
OPERATING TEMPERATURE: -4F to 131F
STORAGE TEMPERATURE: -22°F – 176 °F
CONTINUITY CHECKING: >100Ω
SAFETY VOLTAGE RATING: CAT IV, 600V
WARRANTY: Lifetime Limited
STANDBY MODE: After 5 Minutes of Inactivity
BATTERY POWER SUPPLY: Six 1.5V AA
