Greenlee | SKU:
50296272

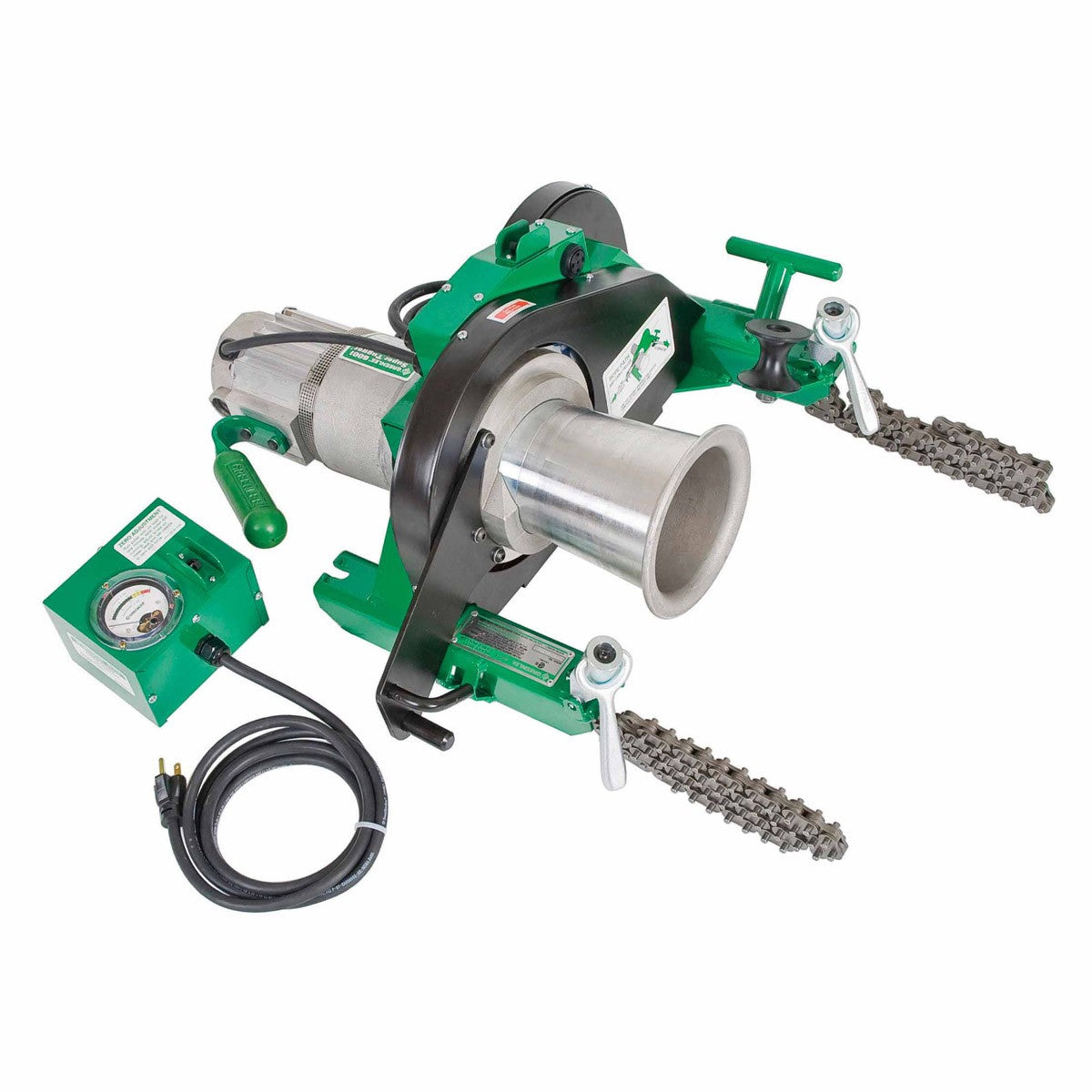

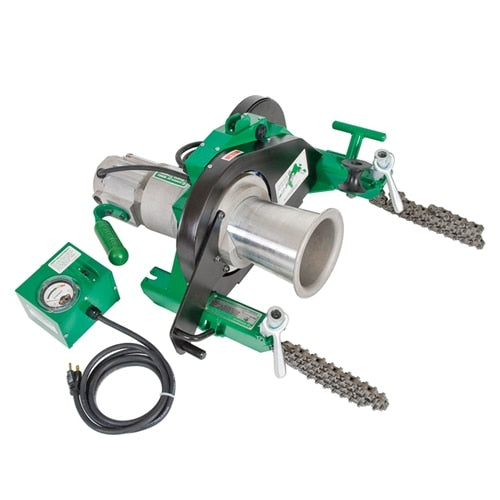

Greenlee 6001 Super Tugger Cable Puller Power Unit - 6500 lbs.
Free Shipping
$7,059.86
$9,413.15
Unit price
/
Unavailable
Description
Description
Greenlee 6001 Includes
- Super Tugger Cable Puller Power Unit - Includes force gauge and vise chains
Greenlee 6001 Features
- Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort.
- Unique floor mounting attachment for quick, reliable setup.
- Leaf type mounting chains won’t twist when tightening.
- Heat-treated steel serrated gripper feet for secure mounting to conduit.
- Force Gauge included to constantly monitor the pull.
- Force Gauge included to constantly monitor the pull.
- Right-angle sheave allows the operator to stand out of the direct line of force.
- Audio alarm high force warning and circuit breaker shut off at maximum force for added safety
- Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan.
Greenlee 6001 Specifications
| Pulling Force - Maximum: | 6,500 lbs. (28.9 kN) |
| Pulling Force - Continuous: | 4,500 lbs. (20 kN) |
| Dimensions: | L 20-3/4" (527 mm) x W 22-1/2" (572 mm) x H 12" (305 mm) |
| Pulling Speed No Load: | 16.5 fpm (5 mpm) |
| Pulling Speed At 2000 lbs. (8.8 kN): | 11 fpm (3.4 mpm) |
| Pulling Speed at 4000 lbs. (17.9 kN): | 7.5 fpm (2.3 mpm) |
| Pulling Speed at 6000 lbs. (26.7 kN): | 6 fpm (1.8 mpm) |
| Power: | 1-1/2 HP (1.1 kW): 120 VAC |
