Greenlee | SKU:
52026624

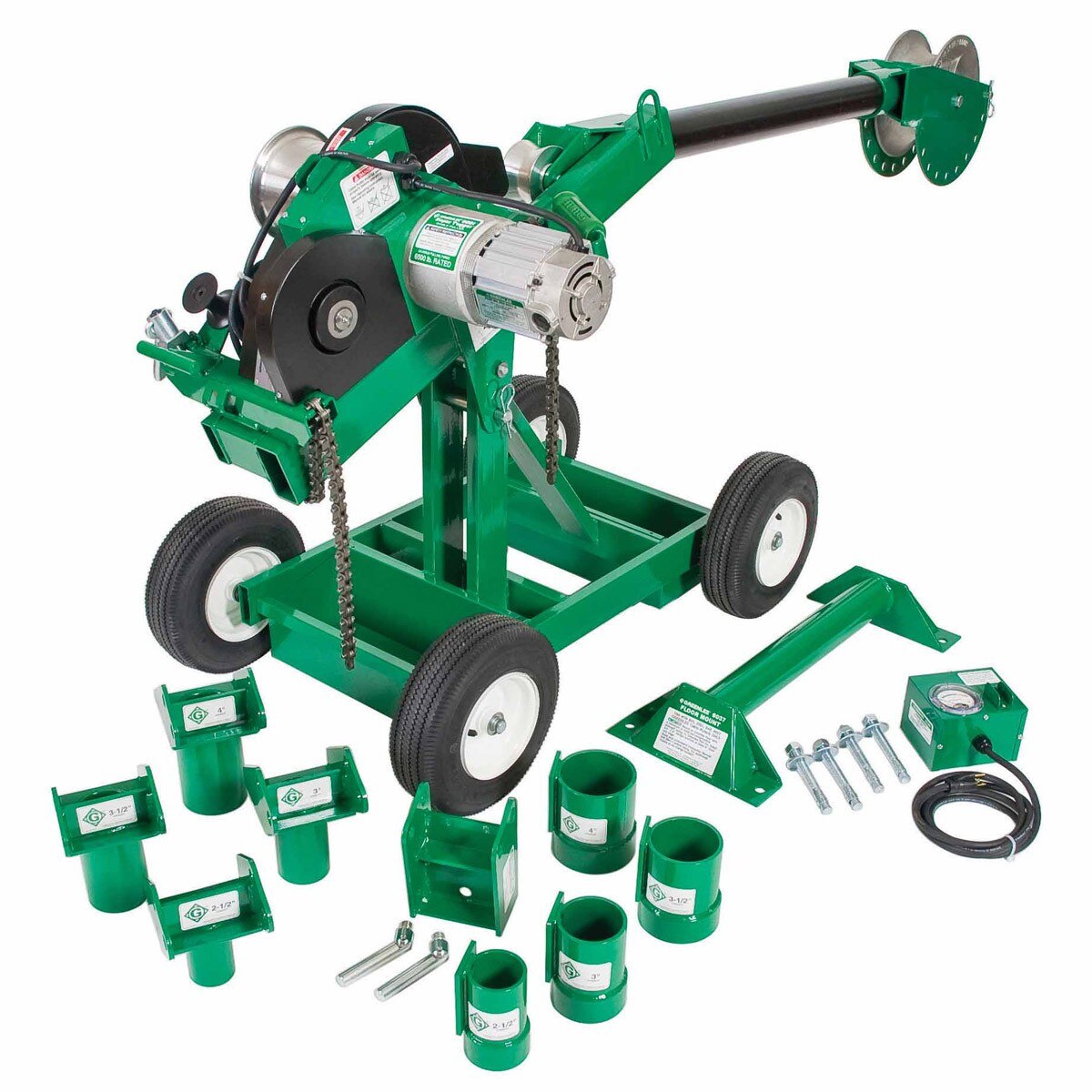

Greenlee 6004 Super Tugger Complete Puller Package 6500 lb.
Free Shipping
$11,239.88
$14,986.50
Unit price
/
Unavailable
Description
Description
Greenlee 6004 Includes
- 6001 Super Tugger
- Floor Mount
- Mobile Carriage
- Boom Mount
- 4' Boom Tube
- Nose Unit
- Slip-In Couplings: 2-1/2", 3", 3-1/2", 4"
- Storage Trays
Greenlee 6004 Features
- Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort.
- Unique floor mounting attachment for quick, reliable setup.
- Leaf type mounting chains won’t twist when tightening.
- Heat treated steel serrated gripper feet for secure mounting to conduit.
- Force Gauge included to constantly monitor the pull.
- Right angle sheave allows the operator to stand out of the direct line of force.
- Audio alarm high force warning and circuit breaker shut off at maximum force for added safety.
- Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan.
Greenlee 6004 Specifications
| Pulling Force Maximum: | 6,500 lbs. (28.9 kN) |
| Continuous: | 4,500 lbs. (20 kN) |
| Dimensions Length: | 20-3/4" (527 mm) |
| Width: | 22-1/2" (572 mm) |
| Height: | 12" (305 mm) |
| No Load: | 16.5 (5) At 2000 lbs.: (8.8 kN) - 11 (3.4) At 4000 lbs.: (17.9 kN) - 7.5 (2.3) At 6000 lbs.: (26.7 kN) - 6 (1.8) |
| Power 1-1/2 HP (1.1 kW): | 120 VAC 1-1/2 HP (1.1 kW): 220 VAC 50HZ |
