Greenlee | SKU:
52026625
Greenlee 6005 Super Tugger Complete Puller Package - 6500 lbs.
Free Shipping
$13,431.00
$17,386.40
Unit price
/
Unavailable
Description
Description

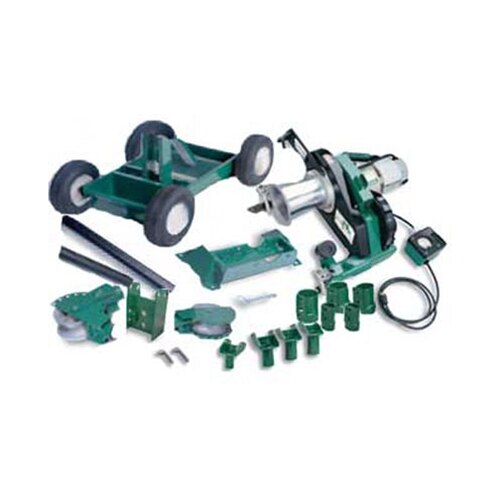

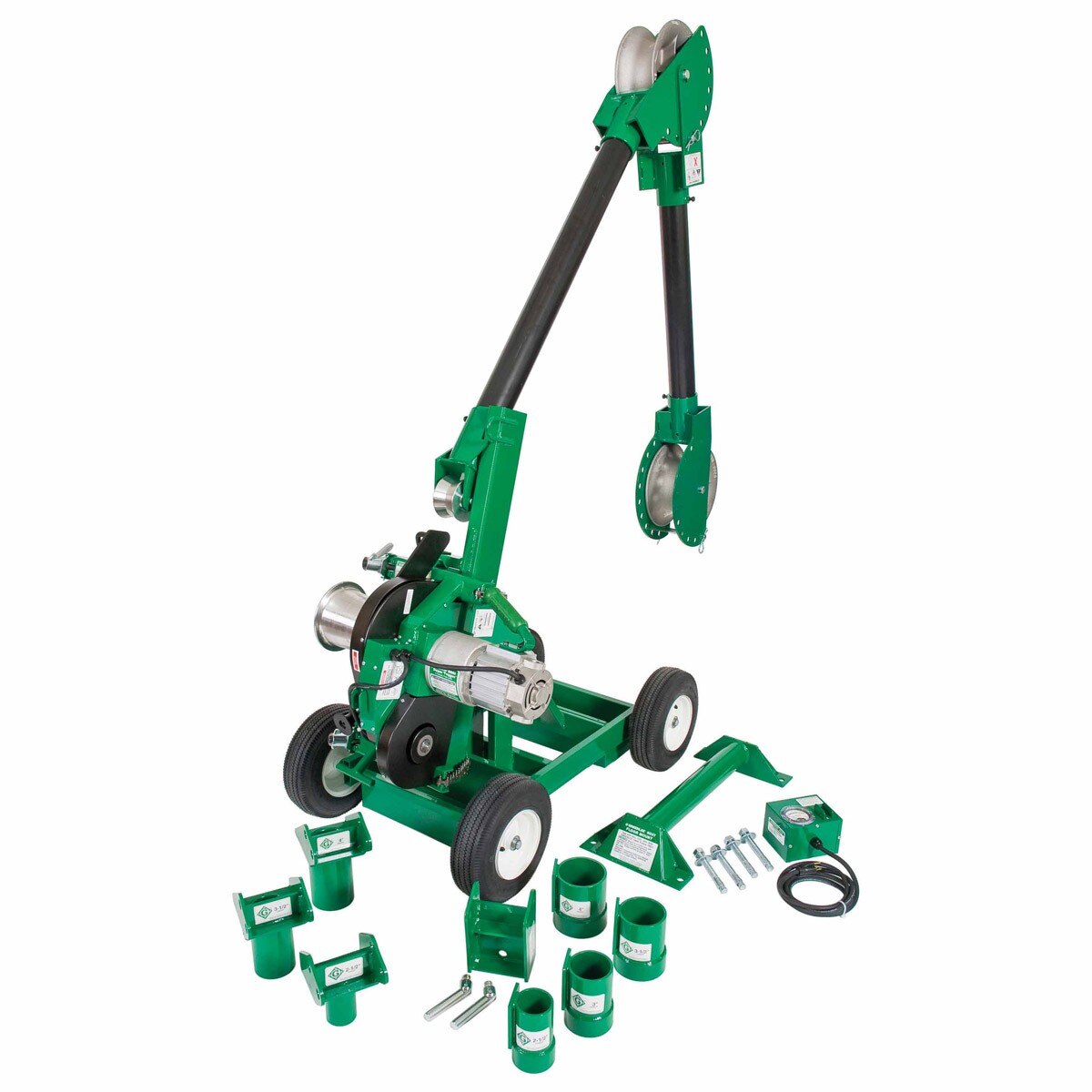

Greenlee 6005 Includes
- 6001 Super Tugger
- Floor Mount
- Mobile Carriage
- Boom Mount
- 4' Boom Tube
- Nose Unit
- 3' Boom Tube
- Elbow Unit
- Slip-In Couplings: 2-1/2", 3", 3-1/2", 4"
- Storage Trays
Greenlee 6005 Features
- Pull up to 6,500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort.
- Unique floor mounting attachment for quick, reliable setup.
- Leaf type mounting chains won’t twist when tightening.
- Heat treated steel serrated gripper feet for secure mounting to conduit.
- Force Gauge included to constantly monitor the pull.
- Right angle sheave allows the operator to stand out of the direct line of force.
- Audio alarm high force warning and circuit breaker shut off at maximum force for added safety.
- Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan.
Greenlee 6005 Specifications
| Pulling Force Maximum: | 6,500 lbs. (28.9 kN) |
| Continuous: | 4,500 lbs. (20 kN) |
| Dimensions Length: | 20-3/4" (527 mm) |
| Width: | 22-1/2" (572 mm) |
| Height: | 12" (305 mm) |
| Pulling Speed: | 16.5 FTPM At No Load, (8.800 KN) - 11 (3.4) |
| No Load: 16.5 (5) At 2000 lbs.: | 8.8 kN - 11 (3.4) |
| No Load 4000 lbs.: | 17.9 kN - 7.5 (2.3) |
| No Load 6000 lbs.: | 26.7 kN - 6 (1.8) |
| Drive Motor: | Power 1-1/2 HP (1.1 kW): 120 VAC 1-1/2 HP (1.1 kW): 220 VAC 50HZ |
