Greenlee | SKU:
6906A-GPC

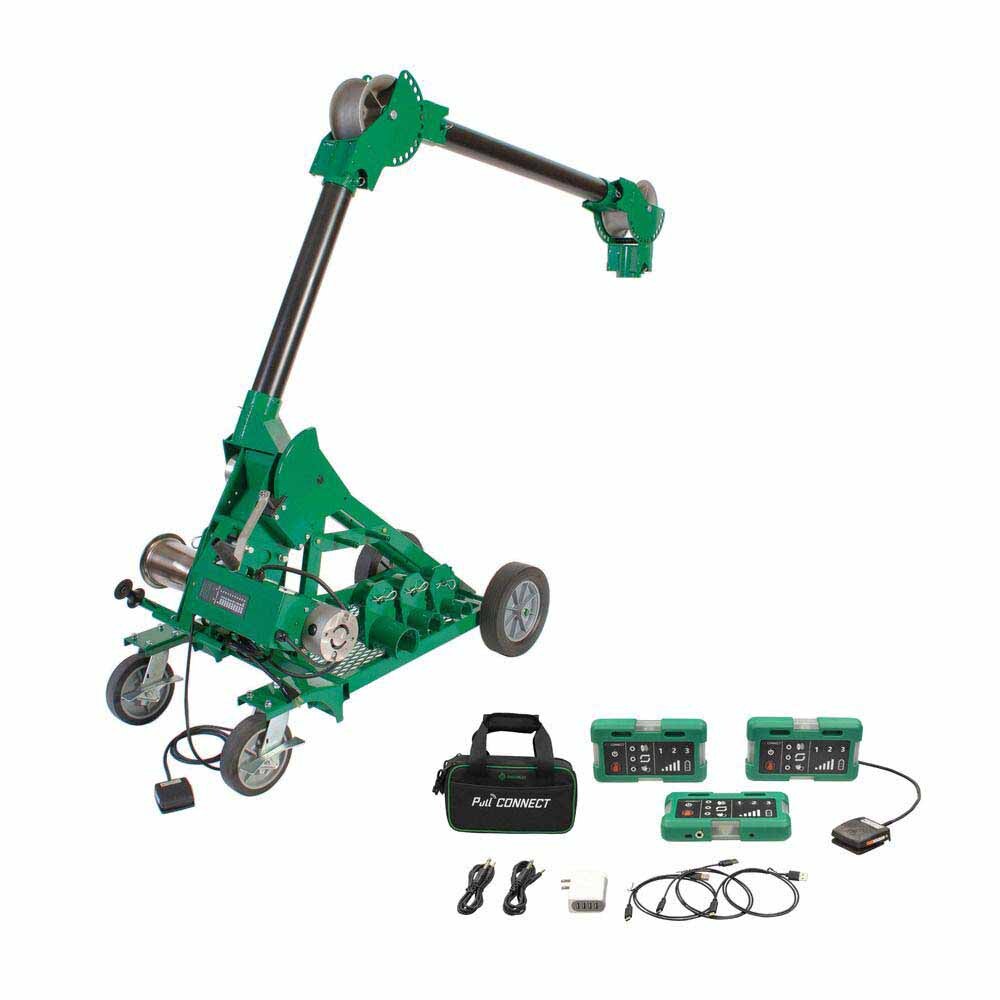

Greenlee 6906A-GPC UT10 10K lb Puller Package with Pull Connect Kit
$19,040.00
$21,333.35
Unit price
/
Unavailable
Description
Description
Greenlee 6906A-GPC Description
The Greenlee UT10 Ultra Tugger® Cable Puller is intended to be used to pull cable through conduit and in tray. The UT10 will develop 44.5 kN (10,000 lb) of pulling force. Refer to a Greenlee catalog for sheaves, pulling rope, and other cable pulling accessories to create an entire cable pulling system.
Greenlee 6906A-GPC Includes
- (1) UT10 10K lb Puller Package
- (3) Pull Connect Units
- (2) Patch Cords
- (1) Foot Switch
- (1) Charger
- (1) Bag
Greenlee 6906A-GPC Features
- Simple intuitive design allows users to focus on the pull
- Water resistant case and internal antenna protects from jobsite conditions and moisture
- Visual communiction LEDs ensure noise isn't a factor during pulls
- Magnetic backing for quick mounting on pulling equipment, while holes provide versatility for attachments
- Quick stop button allows the pull to be stopped by anyone, at any location
- Two-speed motor allows for fast pulls up to 10,000 pounds
- On-board force gauge uses LED lights to display pulling force and speed
- Quick speed change from high speed to low-speed by simply double tapping foot pedal
- Quickly change from high-speed to low-speed by double-tapping the foot pedal
- Removable foot pedal for storage
Greenlee 6906A-GPC Specifications
| Pull Force (Range) | Up to 10K, with 85 lbs of Tailing Force |
| Voltage Rating | 120 VAC, 50/60 Hz |
| Amperage Rating | 20A |
| Speed | Up to 16 ft/min |
| Motor Type | AC Induction Single Phase |
| Max # of Repeaters | 2 |
| Type of Signal | Radio - 900 MHz, BLE - 2.4 GHz |
| Range (Indoor) | Indoor - 2000' |
| Range (Outdoor) | Outdoor - 1 mile |
| Battery Life | 8 hours |
| Material | Plastic/Rubber |
| Color | Greeb/Black |
| Min Operating Temperature | 5 F / -15 C |
| Max Operating Temperature | 122 F / 50 C |
