At a Glance
Max PSI
10,000 PSI
Pump Type
Hand
Sold As
Individual
For Use With
Crimper
Color
Black/Green
Description
Description

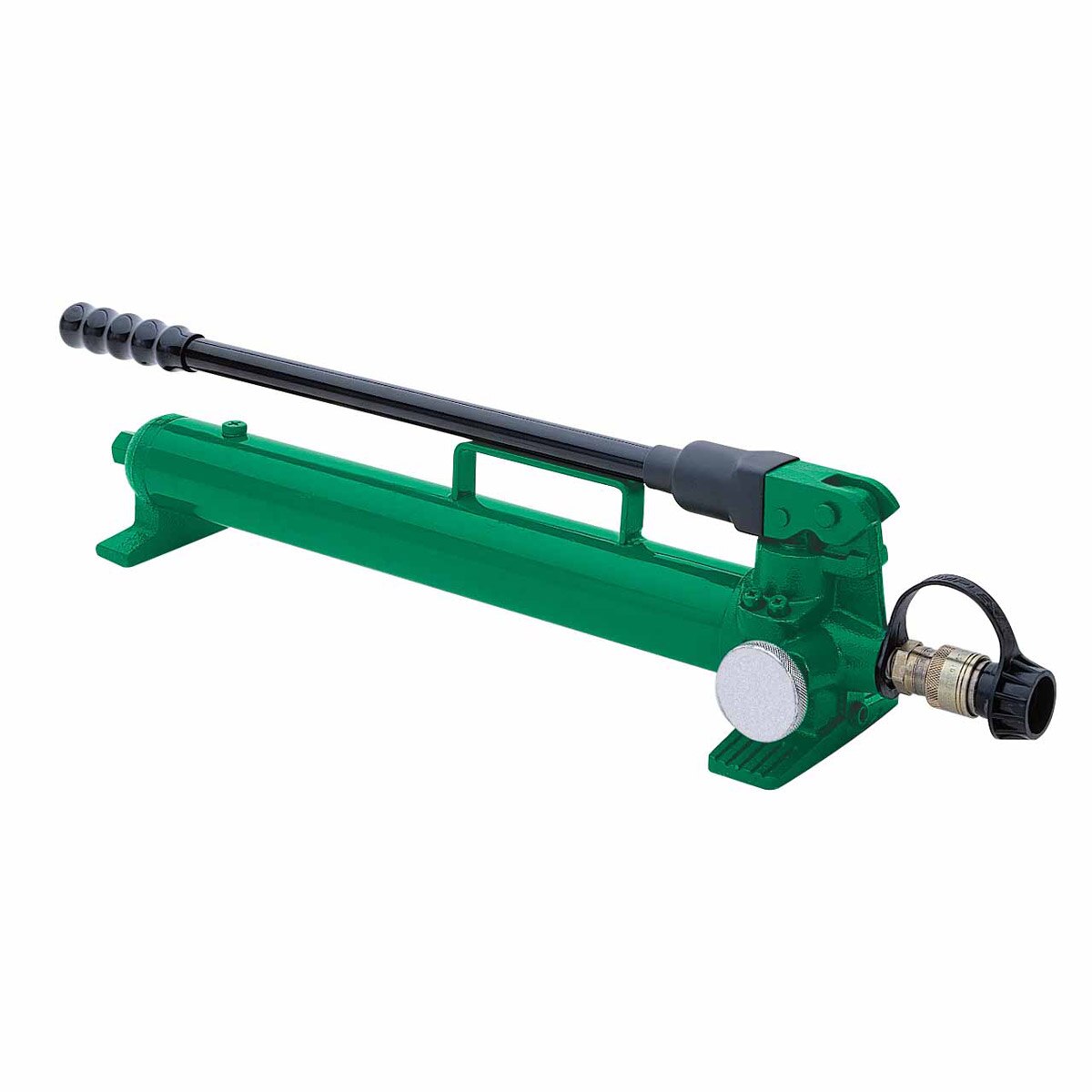

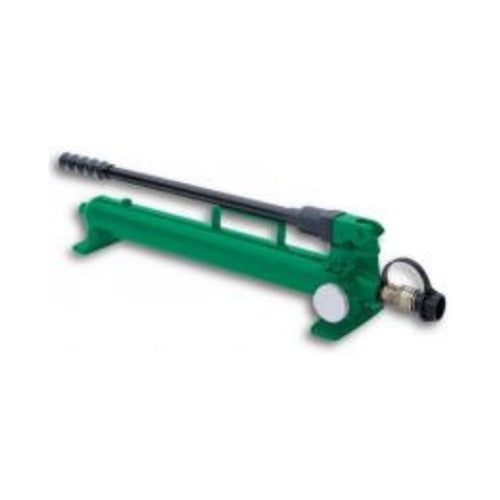

Greenlee 7475H Features

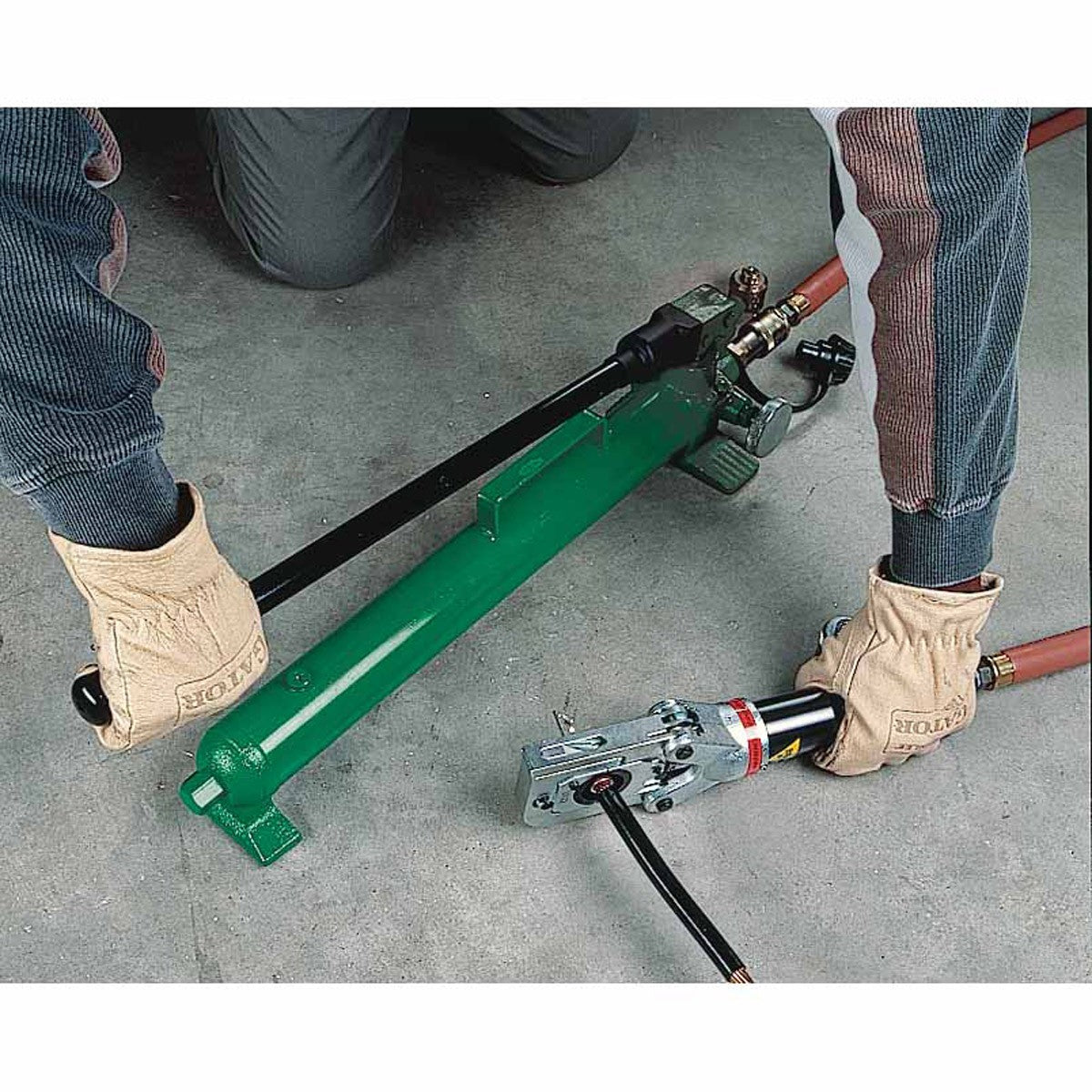

- Two-speed hydraulic pump. Ideal for use with remote cutting and crimping tools
- Compact and lightweight - easy to move around jobsites
- Solid base with wide legs provides for good stability during operation
- Built-in carrying handle
- Large, easy to grasp, retraction wheel
- Equipped with 3/8" female screw-type hydraulic coupler
Greenlee 7475H Specifications
| Max output pressure: | 10,000 psi (700 bar) |
| Useable oil capacity: | 0.75 quart (0.74 liter) |
| 1st stage oil volume (200 psi): | 0.82 cu in/stroke |
| 2nd stage oil volume (10,000 psi): | 0.16 cu in/stroke |
| Length (including coupler): | 25" (635 mm) |
| Width: | 5-5/8" (143 mm) |
| Height: | 5-1/2" (140 mm) |
Toolup Part # :
19865
