At a Glance
Max PSI
10000 PSI
Tank Capacity
0.8 gal
Pump Type
Hydraulic
Sold As
Individual
For Use With
Crimper
Color
Black/Green
Description
Description
Greenlee 990 Description

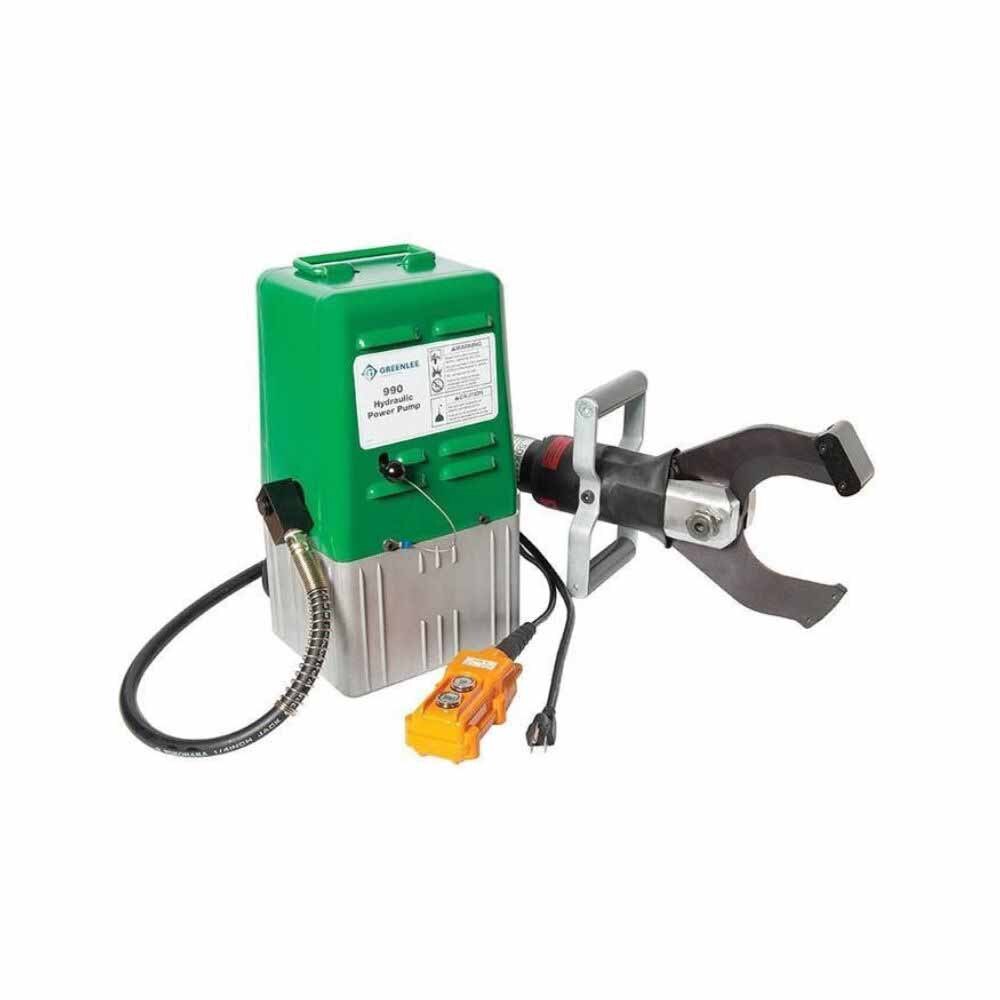

The Greenlee 990 Hydraulic Power Pump is an electrically powered single-stage pump that develops a maximum of 700 bar (10,000 psi). This pump is intended to provide hydraulic power for remote cutting and crimping tools. This pump has a factory-set internal pressure relief valve.
Greenlee 990 Includes
- (1) Hydraulic Pump
- (1) Low Voltage Pendant
Greenlee 990 Features
- Heavy-duty hydraulic pump automatically stops at 10000 PSI
- Comes with a pendant on a 15 foot cord allowing operator freedom to operate remotely
- Operates on 120V 15 amp circuit
- Advance and hold functions
Greenlee 990 Specifications
| Type | Electric Hydraulic Pump |
| Pressure Rating | 10000 PSI |
| Reservoir Material | Aluminum |
| Reservoir Capacity | 0.8 gal |
| Displacement @ 200 psi | 159 cu in/min |
| Displacement @ 5000 psi | 19 cu in/min |
| Displacement @ 10,000 psi | 19 cu in/min |
| Control Valve Type | 2-Way |
| Control Valve Function | Advance Hold |
| Control Pendant Size | 15' |
| Control Pendant Voltage | 120V AC |
| Phase | Single |
| Nameplate Voltage | 120V AC |
| Current | 15A |
| Max. Horsepower | 3/4 HP |
| Charger Input Voltage | 120V AC |
| Duty Cycle | Continuous |
| Control Valve Pressure Relief (Minimum) | 10000 PSI |
| Max. Control Valve Pressure Relief | 11000 PSI |
Toolup Part # :
20128
