At a Glance
Maximum Jaw Capacity
2 in
Display Type
Backlit LCD
CAT Rating
CAT IV
True RMS
AC+DC True RMS
AC Current Range
60 A - 1000 A
Sold As
Individual
Color
Black/Green
Description
Description
Greenlee CM-1560 Description

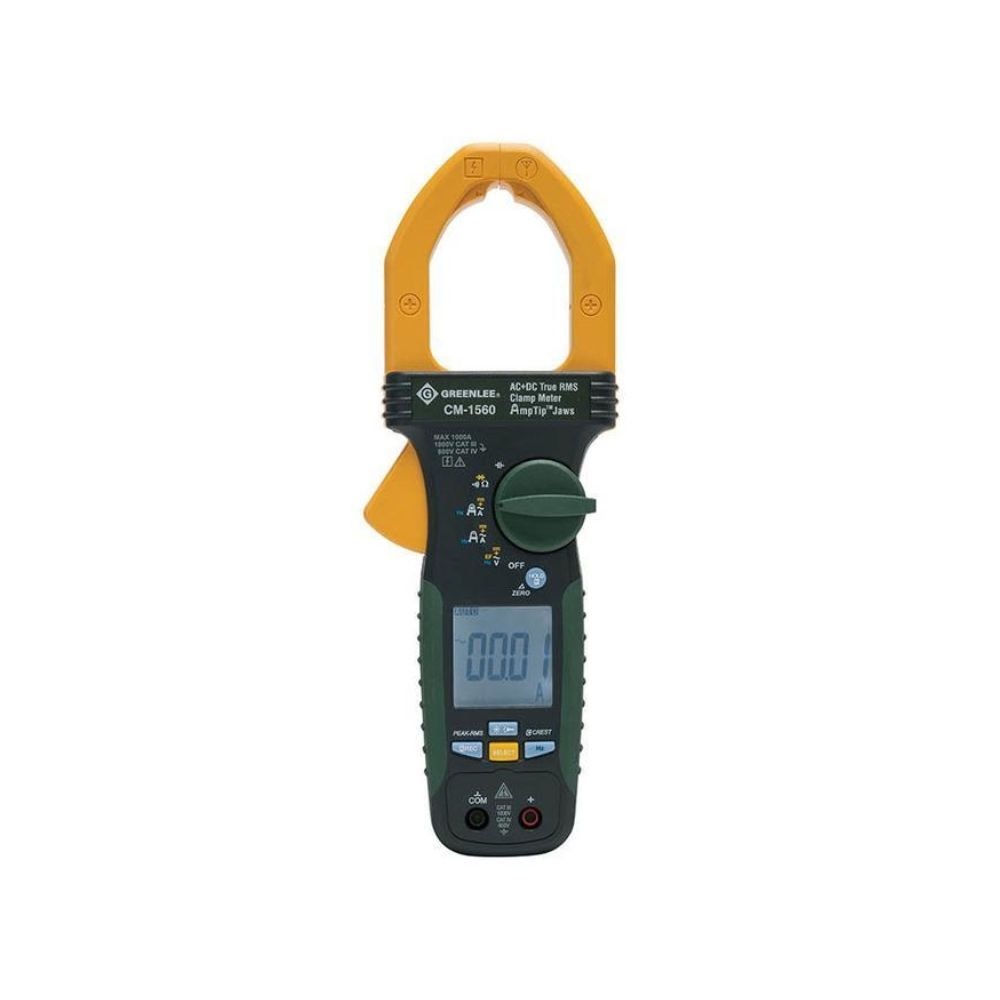

The Greenlee CM-1560 Clamp Meter is a hand-held testing device with the following measurement capabilities: AC and DC voltage, AC current, AC current AmpTip™, frequency, non-contact electric field (EF) detection, resistance, and capacitance. It also check diodes and verify continuity. This meter is designed to be placed on or removed from insulated or uninsulated conductors.
Greenlee CM-1560 Includes
- (1) Clamp Meter
- (2) 1.5V AA batteries
- (2) Test Leads (One red, One black)
- (1) Carrying Case
Greenlee CM-1560 Features
- Measures AC+DC current
- AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance and frequency
- Tests continuity and diodes
- Flashlight inside clamp jaw for easier work in dark locations
- Backlight & relative mode for added versatility
- Peak-RMS measures motor inrush current
- AmpTip™ increases accuracy on small wires and low current
- Two voltage detection modes - non-contact or using a single test lead
- Data hold
Toolup Part # :
312187
