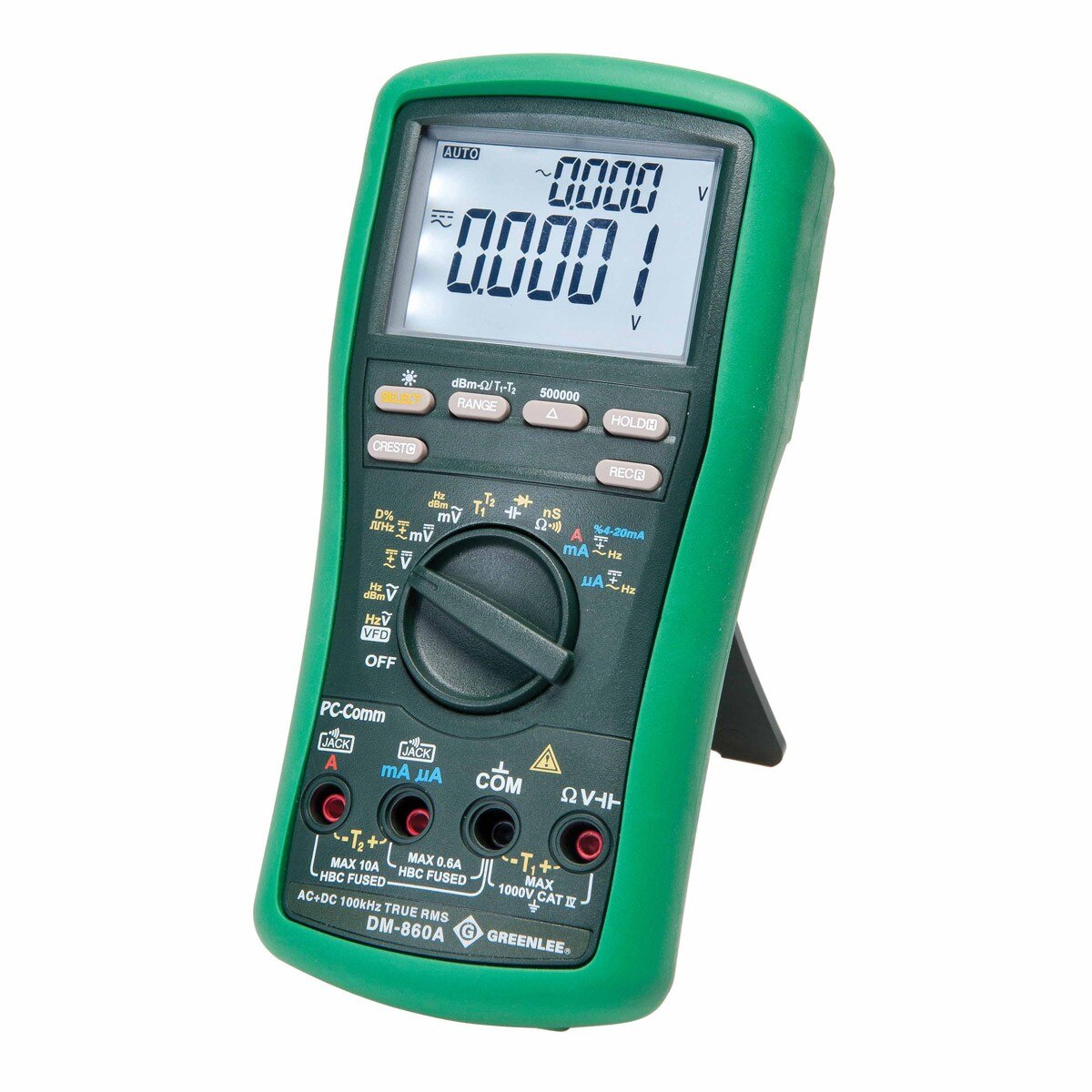

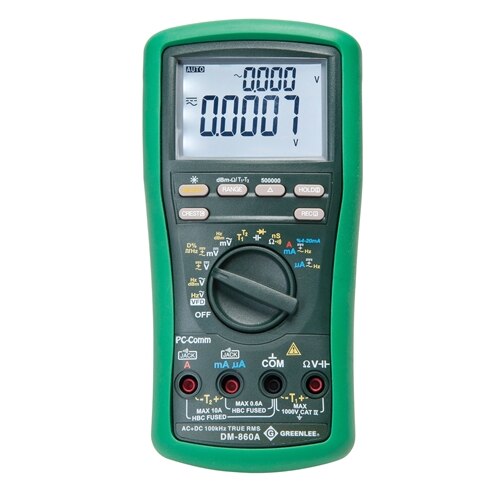

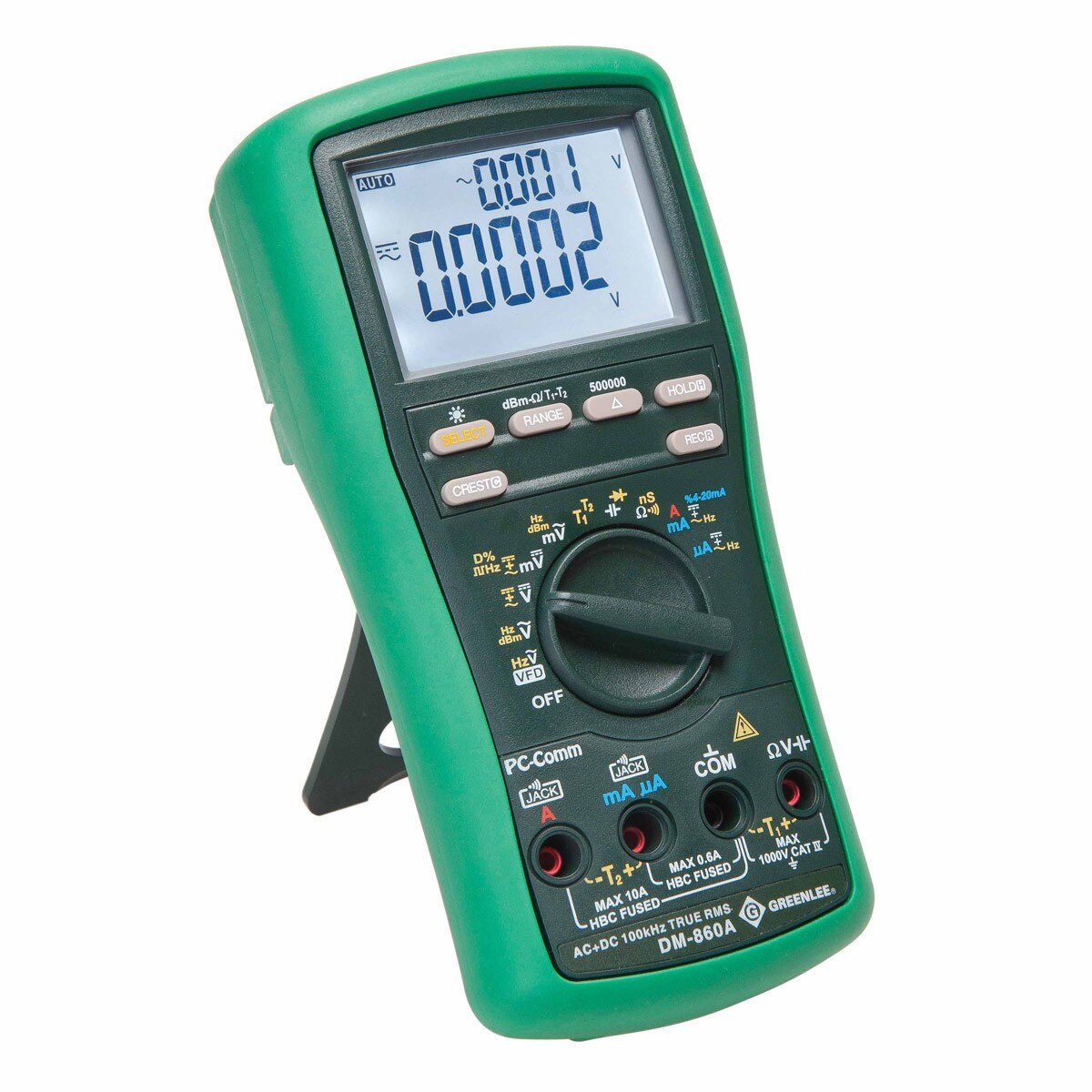

Greenlee DM-860A Industrial Digital Multimeter
Free Shipping
$368.63
$467.55
Unit price
/
Unavailable
Description
Description

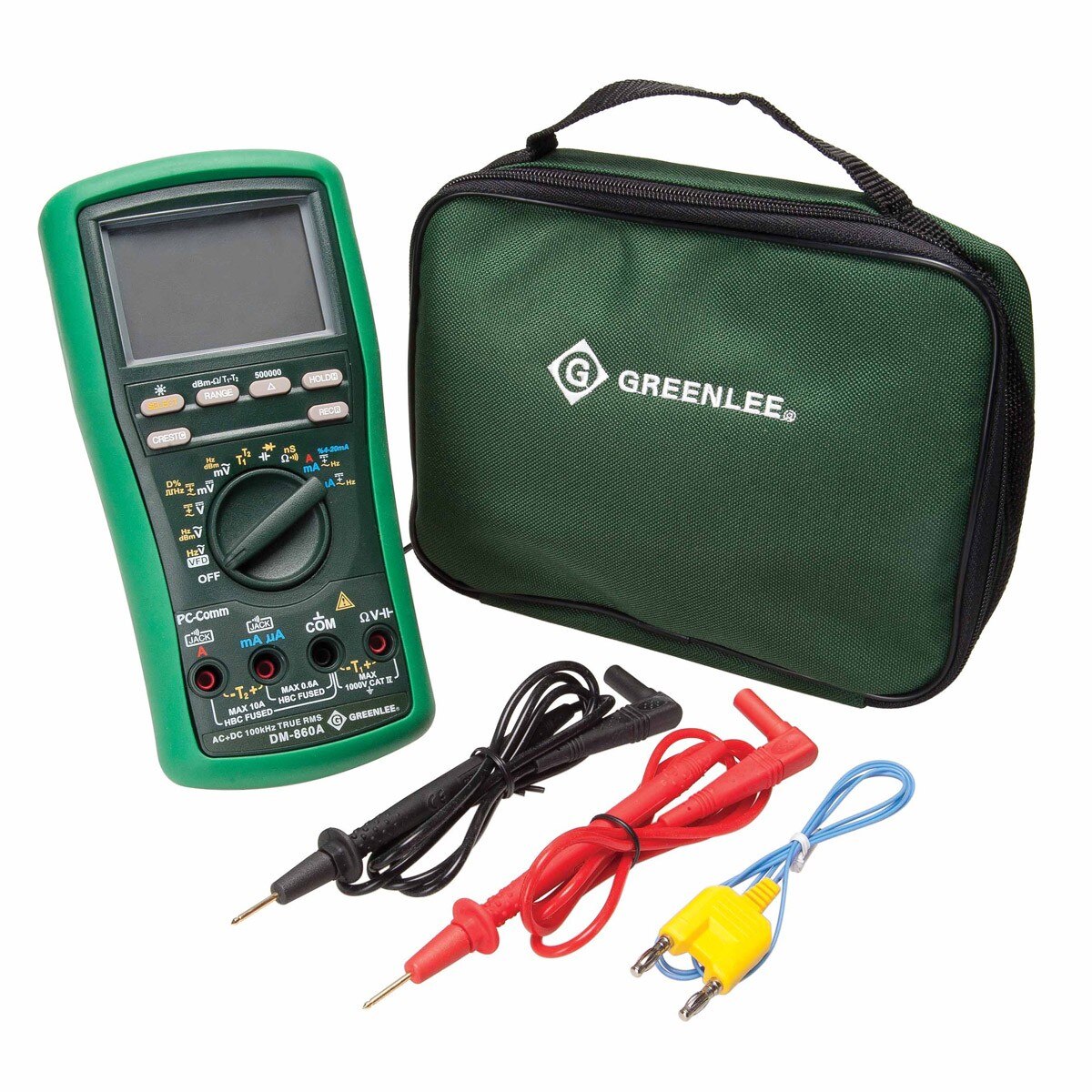

Greenlee DM-860A Includes
- 9V Battery
- Bead Temperature Probe
- Test Leads
- Protective Boot
- Carrying Case
Greenlee DM-860A Features
- AC+DC True RMS, 50,000-count dual display for greater accuracy.
- VFD (variable frequency drive) voltage and frequency functions for accurate readings on noisy drive waveforms.
- Beep-Jack™ audible and visual input alert helps avoid blown fuses or damage to meter.
- 41-segment analog bar graph makes it easy to view quick changes.
- Record max, min, avg, and max-min and data hold.
- Crest capture (peak hold) max and min readings.
- Relative offset display mode makes monitoring relative measurement changes simple.
- Performs resistance, conductance, frequency, duty cycle, temperature and capacitance measurements, plus diode and continuity tests.
- Dual temperature measurement up to 1832°F/1000°C using type K thermocouples.
- Autoranging for convenient operation – and to save you time.
- Bright, backlit display is easy to read under any light condition.
- Intelligent Auto Power Off conserves battery life but will not turn meter off during measurements.
- Wide AC bandwidth – to 100 kHz for voltage and 20 kHz for current.
- USB interface using optional DMSC-9U cable and software, allows connection to a PC for extended measurement capability.
- Lifetime Limited Warranty.
Greenlee DM-860A Specifications
5 Digit UPC | 12938 |
Voltage Measurement | 500.00mV; 5.0000, 50.000, 500.00, 1000.0V |
DC Voltage Measurement | 500,000 counts mode |
Amperage Measurement | 500.00, 5000.0µA; 50.000, 500.00mA; 5.0000, 10.000A |
Resistance | 500.00?; 5.0000, 50.000, 500.00k?; 5.0000, 50.000M? |
Conductance | 99.99 nS |
Capacitance | 50.00; 500.0nF; 5.000, 50.00, 500.0µF; 5.000, 25.00 mF |
Frequency | 5Hz-200kHz sine wave; 5Hz-2MHz logic level square wave |
Temperature | K type, -58°F to 1832°F (-50°C to 1000°C) |
