Greenlee DVI-500T/K02 Digital Voltage Indicator w/ Test Point 500kV, OH/UG Kit 2
Description
Description
Greenlee DVI-500T/K02 Description
Indicates Voltage up to 500kV Kit No range selector switch or settings required Audible indication when voltage is detected Measure elbow test points with the DVI-500T Large LED display indicates the line-to-ground voltage level Display is easy to read in bright or dark conditions Voltage readout allows the user to distinguish between nominal and induced voltages Built-in universal spline for standard hot stick attachment Built-in self-test to verify proper operation Auto shutoff with low battery function For use on system voltages up to 800kV (reads up to 500kV line-to-ground) Powered by a field-replaceable 9V lithium or alkaline battery Compact, rugged and lightweight polycarbonate housing Kits are available, contact factory for details.

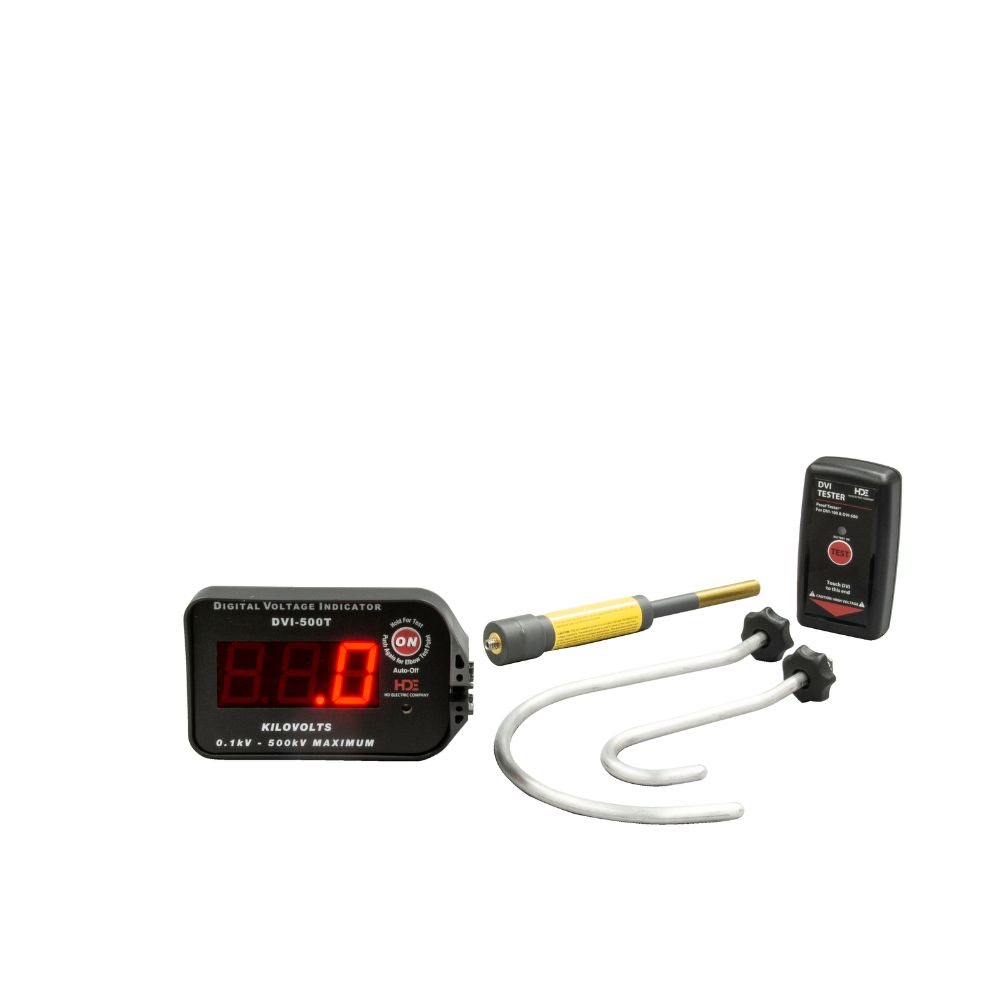

Greenlee DVI-500T/K02 Includes
- (1) DVI-500
- (1) HP-DVI-2 2" Overhead Hook Probe
- (1) HP-DVI-6 6" Overhead Hook Probe
- (1) IEP-DVI-5 Underground Bushing Probe
- (1) PT-DVI Proof Tester Proof Tester
- (1) CS-DVI Plastic Case
Greenlee DVI-500T/K02 Features
- Measures voltage up to 500kv line-to-ground
- Voltage readout distinguishes between nominal and induced voltages
- Audible indication when voltage is detected

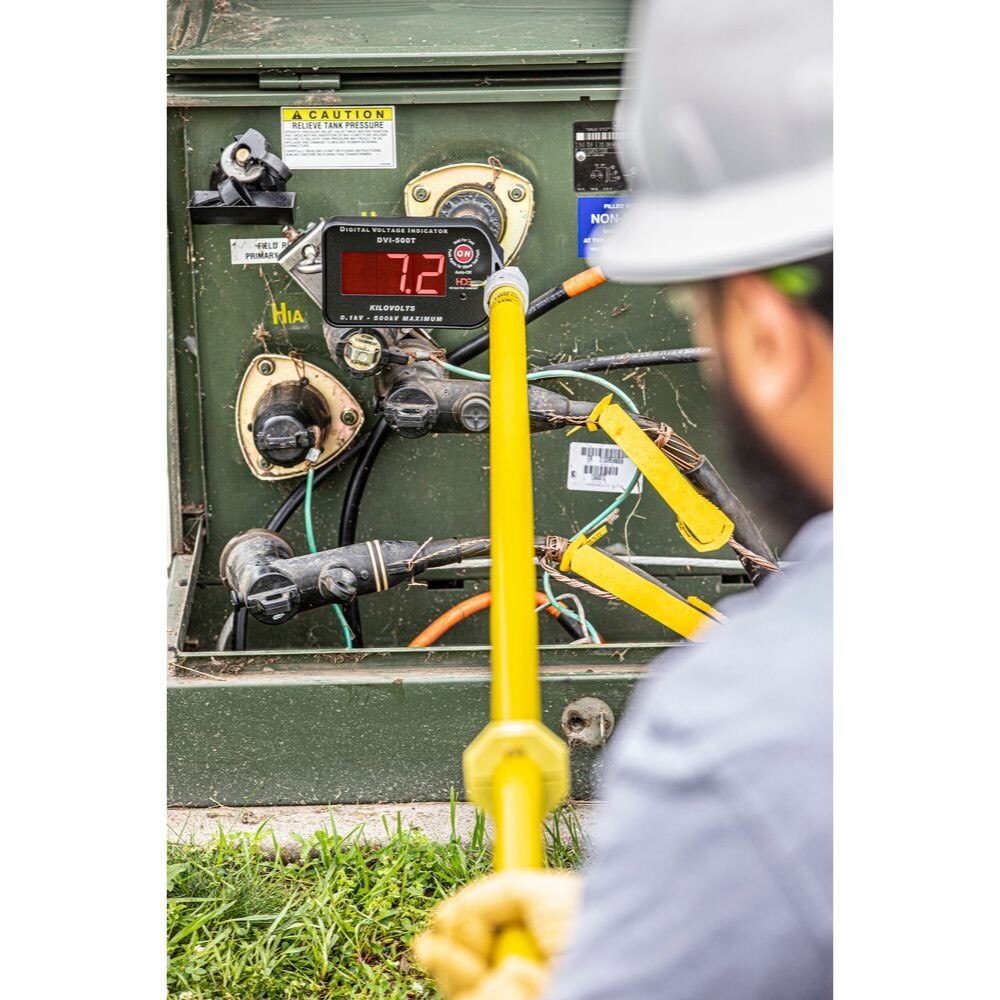

- Test Point mode
- Auto-shutoff and low battery indication features
- Versatile for overhead and underground applications
Greenlee DVI-500T/K02 Specifications
| Type | Digital Voltage Indicator |
| Model | DVI-500T |
| Voltage Rating | 100V - 500kV Line-to-Ground |
| Accuracy | Laboratory Calibrated to +/-3%. Typical Overhead Line in Compact Overhead Three Phase +/-10%. Other Applications up to +/-25% |
| Display | LED Display |
| Operating Temperature | -20°F to +140°F (-29°C to +60°C) |
| Dimensions | 4.25"H x 7"W x 4.5"D (11 cm x 18 cm x 11 cm) |
| Frequency Rating | AC 60Hz (50Hz model available) |
| Sub Brand | HDE |
| Included | DVI-500, HP-DVI-2 2" Overhead Hook Probe, HP-DVI-6 6" Overhead Hook Probe, IEP-DVI-5 underground bushing probe, PT-DVI Proof Tester proof tester, CS-DVI plastic case |
