Greenlee  |  SKU: E12CCXLX120  |  Barcode: 783310611493

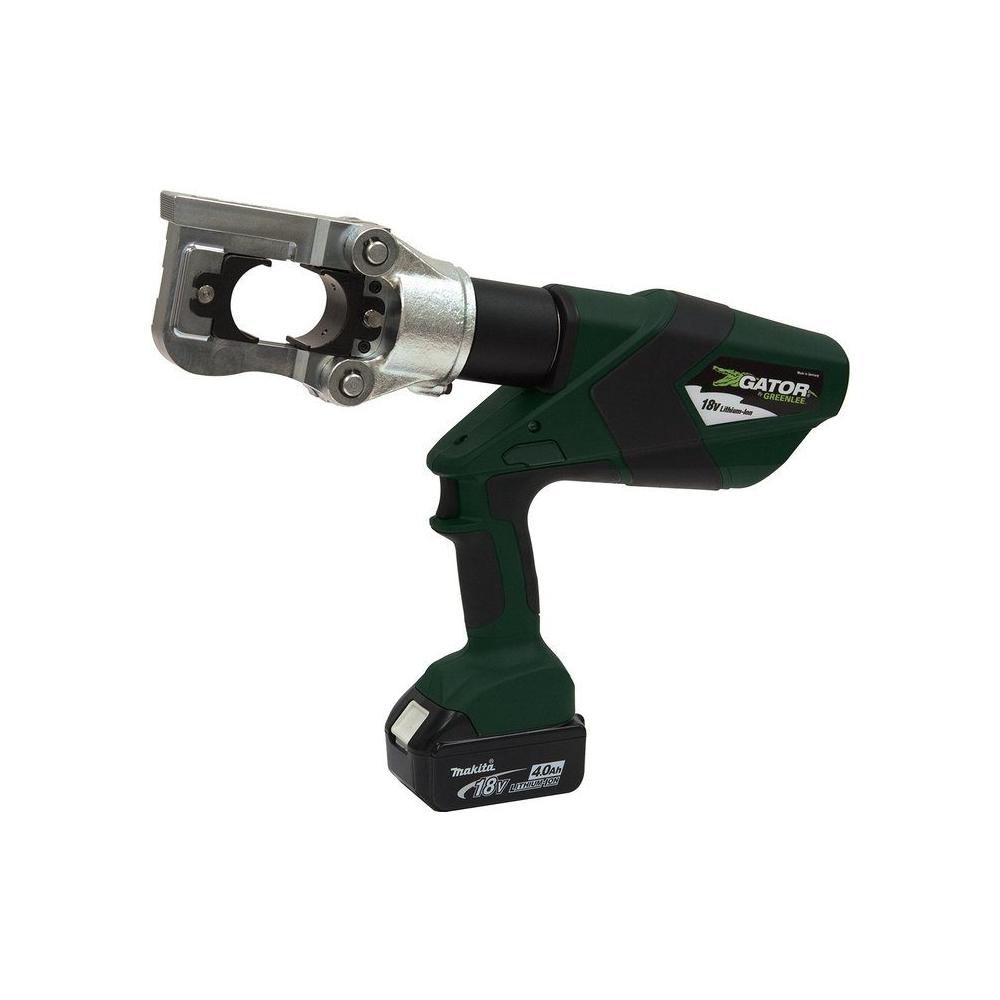

Greenlee E12CCXLX120 12 Ton Crimping/Cutting Multi Tool, Li-Ion, 120V w Bluetooth

Free Shipping
$5,692.07 $6,958.40

Description

Greenlee E12CCXLX120 Includes

  • (1) 12 Ton Crimping/Cutting Multi Tool, Li-Ion, 120V w Bluetooth

Greenlee E12CCXLX120 Features

  • Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • State of the art 18 V Lithium Ion (Li-Ion) battery provides 70% more cycles per charge and faster cycle times
  • Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • Crimping head rotates 350°
  • Tools automatically retract when the crimping cycle is complete
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminates dark work areas
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Available with 120 V, 12 V or 230 V battery charger or with 120 V or 230 V corded adapter in place of batteries and charger use optional CCX Blades and adapters.

Greenlee E12CCXLX120 Specifications

Sub Brand Gator
Type Die style crimper/cutter
Application 12 Ton Crimping/Cutting
Standard C/US UL Listed
Wire Size 8 AWG - 750 Kcmil Cu & Al
Overall Length 16.5" (420mm)
Crimping Force 24,000 lbs (106 kN)
Crimping Capacity 750 Kcmil (MCM) Cu & Al
Connector Type Color-coded lugs and splices
Handle Type Pistol Style with over molded rubber grip
