Greenlee  |  SKU: EK1240LXB  |  Barcode: 783310609889

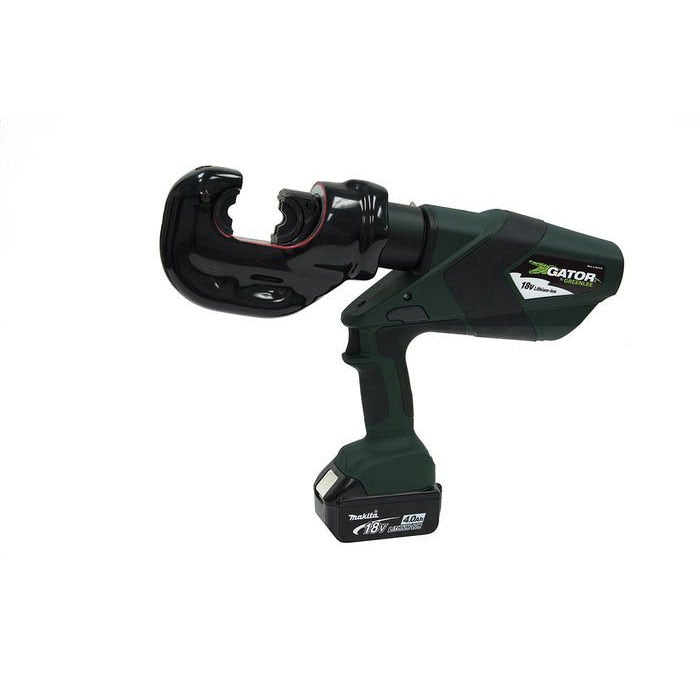

Greenlee EK1240LXB Crimper, 12T Li, Std, Bare Tool

Free Shipping
$4,215.58 $5,140.95

Description

Greenlee EK1240LXB Description

Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.

Greenlee EK1240LXB Features

  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • Crimping head rotates 350°
  • Tools automatically retract when the crimping cycle is complete
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminates dark work areas
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
  • Three crimping head choices: EK1230L with 1.20 IN (30mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry U style crimping dies, EK1240L with 1.65 IN (42mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry U style crimping dies, EK1240KL uses Kearney PH2 style crimping dies
  • Covered head models have two layers of PVC that total approximately 3/16 IN (4.8 mm) thick. The outer layer is black and the inner layer is red.
  • U.S. Patents #6,206,663 and #6,065,326

Greenlee EK1240LXB Specifications

Sub Brand Gator
Type Die style crimper
Application 12 Ton Crimping
Standard C/US UL Listed
Wire Size 8 AWG - 750 Kcmil Cu & Al
Opening Size 1.65 IN (42 mm)
Overall Length 16.25 IN (413 mm)
Crimping Force 24,000 lbs. (106 kN)
Crimping Capacity 750 Kcmil (MCM) Cu & Al
Connector Type Color-coded lugs and splices
Handle Type Pistol Style with over molded rubber grip
