Greenlee  |  SKU: 52078748  |  Barcode: 783310611349

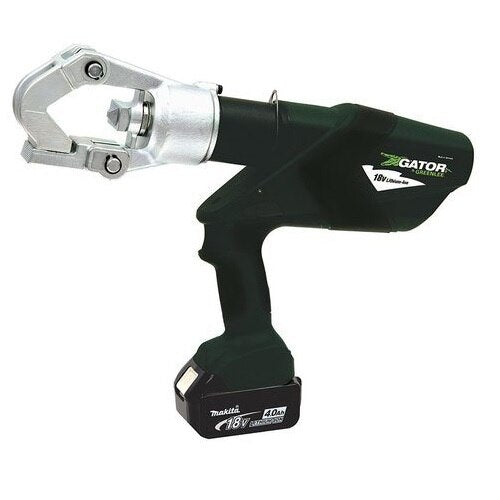

Greenlee EK12IDLX11 12 Ton Crimper Indent, Li-Ion, Standard, 120V

Free Shipping
$5,359.81 $6,536.35
Loading delivery estimate...

Description

Greenlee EK12IDLX11 Includes

  • (1) Crimper

Greenlee EK12IDLX11 Features

  • Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app.
  • Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
  • Dieless indent style crimping head does not require interchangeable crimping dies
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • Crimping head rotates 350°
  • Tools automatically retract when the crimping cycle is complete
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminates dark work areas
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • Flip open crimping head will allow crimping of 4 AWG - 1000 kcmil copper or 6 AWG - 1000 kcmil aluminum with no dies to change

Greenlee EK12IDLX11 Specifications

Type: Dieless style crimper
Application: 12 Ton Crimping
Sub Brand: Gator
Standard: C/US UL Listed
Wire Size: 4 AWG - 1000 kcmil Cu, 6 AWG - 1000 kcmil Al
Overall Length: 16.5 IN (420mm)
Crimping Force: 24,000 lbs. (106 kN)
Crimping Capacity: 1000 Kcmil (MCM) Cu & Al
Connector Type: Color-coded lugs and splices
Handle Type: Pistol Style with over molded rubber grip
​ ​ ​ ​ ​ ​
