At a Glance
Battery Platform
Greenlee Gator 18V
Voltage
18 V
Overall Length
18-1/2 in
Cable Size Range
8 AWG - 1500 kcmil
Crimp Force
30000 lb
Die Type
U-Die
Crimp Type
Hydraulic Battery
Sold As
Individual
For Use On
Electrical Components
Color
Black/Green
Description
Description
Greenlee EK1550FLXB Description

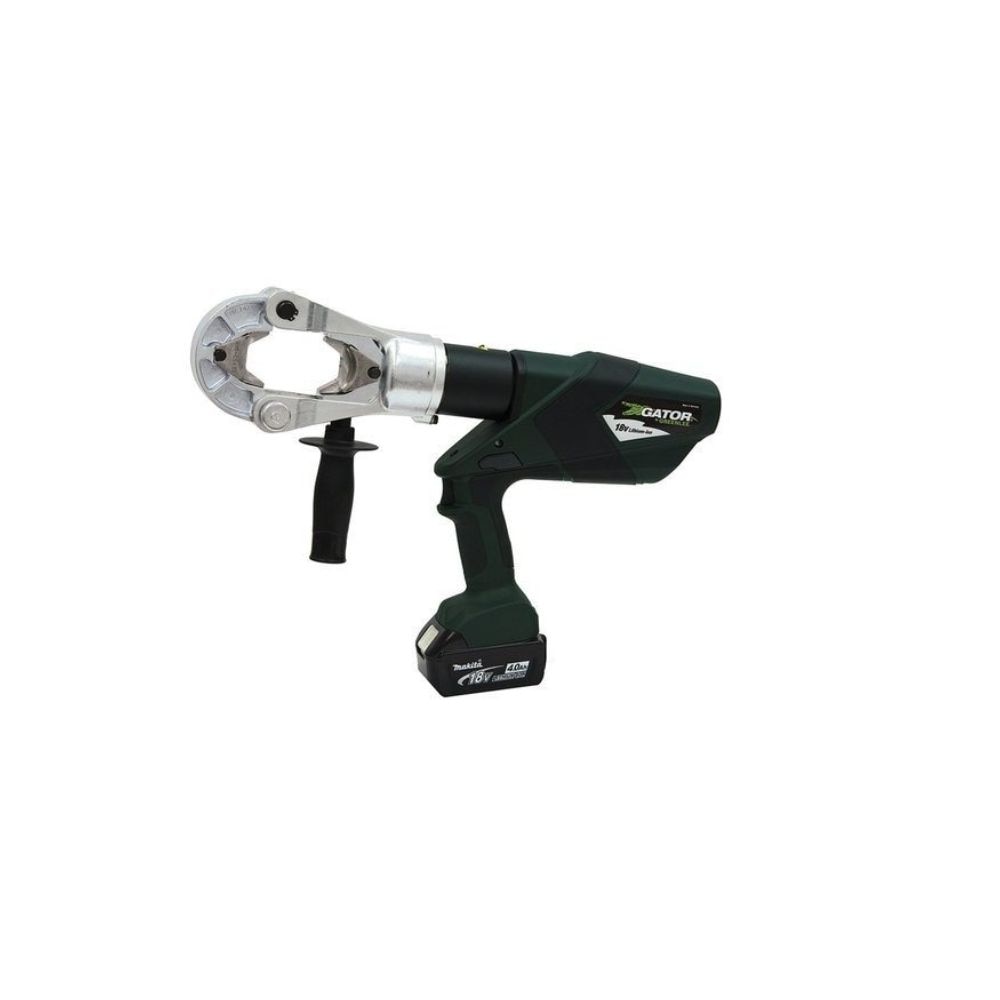

EK1550FLX Battery-powered, 15-ton, High-speed Crimping Tool is a hand-held, self-contained crimping tool intended to crimp aluminum and copper connectors onto electrical cable. The tool has a retraction stop feature which allows the operator to stop the retraction motion of the ram to shorten cycle time. The tool has a Bluetooth® connectivity and an LCD screen. The tool is protected by U.S. Patent No. 6,206,663, 6,276,186, 6,401,515, and 6,718,870.
Greenlee EK1550FLXB Includes
- (1) Crimping Tool
Greenlee EK1550FLXB Features
- This cable crimper comes equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app
- Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
- Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
- LED light provides the operator with the battery charge and tool maintenance status
- Two-stage hydraulic system provides fast advance and power speed, saving time
- Forward handle position improves tool balance
- One trigger controls all tool functions
- Crimping head rotates 350°
- Tools automatically retract when the crimping cycle is complete
- Flip-top configuration, reduction in deflection, with improved crimp consistency
- Quick-release locking pin
- Utilizes "P" and "U" style crimping dies
- Overmolded tacky grip areas make gripping the tool easier and more comfortable for linemen
Greenlee EK1550FLXB Specifications
| Type | Die Style Crimper |
| Wire Size | 8 AWG - 1500 kcmil Cu, 8 AWG - 1250 kcmil Al |
| Crimping Force | 30000 lbs. (134 kN) |
| Crimping Capacity | 1500 kcmil (MCM) Copper, 1250 kcmil (MCM) Al |
| Connector Type | Color-Coded Lugs and Splices |
| Handle Type | Pistol Style with Over Molded Rubber Grip |
| Application | 15 Ton Crimping |
| Standard | C/US UL Listed |
| Overall Length | 18.5" (470mm) |
Toolup Part # :
390317
