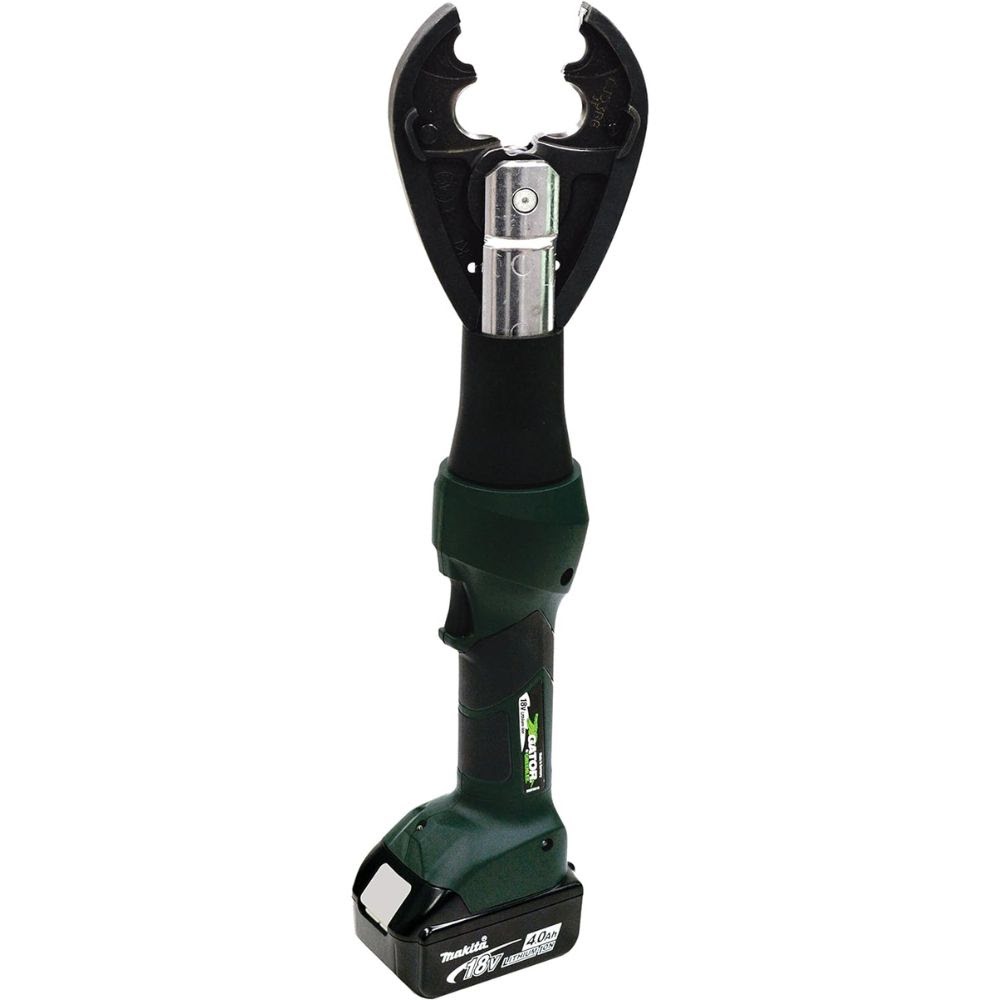

Greenlee EK425LX 6 Ton Crimper, Li-Ion, Standard (Bare Tool)
Free Shipping
$1,355.71
$1,653.30
Unit price
/
Unavailable
Description
Description
Greenlee EK425LX Description
The Greenlee EK425LX is a six ton, handheld crimping tool with removable jaw. The chart below provides an overview of available models. There are several jaws to choose from, as well as charger voltages for the battery. Please note, "Bare" models do not include a battery or charger.
Greenlee EK425LX Includes
- (1) Crimping Tool
Greenlee EK425LX Features
- The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector
- The crimping jaws open wide to fit easily over connectors
- In-line tool style is lightweight and very easy to control
- To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp
- The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices
- When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws
- It is then ready to make the next crimp
- And, when the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications
Greenlee EK425LX Specifications
| Type | Die Style Crimper |
| Application | 6 Ton Crimping |
| Crimping Force | 12000 lbs (53 kN) |
| Crimping Capacity | Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR |
| Connector Type | Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices |
| Handle Type | In-Line Style with Over Molded Rubber Grip |
