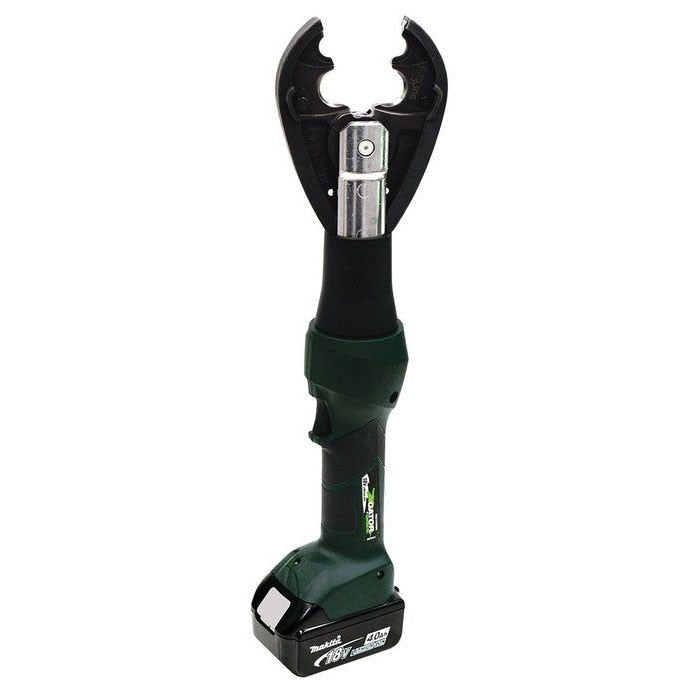

Greenlee EK425LXD11 6 -Ton Crimper, Li-Ion, Standard, CJD3, 120V
Free Shipping
$2,166.55
$2,733.75
Unit price
/
Unavailable
Description
Description
Greenlee EK425LXD11 Description
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
Greenlee EK425LXD11 Features
- The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector
- In-line tool style is lightweight and very easy to control
- The crimping jaws open wide to fit easily over connectors
- To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp
- The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices
- When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws
- It is then ready to make the next crimp
- And, when the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications
Greenlee EK425LXD11 Specifications
| Sub Brand | Gator |
| Type | Die style crimper |
| Application | 6 Ton Crimping |
| Standard | C/US UL Listed |
| Wire Size | Connector - 10-1/0 AWG 5/8", Service Entrance Connectors -1/0-4/0 AWG 0.840, Service Entrance Connectors - 6 - 4/0 AWG, Aluminum H Taps - 10-2 AWG Copper H Taps - 6-2/0 AWG, Copper Tension Splices - 6-4/0 AWG, All Aluminum Tension Splices - 4-1/0 AWG, One Piece ACSR |
| Overall Length | 18.5 IN (470mm) |
| Crimping Force | 12,000 lbs. (53 kN) |
| Crimping Capacity | Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR |
| Connector Type | Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices |
| Handle Type | In-Line Style with over molded rubber grip |
