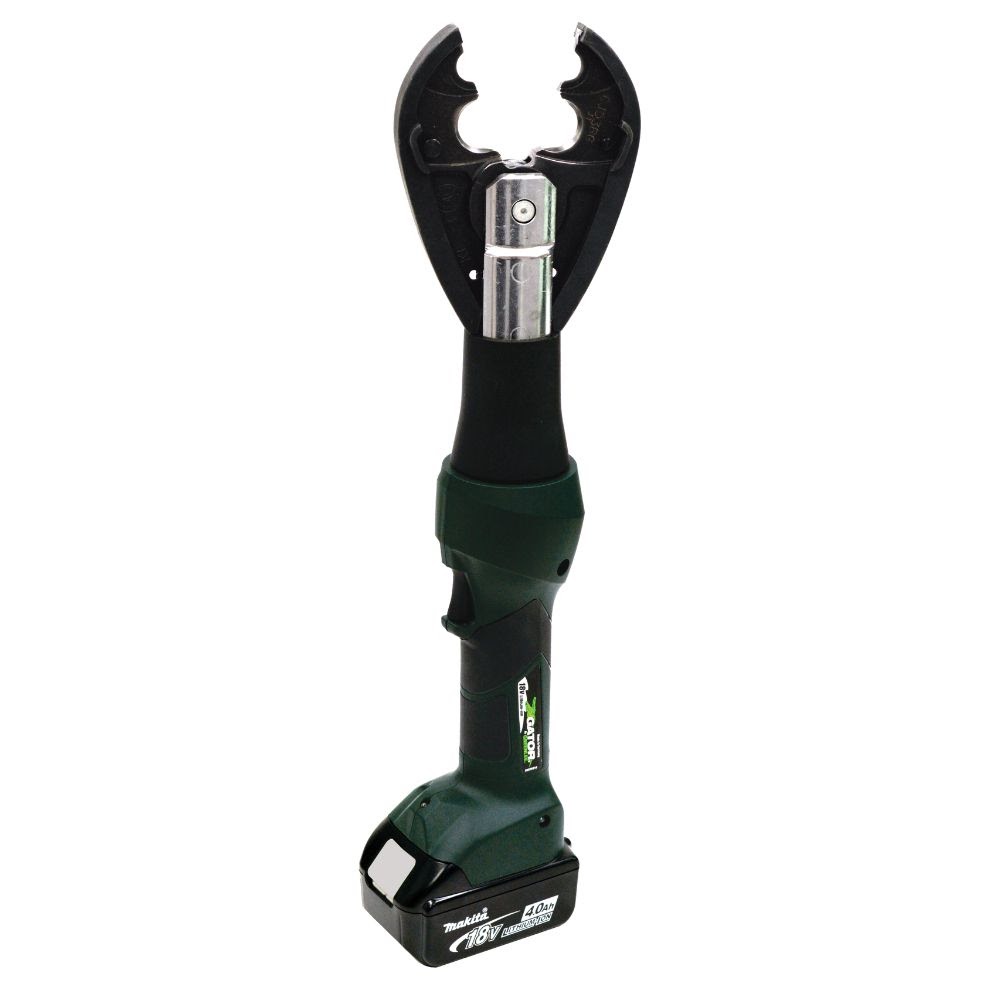

Greenlee EK425LXDBGB 6 Ton Crimper, Li-Ion, Standard, CJD3BG, Bare
Description
Description
Greenlee EK425LXDBGB Description
The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector In-line tool style is lightweight and very easy to control. The crimping jaws open wide to fit easily over connectors. To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp. The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices. When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws. It is then ready to make the next crimp. When the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications. Crimping Capacity : Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR. Case included.
Greenlee EK425LXDBGB Includes
- (1) Crimping Tool
- (1) CJD3BG jaw
Greenlee EK425LXDBGB Features
- Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
- The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector
- The crimping jaws open wide to fit easily over connectors
- In-line tool style is lightweight and very easy to control
- To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp
- The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices
- When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws
- It is then ready to make the next crimp
- And, when the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications
Greenlee EK425LXDBGB Specifications
| Type | Die Style Crimper |
| Application | 6 Ton Crimping |
| Standard | C/US UL Listed |
| Wire Size | Connector 10-1/0 AWG 5/8" Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR |
| Overall Length | 18.5" (470mm) |
| Crimping Force | 12000 lbs (53 kN) |
| Crimping Capacity | Connector 10-1/0 AWG 5/8" Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR |
| Connector Type | Service Entrance Connectors, H-Taps, Tension Splices, Jumper Splices, Stirrups, Color Coded Lugs & Splices |
| Handle Type | In-Line Style with Over Molded Rubber Grip |
| Sub Brand | Gator |
