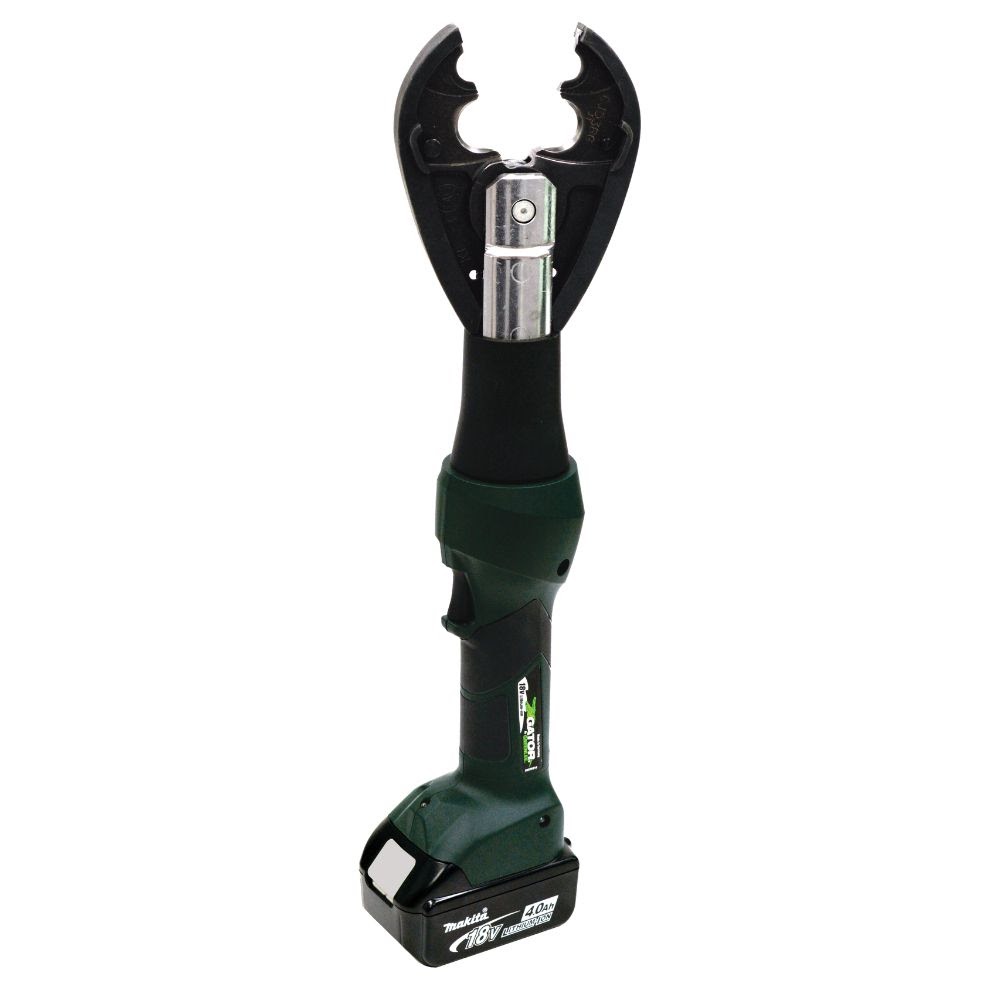

Greenlee EK425LXDOB 6 Ton Crimper, Li-Ion, Standard, CJD3O, Bare
Free Shipping
$1,976.08
$2,352.45
Unit price
/
Unavailable
Description
Description
Greenlee EK425LXDOB Description
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
Greenlee EK425LXDOB Includes
- (1) Crimping tool
- (1) CJD3O Jaw
Greenlee EK425LXDOB Features
- The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector
- The crimping jaws open wide to fit easily over connectors
- In-line tool style is lightweight and very easy to control
- To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp
- The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices
- When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws
- It is then ready to make the next crimp
- And, when the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
Greenlee EK425LXDOB Specifications
| Type | Die Style Crimper |
| Application | 6 Ton Crimping |
| Standard | C/US UL Listed |
| Wire Size | Connector 10-1/0 AWG 5/8" Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR |
| Overall Length | 18.5" (470mm) |
| Crimping Force | 12000 lbs (53 kN) |
| Crimping Capacity | Connector 10-1/0 AWG 5/8" Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR |
| Connector Type | Service Entrance Connectors, H-Taps, Tension Splices, Jumper Splices, Stirrups, Color Coded Lugs & Splices |
| Handle Type | In-Line Style with Over Molded Rubber Grip |
| Sub Brand | Gator |
