Greenlee | SKU:
EK425PLXDO12

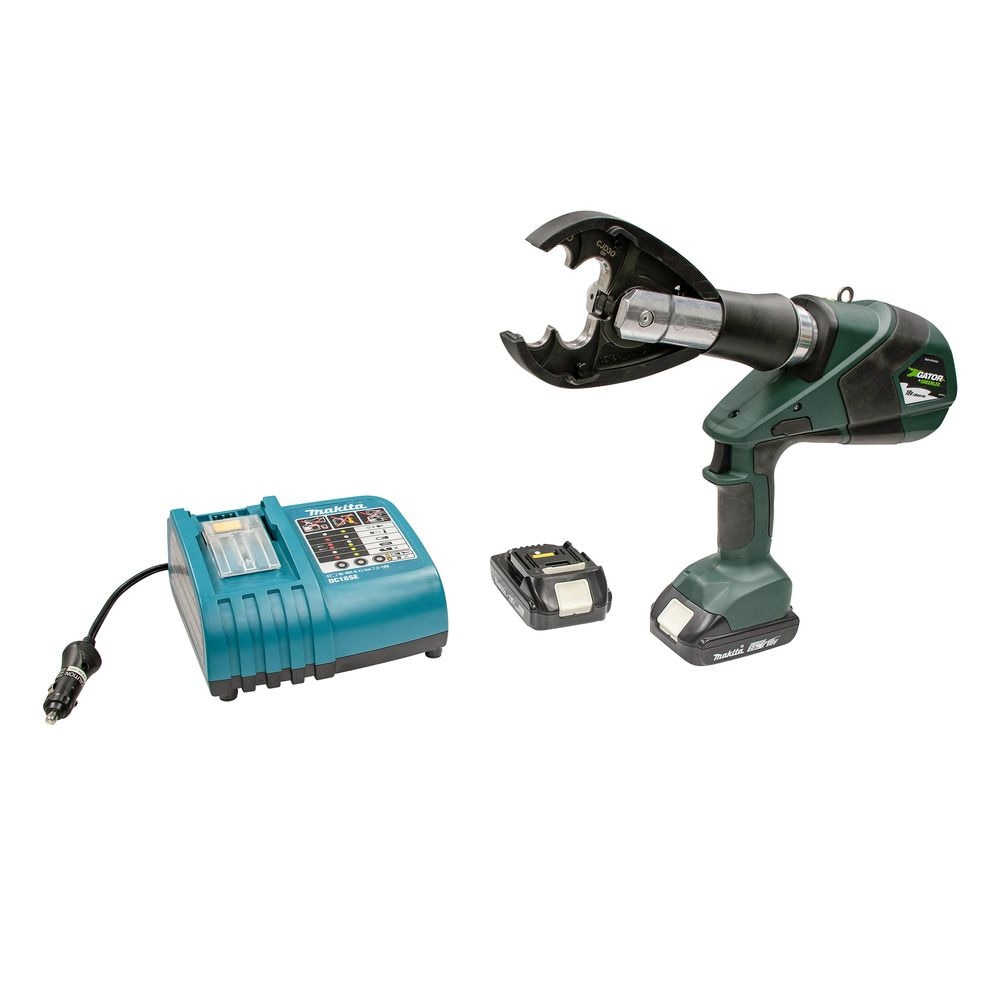

Greenlee EK425PLXDO12 EK425 PLX 6 Ton, D3/O Profile Crimper, 2.0Ah Battery, 12V Charger
Free Shipping
$3,304.25
$3,419.90
Unit price
/
Unavailable
Description
Description
Greenlee EK425PLXDO12 Includes
- (1) Crimper
- (1) Battery
- (1) Charger
Greenlee EK425PLXDO12 Features
- The Greenlee Gator EK425PLX features a pistol style configuration, optimizing balance and control in confined work areas.
- Interchangeable heads for a variety of crimping and cutting applications.
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
Greenlee EK425PLXDO12 Specifications
| Crimping Force | 12000 lbs (53 kN) |
| Crimping Capacity | Connector 10-1/0 AWG 5/8" Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR |
| Connector Type | Service Entrance Connectors, H-Taps, Tension Splices, Jumper Splices, Stirrups, Color Coded lugs & Splices |
| Wire Size | Connector 10-1/0 AWG 5/8" Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR |
| Type | Die Style Crimper |
| Handle Type | Pistol Style with Over Molded Rubber Grip |
| Standard | C/US UL Classified |
| Application | 6 Ton Crimping |
| Min Operating Temperature | 1 F / -17.22222 C |
| Max Operating Temperature | 104 F / 40 C |
| Power Source | Battery Powered |
| Light Source | LED |
| Connectivity-1 (Bluetooth, WiFi) | Yes |
| Motor Type | DC Brushed Permanent Magnet |
| Voltage | 18V |
| Battery Required | Yes |
| Battery Composition | Lithium Ion |
| Battery | 2.0Ah |
| Charger | 12V |
| Length | 16" |
| Width | 3" |
| Height | 11" |
| Weight | 7.55 lbs |
