Greenlee | SKU:
EK628LX11

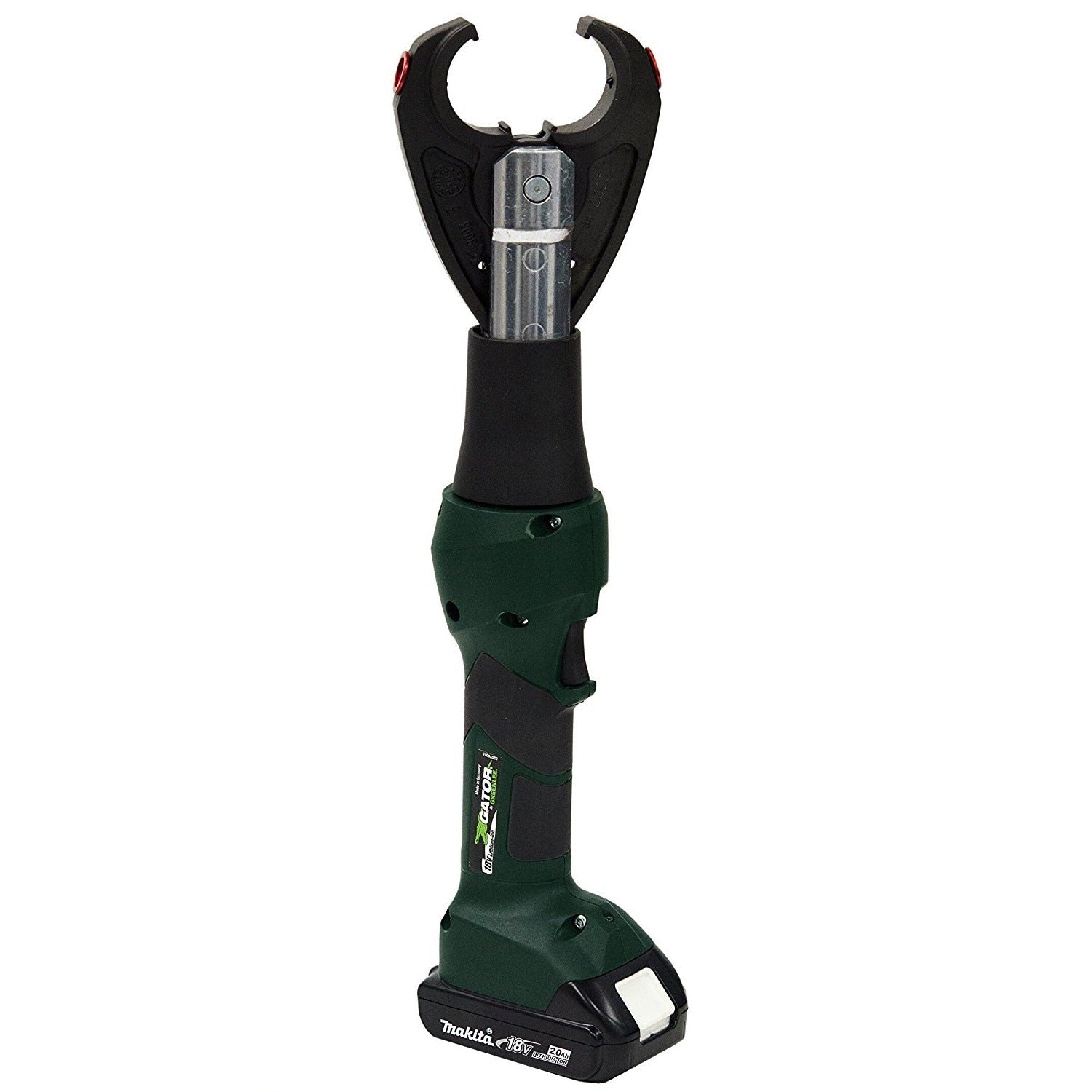

Greenlee EK628LX11 6 Ton Crimper, Li-Ion, Standard, 120V
Free Shipping
See Price In Cart
Unit price
/
Unavailable
Description
Description
Greenlee EK628LX11 Features
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
- LED light provides the operator with the battery charge and tool maintenance status
- In Line tool style is light weight and very easy to control
- One trigger controls all tool functions
- Crimping head rotates 350°
- Tools automatically retract when the crimping cycle is complete
- Overmolded tacky grip areas make gripping the tool easier and more comfortable
- LED work light illuminates dark work areas
- Greenlee battery-powered crimping tools now use bio-degradable oil
- Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
- Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
- Equipped with CJ22 Crimping Jaws that accept Greenlee KC22 and KA22 Series Crimping Dies
- When equipped with optional CJD3 Crimping Jaws, can be used with all industry "W" Style Crimping Dies & Greenlee KD6 Series Dies
- When equipped with optional CJK Crimping Jaws, can be used with Thomas & Betts "6-Ton" Crimping Dies
Greenlee EK628LX11 Specifications
Sub Brand | Gator |
Type | Die style crimper |
Application | 6 Ton Crimping |
Standard | C/US UL Listed |
Wire Size | 8 AWG - 600 kcmil Cu, 8 AWG - 350 kcmil Al |
Overall Length | 18.5 IN (470mm) |
Crimping Force | 12,000 lbs. (53 kN) |
Crimping Capacity | 600 kcmil (MCM) Copper, 350 kcmil (MCM) Al |
Connector Type | Color-coded lugs and splices |
Handle Type | In-Line Style with over molded rubber grip |
