Greenlee  |  SKU: 52078724  |  Barcode: 783310611073

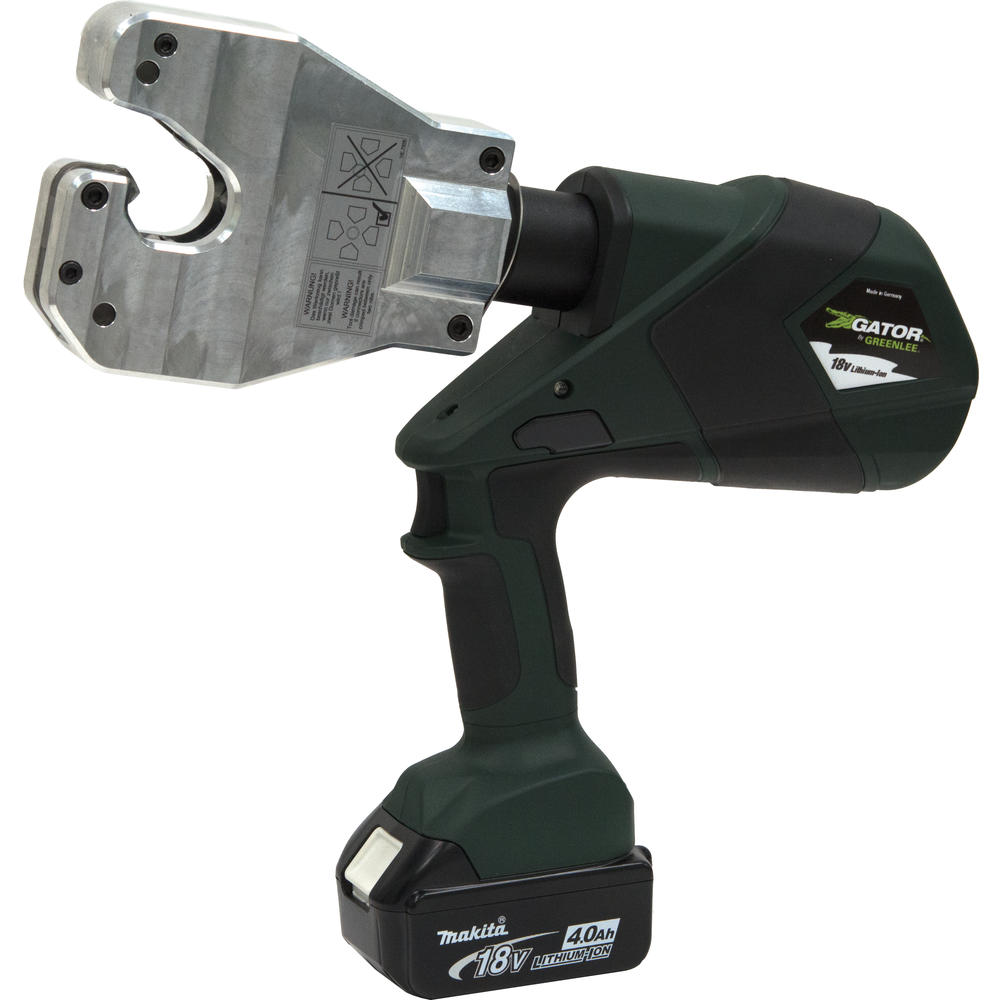

Greenlee EK6ATLX11 6 Ton Crimper Quad, Li-Ion, Standard, 120V

Free Shipping
$4,432.76 $5,578.30

Description

Greenlee EK6ATLX11 Description

Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.

Greenlee EK6ATLX11 Includes

  • (1) 6 Ton Quad Point Crimper, Open Face
  • (1) 120V Charger
  • (2) 4.0 Ah Batteries

Greenlee EK6ATLX11 Features

  • Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • Crimping head rotates 350°
  • Tools automatically retract when the crimping cycle is complete
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminates dark work areas
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • Utilizes four indentors to make the crimp
  • Flip-top style uses a pull pin to open head for easy removal from the connector
  • U.S. Patents #6,206,663 and #6,065,326

Greenlee EK6ATLX11 Specifications

Sub Brand Gator
Type Dieless style crimper
Application 6 Ton Crimping
Standard C/US UL Listed
Wire Size 6 AWG - 500 kcmil Cu, 6 AWG - 400 kcmil Al
Overall Length 14 IN (355mm)
Crimping Force 12,400 lbs. (55 kN)
Crimping Capacity 500 kcmil (MCM) Copper, 400 kcmil (MCM) Al
Connector Type Color-coded lugs and splices
Handle Type Pistol Style with over molded rubber grip
