Greenlee | SKU: 52078736 | Barcode: 783310611196

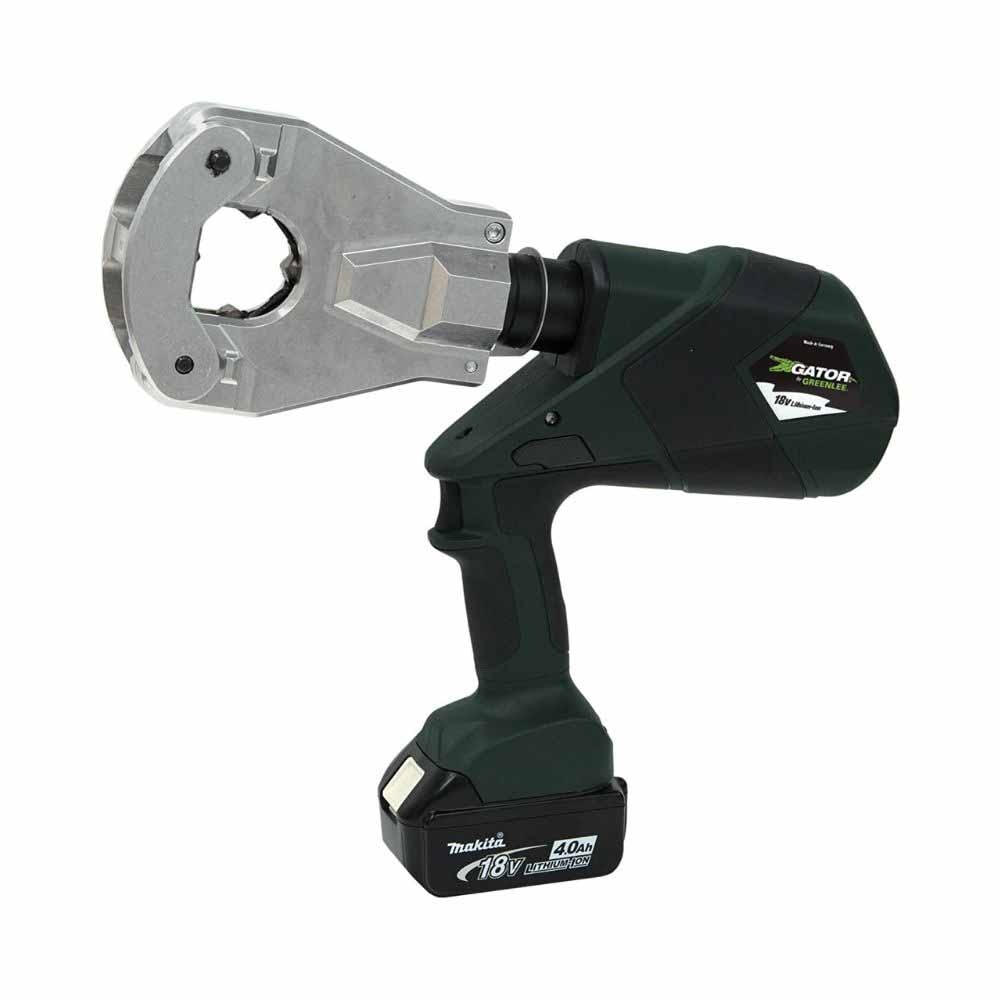

Greenlee EK6FTLX11 6 Ton Crimper Quad Flip, Li-Ion, Standard, 120V

Free Shipping

$5,427.62 ~~$6,461.40~~

Description

Greenlee EK6FTLX11 Description

Battery-powered, High-speed Crimping Tool, hand-held, self-contained, dieless crimping tool intended to crimp aluminum and copper connectors onto electrical cable. These tools have a retraction stop feature which allows the operator to stop the retraction motion of the ram to shorten cycle time. These tools have a Bluetooth® connectivity and an LCD screen.

Greenlee EK6FTLX11 Includes

(1) Crimping Tool
(2) 4.0 Ah Batteries
(1) Charger

Greenlee EK6FTLX11 Features

2-stage hydraulic system provides fast advance and power speeds, saving time
Automatic retraction stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
Crimping head rotates 350 deg
Equipped with Bluetooth™ communication enabled via the Greenlee® Gator® eye app
Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real time tool feedback
Flip-top style uses a pull pin to open head for easy removal from the connector
Forward handle position improves tool balance
Greenlee® battery powered crimping tools now use bio-degradable oil
Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
LED light provides the operator with the battery charge and tool maintenance status
LED work light illuminates dark work areas
One trigger controls all tool functions
Overmolded tacky grip areas make gripping the tool easier and more comfortable
Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
State of the art 18 V lithium-ion battery provides 70% more cycles per charge and faster cycle times
Tools automatically retract when the crimping cycle is complete
Utilizes four indentors to make the crimp

Greenlee EK6FTLX11 Specifications

Type	Dieless Style Crimper
Wire Size	6 AWG - 750 Kcmil Cu & Al
Crimping Force	12400 lbs (55 kN)
Crimping Capacity	750 Kcmil (MCM) Cu & Al
Connector Type	Color-Coded Lugs and Splices
Handle Type	Pistol Style with Over Molded Rubber Grip
Overall Length	14.875"
Sub Brand	Gator
Voltage Rating	18V
Battery	18V 4.0Ah Li-Ion
Battery Charger	120V
Standard	C/US UL Listed
