At a Glance
Voltage
18 V
Overall Length
16 in
Cable Size Range
8 AWG - 500 kcmil
Crimp Force
6 ton
Die Type
Indent
Crimp Type
Hydraulic Battery
Sold As
Set/Kit
For Use On
Electrical Components
Color
Black/Green
Description
Description

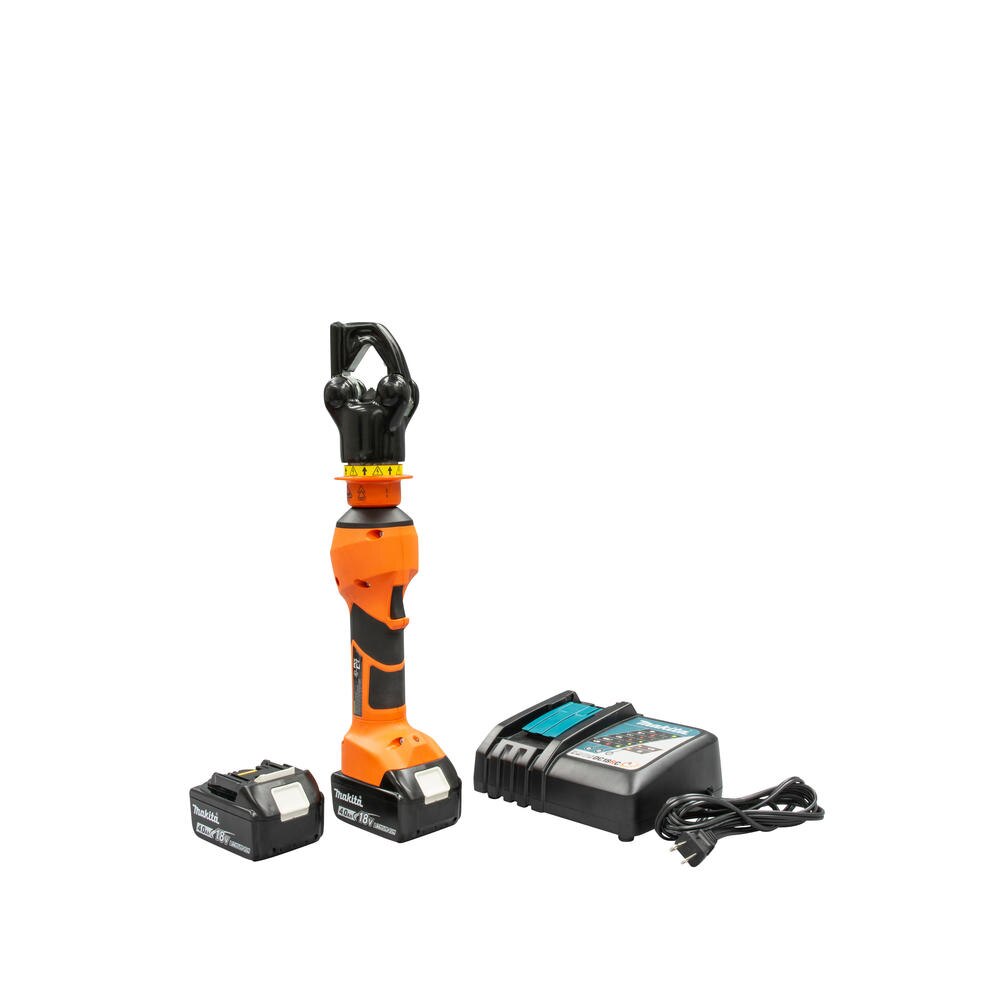

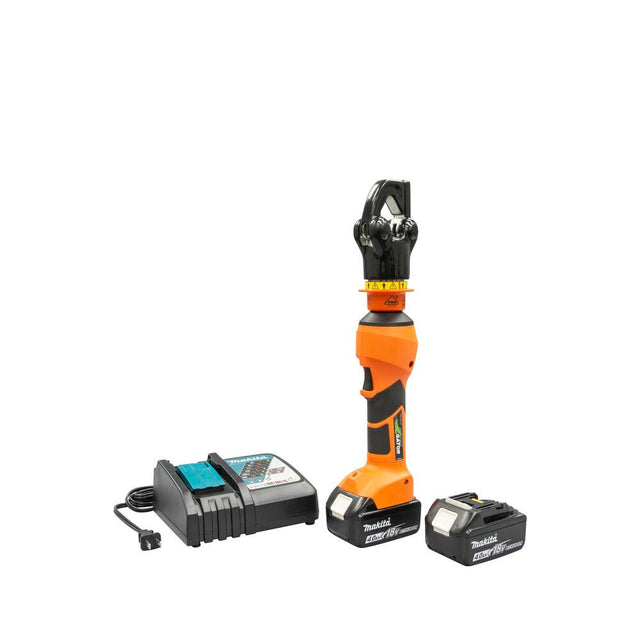

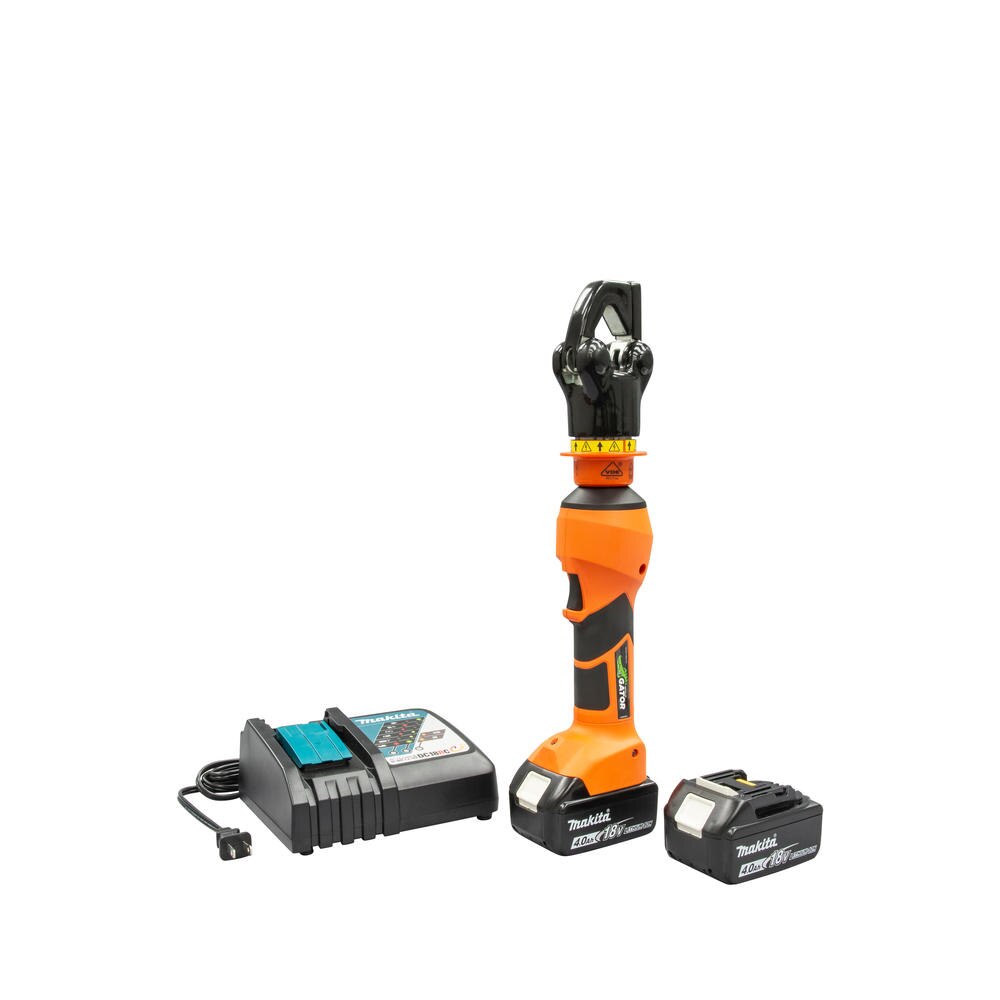

Greenlee EK6IDCVX11 Includes
- (1) Crimper
- (1) Battery
- (1) Charger
Greenlee EK6IDCVX11 Features
- 1000v Insulation
- Brush guarded head - helps avoid accidental contact with conductors
- Tri-insulation barrier - Provides three (3) layers of protection (Patent Pending)
- 360° Rotating head - For improved agility in confined work spaces
- Double -tap safety feature option -Prevents unintentional operation
- Bluetooth® communication Connects with Greenlee i-press® App
- Equipped with Intelli-crimp technology
Greenlee EK6IDCVX11 Specifications
| Sub Brand | Gator |
| Type | 6 Ton Crimping |
| Application | 6 Ton Crimping |
| Standard | C/US UL Listed, IEC 62481-1; VDE, CSA, MET Tested |
| Overall Length | 16 IN (406mm) |
| Crimping Force | Variable 3-6 Ton (30-60 kN) |
| Crimping Capacity | Standard Strand, 8 AWG - 500 kcmil Cu, 1/0 AWG - 350 kcmil Al, Fine Strand, 8 AWG - 350 Kcmil CuDLO, 8 AWG - 373.3 Kcmil Cu |
| Connector Type | Color-coded lugs and splices |
| Handle Type | In-Line Style with over molded rubber grip |
Toolup Part # :
598531
