At a Glance
Voltage
120 V
Overall Length
15-3/4 in
Cable Size Range
8 AWG - 500 MCM
Crimp Force
6 ton
Die Type
Indent
Crimp Type
Indent
Sold As
Set/Kit
For Use On
Copper
Color
Black/Green
Description
Description

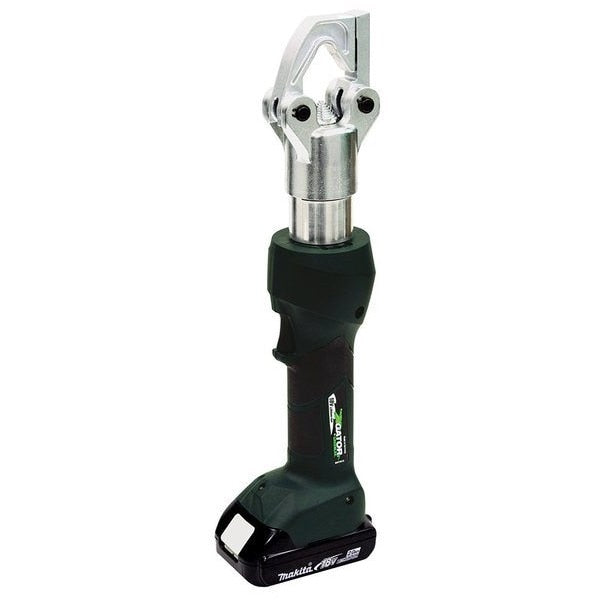

Greenlee EK6IDLX11 Includes
- (1) Crimper
- (1) Charger
- (1) Case FEATURES:
- Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
- Dual stage telescopic cylinder
- The EK6IDL consists of two individual pistons (large exterior and a small interior one). The interior small piston transmits a force of 30kN and features two functions.
- First it fixes cable lugs and connectors to the correct position prior to crimping operations
- Secondly it crimps smaller cross sections up to 1/0 AWG
- The large exterior piston transmits a force of 60kN and crimps all larger cross sections. Managed by Intelli-Crimp, the variable 30kN / 60kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section. Extremely large crimp range is ensured, copper material 8AWG-500MCM and aluminum material 1/0AWG-350MCM.
- Compact design, low weight and heavy duty performance
- Pressure sensor for the electronic control of crimping operation
- Automatic retraction, ARS (Automatic Retraction Stop)
- Single trigger operation
- Extreme Accountability: Risk of wrong selection of dies is eliminated
- Clear marking of crimped connectors enables subsequent control
- Electronic control of crimping operation – Proven Intelli-Crimp technology of all Gator crimping tools
- Gator Eye Compatibility
Greenlee EK6IDLX11 Specifications
| Type | Dieless style crimper |
| Application | 6 Ton Crimping |
| Standard | C/US UL Listed |
| Wire Size | Standard Strand |
| Overall Length | 15.75 IN (400mm) |
| Crimping Force | Variable 3-6 Ton (30-60 kN) |
| Crimping Capacity | Standard Strand |
| Connector Type | Color-coded lugs and splices |
| Handle Type | In-Line Style with over molded rubber grip |
Toolup Part # :
371052
