At a Glance
Battery Platform
Greenlee Gator 18V
Voltage
18 V
Cutting Capacity
1-3/4 in
Maximum Jaw Capacity
1-3/4 in
Overall Length
18-1/4 in
Weight
11 lb
Sold As
Individual
For Use On
Steel
Color
Black
Description
Description

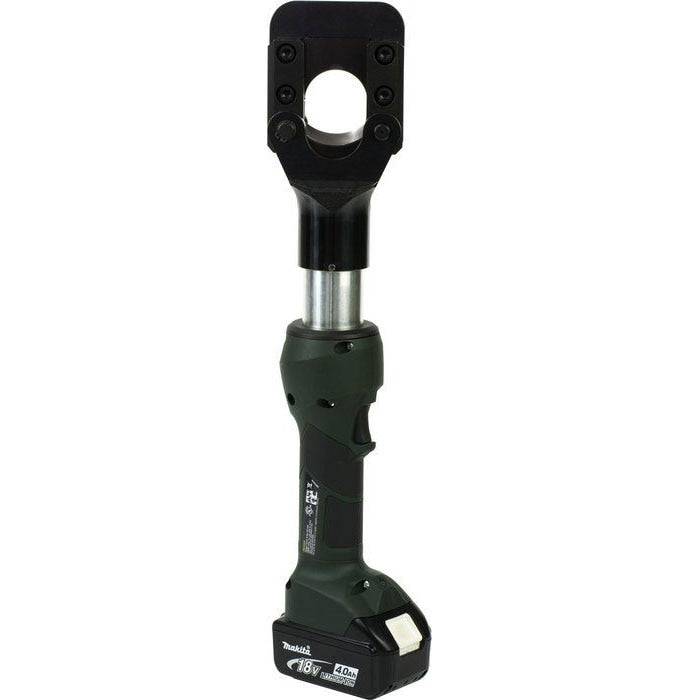

Greenlee ESG45LX11 Description
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
Greenlee ESG45LX11 Features
- Designed specifically to cut ACSR, guy strand and ground rods
- State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
- Retraction Stop allows the operator to stop the ram retraction at any point simply by tapping the trigger, and then starting the next cutting cycle from that point, saving time and energy
- LED light provides the operator with the battery charge and tool maintenance status
- Two-stage hydraulic system provides fast advance and power speeds, saving time
- Forward handle position improves tool balance
- One trigger controls all tool functions
- Cutting head rotates 350°
- Tools automatically retract when the cutting cycle is complete
- Overmolded tacky grip areas make gripping the tool easier and more comfortable
- LED work light illuminates dark work areas
- Greenlee battery-powered cutting tools now use bio-degradable oil
- Smart Chargers control the charging current, charging voltage and battery temperature to maximize battery life
- Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
- U.S. Patents #6,206,663 and #6,065,326
Greenlee ESG45LX11 Specifications
| Sub Brand | Gator |
| Type | Guillotine Style Cutter |
| Application | ACSR, Guy Strand, Steel |
| Cutting Edge | Hard Metal, Steel |
| Cutting Range - ACSR | 1590 KCMIL (MCM) |
| Cutting Range | (Falcon 54/19) |
| Cutting Range - Standard Guy Strand | 5/8" Diameter |
| Cutting Range - EHS Guy Strand | 1/2" Diameter |
| Cutting Range - Rebar (SCH 60) | 1/2" Diameter |
| Cutting Range - Wire Rope | 1/2" (13.000 MM)Cu |
| Cutting Range - Wire Rope | 5/8" Diameter |
| Cutting Range - Soft Steel Bolt | 3/4" Diameter |
| Jaw Size | 1.77" (45mm) |
| Overall Length | 16.625 IN (423mm) |
| Handle Type | In-line style with over molded rubber grip |
| Finish | Black |
Toolup Part # :
388458
