Greenlee | SKU:
H4635

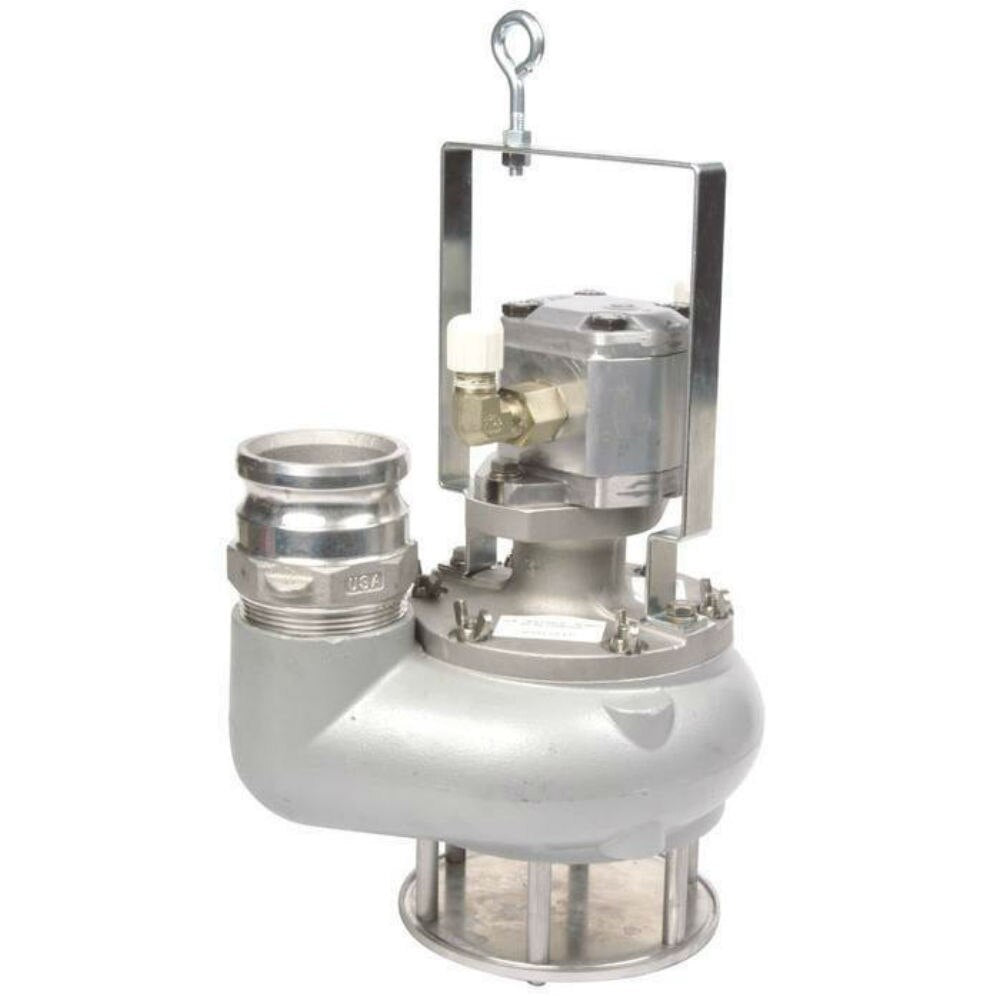

Greenlee Fairmont H4635 3" (76mm) Submersible Trash Pump
Free Shipping
See Price In Cart
Unit price
/
Unavailable
Description
Description
Greenlee H4635 Includes
- Hydraulic 3" Submersible Water Pump
- Carrying handle
Greenlee H4635 Features
- Lighter than typical 3" (76 mm) trash pumps.
- All-aluminum body is lightweight and durable.
- Compact, under 12" (300 mm) diameter to easily fit into small areas.
- Open- and Closed-Center operation runs off a variety of power sources.
- Self-priming submersible pump can be placed and operated quickly.
- Passes up to 3" (76 mm) solids minimizing pump blockage from debris.
- Can be run dry without damage for longer working life.
- Carry handle with lifting eye makes it easy to transport, move, lift, and lower.
Greenlee H4635 Specifications
| Hydraulic Pressure Port: | 1/2" Male NPT |
| Hydraulic Return Port: | 1/2" Male NPT |
| Mass-Weight: | 28 lbs. (11.7 kg) |
| Width (diameter): | 11.87" (301 mm) |
| Height (with handle): | 14.18" (360 mm) |
| Trash Diameter: | 3" (76 mm) |
| Pump Inlet Port: | 3.125" (79.4 mm) |
| Pump Discharge Port: | 3" (76.2 mm) Female NPT |
| Type of Hydraulic System: | Open- or Closed-Center |
| Minimum Flow: | 7 gpm (26.5 lpm) |
| Recommended Flow: | 8 - 10 gpm (30.3 - 37.9 lpm) |
| Maximum Flow: | 10 gpm (37.9 lpm) |
| Filtration: | Nominal (10 Micron) |
| Pressure Relief Setting: | 2,500 psi (172 bar) |
| Back Pressure (maximum): | 200 psi (13.8 bar) |
