At a Glance
Pulling Force
6000 lb
Description
Description
Greenlee G6 Includes
- (1) Force Gauge
- (1) Foot switch
Greenlee G6 Features
- Up to 60% Faster compared to competition*
- Setup in less than 60 seconds
- No loose pieces, allowing quick changeover for easy transport
- No adapter needed - easily clamp conduit in seconds

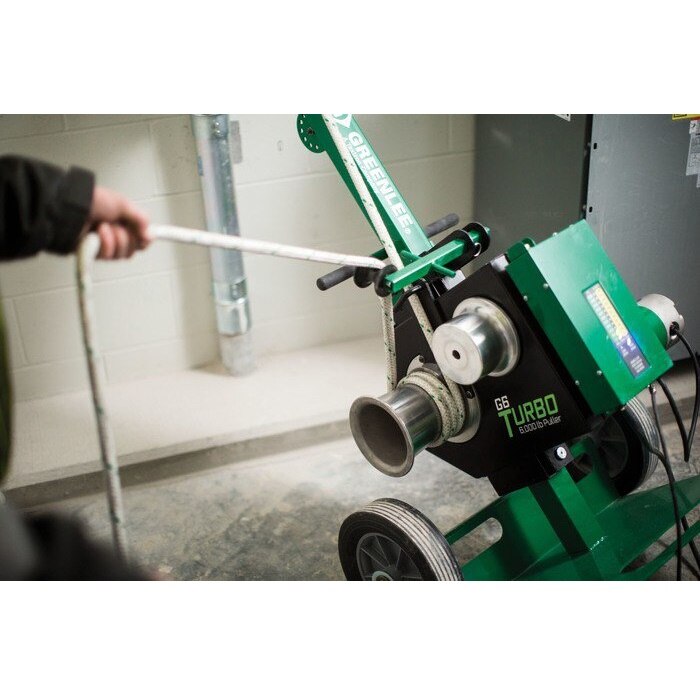

- Dual capstans increase pulling speeds and maximize efficiency
- Two speed motor specially designed for 6,000 lb loads
- Circuit breaker monitor for safe auto shutoff and extend motor life
- Force indicator prevents damage to puller
- Built-in dolly for fast and easy transport
- Ergonomic design eliminates heavy lifting during setup
- Right-angle sheave allows the operator to stand out of the direct line of force
Greenlee G6 Specifications
| Application: | Cable Puller |
| Pulling Rope: | 3/4 IN (19.100 MM) Double-Braided Composite, • • Rated At 26000 LB (115.600 KN) |
| Drive Motor: | 120 VAC, 50/60 Hz, 12 amps |
| No Load Main Capstan Speed: | High Speed 28 ft/min (8.53 m/min), Low Speed 11 ft/min (3.35 m/min) |
| No Load Secondary Capstan Speed: | High Speed 90 ft/min (27.43 m/min), Low Speed 35 ft/min (10.70 m/min) |
| Pulling Force: | 4000.000 LB (17.800 KN) Continuous, 5000.000 LB (22.200 KN) Intermittent, 6000.000 LB (26.700 KN) Momentary |
| Standard Boom Extension: | 7.50 FT (2.29.m) |
| Weight: | 252 lbs (114 kg) |
Toolup Part # :
377302
