Greenlee | SKU:
GX10-GPC
Greenlee GX10-GPC GX10 10k Tugger Package with VersiBoom and Pull Connect
$16,803.00
$22,404.00
Unit price
/
Unavailable
Description
Description
Greenlee GX10-GPC Description

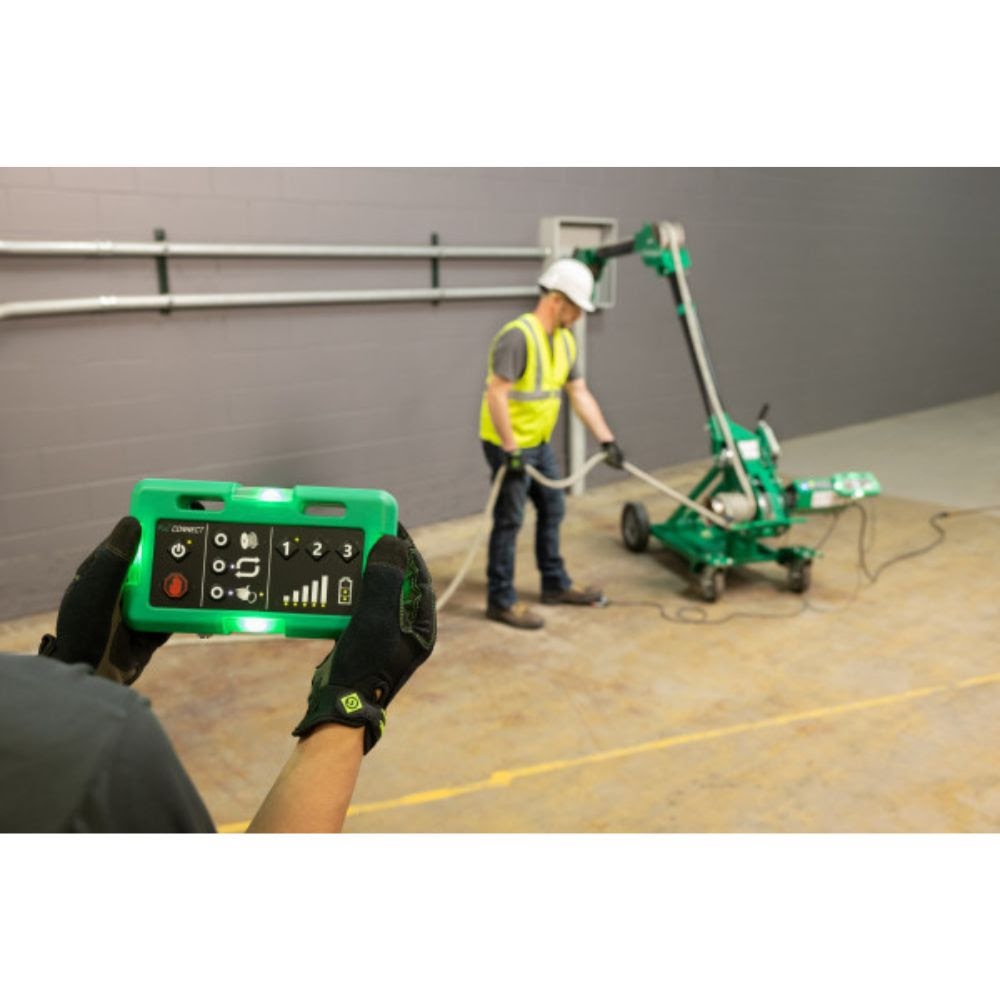

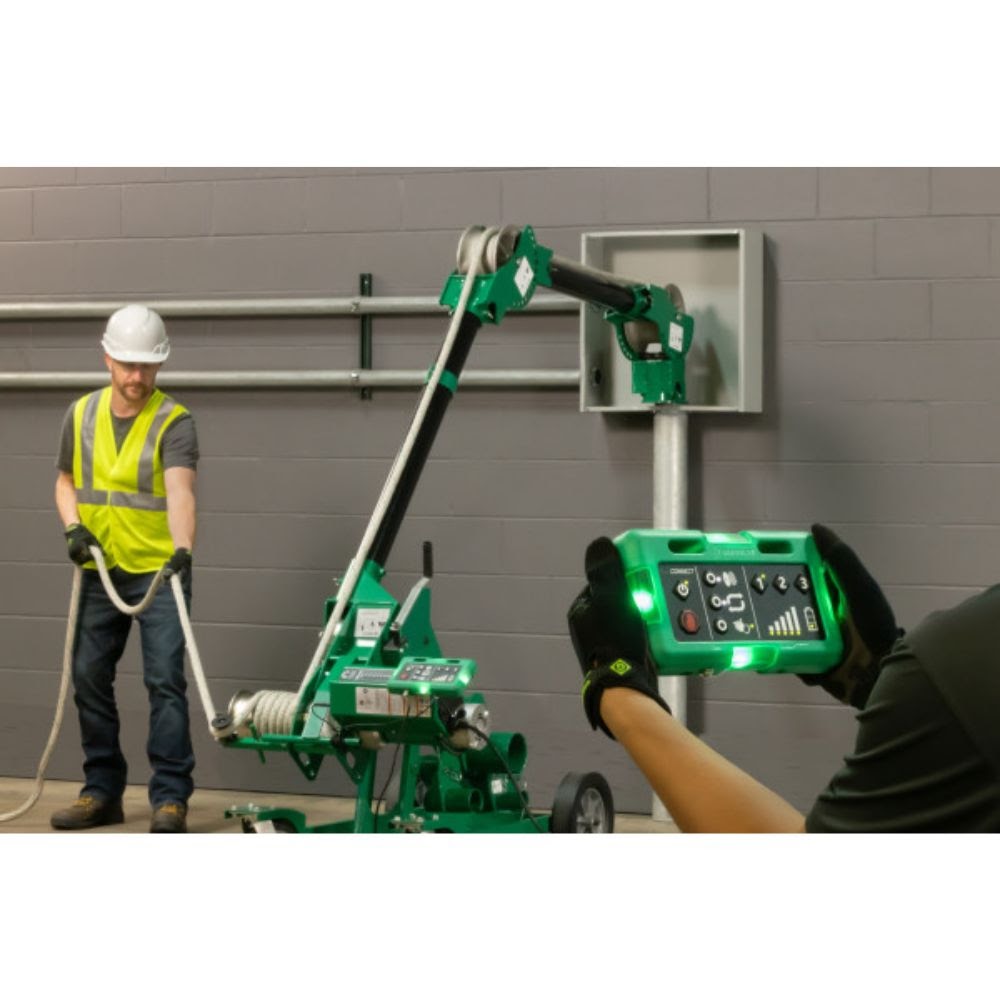

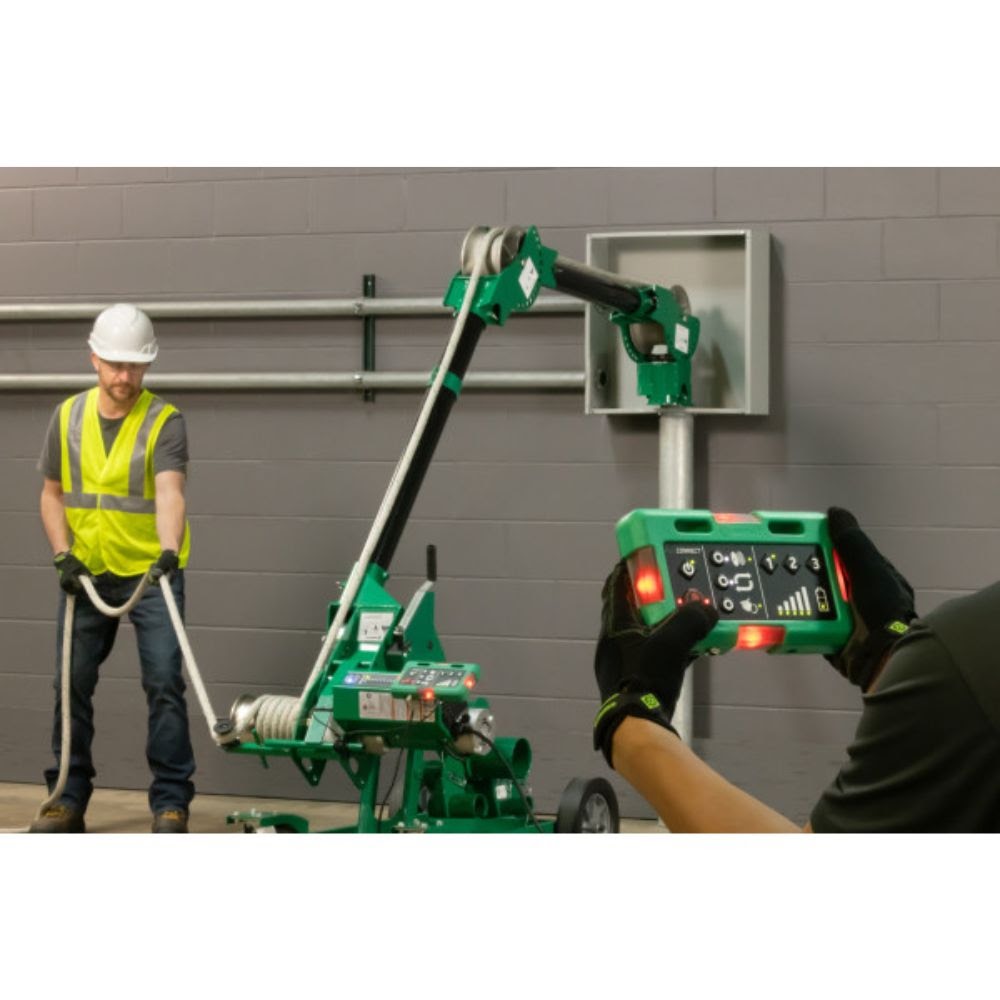

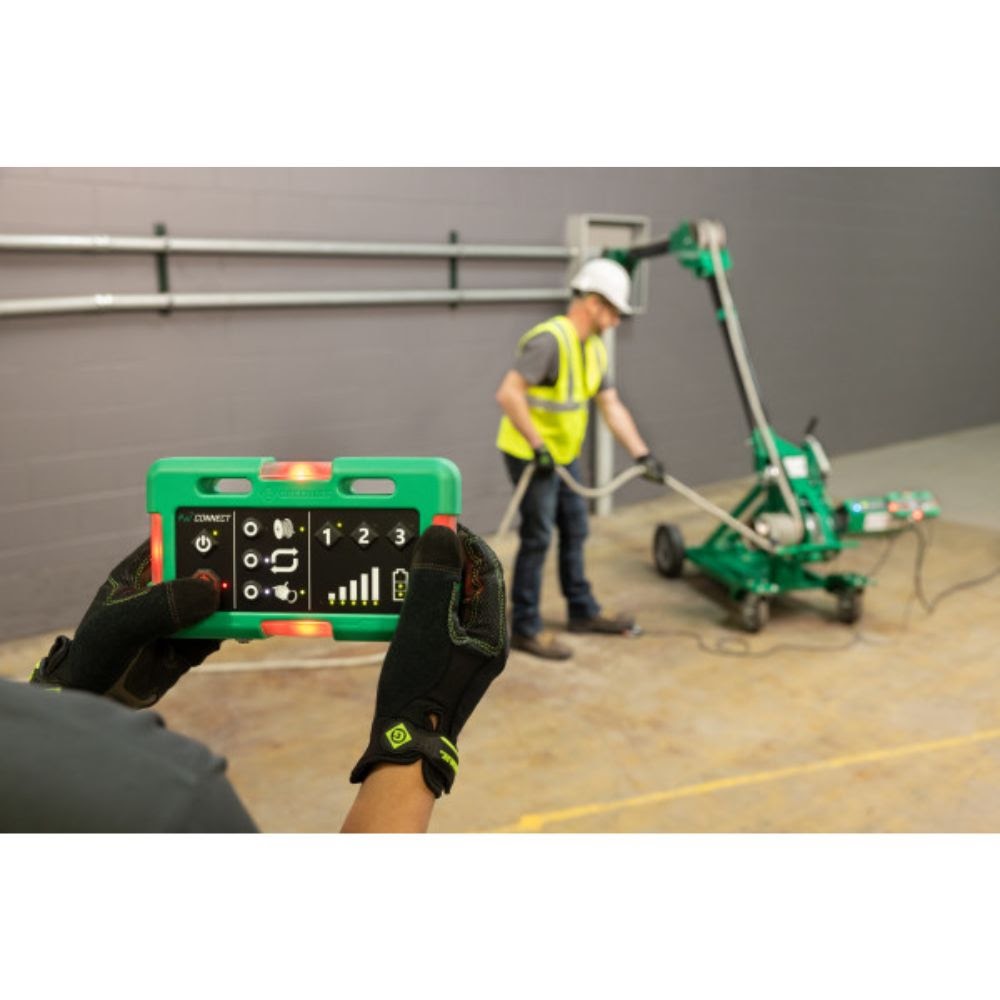

The Greenlee GX10-GPC is capable of 10,000 LB of pulling force from its new specialized dual-speed motor. Delivering up to double the pulling speed and a higher continuous pull rating than legacy tuggers, the GX10 allows completion of the job faster resulting in cost savings. The UL-approved motor can change speeds with a simple double-tap of the footswitch and the LED pull force indicator gives the operator unmatched control. Included is the Moble VersiBoom and Pull Connect, an accessory that provides communication and synchronization between the pulling and feeding locations.

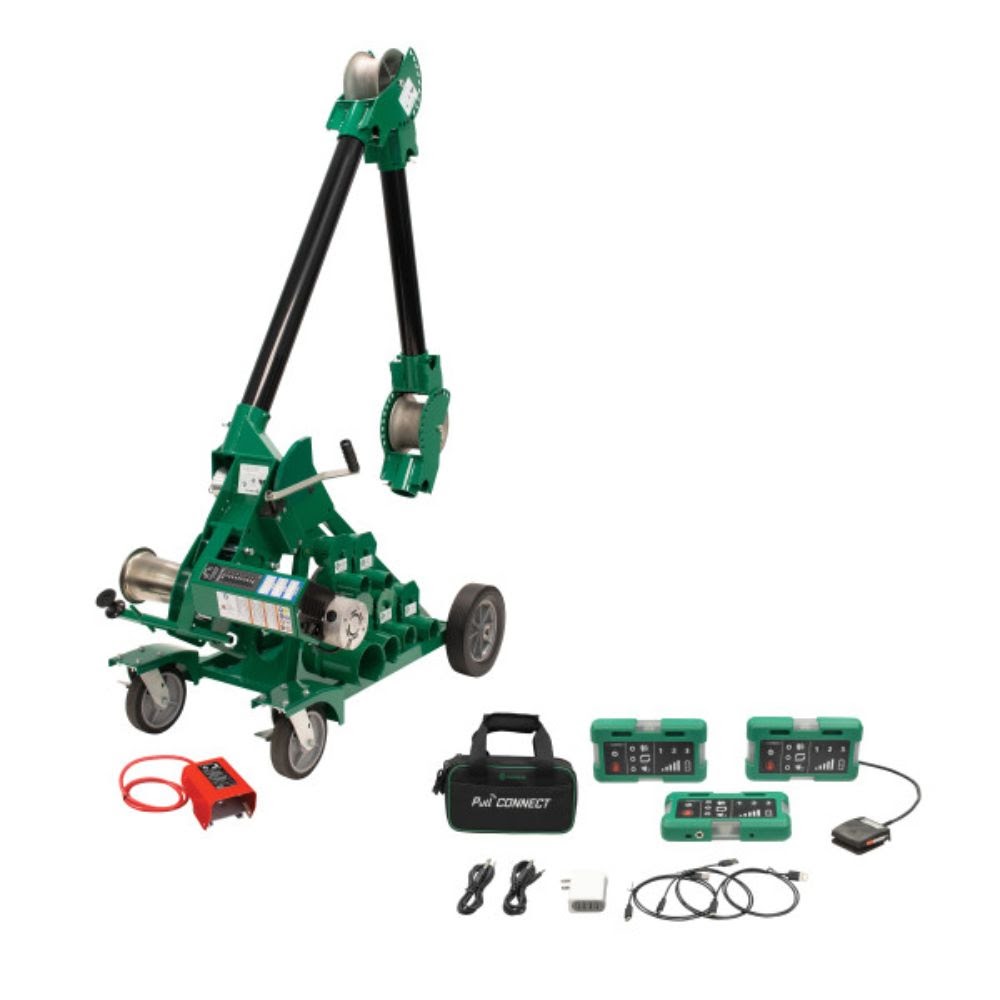

Greenlee GX10-GPC Includes
- (1) GX10 10k Tugger™
- (1) Mobile VersiBoom™
- (3) Adapters (2-1/2", 3", 4")
- (1) Heavy-Duty G-294 Foot Switch
- (1) Pull Connect 3-Piece Kit
Greenlee GX10-GPC Features
- The GX10 Tugger offers up to 2X the speed and a higher max continuous pull force, allowing the motor to leverage that speed for a longer period without cycling on/off to cool down.
- New dual-speed motor allows for faster continuous pulls, increasing productivity and reducing the risk of injury and strain
- 10,000 lbs. peak pulling force with a continuous pulling rating of 8,000 lbs

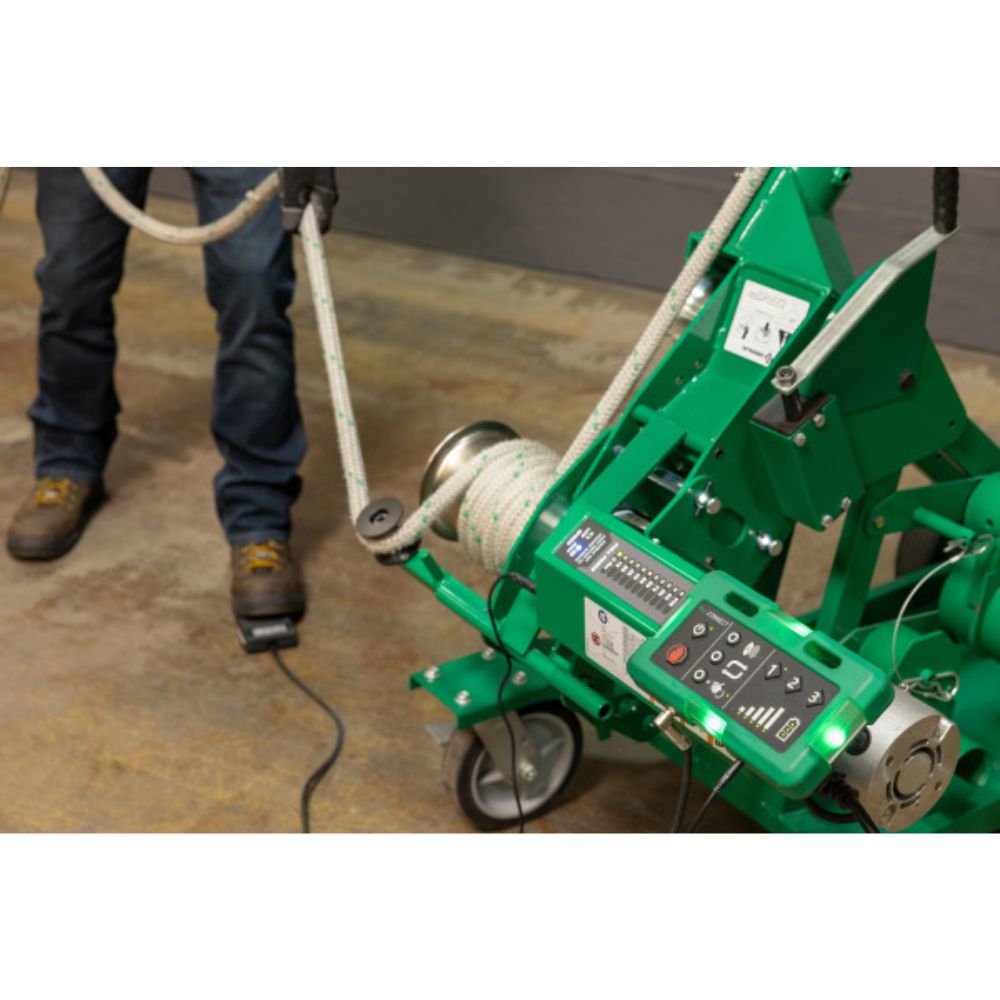

- Force Indicator displays tugger force in real-time to provide visual communication of pulling force and speed changes
- Available Chain Mount, Floor Mount, Boom Mount (MVB) adds versatility and adaptability
- GX10 is compatible with Greenlee UT10 mounts, foot pedals and accessories
- Multi-purpose footswitch controls speed and start/stop operation, keeping the operator out of the line of fire
- Sets up in less than 2 minutes and can be used in every pulling situation.
- The only UL listed 2 speed puller on the market
Greenlee GX10-GPC Specifications
| Load: | 10,000 lbs Peak Pulling Force with a Continuous Pulling Rating of 6,500 lbs |
| Voltage: | 120 VAC, 50/60 Hz |
| Amperage: | 20A |
| Application: | Electrical Cable Pulling |
| Color: | Green, Black |
| Shape: | Rectangle |
| Material: | Steel, Aluminum, Rubber |
| Number of Handles: | 1 |
| Handle Type: | Normal |
| Length: | 50" |
| Width: | 30" |
| Height: | 74" |
