At a Glance
RPM
1050 RPM
Chuck Type
SDS-Plus
Drilling Capacity
7/8 in
For Use On
Concrete
Description
Description
INCLUDES:
• (1) Impact Wrench
FEATURES:
• Adjustable flow control prevents overspeeding and allows precise control of drilling speed
• Supports speeds up to 5,400 bpm, generating 13% more blows per minute to help you get the job done quicker
• Improved design for better balance and ergonomics

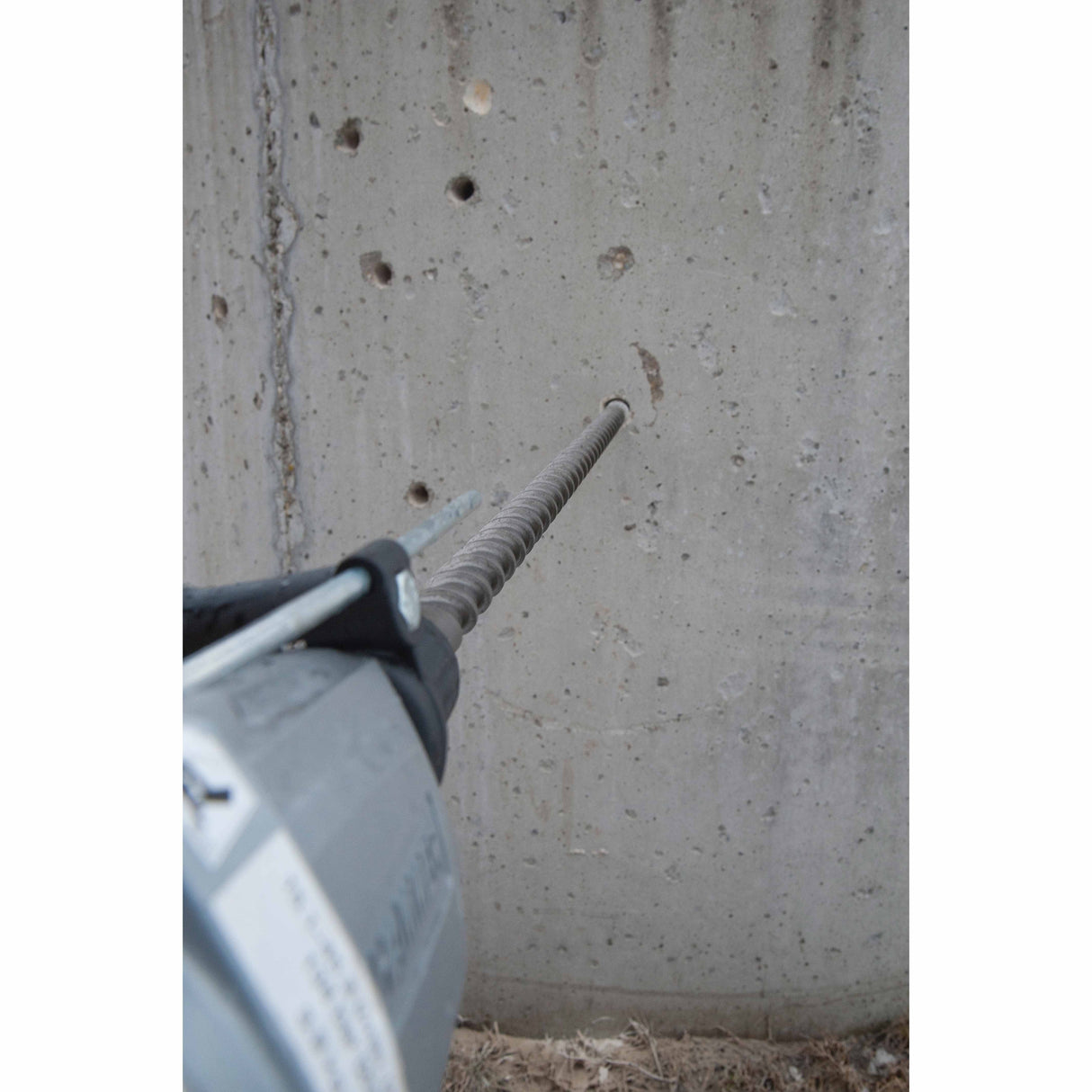

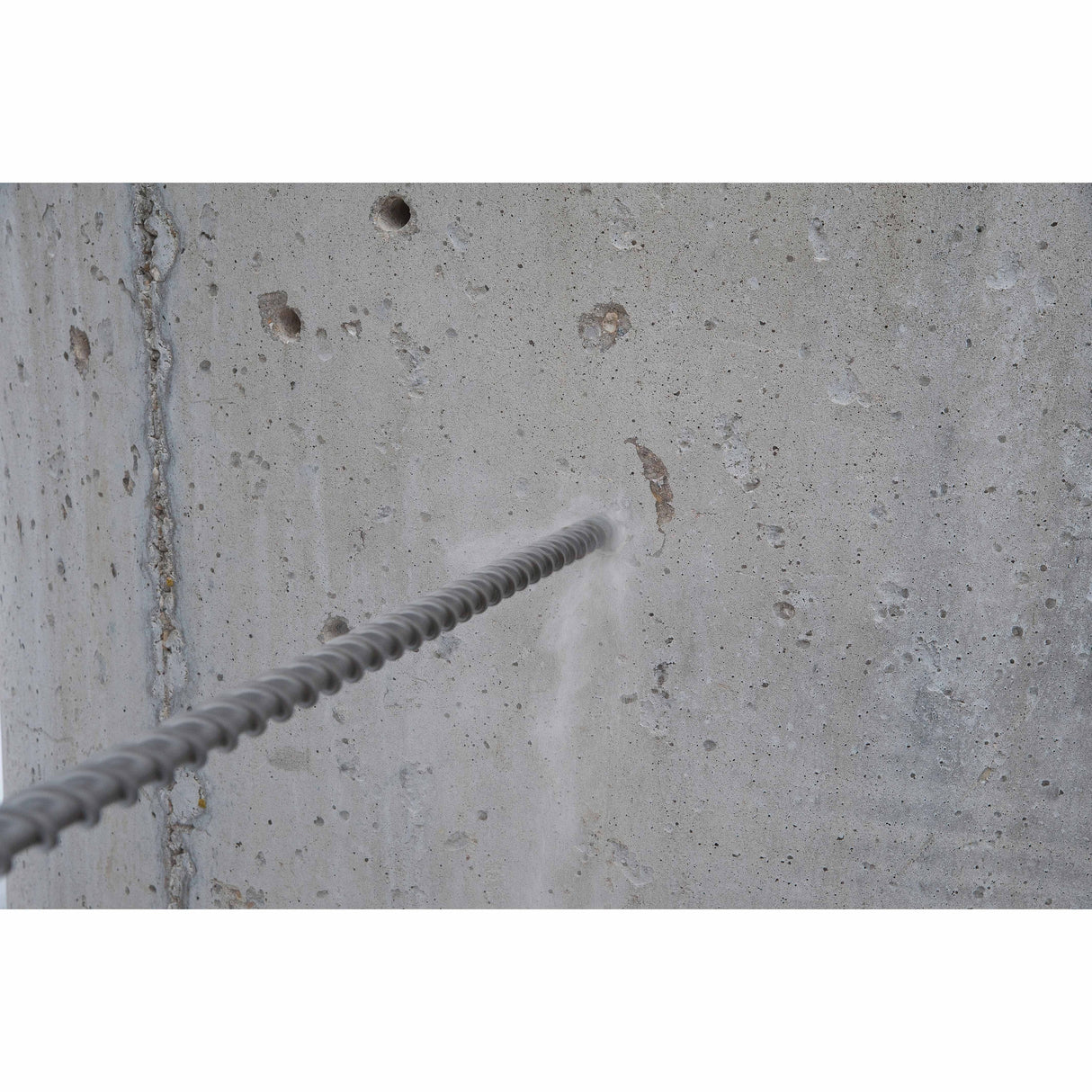

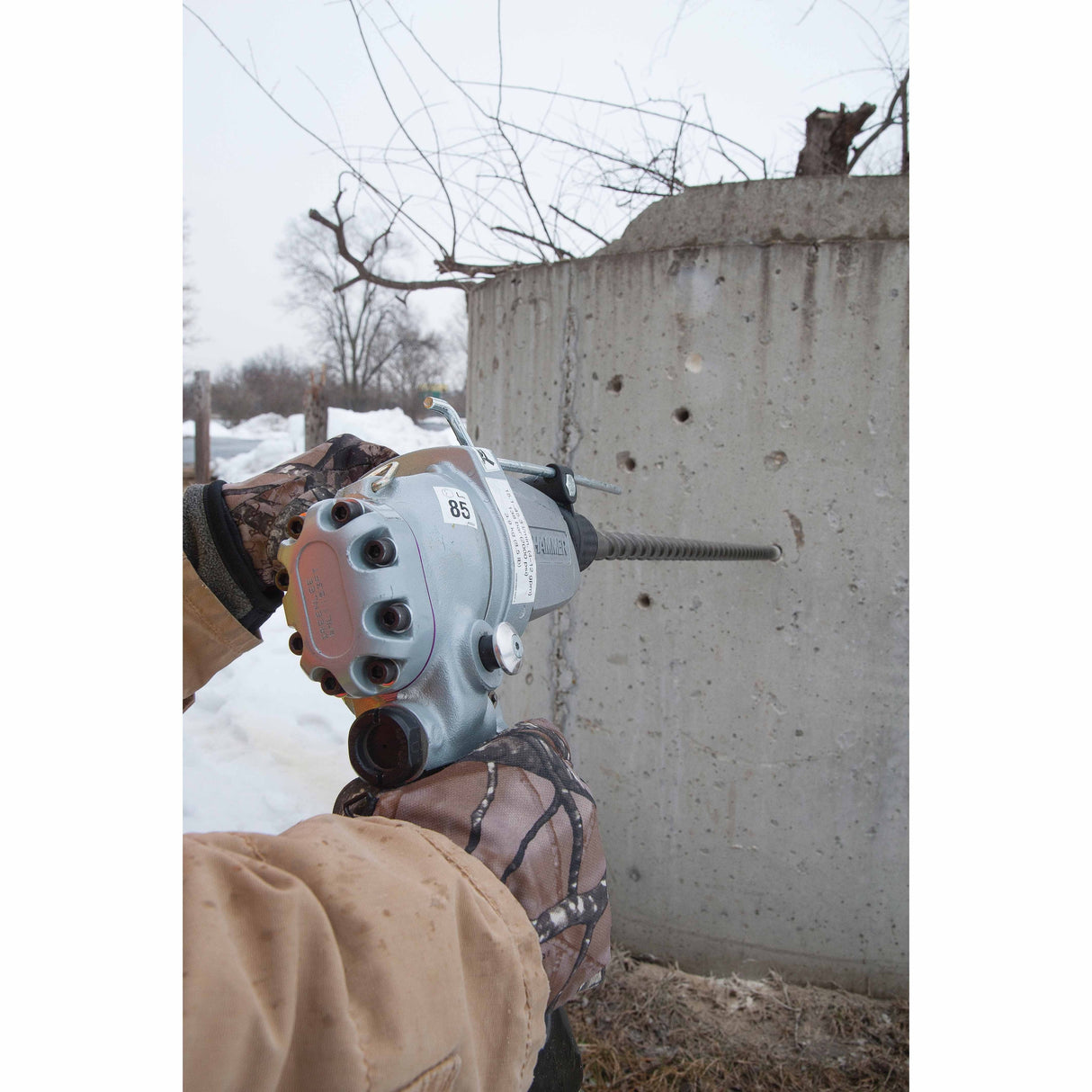

• Hammer drill in concrete, brick, rock, and other difficult-to-drill materials. Makes 16% larger holes in concrete and 11% larger holes in wood
• Drill in wood or steel with auxiliary chuck
• Super Spool selector control for use on Open- and Closed-Center hydraulic systems
• Selector for drill or hammer/drill modes
• Rugged gear motor
• Built-in slip clutch to guard against over-torque

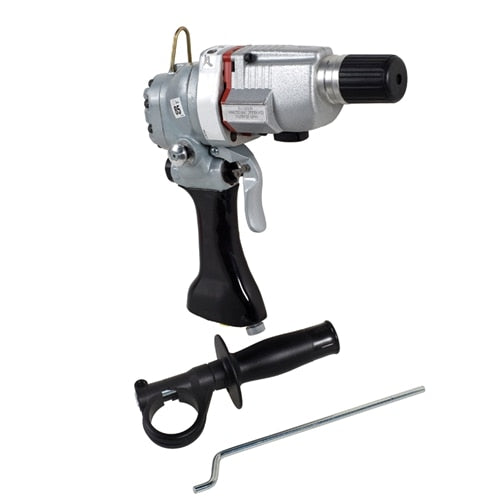

• Depth gauge and auxiliary handle are removable for tight areas
• Reversible
SPECIFICATIONS:
• Capacity: Concrete - 7/8" (22 mm) hole, Steel - 1/2" (13 mm) hole, Wood - 1-1/8" (30 mm) hole, Core Bit - 2-5/8" (68 mm)
• System: Super Spool™ Selector Control
• Chuck: SDS Plus Bit Shanks
• Length: 11.2" (285 mm)
• Width: 3.5" (89 mm)
• Height: 11" (280 mm)
• Flow Range: 4 - 12 gpm (15.1 - 45.4 lpm)
• Operating Pressure: 1,000 - 2,000 psi (69-140 bar)
• Pressure: Port Thd.: 3/4-16 SAE O-ring Boss
• Return Port Thd.: 3/4-16 SAE O-ring Boss
• RPM: 900 - 1,050 rpm at 6 gpm (22.7 lpm)
• Blows Per Minute: 5400 at 6 gpm (22.7 lpm)
• (1) Impact Wrench
FEATURES:
• Adjustable flow control prevents overspeeding and allows precise control of drilling speed
• Supports speeds up to 5,400 bpm, generating 13% more blows per minute to help you get the job done quicker
• Improved design for better balance and ergonomics
• Hammer drill in concrete, brick, rock, and other difficult-to-drill materials. Makes 16% larger holes in concrete and 11% larger holes in wood
• Drill in wood or steel with auxiliary chuck
• Super Spool selector control for use on Open- and Closed-Center hydraulic systems
• Selector for drill or hammer/drill modes
• Rugged gear motor
• Built-in slip clutch to guard against over-torque
• Depth gauge and auxiliary handle are removable for tight areas
• Reversible
SPECIFICATIONS:
• Capacity: Concrete - 7/8" (22 mm) hole, Steel - 1/2" (13 mm) hole, Wood - 1-1/8" (30 mm) hole, Core Bit - 2-5/8" (68 mm)
• System: Super Spool™ Selector Control
• Chuck: SDS Plus Bit Shanks
• Length: 11.2" (285 mm)
• Width: 3.5" (89 mm)
• Height: 11" (280 mm)
• Flow Range: 4 - 12 gpm (15.1 - 45.4 lpm)
• Operating Pressure: 1,000 - 2,000 psi (69-140 bar)
• Pressure: Port Thd.: 3/4-16 SAE O-ring Boss
• Return Port Thd.: 3/4-16 SAE O-ring Boss
• RPM: 900 - 1,050 rpm at 6 gpm (22.7 lpm)
• Blows Per Minute: 5400 at 6 gpm (22.7 lpm)
Toolup Part # :
18162
