At a Glance
Maximum Jaw Capacity
5/8 in
Description
Description

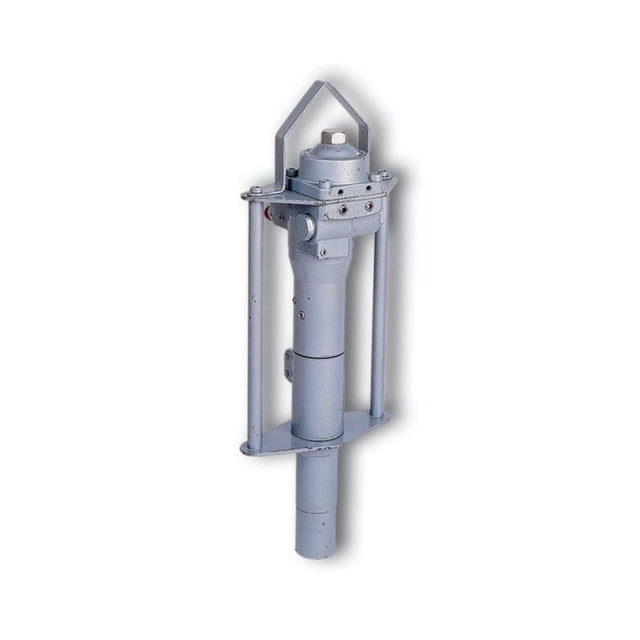

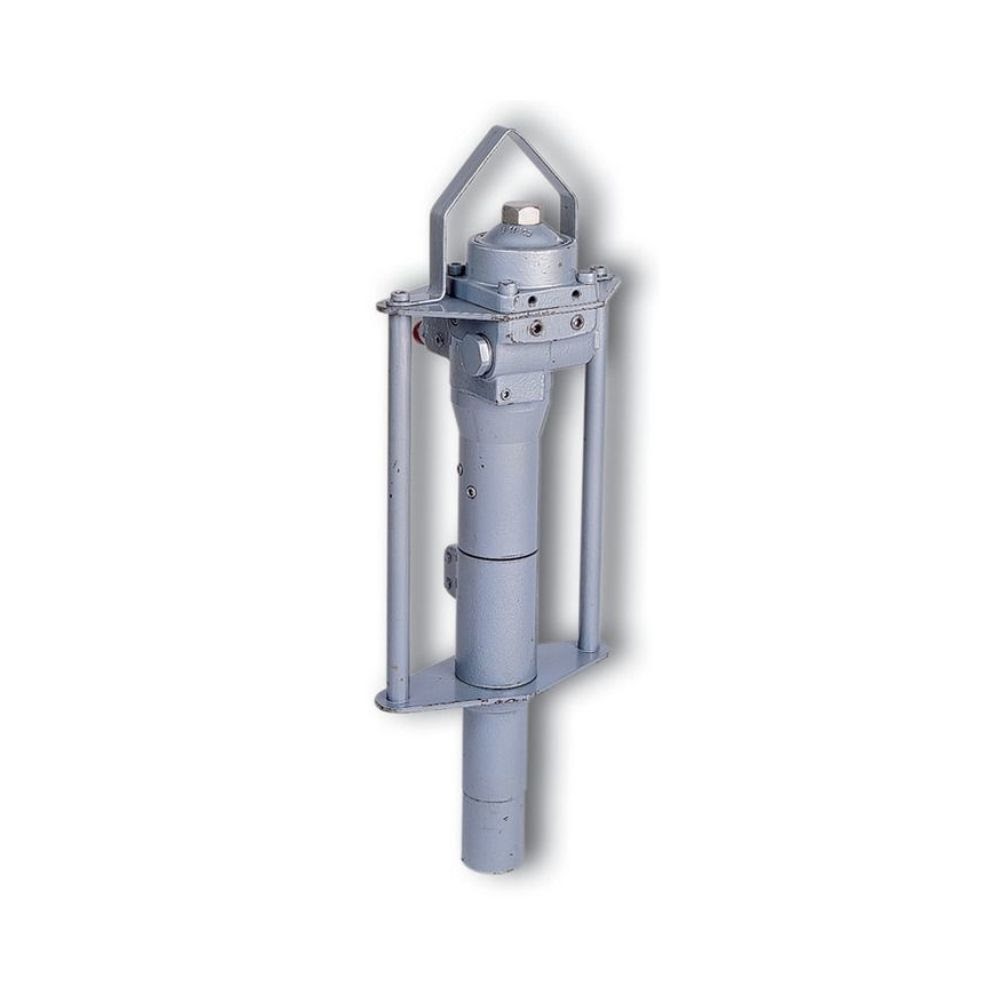

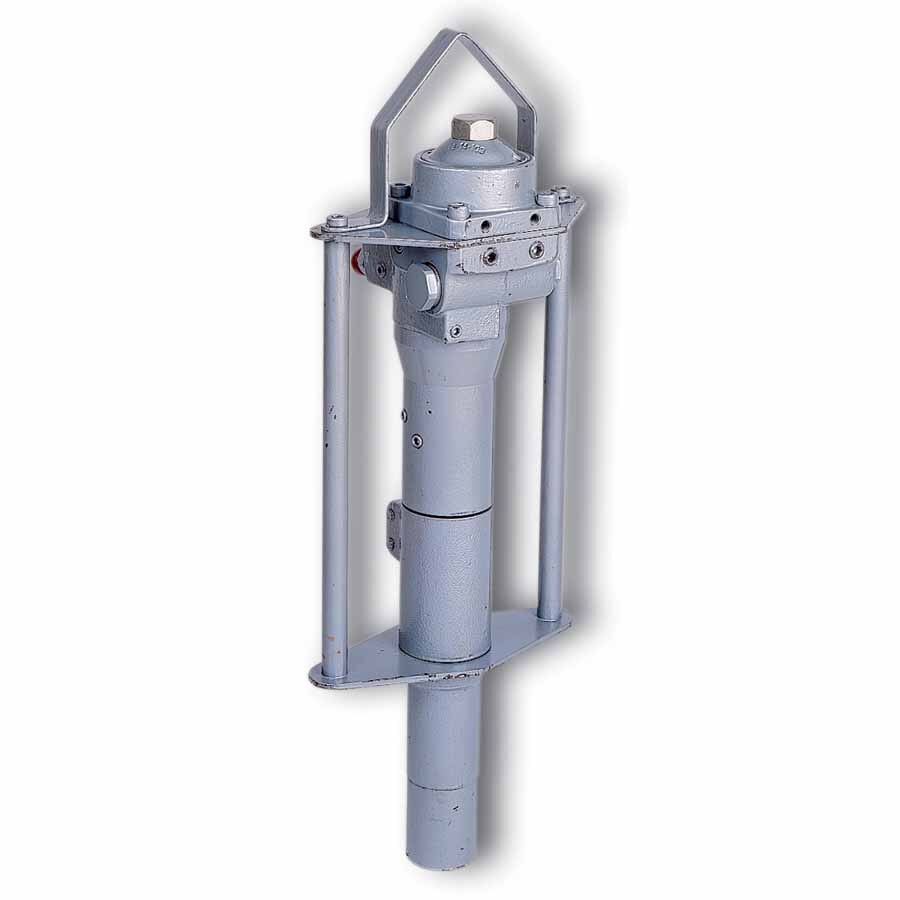

Greenlee HRD-58 Description
The precise Greenlee Ground Rod Driver 5/8" (16 mm) Opening with Valve, has a deep rod opening and smooth operation to ensure that the driver will not jump off of the rod. It has light weight and allows easy mounting on top of rods.
Greenlee HRD-58 Includes
- (1) Rod Driver
Greenlee HRD-58 Features
- A deep rod opening and smooth operation ensures that the driver will not jump off of rods
- Light weight allows easy mounting on top of rods
- Can be used with Open and Closed-Center hydraulic systems
- Dual guide rods provide excellent control for driving rods straight, and the remote on/off valve makes it easy to control the depth of the rod
Greenlee HRD-58 Specifications
| Blow Energy | 63 ft-lb (85 J) |
| Blow Frequency | 1740/MIN At 8 GPM (30 LPM) |
| Hose Length | 70" (178 cm) |
| Hydraulic Flow Range | 5 - 8 GPM (19 - 30 LPM) |
| Hydraulic System | Open and Closed-Center |
| Jaw Opening | 5/8" (16 mm) |
| Length | 25-1/2" (654 mm) |
| Maximum Input Pressure | 2000 PSI (138 BAR) |
| Pressure Port | 9/16 - 18 SAE O-Ring On/Off Valve |
| Replacement Part | 02872 70" Hose Assembly, 111952 Remote Valve |
| Return Port | 3/4 - 16 SAE O-Ring On/Off Valve |
| Type | HRD Ground Rod |
| Accessory | 54923 HTMA Male Coupler, 54924 HTMA Female Coupler |
Toolup Part # :
134172
