Greenlee | SKU:
52079421
Greenlee LS100X11SS4X Intelli-Punch 11-Ton Tool with SlugSplitter Knockouts 1/2" to 3" and 4"
Free Shipping
$2,688.00
$3,200.00
Unit price
/
Unavailable
Description
Description
Greenlee LS100X11SS4X Description

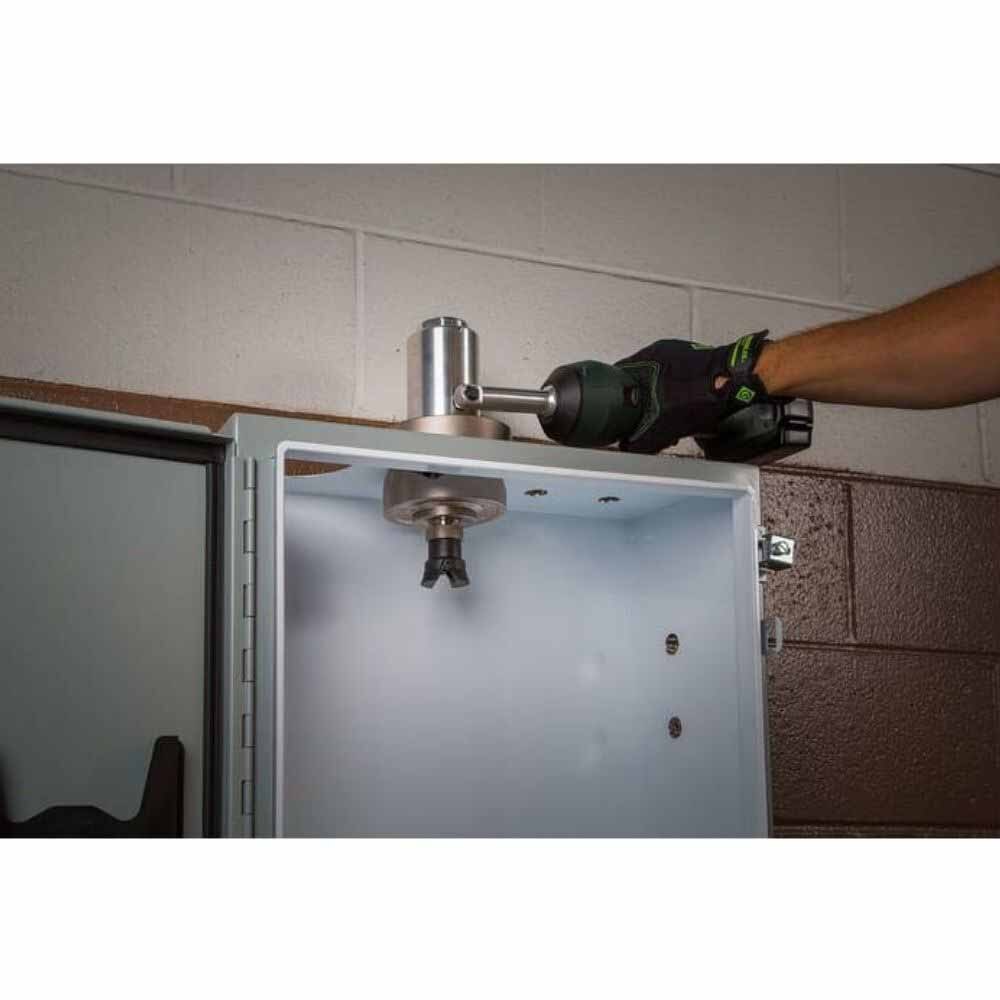

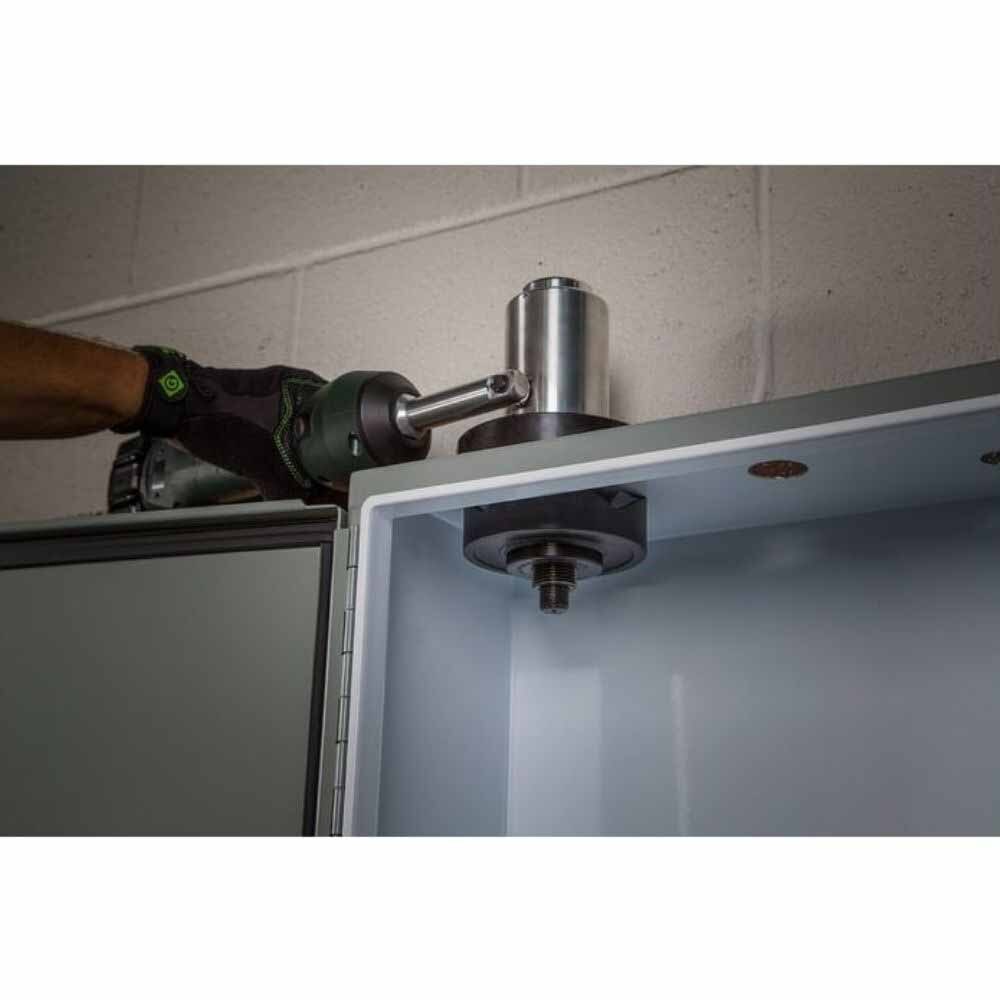

The Greenlee Intelli-Punch 11 ton driver is a hand-held, self-contained knockout driver intended to be used with Greenlee punches, dies, and draw studs for punching holes through mild steel, stainless steel, brass, copper, aluminum, fiberglass, and plastics.

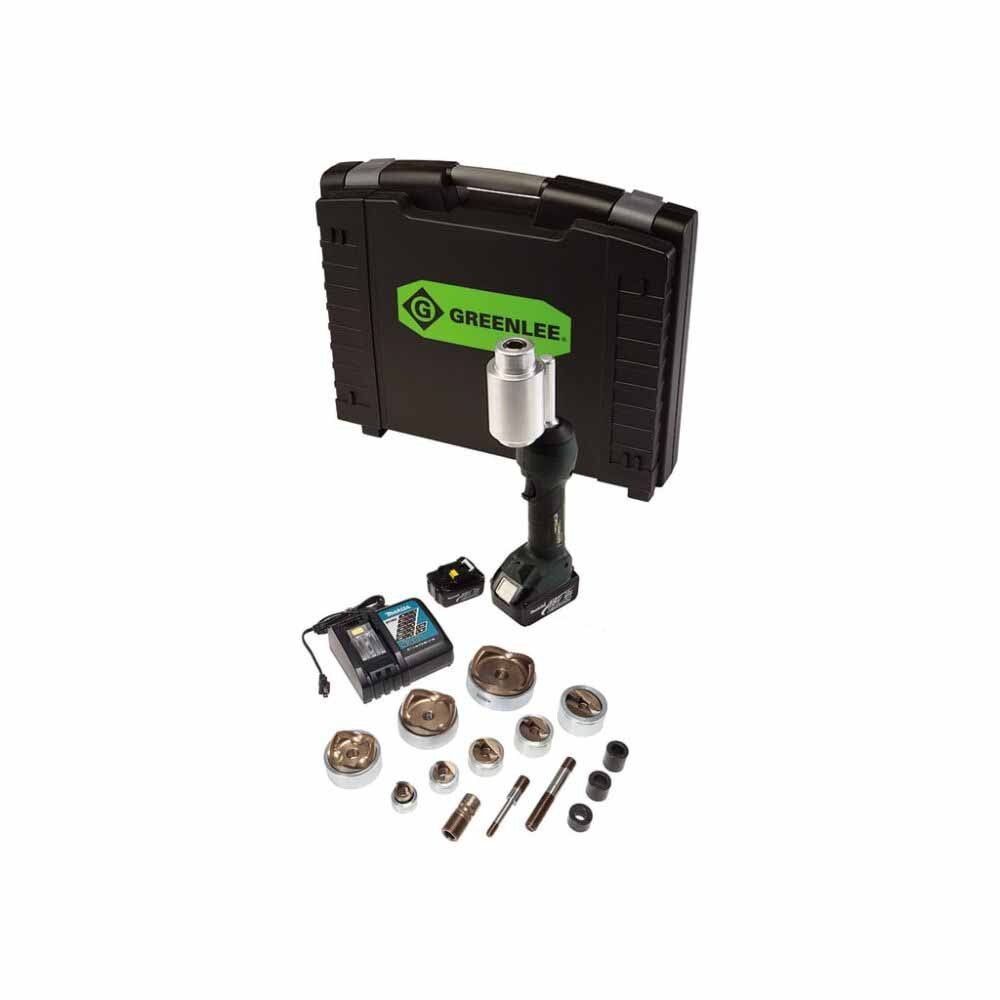

Greenlee LS100X11SS4X Includes
- (1) Slug Splitter Punch and Die (0.5, 0.75, 1, 1.25, 1.5, 2")
- (1) Stainless Steel Punch and Die (2.5, 3, 4")
- (1) 7/16" x 4-1/4" Hydraulic Draw Stud
- (1) 3/4" x 5-1/2" Hydraulic Draw Stud
- (1) 1557SS - Sleeve Adapter
- (1) 1926AA - Spacer-Long

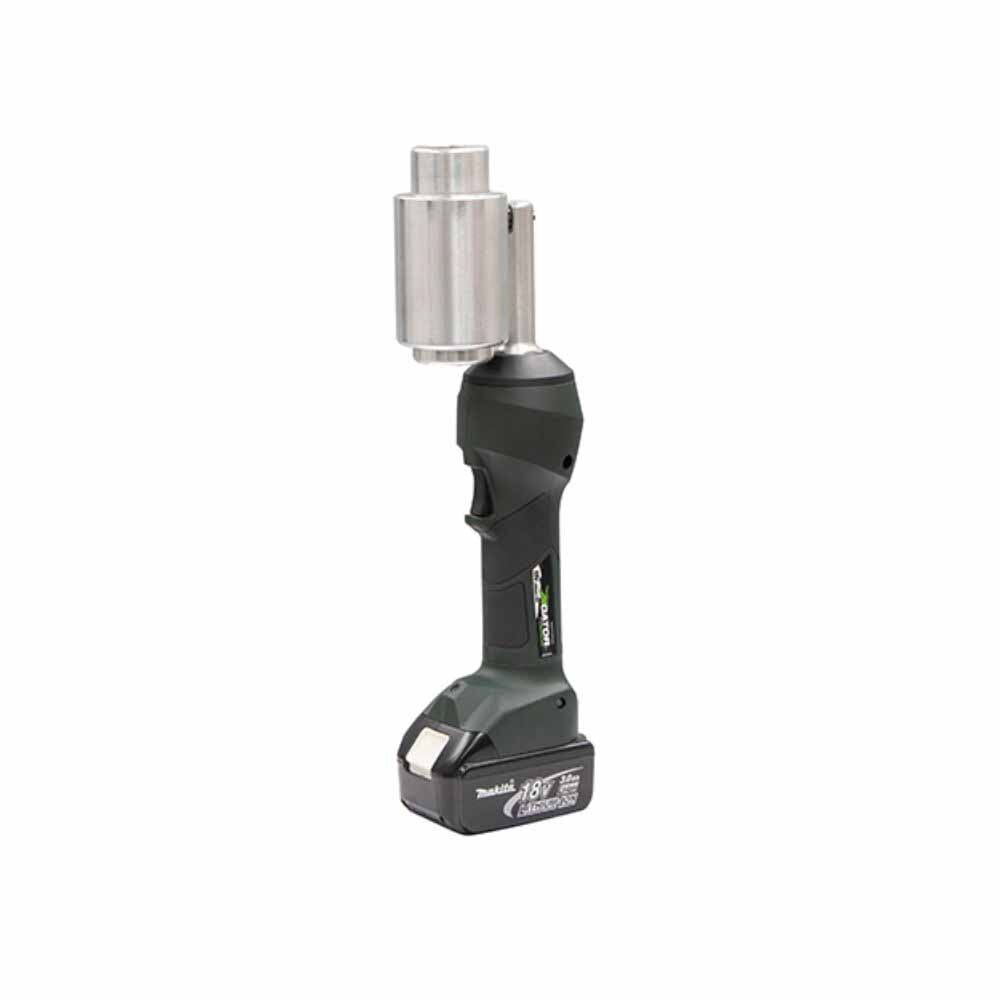

- (1) LS100X Driver
- (2) 18V Li-ion 3.0Ah Battery
- (1) 120V AC Charger
- (1) Case
Greenlee LS100X11SS4X Features
- Patented Pressure-Sensing and Auto-Retract Technologies - Intelli-PUNCH™ accurately detects punch completion and automatically retracts the ram, preventing damage to punch parts

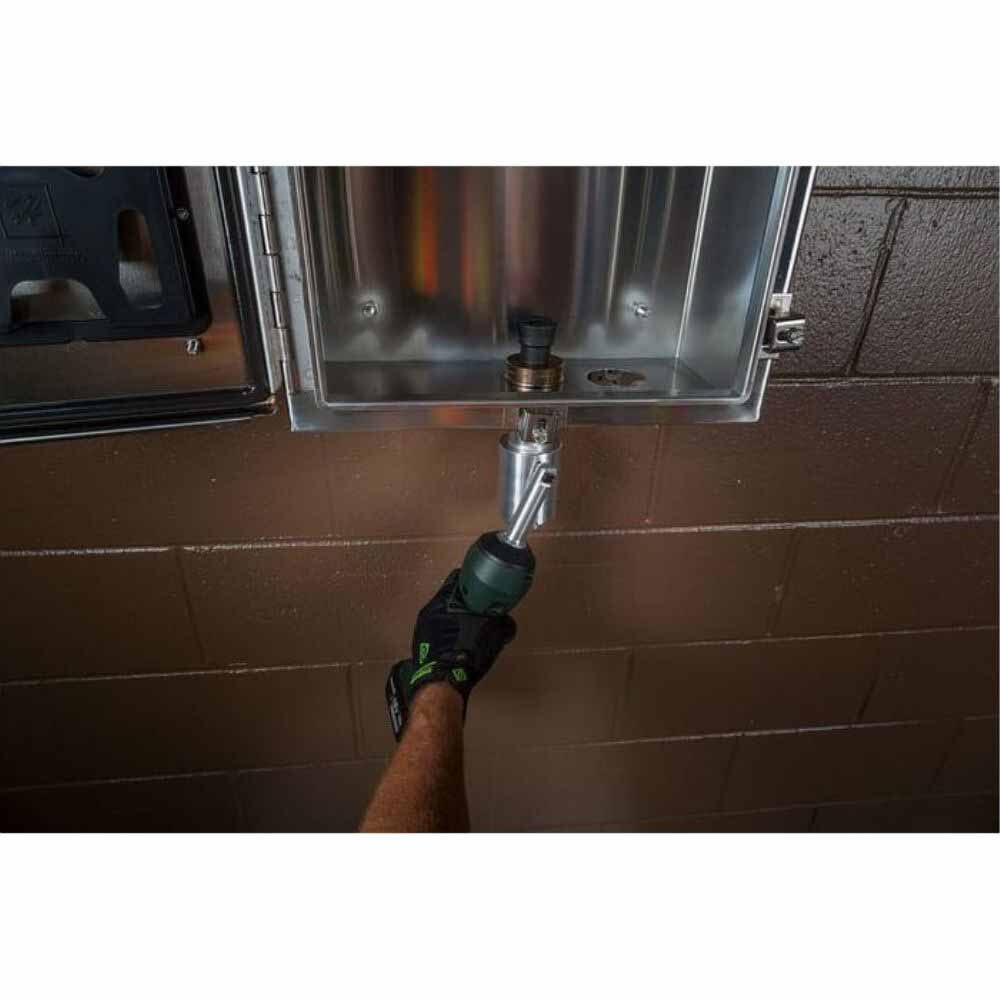

- 360° Rotating Head - Rugged, patent-pending swivel design to punch at any angle
- Time Saver - Punch faster with a maximum cycle time of 8 seconds
- Compact, Ergonomic Design - Provides easy one-handed operation and an ergonomic tapered grip
- Compatible - Works with all Greenlee Knockouts and other brands designed for use with a hydraulic tool
- Gator Eye Compatible - With iPress™ software, monitor tool performance - peak force, number of cycles, etc
Greenlee LS100X11SS4X Specifications
| Type | Battery-Hydraulic Punch Driver |
| Size | 1/2 - 3" and 4" Slug Splitter® SC Punches, Dies, Draw Studs and Spacers |
| Application | Punch Conduit Size Holes in Mild Steel, Stainless Steel, Aluminum, Fiberglass and Plastic |
| Sub Brand | Intelli-PUNCH™ |
| Maximum Operating Force | 11 ton |
| Handle Type | Ergonomic/Tapered Grip |
| Control Type | Single Trigger |
| Maximum Capacity Mild Steel | 10 gauge |
| Operation Type | Battery-Hydraulic |
