At a Glance
Crimp Force
6.2 ton
Crimp Type
Hydraulic
Sold As
Set/Kit
For Use On
Copper
For Use With
Hydraulic Pump
Color
Black/Green
Description
Description

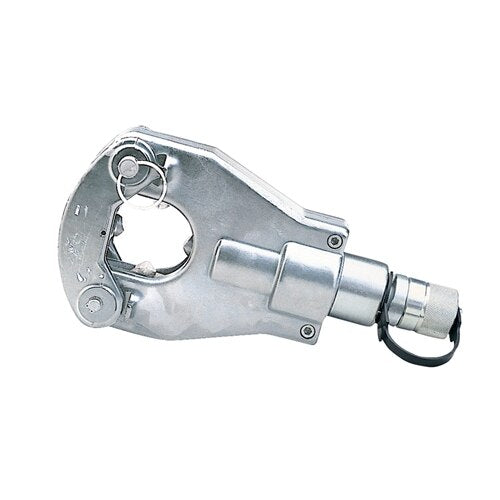

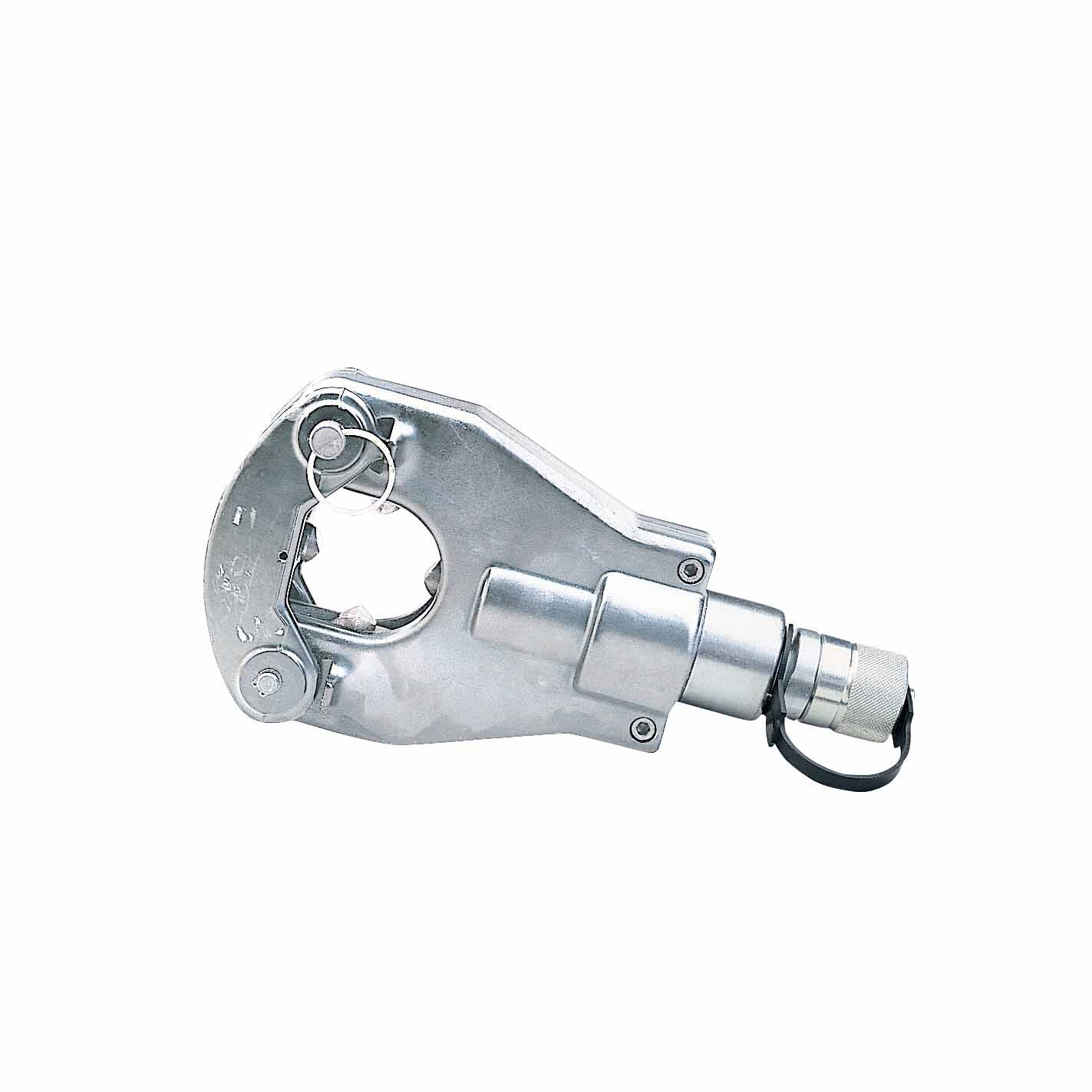

Greenlee RK06FT Specifications:
Capacities:
• Copper color-coded lugs and splices: #6 AWG - 500 MCM (750 MCM for RK06FT)
• Aluminum color-coded lugs and splices: #6 AWG - 400 MCM (750 MCM for RK06FT)
• 5/8 in. Aluminum Service Entrance Sleeves: #8 AWG - 1/0
• .840 in. Aluminum Service Entrance Sleeves: #4 AWG - 350 MCM
• Crimping Force 6.2 tons (55 kN)
• Length: 10-1/2 in. (267 mm)
Greenlee RK06FT Description:
• Utilize four indentors to make the crimp.
• Operates from 10,000 psi (700 bar) hydraulic pumping sources.
• Small and lightweight for difficult to reach locations.
• Equipped with 3/8 in. male screw-type couplers.
• Flip-top style uses a pull pin to open head for easy removal from the connector.
• Includes steel carrying case, test gauge and test slugs.
Capacities:
• Copper color-coded lugs and splices: #6 AWG - 500 MCM (750 MCM for RK06FT)
• Aluminum color-coded lugs and splices: #6 AWG - 400 MCM (750 MCM for RK06FT)
• 5/8 in. Aluminum Service Entrance Sleeves: #8 AWG - 1/0
• .840 in. Aluminum Service Entrance Sleeves: #4 AWG - 350 MCM
• Crimping Force 6.2 tons (55 kN)
• Length: 10-1/2 in. (267 mm)
Greenlee RK06FT Description:
• Utilize four indentors to make the crimp.
• Operates from 10,000 psi (700 bar) hydraulic pumping sources.
• Small and lightweight for difficult to reach locations.
• Equipped with 3/8 in. male screw-type couplers.
• Flip-top style uses a pull pin to open head for easy removal from the connector.
• Includes steel carrying case, test gauge and test slugs.
Toolup Part # :
19882
